عربىHKR-S

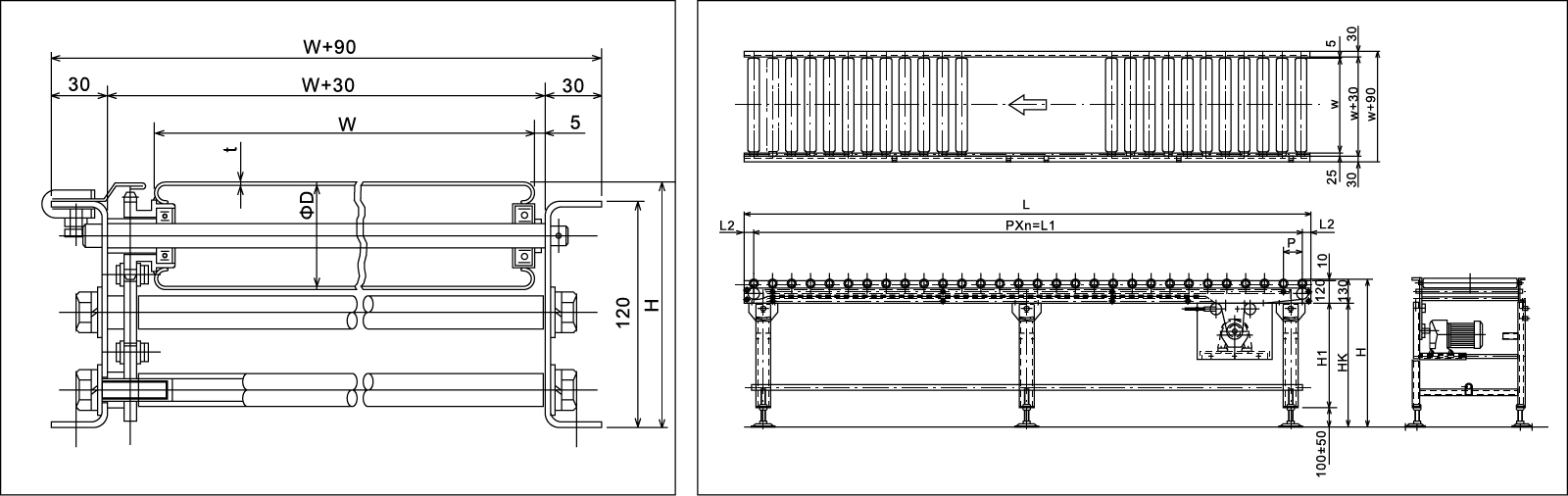

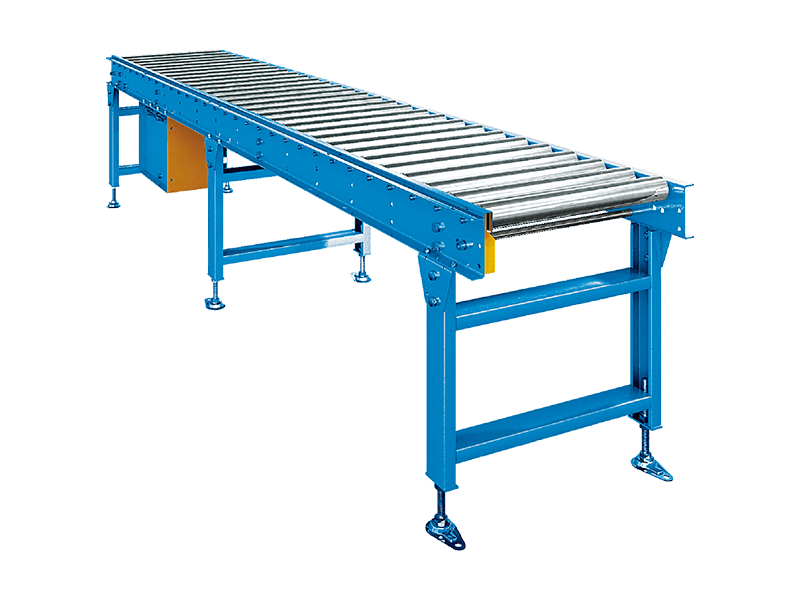

Cat:Chain Driving Roller Conveyor
Model HKR-384010S HKR-574010S HKR-604010S HKR-605011S HKR-765011S HKR-765013S HKR-895013S HKR-766...
See Details
Chain Driving Roller Conveyors Suppliers
The chain-driven roller conveyor is a common powered roller conveyor. It is divided into single and double sprocket types based on chain configuration. Single chain conveyors are suitable for densely packed rollers, while double chain conveyors are widely used and organized according to chain pitch.
-
Model HKR-384010S HKR-574010S HKR-604010S HKR-605011S HKR-765011S HKR-765013S HKR-895013S HKR-766009S HKR-1146014S HKR-1406016S Roller size D*t*d 38×2.3×12 57×2.1×12 60×2.3×12 60×3.8×15 76×4.2×15 76×4.2×20 89×4.2×20 76×4.2×17 114×4.5×25 140×4.5×30 Roller width W(mm) 100~800 100~1000 100~1000 100～1000 100～1000 100～1000 100～2000 300～2000 300～2000 300～2000 Roller pitch P(mm) 75 · 100 · 150 75 · 100 · 150 75 · 100 · 150 75 · 100 · 150 100 · 150 · 200 100 · 150 · 200 100 · 150 · 200 · 300 100 · 150 · 200 · 300 200 · 300 ·400 200 · 300 ·400 Frame size 1*K*t 120×30×3.2 120×30×3.2 120×30×3.2 150×50×4.5 150×50×4.5 1150×50×4.5 150×50×4.5 150×50×4.5 200×50×6.0 200×50×6.0 Sprocket Type*Mentions #40×10TS #40×10TS #40×10TS #50×11TS #50×11TS #50×13TS #50×13TS #60×9TS #60×14TS #60×16TS Length L(m) max12 max12 max12 max20 max9 max9 max9 max12 max10 max10 Height H(mm) min450 min450 min450 min500 min500 min500 min500 min500 min600 min600 Capability (kg/m) max100 max100 max100 max500 max500 max1000 max1000 max700 max1000 max1500 Speed V(m/min) max25 max25 max25 max20 max20 max20 max20 max20 max20 ma×20 Motor power (KW) 0.2 · 0.4 · 0.75 0.2 · 0.4 · 0.75 0.2 · 0.4 · 0.75 0.2 · 0.4 · 0.75 · 1.5 0.2 · 0.4 · 0.75 · 1.5 0.2 · 0.4 · 0.75 · 1.5 0.2 · 04 · 0.75 · 1.5 0.2 · 0.4 · 0.75 · 1.5 0.2 · 0.4 · 0.75 · 1.5 0.2 · 0.4 · 0.75 · 1.5
-

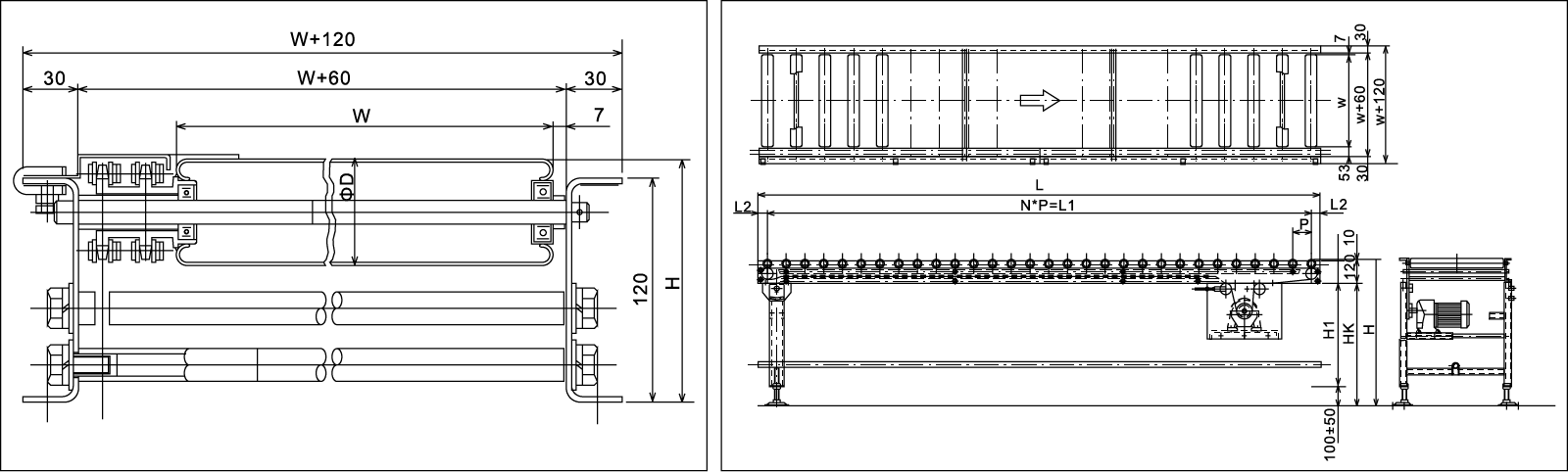

HKR-SW
Cat:Chain Driving Roller Conveyor
Model HKR-384010SW HKR-574010SW HKR-604010SW HKR-605011SW HKR-765011SW HKR-765013SW Roller size...
See DetailsModel HKR-384010SW HKR-574010SW HKR-604010SW HKR-605011SW HKR-765011SW HKR-765013SW Roller size D*t*d 38×2.3×12 57×2.1×12 60×2.3×12 60×3.8×15 76×4.2×15 76×4.2×20 Roller width W(mm) 100~800 100~1000 100~1000 100～1000 100～1000 100～1000 Roller pitch P(mm) 50 · 75 · 100 75 · 100 · 150 75 · 100 · 150 75 · 100 · 150 100 · 200 100 · 200 Frame size 1*K*t 120×30×3.2 120×30×3.2 120×30×3.2 150×50×4.5 150×50×4.5 150×50×4.5 Sprocket Type*Mentions #40×10TSW #40×10TSW #40×10TSW #50×11TSW #50×11TSW #50×13TSW Length L(m) max5 max5 max5 max6 max6 max6 Height H(mm) min450 min450 min450 min500 min500 min500 Capability (kg/m) max100 max100 max100 max300 max300 max700 Speed V(m/min) max25 max25 max25 max20 max20 max20 Motor power (KW) 0.2 · 0.4 · 0.75 0.2 · 0.4 · 0.75 0.2 · 0.4 · 0.75 0.2 ·0.4 · 0.75 · 1.5 0.2 · 0.4 · 0.75 · 1.5 0.2 · 0.4 · 0.75 · 1.5
-

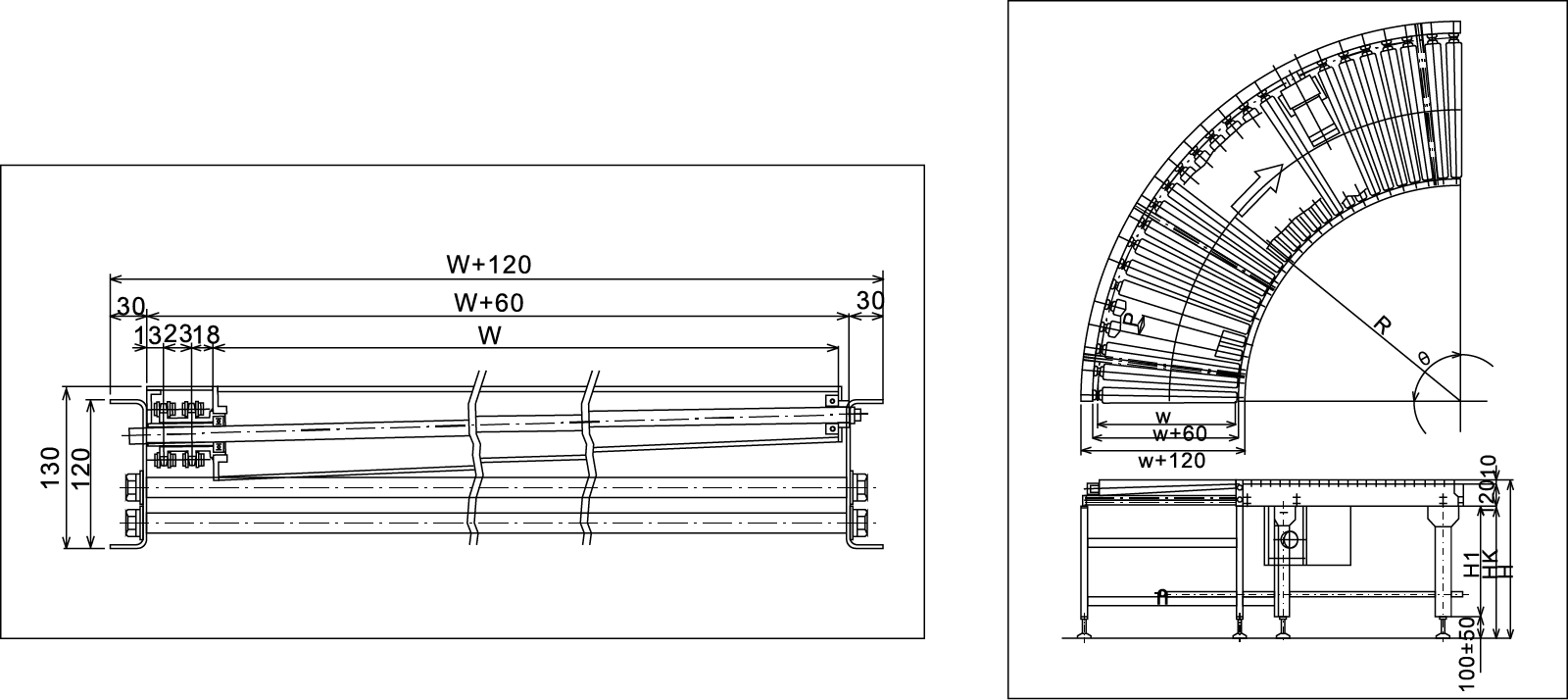

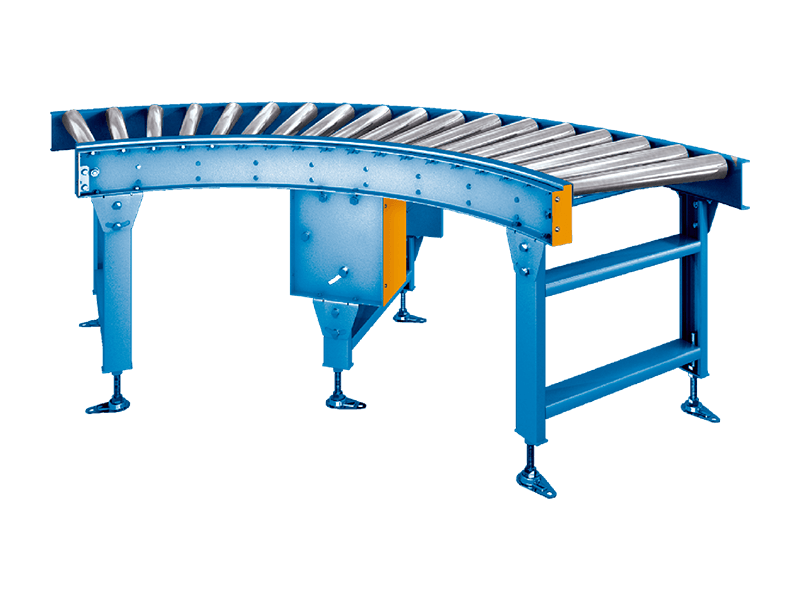

KTR-SW
Cat:Chain Driving Roller Conveyor
Model KTR-1000 KTR-1200 KTR-1500 KTR-1500B KTR-200 Roller size D*t*d 51~40×63~74×12 52~45×62~74...
See DetailsModel KTR-1000 KTR-1200 KTR-1500 KTR-1500B KTR-200 Roller size D*t*d 51~40×63~74×12 52~45×62~74×12 52～48×62~74×12 42.7×76~100×12(15) 50×63~75×12(15) Roller width W(mm) 200~600 200~600 200~600 700~1,200 400~800 Roller pitch P(mm) 75 · 100 · 150 75 · 100 · 150 75 · 100 · 150 100 · 150 100 · 150 Frame size 1*K*t 120×30×3.2 120×30×3.2 120×30×3.2 120×30×3.2 120×30×3.2 Sprocket Type*Mentions #40×10TSW #40×10TSW #40×10TSW #40×10TSW #40×10TSW Length L(m) 1000×90° · 60° · 45° 1200×90° · 60° · 45° 1500×90° · 60° · 45° 1500×90° · 60° · 45° 2000×90° · 60° · 45° Height H(mm) min450 min450 min450 min450 min450 Capability (kg/m) max150 max150 max150 max150 max150 Speed V(m/min) max25 max25 max25 max25 max25 Motor power (KW) 0.2 · 0.4 · 0.75 0.2 · 0.4 ·0.75 0.2 · 0.4 · 0.75 0.2 · 0.4 · 0.75 0.2 · 0.4 · 0.75
-

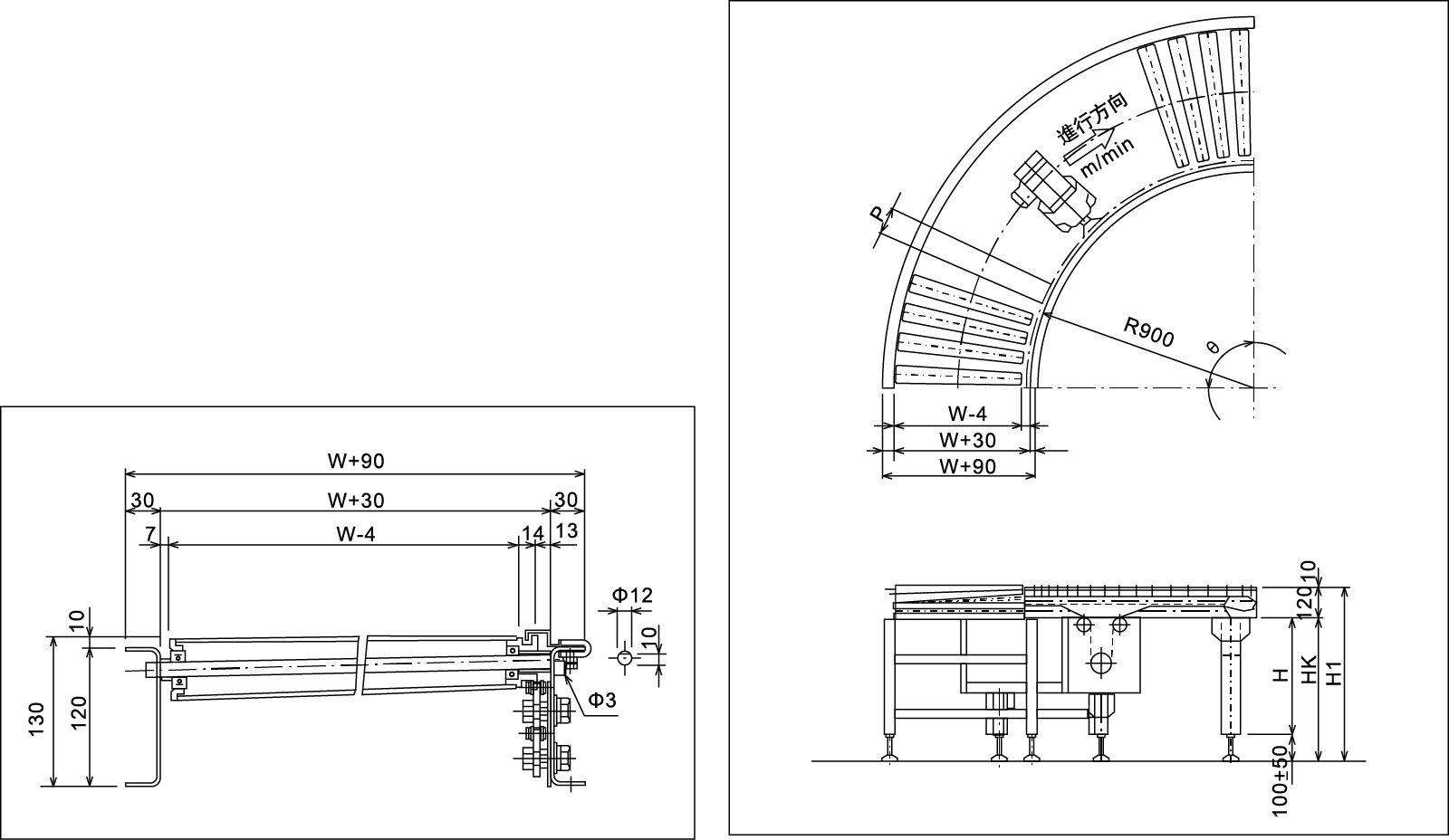

KTR-S
Cat:Chain Driving Roller Conveyor
Model KTR-900 Roller size D*t*d 42.7×57~80×12 Roller width W(mm) 300~800 Roller pitch P(mm)...
See DetailsModel KTR-900 Roller size D*t*d 42.7×57~80×12 Roller width W(mm) 300~800 Roller pitch P(mm) 75 · 100 Frame size 1*K*t 120×30×3.2 Sprocket Type*Mentions #40×10TS Length L(m) 900x90° · 60° · 45° Height H(mm) min450 Capability (kg/m) max150 Speed V(m/min) max25 Motor power (KW) 0.2.0.4
About
Wuxi Huiqian logistics machinery manufacturing Co., Ltd.
Wuxi Huiqian logistics machinery manufacturing Co., Ltd. is founded based on absorbing Japanese advanced technology and logistics equipment, specializing in producing and selling rollers, roller conveyors, belt conveyors, storage cages, logistics trolleys, mini conveyors, frames, and shelves. Chain Driving Roller Conveyor Suppliers and Chain Driving Roller Conveyors Company in China. The headquarters is located in the Wuxi National Hi-Tech Technology Development district, which has convenient transportation and a set of complete surrounding facilities. Wuxi Huiqian Logistics Machinery Manufacturing Co., LTD has a full and scientific QMS, a workforce, and advanced processing equipment. Our integrity, strength, and quality have been highly recognized by our fields. As Custom Chain Driving Roller Conveyor Company, we will wholeheartedly provide every customer with high quality, professional and all-round after-sales technical service. Welcome, all friends come to visit our company and can come to business trade, furthermore, your advice will be appreciated by us.
