Model		HKR-384010S	HKR-574010S	HKR-604010S	HKR-605011S	HKR-765011S	HKR-765013S	HKR-895013S	HKR-766009S	HKR-1146014S	HKR-1406016S
Roller size	Dtd	38×2.3×12	57×2.1×12	60×2.3×12	60×3.8×15	76×4.2×15	76×4.2×20	89×4.2×20	76×4.2×17	114×4.5×25	140×4.5×30
Roller width	W(mm)	100~800	100~1000	100~1000	100～1000	100～1000	100～1000	100～2000	300～2000	300～2000	300～2000
Roller pitch	P(mm)	75 · 100 · 150	75 · 100 · 150	75 · 100 · 150	75 · 100 · 150	100 · 150 · 200	100 · 150 · 200	100 · 150 · 200 · 300	100 · 150 · 200 · 300	200 · 300 ·400	200 · 300 ·400
Frame size	1Kt	120×30×3.2	120×30×3.2	120×30×3.2	150×50×4.5	150×50×4.5	1150×50×4.5	150×50×4.5	150×50×4.5	200×50×6.0	200×50×6.0
Sprocket	Type*Mentions	#40×10TS	#40×10TS	#40×10TS	#50×11TS	#50×11TS	#50×13TS	#50×13TS	#60×9TS	#60×14TS	#60×16TS
Length	L(m)	max12	max12	max12	max20	max9	max9	max9	max12	max10	max10
Height	H(mm)	min450	min450	min450	min500	min500	min500	min500	min500	min600	min600
Capability	(kg/m)	max100	max100	max100	max500	max500	max1000	max1000	max700	max1000	max1500
Speed	V(m/min)	max25	max25	max25	max20	max20	max20	max20	max20	max20	ma×20
Motor power	(KW)	0.2 · 0.4 · 0.75	0.2 · 0.4 · 0.75	0.2 · 0.4 · 0.75	0.2 · 0.4 · 0.75 · 1.5	0.2 · 0.4 · 0.75 · 1.5	0.2 · 0.4 · 0.75 · 1.5	0.2 · 04 · 0.75 · 1.5	0.2 · 0.4 · 0.75 · 1.5	0.2 · 0.4 · 0.75 · 1.5	0.2 · 0.4 · 0.75 · 1.5

Model		HKR-384010SW	HKR-574010SW	HKR-604010SW	HKR-605011SW	HKR-765011SW	HKR-765013SW
Roller size	Dtd	38×2.3×12	57×2.1×12	60×2.3×12	60×3.8×15	76×4.2×15	76×4.2×20
Roller width	W(mm)	100~800	100~1000	100~1000	100～1000	100～1000	100～1000
Roller pitch	P(mm)	50 · 75 · 100	75 · 100 · 150	75 · 100 · 150	75 · 100 · 150	100 · 200	100 · 200
Frame size	1Kt	120×30×3.2	120×30×3.2	120×30×3.2	150×50×4.5	150×50×4.5	150×50×4.5
Sprocket	Type*Mentions	#40×10TSW	#40×10TSW	#40×10TSW	#50×11TSW	#50×11TSW	#50×13TSW
Length	L(m)	max5	max5	max5	max6	max6	max6
Height	H(mm)	min450	min450	min450	min500	min500	min500
Capability	(kg/m)	max100	max100	max100	max300	max300	max700
Speed	V(m/min)	max25	max25	max25	max20	max20	max20
Motor power	(KW)	0.2 · 0.4 · 0.75	0.2 · 0.4 · 0.75	0.2 · 0.4 · 0.75	0.2 ·0.4 · 0.75 · 1.5	0.2 · 0.4 · 0.75 · 1.5	0.2 · 0.4 · 0.75 · 1.5

Model		KTR-1000	KTR-1200	KTR-1500	KTR-1500B	KTR-200
Roller size	Dtd	51~40×63~74×12	52~45×62~74×12	52～48×62~74×12	42.7×76~100×12(15)	50×63~75×12(15)
Roller width	W(mm)	200~600	200~600	200~600	700~1,200	400~800
Roller pitch	P(mm)	75 · 100 · 150	75 · 100 · 150	75 · 100 · 150	100 · 150	100 · 150
Frame size	1Kt	120×30×3.2	120×30×3.2	120×30×3.2	120×30×3.2	120×30×3.2
Sprocket	Type*Mentions	#40×10TSW	#40×10TSW	#40×10TSW	#40×10TSW	#40×10TSW
Length	L(m)	1000×90° · 60° · 45°	1200×90° · 60° · 45°	1500×90° · 60° · 45°	1500×90° · 60° · 45°	2000×90° · 60° · 45°
Height	H(mm)	min450	min450	min450	min450	min450
Capability	(kg/m)	max150	max150	max150	max150	max150
Speed	V(m/min)	max25	max25	max25	max25	max25
Motor power	(KW)	0.2 · 0.4 · 0.75	0.2 · 0.4 ·0.75	0.2 · 0.4 · 0.75	0.2 · 0.4 · 0.75	0.2 · 0.4 · 0.75

Model		KTR-900
Roller size	Dtd	42.7×57~80×12
Roller width	W(mm)	300~800
Roller pitch	P(mm)	75 · 100
Frame size	1Kt	120×30×3.2
Sprocket	Type*Mentions	#40×10TS
Length	L(m)	900x90° · 60° · 45°
Height	H(mm)	min450
Capability	(kg/m)	max150
Speed	V(m/min)	max25
Motor power	(KW)	0.2.0.4

Type	MAC-CS384010S MAC-CN384010S	MAC-CS424010S MAC-CN424010S	MAC-CS574010S MAC-CN574010S	MAC-CS604010S MAC-CN604010S	MAC-G605010S
Driving Mode	Chain driven(08A)	Chain driven(08A)	Chain driven(08A)	Chain driven(08A)	Chain driven(10A)
Roller size Dtd	38.1×2.3×12 Galvanizes	42.7×2.3×12 Galvanizes	57.2×2.1×12 Galvanizes	60.5×2.3×12 Galvanizes	60.5×2.3×15 Galvanizes
Width of roller W	100~800 50 Incremental increase	100~1000 50 Incremental increase	100~1000 50 Incremental increase	100~1000 50 Incremental increase	100~1000 50 Incremental increase
Roller pitch P	50 · 75 · 100 · 150	75 · 100 · 150	75 · 100 · 150	75 · 100 · 150	75 · 100 · 150
Frame size 1 Kt	120×30×3.2	120×30×3.2	120×30×3.2	120×30×3.2	120×30×3.2
Sprocket Type*Mentions	#40x10TS	#40x10TS	#40x10TS	#40x10TS	#40x10TS
Length L(m)	max12	max12	max12	max12	max8
Width of conveyor	W+120	W+120	W+120	W+120	W+130
Height H	min450	min450	min450	min450	min450
Capability (kg/m)	max80	max80	max100	max100	max300
Speed V(m/min)	max25	max25	max25	max25	max15
Motor power(KW)	0.2 · 0.4 · 0.75	0.2 · 0.4 · 0.75	0.2 · 0.4 · 0.75	0.2 · 0.4 · 0.75	0.2 · 0.4 · 0.75

Web Menu

Product Search

Language

Exit Menu

Driven Conveyor

Driven Conveyor

Certificate Of Honor

Submit feedback

Type	MAC-GND(Continuous shaft type)	MAC-GNS(Drum type)	MAC-GD(Cantilevered structure)	MAC-GDZ(Heavy duty type)
Driving Mode	Chain driven(08B)Umbrella teeth	Chain driven(08B)Umbrella teeth	Chain driven(08B)Umbrella teeth	Chain driven(08B)Umbrella teeth
Roller size	50~80	50~80	60~100	80~100
Shaft diameter	20	20	30	20
Width of roller W	100~1200	100~1200	50~150	20~40
Frame size 1 Kt	135×86 Single arm	135×86 Single arm	135×107 Both arms	135×164 Both arms
Sp r o k e t Type*Mentions	#40×14TSW	#40×14TSW	#40×15TSW	#40×14TSW
Length L(m)	Max 6	Max 6	Max6	Max 6
Width of conveyor	W+60(160~1260)	W+60(160~1260)	W+40(250~1200)	W+34(250~1200)
Effective inner width of the conveyor	W+36	W+36	W+36	W+10
Height H	min200	min200	min200	min200
Capability(kg/m)	max500	max500	max500	max800
Speed V(m/min)	max25	max25	max25	max25
Motor power(KW)	0.2~1.5KW	0.2~1.5KW	0.2~1.5KW	0.2~1.5KW
Power	AC220V、AC380V(three-phase)

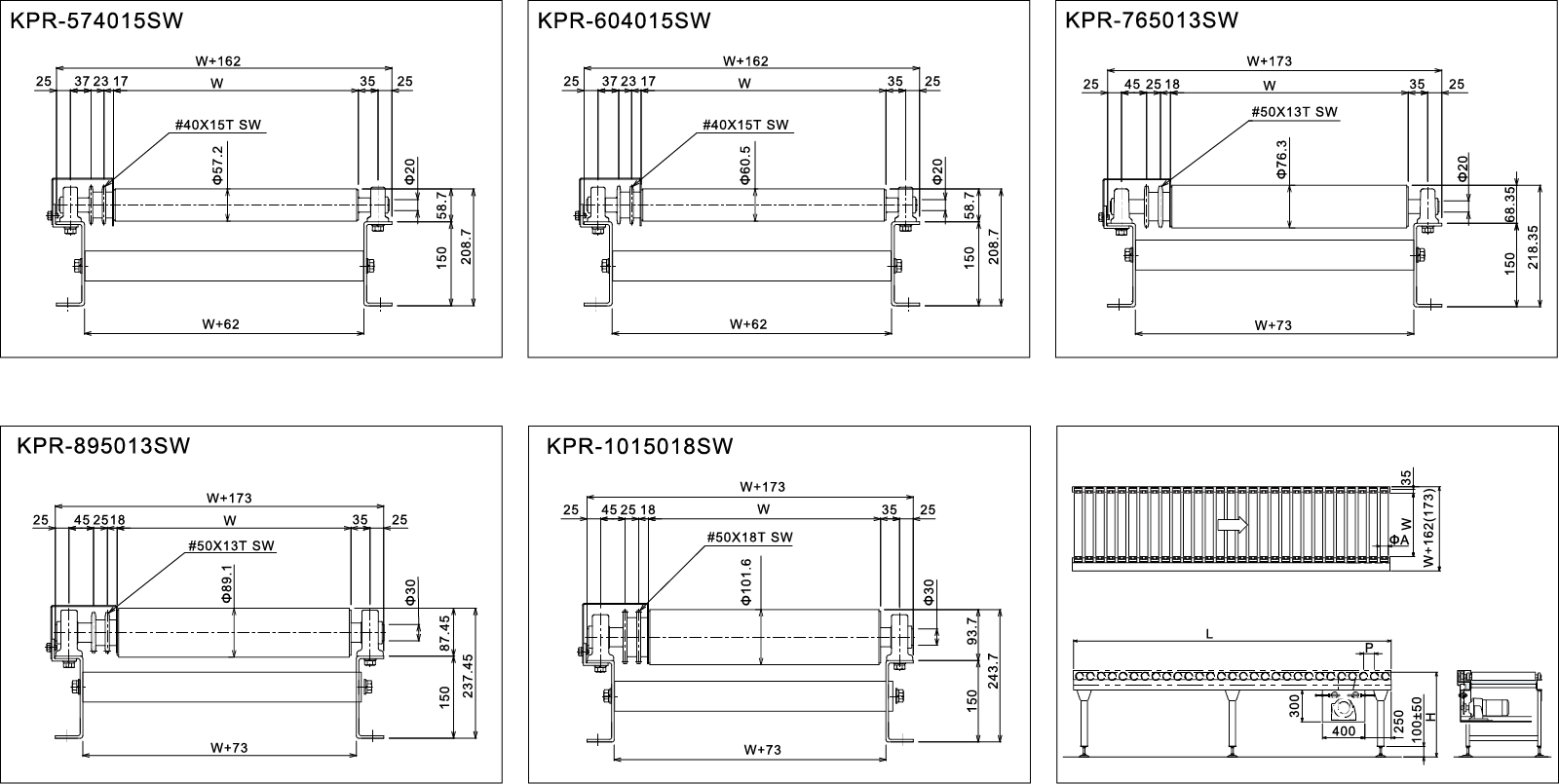

Model		KPR-574015SW	KPR-604015SW	KPR-765013SW	KPR-895013SW	KPR-1015018SW
Roller size	Dtd	57.2×2.6×25(20)	60.5×3.2×25(20)	76.3×4.2×25(20)	89.1×4.2×35(30)	101.6×4.5×35(30)
Roller width	W(mm)	300~2000	300~2000	300~2000	300~2000	300~2000
Roller pitch	P(mm)	75 · 100 · 150 · 200	75 · 100 · 150 · 200	100 · 150 · 200	100 · 150 · 200	150 · 200
Eramg size	1Kt	150×50×4.5	150×50×4.5	150×50×4.5	150×50×4.5	150×50×4.5
Sprocket	Type*Menlions	#40×15TSW	#40×15TSW	#50×13TSW	#40×13TSW	#50×18TSW
Length	L(mm)	max4000	max4000	max4000	max4000	max4000
Width	H(mm)	W+162	W+162	W+173	W+173	W+173
Height	W+	min550	min550	min600	min600	min600
Capability	(kg/m)	Max300(1 Drive 1000kg)	Max300(1 Drive 1000kg)	Max1000(1 Drive 2000kg)	Max1500(1 Drive 3000kg)	Max1500(1 Drive 3000kg)
Speed	V(m/min)	Max10	Max10	Max10	Max10	Max10
Motor power	(KW)	0.2 0.4(6～10m/min)	0.2 0.4(6～10m/min)	0.2 0.4 0.75	0.2 0.4 0.75 1.5	0.2 0.4 0.75 1.5
Power	V	AC200V/380V(three-phase)	AC200V/380V(three-phase)	AC200V/380V(three-phase)	AC200V/380V(three-phase)	AC200V/380V(three-phase)

Model		HFLY-E38	HFLY-E42	HFLY-E48	HFLY-E57	HFLY-E60	HFLY-F
Driving mode	Flat belt driving(50）						Flat belt driving(150)
Roller size	Dtd	38.1x1.2x12	42.7x1.4x12	48.6x1.4x12	57.2x1.4x12	60.5x2.3x12	38.1x1.2x12
Roller width	W(mm)	300~1000	300~1000	300~1000	300~1000	300~1000	400~1000
Roller pitch	P(mm)	50 75 100	50 75 100	75 100	75 100	75 100	75 100
Frame size	1Kt	120x30x2.3	120x30x2.3	120x30x2.3	120x30x2.3	120x30x2.3	140x30x2.3
Length	L(mm)	max12000	max12000	max12000	max12000	max12000	max9000
Width	H(mm)	W+75	W+75	W+75	W+75	W+75	W+75
Height	W+	min450	min450	min450	min450	min450	min450
Capability	(kg/m)	max70	max70	max70	max70	max70	max70
Speed	V(m/min)	max36	max36	max36	max36	max36	max35
Molor power	(KW)	0.1 0.2 0.4 0.75	0.1 0.2 0.4 0.75	0.1 0.2 0.4 0.75	0.1 0.2 0.4 0.75	0.1 0.2 0.4 0.75	0.1 0.2 0.4 0.75
Power	V	AC200V/380V(three-phase)	AC200V/380V(three-phase)	AC200V/380V(three-phase)	AC200V/380V(three-phase)	AC200V/380V(three-phase)	AC200V/380V(three-phase

Model		HMMC-DR-38	HMMC-DR-57
Driving mode	O-belt drive
Roller size	Dtd	38.1x1.2x12	57.2x1.4x12
Roller width	W(mm)	400~1000	400~1000
Roller pitch	P(mm)	50 75 100	75 100
Frame size	1Kt	90x30x3.2	90x30x3.2
Length	L(mm)	The dimensions within 1000 (1050), 2000 (1950), and 3000 () are suitable for situations with a spacing of 75
Width	H(mm)	W+75	W+75
Height	W+	min300	min300
Capability	(kg/m)	max70	max70
Speed	V(m/min)	max36	max36
Molor power	(KW)	0.2 0.4 0.75	0.2 0.4 0.75
Power	V	AC200V/380V(three-phase)	AC200V/380V(three-phase)
