Truss manipulator is a kind of automatic industrial equipment which is built on the basis of rectang...
Specialized conveyor equipment is a non-standard machine used within conveyor lines for performing specific, specialized functions.
Truss manipulator is a kind of automatic industrial equipment which is built on the basis of rectang...
Truss manipulator is a kind of automatic industrial equipment which is built on the basis of rectangular X, Y and Z coordinate systems to adjust the workpiece, Or to realize function such as the track movement of the workpiece. lt can realize automatic control, repetitive programming, multi-function, multi-degree of freedom and right-angle spatial relationship between the motion of the automatic equipment.
Characteristic:
High efficiency - each shaft runs in a straight line at a very high speed, which can be quickly responded by a servo motor.
Stable-minimal repeatability error, up to 0.05mm;
High-intensity -7x24 hourly workers.
High precision-positioning accuracy up to 0.02mm(due to production cost, positioning accuracy can be appropriately enlarged according to operating conditions)
High cost performance - Compared with joint robot, it has large load and low production cost.
Simple operation - Based on the carteslan coordinate system, its motion parameters are simple.
Right angle pop-up transfers are typically used in pallet or carton or carate packaged product conve...
Right angle pop-up transfers are typically used in pallet or carton or carate packaged product conveyor layouts to change the flow of the pallet or products by 90 or to merge several feed lines into one trunk line. Popup transfers can also be used change the orientation of the palette or product from wide side to narrow side or vice versa.
Type | HQ-RAT(Right angle pop-up transfer) |
Roller diameter | 50mm |
Transmission by | Polyvee belt/flat belt |
Driven by | Motor roller |
Dimension | min:645L*390W max:845L*790W |
Height | 185mm |
Pop up distance | 10mm |
Load Capacity | ≤50kg |
Speed | max60m/min |
Output | 1000pcs/h |
Electric power mode | DC24V |
Wire length | 1000mm |
Switch wire length | 1000mm |
Sensor mode | NPN/PNP |
Temperature | 0~40℃ |
Humidity | <90%RH |
Air requests | No poisonous gas |
Vibration rang | <0.5g |
Installation environment | Inside door |
Specifications Model Standard sizeL*W*H (mm) Eight capacity Conveying product's sizeL*W*H (mm) ...
Specifications
Model | Standard size L*W*H (mm) |
Eight capacity | Conveying product's size L*W*H (mm) |
Speed Frequency control |
1000W | 1098*1080*800 | 50kg/m² | Maximum: 1200*800*800,40KHs Minimum: 100*100*10,20g |
30-120m/min |
800W | 912*880*800 | |||
700W | 739*780*800 | |||
600W | 739*680*800 | |||
500W | 739*580*800 |
Size&Dimensions Model No. Dimension(LxWxH)(mm) WM-600EFS 630x680x800 WM-800EFS 830x880x80...
Size&Dimensions
Model No. | Dimension (LxWxH)(mm) |
|
WM-600EFS | 630x680x800 | |
WM-800EFS | 830x880x800 | |
WM-1000EFS | 1030x1080x800 | |
REMARKS: CUSTOMIZABLE ACCORDING TO | CUSTOMERS’REQUIREMENTS |
Specification
Capability: | Depends on Parcel Dimensions | |
Conveying Speed: | 0~120m/min(Adjustable) | |
Diverting Angle: | 30~90Degree | |
Discharge Direction: | Right, Left and Forward | |
Operating Temperature: | -10~40Degree | |
Power: | Servo Motor 1.5kw | |
Interface Options: | RS485/232, Ethernet,IO | |
Max Loading Weight: | 70kg/m2 | |
Noise: | Less than 75dB |
The reciprocating lifter is an elevating device that moves items up and down for vertical transfer b...
The reciprocating lifter is an elevating device that moves items up and down for vertical transfer between different conveyor heights. Key features include chain or synchronous belt transmission, powered by a geared motor or cylinder, which drives the lifting carriage in an up-and-down motion. Conveyors on the lift carriage automatically transfer items into and out of the lifter.
Type |
TSJ-C-200 TSJ-Z-200 |
TSJ-C-500 TSJ-Z-500 |
TSJ-C-1200 TSJ-Z-1200 |
TSJ-C-2000 TSJ-Z-2000 |
Chain | 12A (4 sticks) | 16A (4 sticks) | 20A (4 sticks) | 24A (4 sticks) |
Load (kg) | Max200kg | Max500kg | Max1200kg | Max2000kg |
lift H2 (mm) | 3000~9000 | 3000~15000 | 3000~15000 | 3000~15000 |
Feed end height H1 (mm) | Min500mm | Min500mm | Min600mm | Min600mm |
Main column | 80*4t square tube | 100*4t square tube | 120*6t square tube | 140*6t square tube |
balance weight | No counterweight available | counterweight | counterweight | counterweight |
vertical speed (m/min) | Max50 | Max50 | Max50 | Max50 |
Security configuration (optional) | Broken chain detection, brake clamp | |||
Motor power_(KW) | 2.2~15KW | |||
Power | AC380V (three phase) |

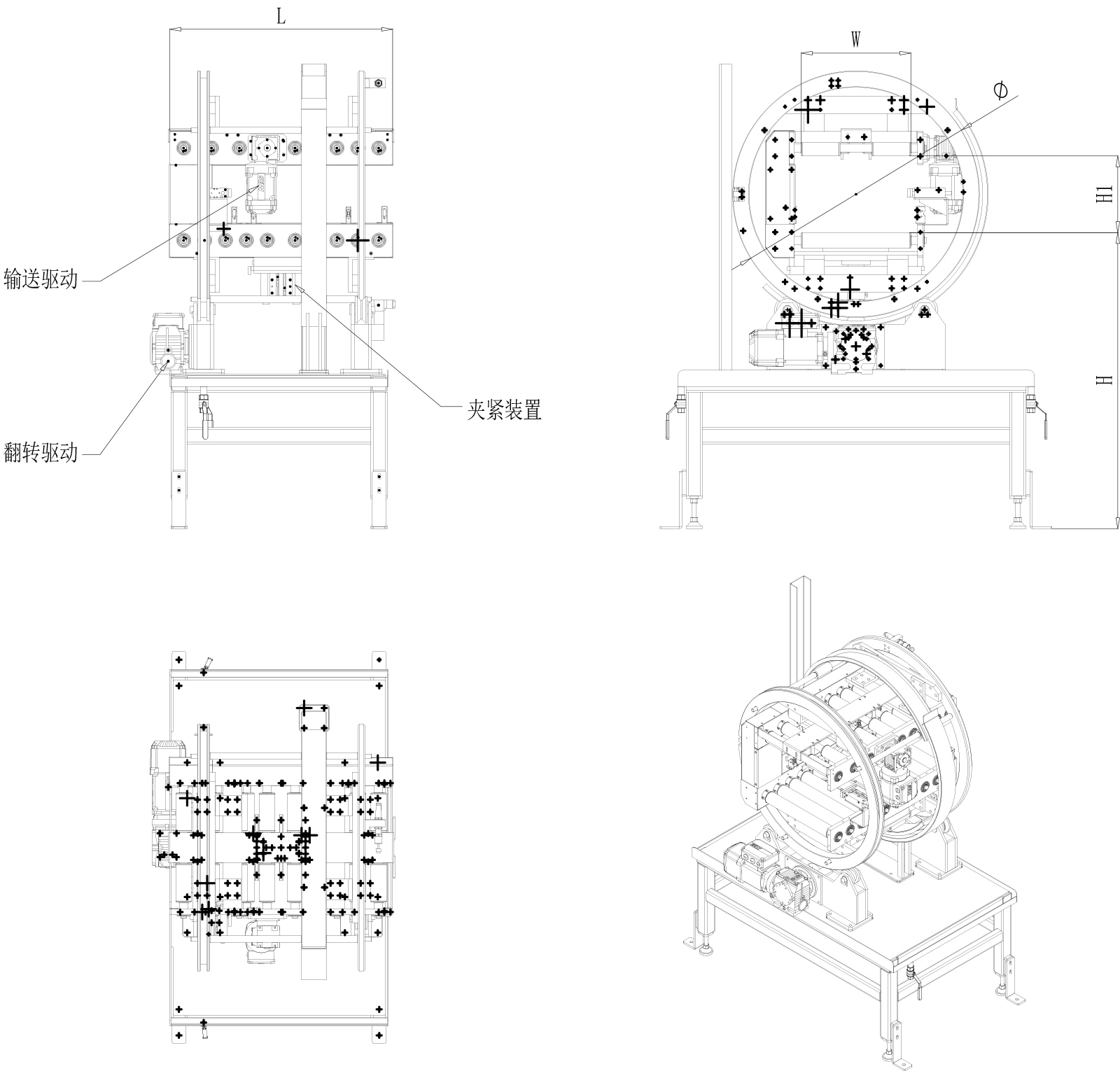

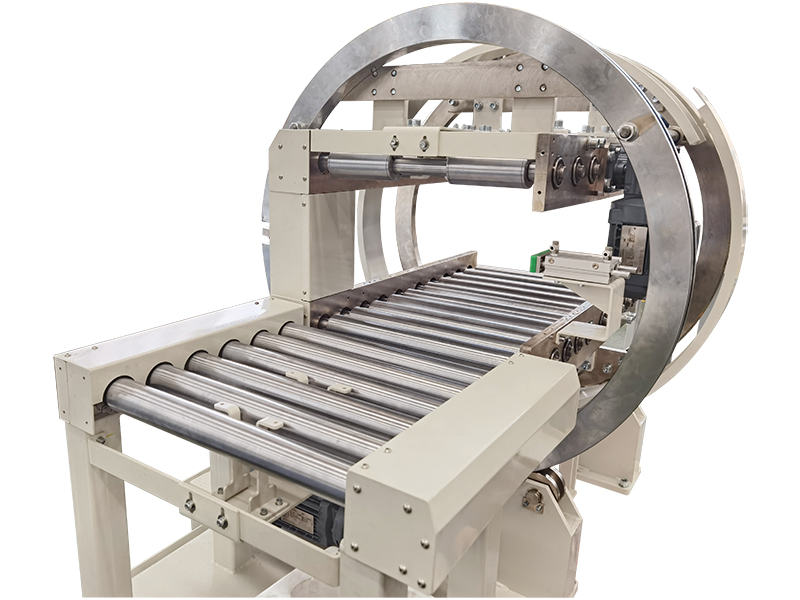

The conveyor flipper is widely used in assembly lines to flip workpieces into position. It usually c...
The conveyor flipper is widely used in assembly lines to flip workpieces into position. It usually comes equipped with upper and lower conveyors, pneumatic/electric clamping devices, and 90 or 180-degree flipping mechanisms.
The conveyor turntable can rotate 45, 90, 180, or 360 degrees. It is a specialized transfer device t...
The conveyor turntable can rotate 45, 90, 180, or 360 degrees. It is a specialized transfer device that mounts a conveyor onto a rotating frame. Depending on the size and weight of the material, the diameter and load capacity of the turntable can be customized. The conveyor portion can be a belt, roller, or chain conveyor, or even a metal platform without conveying function.
In the fast-paced world of e-commerce and distribution, efficiency is paramount. Companies must proc...
READ MOREIn industrial environments, the handling of delicate or fragile items is a critical consideration. O...
READ MOREChain driven roller conveyors are the unsung heroes of material handling systems, quietly facilitati...
READ MOREIn the labyrinthine world of e-commerce logistics, where precision and velocity reign supreme, accum...
READ MOREIn the intricate world of material handling, conveyor systems stand as indispensable mechanisms in v...
READ MOREHow does Wuxi Huiqian logistics machinery manufacturing Co., Ltd.'s specialty conveyor equipment ensure smooth operation without causing product damage?
In today’s fast-paced industrial environment, efficient material handling systems are critical to ensuring smooth operations and maintaining product integrity. Conveyor systems, especially specialized ones, play a vital role in optimizing workflow, reducing manual labor, and ensuring that products move seamlessly through various stages of production, packaging, and distribution. Wuxi Huiqian Logistics Machinery Manufacturing Co., Ltd. stands out in this space by offering advanced, customized conveyor solutions that prioritize not only efficiency but also the protection of goods from damage.
Introduction to Wuxi Huiqian Logistics Machinery Manufacturing Co., Ltd.
Founded with a focus on integrating advanced Japanese technology, Wuxi Huiqian Logistics Machinery Manufacturing Co., Ltd. specializes in the design and production of non-standard logistics equipment. The company’s product range includes rollers, roller conveyors, belt conveyors, storage cages, logistics trolleys, mini conveyors, frames, and shelves, tailored to meet the specific needs of industries such as manufacturing, warehousing, and distribution.
Located in the Wuxi National Hi-Tech Technology Development District, the company benefits from its strategic position, offering convenient transportation and complete surrounding facilities. The company boasts a comprehensive Quality Management System (QMS), advanced processing equipment, and a skilled workforce, which together ensure that each piece of equipment is built to the highest standards. Wuxi Huiqian’s commitment to integrity and quality has earned the company widespread recognition in its field.
Specialized Conveyor Equipment: Tailored for Precision and Product Protection
Specialized conveyor equipment refers to non-standard machines customized for specific, often complex, tasks within a conveyor line. Unlike general-purpose conveyors, which are designed for a broad range of products, specialized conveyors are engineered to handle unique material types, sizes, or processes. Wuxi Huiqian’s focus on custom solutions enables businesses to achieve optimal material flow, increased operational efficiency, and, importantly, the protection of products from damage during transit.
Customized Functionality for Specific Needs
Wuxi Huiqian’s specialty conveyor systems are tailored to meet the specific operational requirements of its clients. Whether it’s sorting, inclined transport, or high-speed material handling, the company’s solutions are designed with precise functionality in mind. For instance:
Automated Sorting Conveyors: These conveyors are equipped with sensors and automated mechanisms that sort products based on size, shape, or other characteristics. The accurate sorting process minimizes the chances of product damage that can occur in manual handling or inefficient sorting systems.
Inclined or Declined Conveyors: Used for transporting goods between different levels, these conveyors are carefully designed with smooth transitions to prevent jerks or impacts that could harm fragile or delicate products. The angle and material choice of the conveyor belt also play a role in preventing scratches or abrasions during product movement.
Integrated Features for Enhanced Product Protection
Wuxi Huiqian integrates various design features into their specialized conveyors to ensure that products remain undamaged during transit. These features include:
Gentle Handling Mechanisms: The conveyor systems are designed with features such as cushioned rollers, soft-start motors, and adjustable speed control to prevent abrupt movements that might cause products to jolt, fall, or collide with other items.
Custom Belt Materials: For products that are susceptible to surface damage, the company uses specially engineered belt materials that provide a non-abrasive surface, preventing scuffing and scratches while also maintaining grip to avoid slippage.
Magnetic Conveyors for Metal Parts: In industries where metal parts are being transported, Wuxi Huiqian offers magnetic conveyors, which securely hold ferrous materials in place. This feature is especially crucial for preventing metal parts from shifting or dropping, which could cause costly damage or injury.
Versatile Conveyor Systems for Diverse Industries
Wuxi Huiqian’s specialty conveyors are not limited to just one application but are versatile enough to handle a wide range of industries. For example:
Food and Beverage Industry: Conveyors designed for food processing are built with materials that are food-safe and easy to clean. These conveyors are designed to move products without contamination or damage, ensuring hygiene standards are met while maintaining product quality.
Electronics and Automotive Industries: For delicate electronic components or automotive parts, Wuxi Huiqian creates conveyors with features such as anti-static belts, precise positioning, and vibration-free operations to avoid any damage to sensitive parts.
Continuous Innovation and Quality Control
Wuxi Huiqian maintains a robust Quality Management System (QMS), which ensures that all specialty conveyors undergo rigorous testing before they are delivered to clients. Each piece of equipment is manufactured to meet both international and industry-specific standards, and the company places great emphasis on the integration of innovative technologies. This commitment to quality means that businesses using Wuxi Huiqian’s conveyor systems can trust that their products will be handled safely and efficiently.
Wuxi Huiqian Logistics Machinery Manufacturing Co., Ltd. has proven itself as a leader in the design and production of specialty conveyor equipment. By focusing on customized solutions tailored to specific industry needs, the company ensures that its clients can achieve smooth operations while minimizing the risk of product damage. Through the integration of advanced technology, thoughtful design features, and a strong commitment to quality, Wuxi Huiqian is helping businesses optimize their material handling processes and protect their valuable products.
With a wide range of specialized conveyor systems, a dedication to customer satisfaction, and an unwavering focus on product integrity, Wuxi Huiqian Logistics Machinery Manufacturing Co., Ltd. continues to be a trusted partner for businesses seeking to improve operational efficiency while safeguarding their products. Whether you're in manufacturing, logistics, or distribution, Wuxi Huiqian offers the expertise and solutions you need to keep your operations running smoothly.
