KSR-400 Spiral carrier Roller/KSR
Cat:Spiral Carrier Roller/KSR
Spiral scraper is used for ridding up attachments which can cause deformation of belt and protect da...
wxhq56@foxmail.com
wxhq56@foxmail.com
Advanced structure, high-quality performance, easy to use, high reliability and durability.

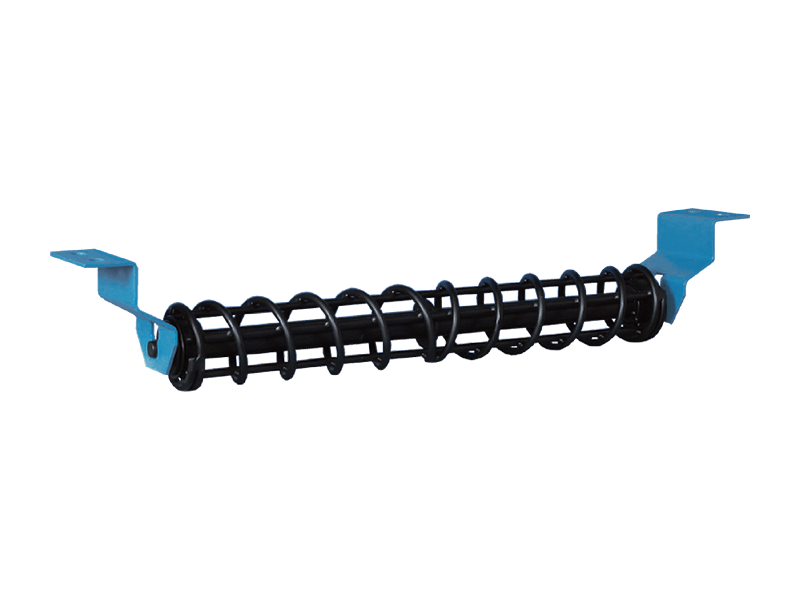

The spiral carrier roller has spiral blades that efficiently scrape off adhered debris, thus offering better protection for the conveyor belt.

Spiral scraper is used for ridding up attachments which can cause deformation of belt and protect da...
Spiral scraper is used for ridding up attachments which can cause deformation of belt and protect damage of roller.
| Model | Width of belt | d | e | m | A | H | B | n | O | axb |
| KSR-400 | 400 | 100 | 460 | 640 | 690 | 110 | 120 | 60 | 14.5 | 15x25 |
| KSR-450 | 450 | 100 | 510 | 690 | 740 | 110 | 120 | 60 | 14.5 | 15x25 |
| KSR-500 | 500 | 100 | 560 | 740 | 790 | 110 | 120 | 60 | 14.5 | 15x25 |
| KSR-600 | 600 | 100 | 660 | 840 | 890 | 110 | 120 | 60 | 14.5 | 15x25 |
| KSR-750 | 750 | 115 | 850 | 1040 | 1090 | 110 | 120 | 60 | 14.5 | 15x25 |
| KSR-900 | 900 | 115 | 1000 | 1190 | 1240 | 110 | 120 | 60 | 14.5 | 15x25 |
| KSR-1050 | 1050 | 142 | 1150 | 1340 | 1390 | 130 | 150 | 100 | 19 | 15x25 |
| KSR-1200 | 1200 | 142 | 1300 | 1490 | 1540 | 130 | 150 | 100 | 19 | 15x25 |
| KSR-1400 | 1400 | 166 | 1530 | 1730 | 1790 | 160 | 180 | 120 | 23 | 18x30 |
| KSR-1600 | 1600 | 166 | 1730 | 1930 | 1990 | 160 | 180 | 120 | 23 | 18x30 |

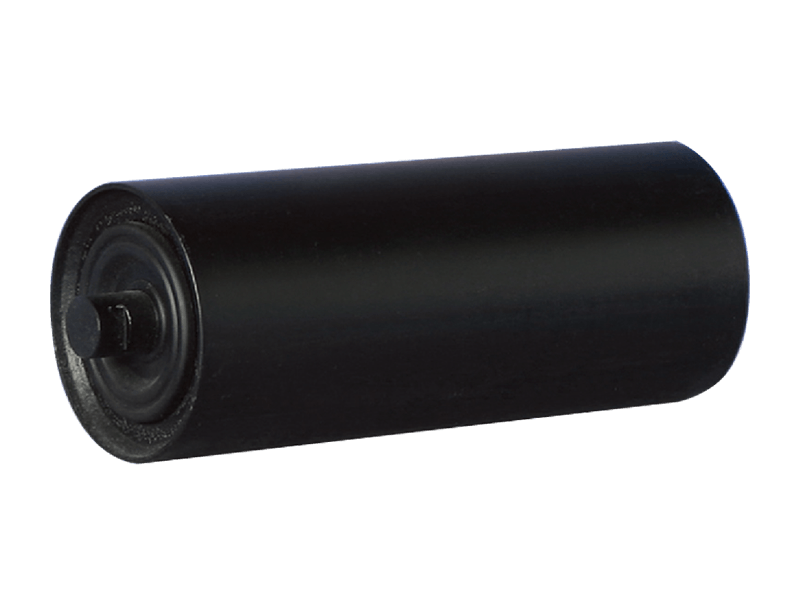

Japanese specification JS is corresponding with B-8803.This is standard specification and size, spe...
Japanese specification JS is corresponding with B-8803.
This is standard specification and size, special size can be made as your request. Please attach more detail specifications of all parts.

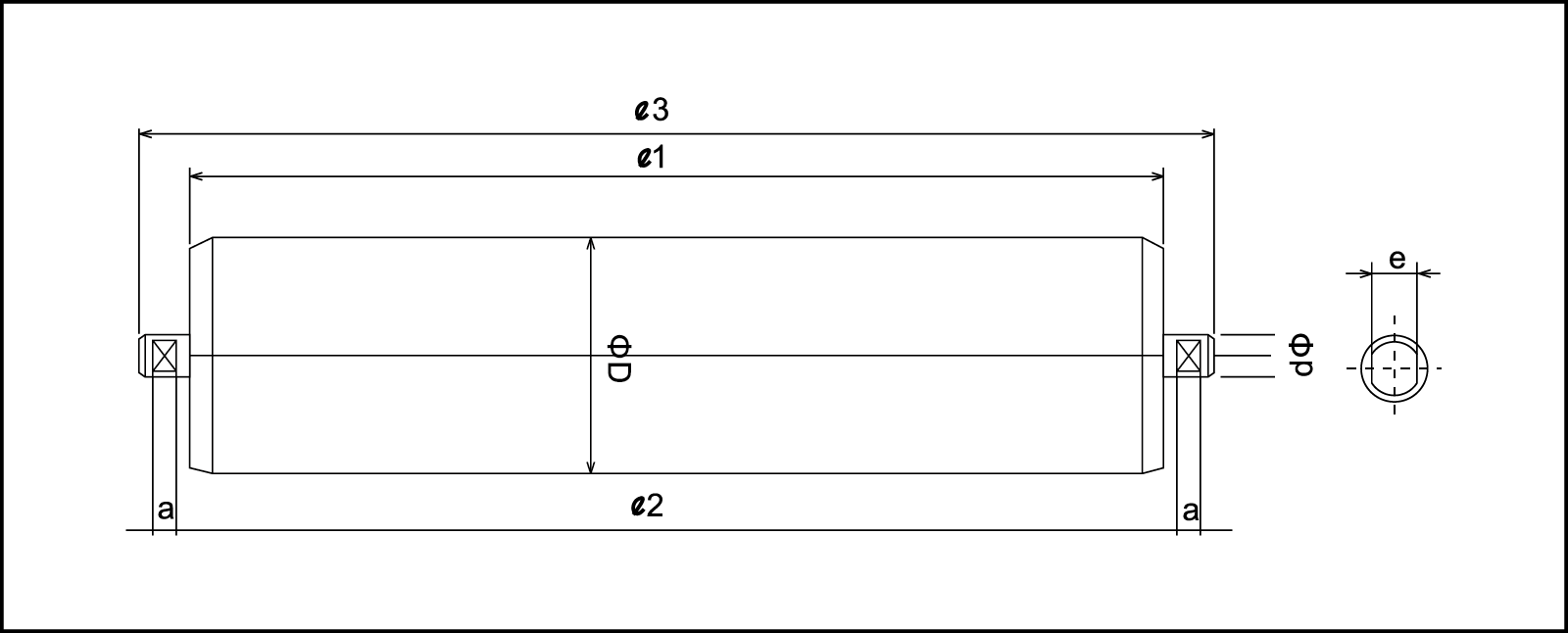

| Model | Width of belt | D | e1 | e2 | e3 | a | e | d |
| CR-400 | 400 | 89.1 | 145 | 153 | 175 | 8 | 14 | 20 |
| CR-450 | 450 | 89.1 | 165 | 173 | 195 | 8 | 14 | 20 |
| CR-500 | 500 | 89.1 | 180 | 188 | 210 | 8 | 14 | 20 |
| CR-600 | 600 | 89.1 | 210 | 218 | 240 | 8 | 14 | 20 |
| CR-750 | 750 | 114.3 | 265 | 273 | 295 | 8 | 14 | 20 |
| CR-900 | 900 | 114.3 | 315 | 323 | 345 | 8 | 14 | 20 |
| CR-1050 | 1050 | 139.8 | 370 | 380 | 410 | 11 | 18 | 25 |
| CR-1200 | 1200 | 139.8 | 420 | 430 | 460 | 11 | 18 | 25 |
| CR-1400 | 1400 | 165.2 | 500 | 510 | 540 | 11 | 22 | 30 |
| CR-1600 | 1600 | 165.2 | 580 | 590 | 620 | 11 | 22 | 30 |
| CR-1800 | 1800 | 165.2 | 650 | 660 | 690 | 11 | 25 | 35 |
| CR-2000 | 2000 | 165.2 | 730 | 740 | 770 | 11 | 25 | 35 |
| Model | Width of belt | D | e1 | e2 | e3 | a | e | d |
| RR-400 | 400 | 89.1 | 460 | 480 | 505 | 8 | 14 | 20 |
| RR-450 | 450 | 89.1 | 510 | 530 | 555 | 8 | 14 | 20 |
| RR-500 | 500 | 89.1 | 560 | 580 | 605 | 8 | 14 | 20 |
| RR-600 | 600 | 89.1 | 660 | 680 | 705 | 8 | 14 | 20 |
| RR-750 | 750 | 114.3 | 850 | 880 | 905 | 8 | 14 | 20 |
| RR-900 | 900 | 114.3 | 1000 | 1030 | 1055 | 8 | 14 | 20 |
| RR-1050 | 1050 | 139.8 | 1150 | 1180 | 1215 | 11 | 18 | 25 |
| RR-1200 | 1200 | 139.8 | 1300 | 1330 | 1365 | 11 | 18 | 25 |
| RR-1400 | 1400 | 165.2 | 1530 | 1550 | 1585 | 11 | 22 | 30 |
| RR-1600 | 1600 | 165.2 | 1730 | 1750 | 1785 | 11 | 22 | 30 |
| RR-1800 | 1800 | 165.2 | 2000 | 2040 | 2075 | 11 | 25 | 35 |
| RR-2000 | 2000 | 165.2 | 2200 | 2240 | 2275 | 11 | 25 | 35 |
