عربىSingle Row Accumulating Roller Conveyor
Cat:Accumulating Roller Conveyor
MAC-C Series chain-driven conveyor rollers using friction clutch transmission, roller and chain can ...
See Details
Accumulating Roller Conveyor

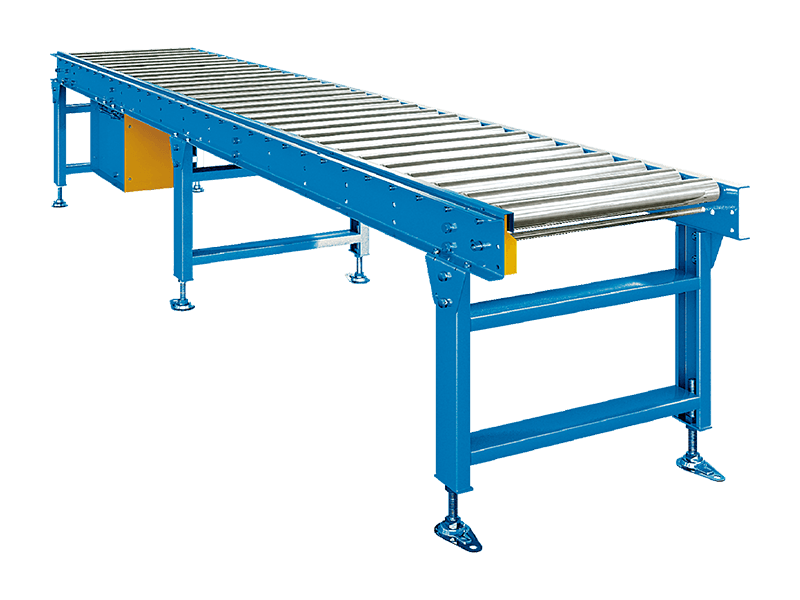

This type of conveyor can transport goods while also storing them temporarily to adjust spacing or speed. It can be powered by motors or roller drives, with accumulation controlled by electronic means or blockages.
-

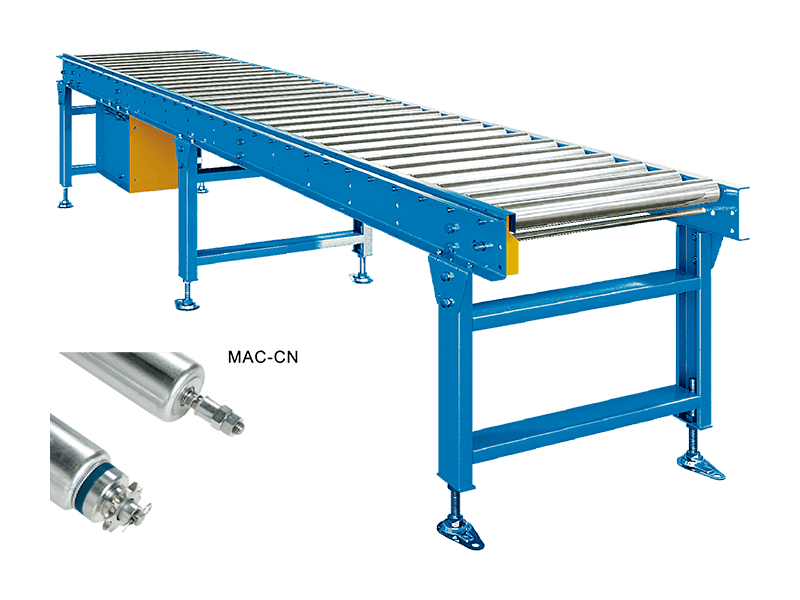

MAC-C Series chain-driven conveyor rollers using friction clutch transmission, roller and chain can have relative motion, in order to keep goods stopping, goods and rollers should have no friction.
The strength of the friction clutch can be adjusted
Roller diameter :038mm、042mm、057mm、060mm
Rollerwidth: 100mm~1000mm

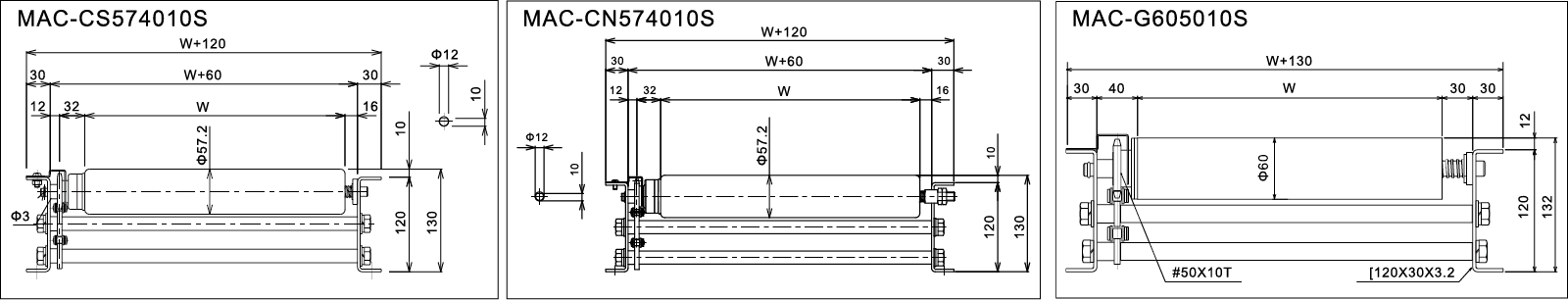

Capability: max100kg/mType MAC-CS384010S
MAC-CN384010SMAC-CS424010S
MAC-CN424010SMAC-CS574010S
MAC-CN574010SMAC-CS604010S
MAC-CN604010SMAC-G605010S Driving Mode Chain driven(08A) Chain driven(08A) Chain driven(08A) Chain driven(08A) Chain driven(10A) Roller size
D*t*d
38.1×2.3×12
Galvanizes
42.7×2.3×12
Galvanizes
57.2×2.1×12
Galvanizes
60.5×2.3×12
Galvanizes
60.5×2.3×15
Galvanizes
Width of roller W 100~800 50 Incremental increase 100~1000 50 Incremental increase 100~1000 50 Incremental increase 100~1000 50 Incremental increase 100~1000 50 Incremental increase Roller pitch P 50 · 75 · 100 · 150 75 · 100 · 150 75 · 100 · 150 75 · 100 · 150 75 · 100 · 150 Frame size 1 Kt 120×30×3.2 120×30×3.2 120×30×3.2 120×30×3.2 120×30×3.2 Sprocket Type*Mentions #40x10TS #40x10TS #40x10TS #40x10TS #40x10TS Length L(m) max12 max12 max12 max12 max8 Width of conveyor W+120 W+120 W+120 W+120 W+130 Height H min450 min450 min450 min450 min450 Capability (kg/m) max80 max80 max100 max100 max300 Speed V(m/min) max25 max25 max25 max25 max15 Motor power(KW) 0.2 · 0.4 · 0.75 0.2 · 0.4 · 0.75 0.2 · 0.4 · 0.75 0.2 · 0.4 · 0.75 0.2 · 0.4 · 0.75
-
Double Row Accumulating Roller Conveyor
Cat:Accumulating Roller Conveyor
Type MAC-CN384010SW MAC-CN504010SW MAC-CN574010SW MAC-CN604010SW MAC-G605010SW Driving Mode Cha...
See DetailsType MAC-CN384010SW MAC-CN504010SW MAC-CN574010SW MAC-CN604010SW MAC-G605010SW Driving Mode Chain driven(08A) Chain driven(08A) Chain driven(08A) Chain driven(08A) Chain driven(10A) Roller size
D*t*d38.1×2.3×12 50.8×1.5×12 57.2×2.1×12 60.5×2.3×12 60.5×2.3×15 Width of roller W 100~800 50 Incremental increase 100~1000 50 Incremental increase 100~1000 50 Incremental increase 100~1000 50 Incremental increase 100~1000 50 Incremental increase Roller pitch P 50、75、100、150 75、100、150 75、100、150 75、100、150 75、100、150 Frame size 1 Kt 120*30*3.2 120*30*3.2 120*30*3.2 120*30*3.2 120*30*3.2 SprocketType*Mentions #40×10TSW #40×10TSW #4O×10TSW #40×10TSW #50×10TSW Length L(m) max9 max9 max9 max9 max8 Width of conveyor W+150 W+150 W+150 W+150 W+170 Height H min450 min450 min450 min450 min450 Capability (kg/m) max80 max100 max100 max100 max300 Speed V(m/min) max25 max25 max25 max25 max15 Motor power(KW) 0.2、0.4、0.75 0.2、0.4、0.75 0.2、0.4、0.75 0.2、0.4、0.75 0.2、0.4、0.75 Power AC220V、AC380V(three-phase)
-
Accumulating Roller Conveyor
Cat:Accumulating Roller Conveyor
The conveyor with this structure can be designed as micro-positive pressure technology and applied t...
See DetailsThe conveyor with this structure can be designed as micro-positive pressure technology and applied to transportation in explosion-proof places.

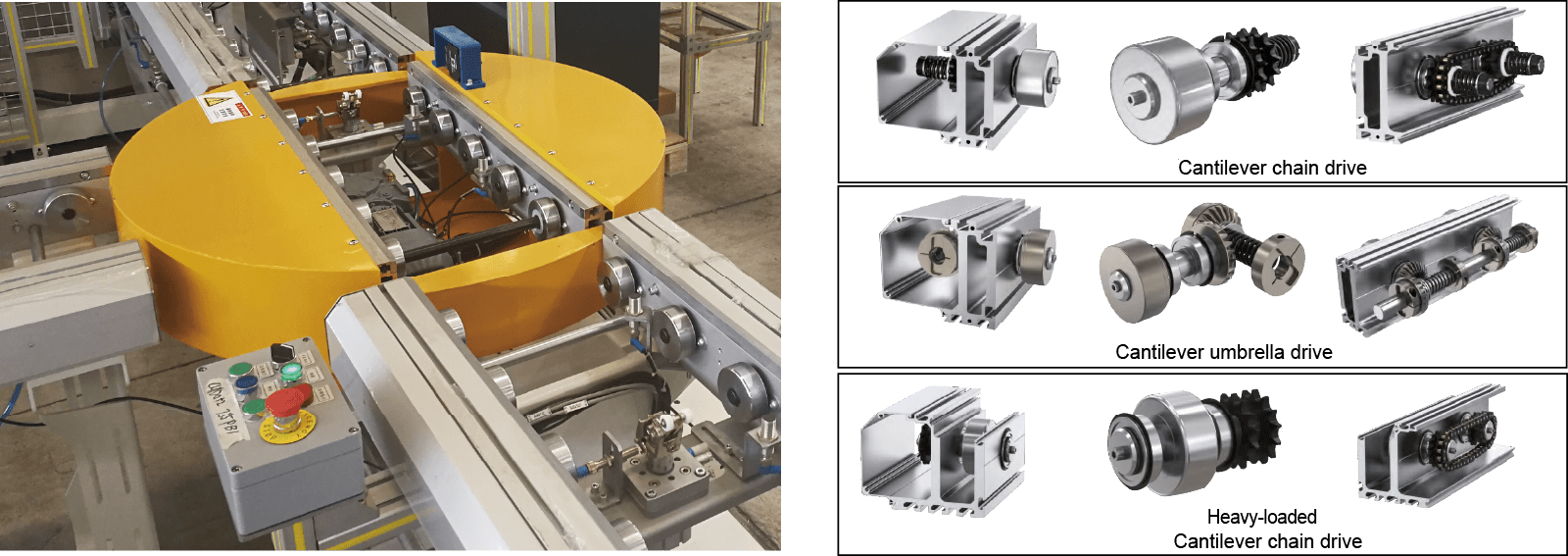

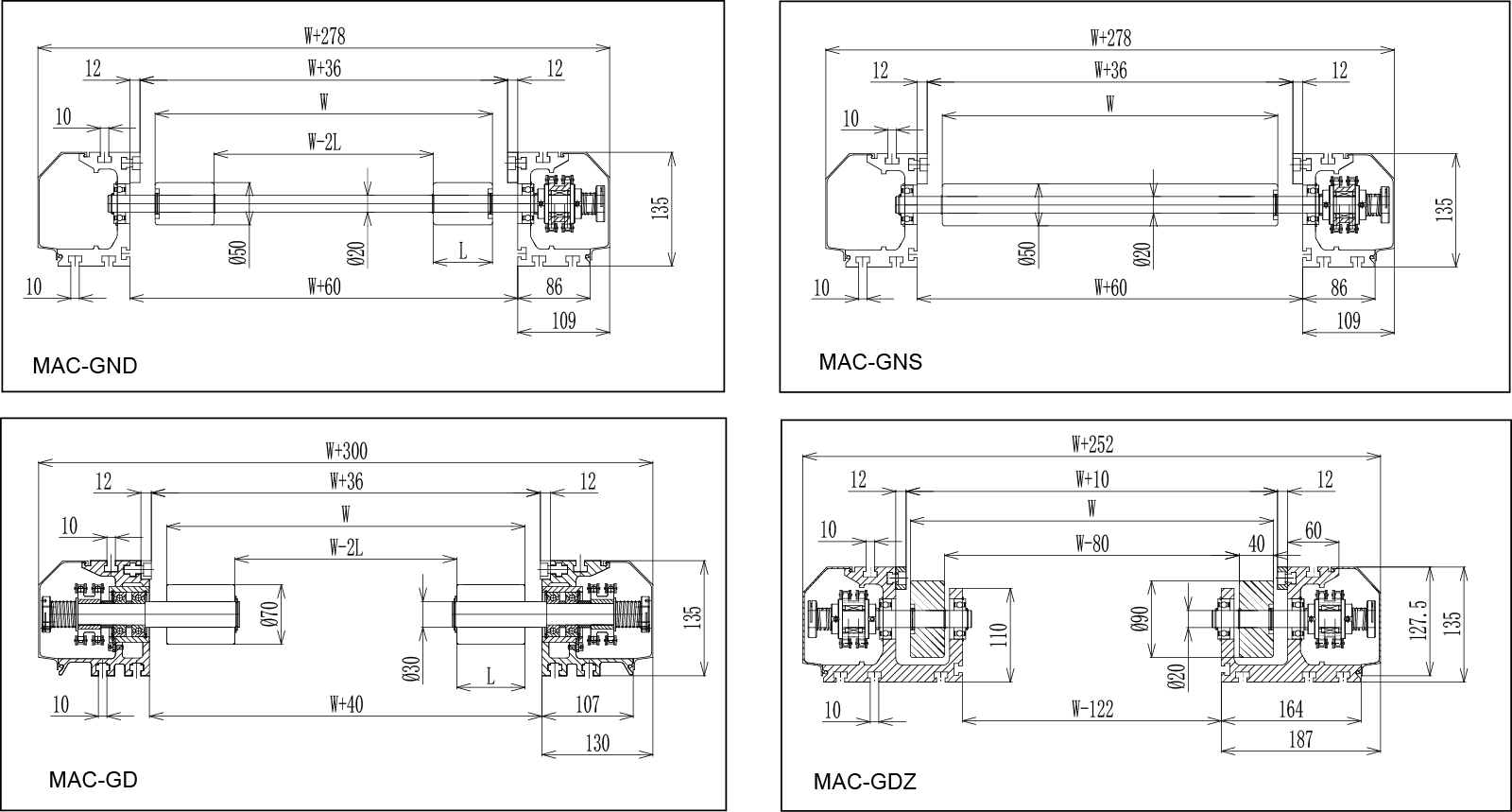

Type MAC-GND(Continuous shaft type) MAC-GNS(Drum type) MAC-GD(Cantilevered structure) MAC-GDZ(Heavy duty type) Driving Mode Chain driven(08B)Umbrella teeth Chain driven(08B)Umbrella teeth Chain driven(08B)Umbrella teeth Chain driven(08B)Umbrella teeth Roller size 50~80 50~80 60~100 80~100 Shaft diameter 20 20 30 20 Width of roller W 100~1200 100~1200 50~150 20~40 Frame size 1 Kt 135×86 Single arm 135×86 Single arm 135×107 Both arms 135×164 Both arms Sp r o k e t Type*Mentions #40×14TSW #40×14TSW #40×15TSW #40×14TSW Length L(m) Max 6 Max 6 Max6 Max 6 Width of conveyor W+60(160~1260) W+60(160~1260) W+40(250~1200) W+34(250~1200) Effective inner width of the conveyor W+36 W+36 W+36 W+10 Height H min200 min200 min200 min200 Capability(kg/m) max500 max500 max500 max800 Speed V(m/min) max25 max25 max25 max25 Motor power(KW) 0.2~1.5KW 0.2~1.5KW 0.2~1.5KW 0.2~1.5KW Power AC220V、AC380V(three-phase)
