W-30RB
Cat:Rubber Wheel Conveyor
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading (kg) ...
Advanced structure, high-quality performance, easy to use, high reliability and durability.
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading (kg) ...
Type | D*W*d*b | Shaft | Frame size h*w1*w2*w3*t |
Height H |
Length L |
Wheel pitch P |
Single wheel loading (kg) |
Frame type | Rubber |

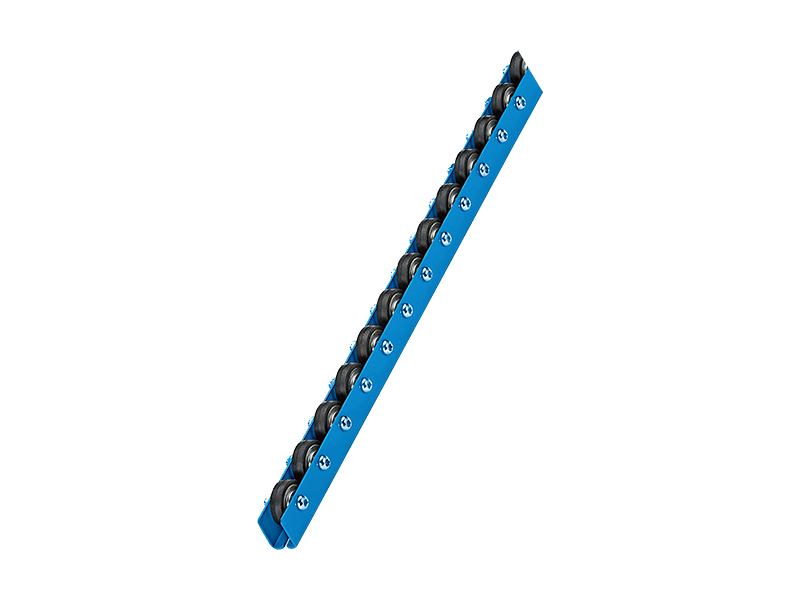

W-30RB | 30x9x6.2x16 | M6x27L | 25x19.2x9x31x1.6 | 33 | 1000 · 1500 · 2000 | 35 | 25 | A | NBR |
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading (kg) ...
Type | D*W*d*b | Shaft | Frame size h*w1*w2*w3*t |
Height H |
Length L |
Wheel pitch P |
Single wheel loading (kg) |
Frame type | Rubber |

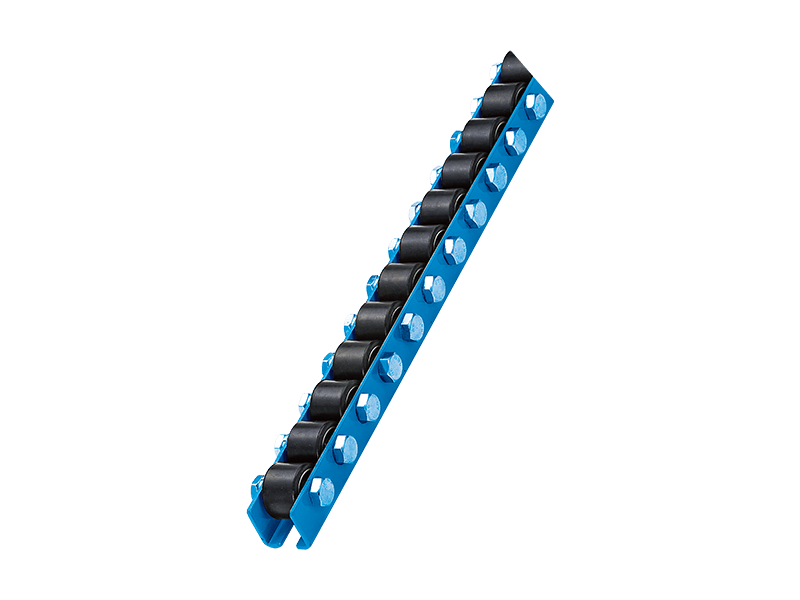

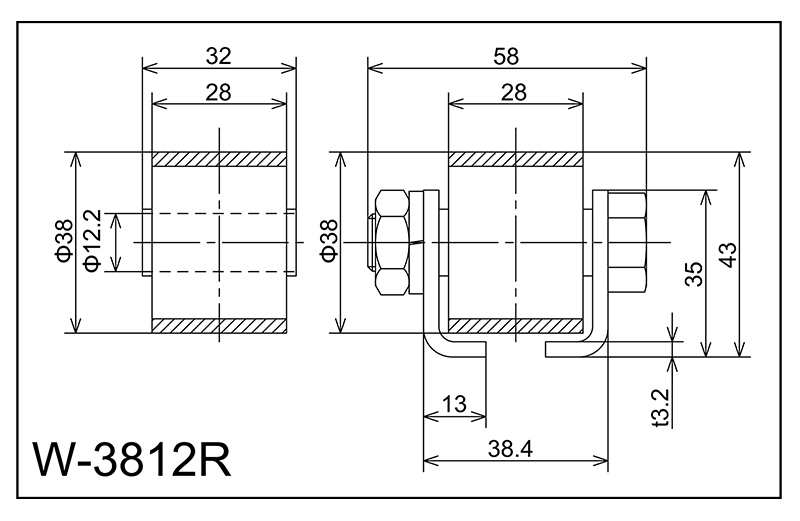

W-3812R | 38x28x12.2x32 | M12x50L | 35x38.4x13x58x3.2 | 43 | 1000 · 1500 · 2000 | 40 · 70 · 100 | 80 | A | NBR |
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading (kg) ...
Type | D*W*d*b | Shaft | Frame size h*w1*w2*w3*t |
Height H |
Length L |
Wheel pitch P |
Single wheel loading (kg) |
Frame type | Rubber |

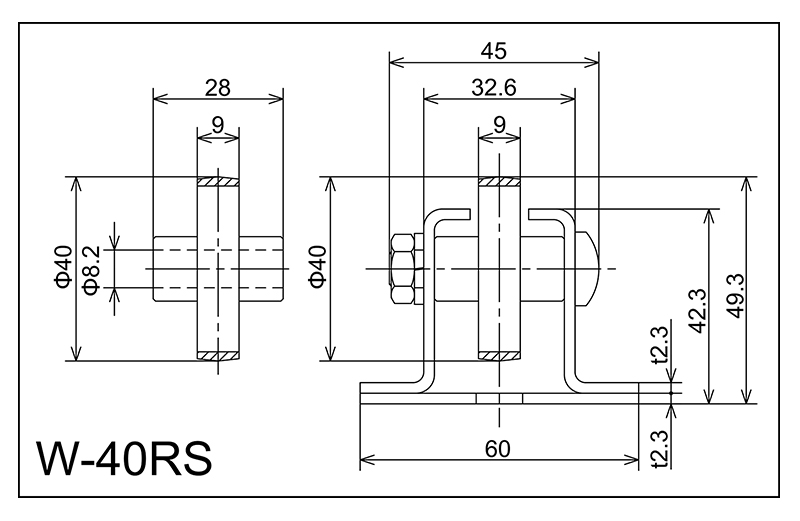

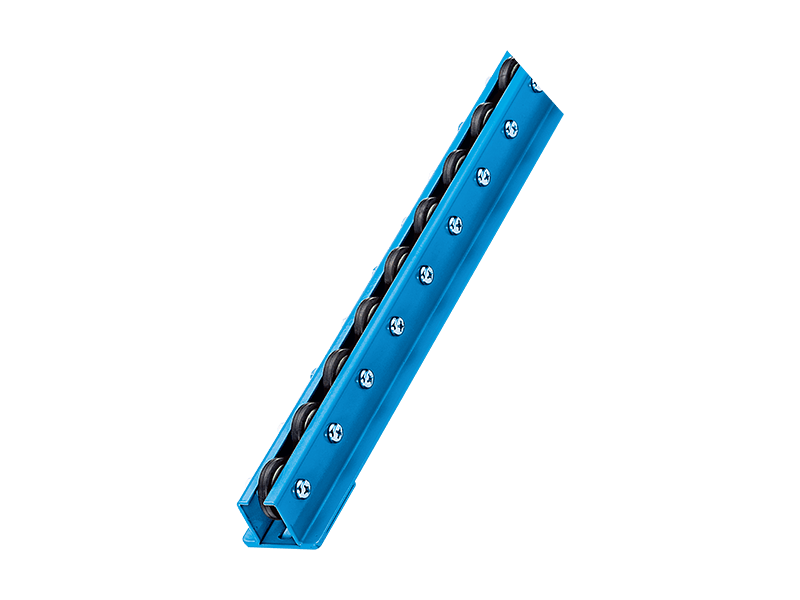

W-40RS | 40x9x8.2x28 | M8x40L | 42.3x60x32.6x45x2.3 | 49.3 | 1800 · 2400 · 3000 | 50 · 75 · 100 · 150 | 20 | J | NBR |
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading (kg) ...
Type | D*W*d*b | Shaft | Frame size h*w1*w2*w3*t |
Height H |
Length L |
Wheel pitch P |
Single wheel loading (kg) |
Frame type | Rubber |

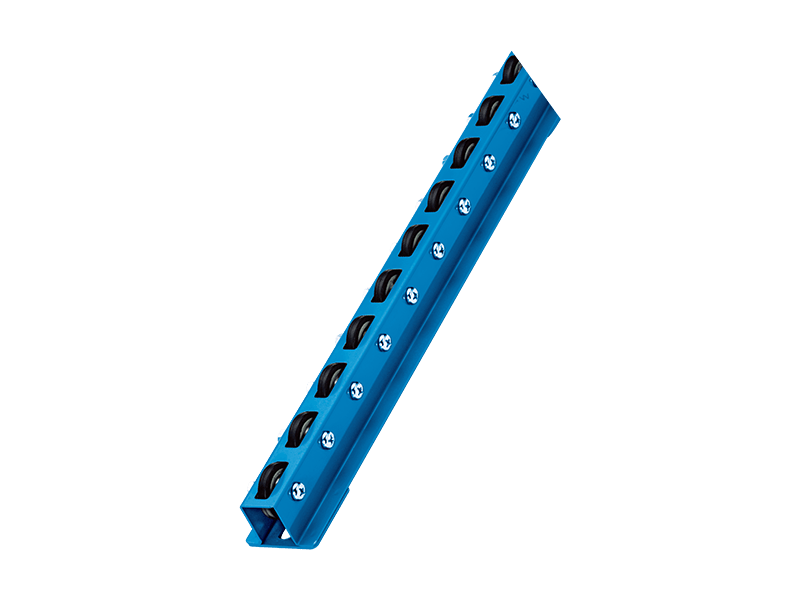

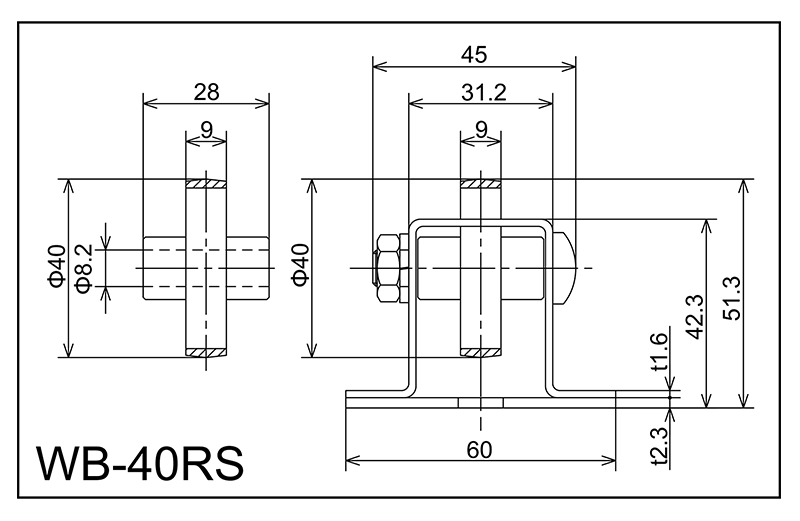

WB-40RS | 40x9x8.2x28 | M8x40L | 42.3x60x31.2x45×23 | 51.3 | 1800 · 2400 · 3000 | 50 · 75 · 100 | 20 | F | NBR |
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading (kg) ...
Type | D*W*d*b | Shaft | Frame size h*w1*w2*w3*t |
Height H |
Length L |
Wheel pitch P |
Single wheel loading (kg) |
Frame type | Rubber |

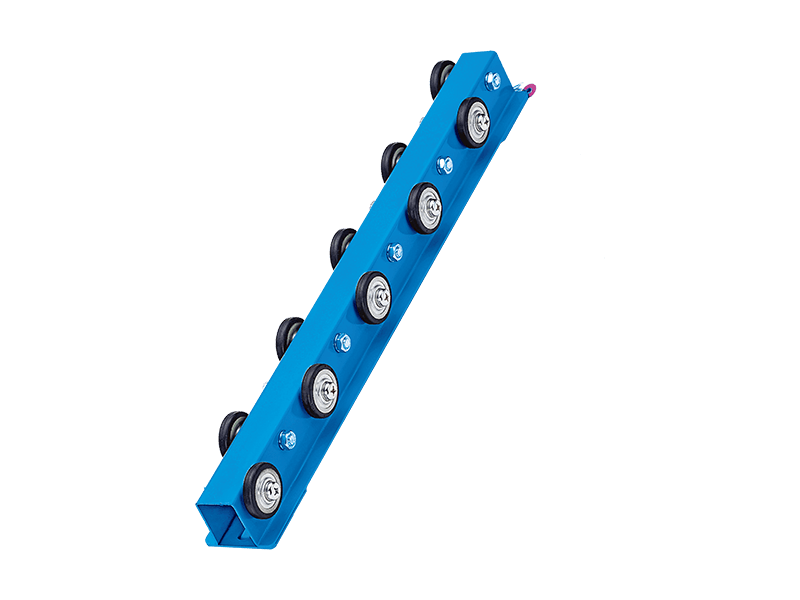

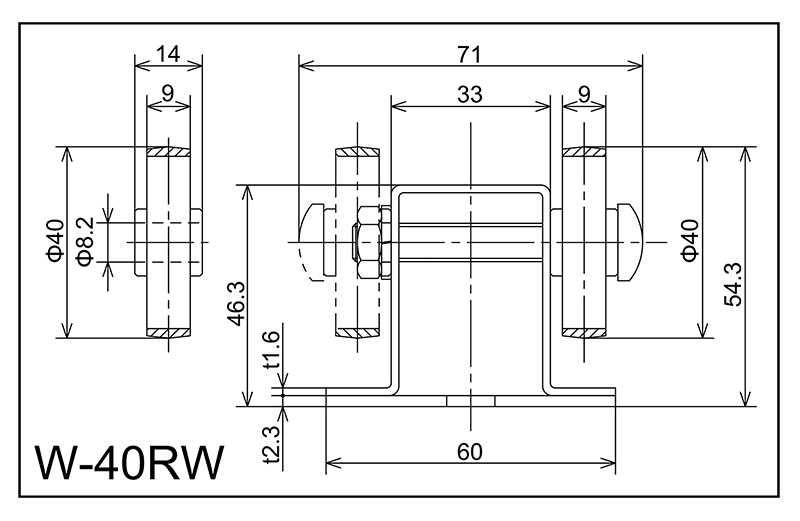

W-40RW | 40x9x8.2x14 | M8x55L | 46.3x60x33x71x2.3 | 54.3 | 1800 · 2400 · 3000 | 50 · 75 · 100 · 150 | 20 | K | NBR |
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading (kg) ...
Type | D*W*d*b | Shaft | Frame size h*w1*w2*w3*t |
Height H |
Length L |
Wheel pitch P |
Single wheel loading (kg) |
Frame type | Rubber |

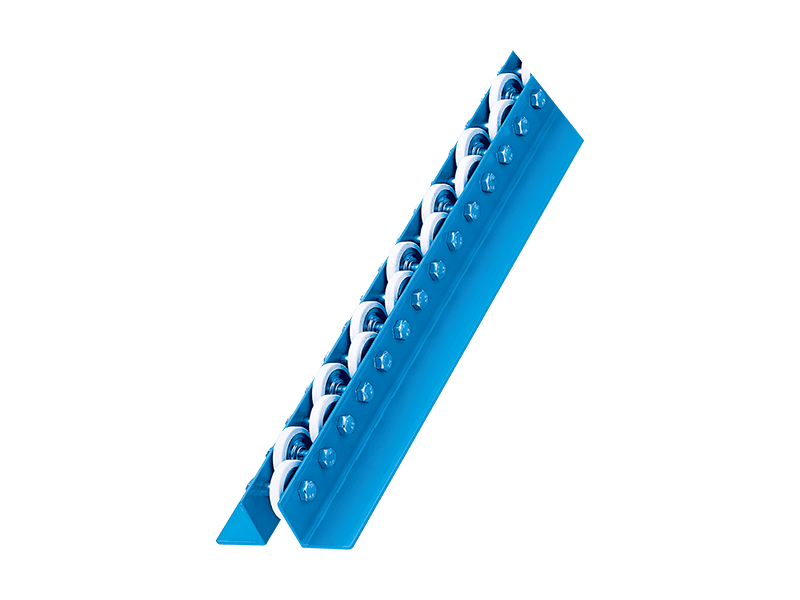

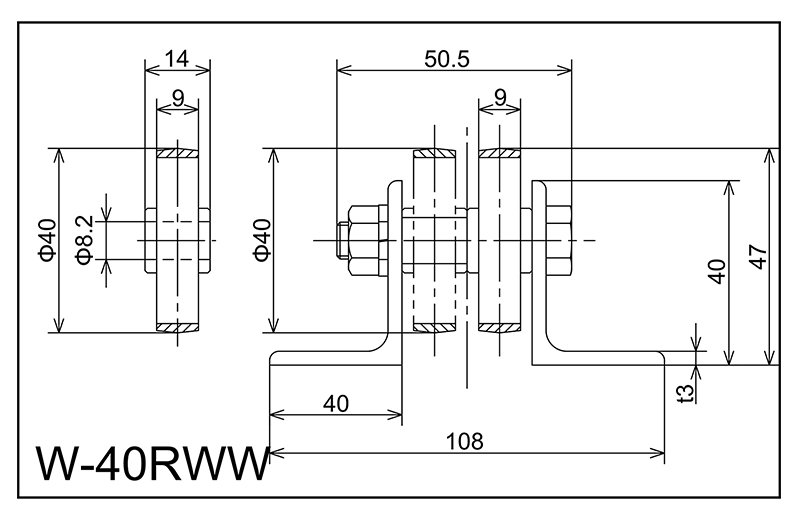

W-40RWW | 40x9x8.2x14 | M8x45L | 40x108x40x50.5x3 | 47 | 1000 · 2000 · 3000 | 30 · 40 · 50 · 75 | 20 | M | NBR |
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading (kg) ...
Type | D*W*d*b | Shaft | Frame size h*w1*w2*w3*t |
Height H |
Length L |
Wheel pitch P |
Single wheel loading (kg) |
Frame type | Rubber |

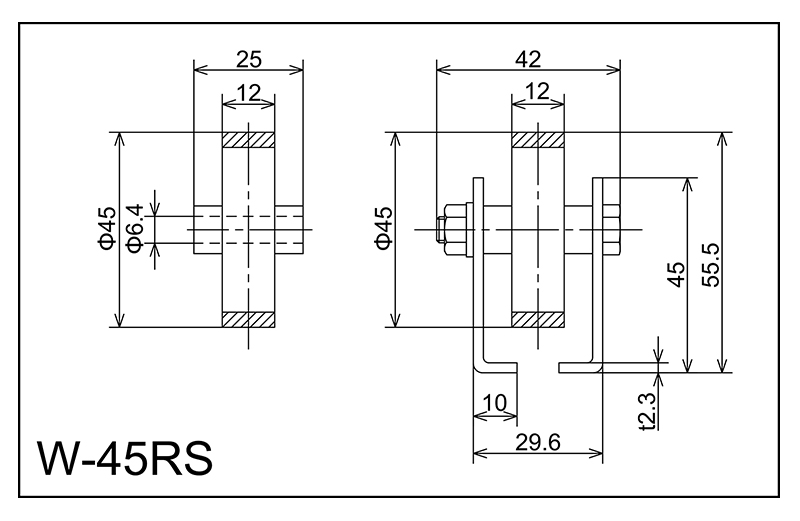

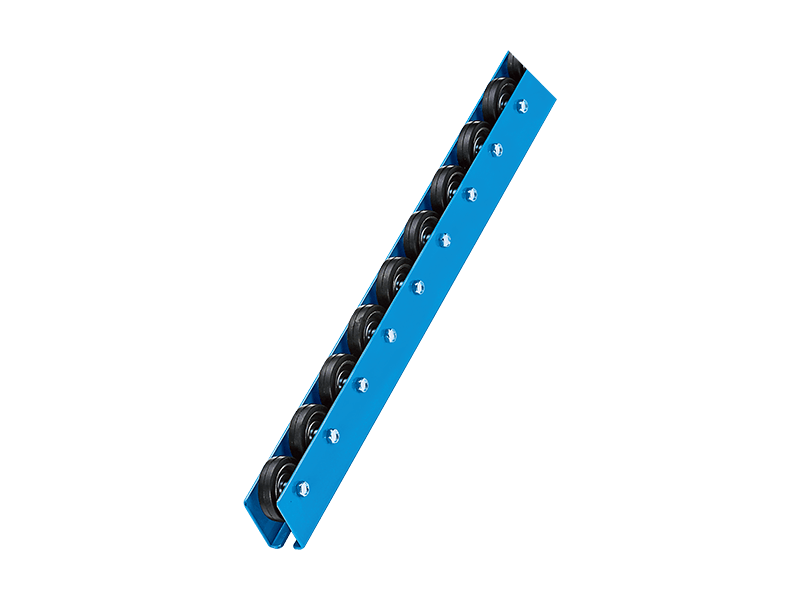

W-45RS | 45x12x6.4x25 | M6x38L | 45x29.6x10x42x2.3 | 55.5 | 1800 · 2400 · 3000 | 50 · 75 · 100 · 150 | 10 | A | NBR |
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading (kg) ...
Type | D*W*d*b | Shaft | Frame size h*w1*w2*w3*t |
Height H |
Length L |
Wheel pitch P |
Single wheel loading (kg) |
Frame type | Rubber |

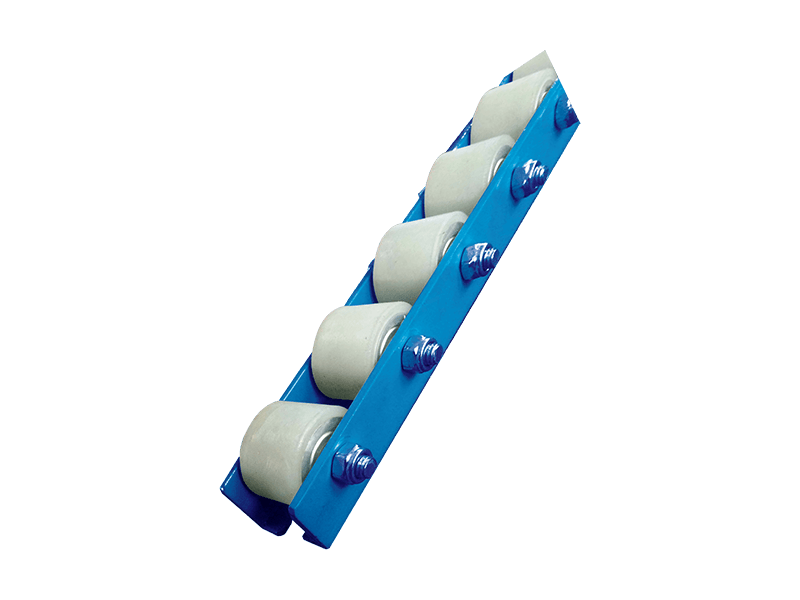

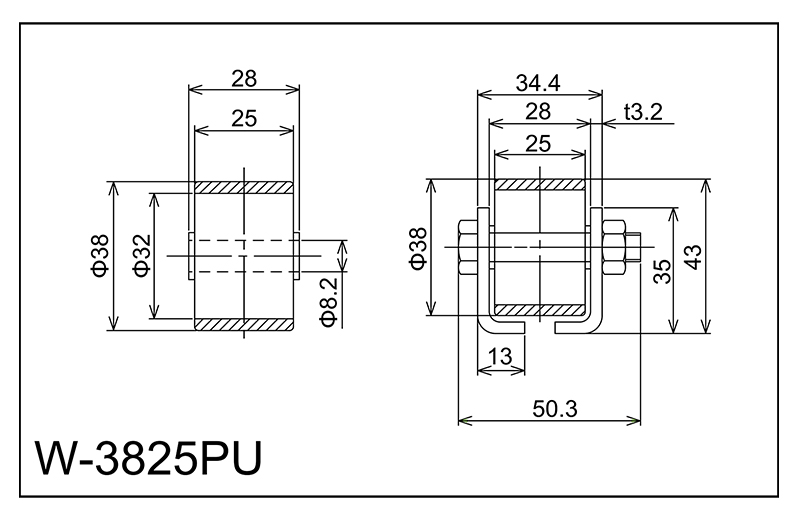

W-3825PU | 38x25x8.2x28 | M8x48L | 35x34.4x13x50.3x3.2 | 43 | 1800 · 2400 · 3000 | 50 · 75 · 100 · 150 | 50 | A | PU |
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading (kg) ...
Type | D*W*d*b | Shaft | Frame size h*w1*w2*w3*t |
Height H |
Length L |
Wheel pitch P |
Single wheel loading (kg) |
Frame type | Rubber |

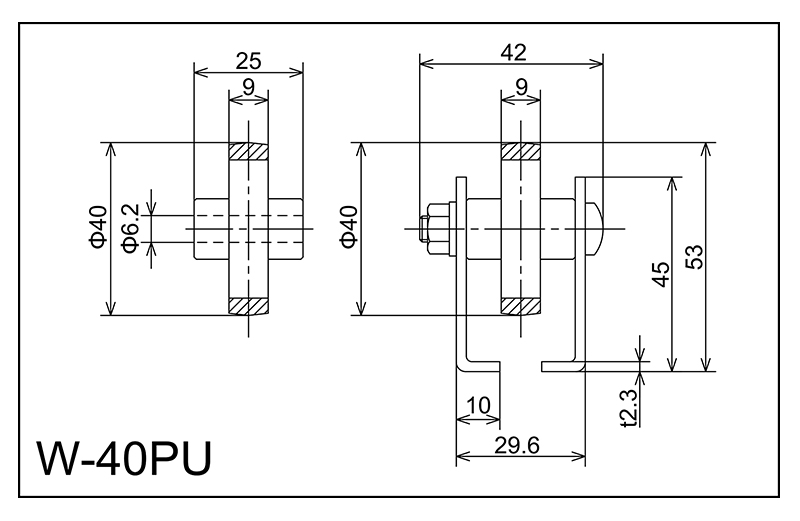

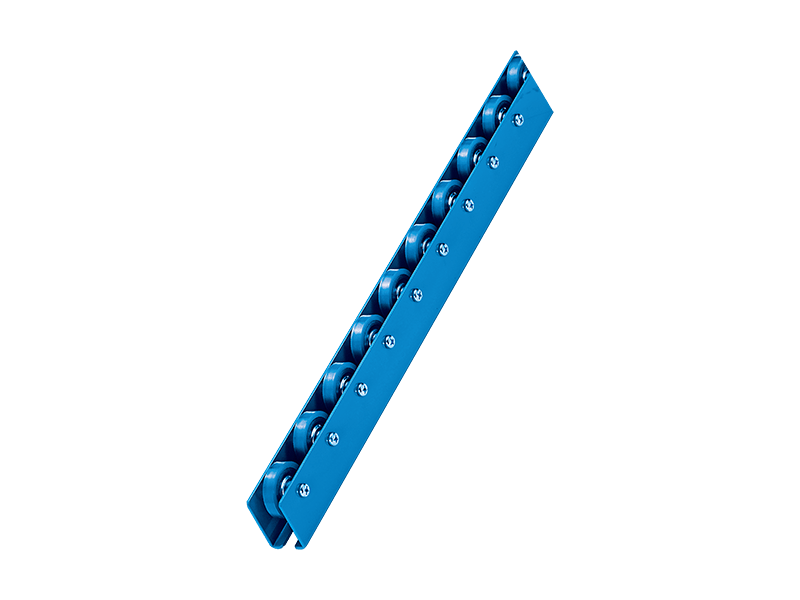

W-40PU | 40x9x6.2x25 | M6x38L | 45x29.6x10x42x2.3 | 53 | 1800 · 2400 · 3000 | 50 · 75 · 100 · 150 | 30 | A | PU |
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading (kg) ...
Type | D*W*d*b | Shaft | Frame size h*w1*w2*w3*t |
Height H |
Length L |
Wheel pitch P |
Single wheel loading (kg) |
Frame type | Rubber |

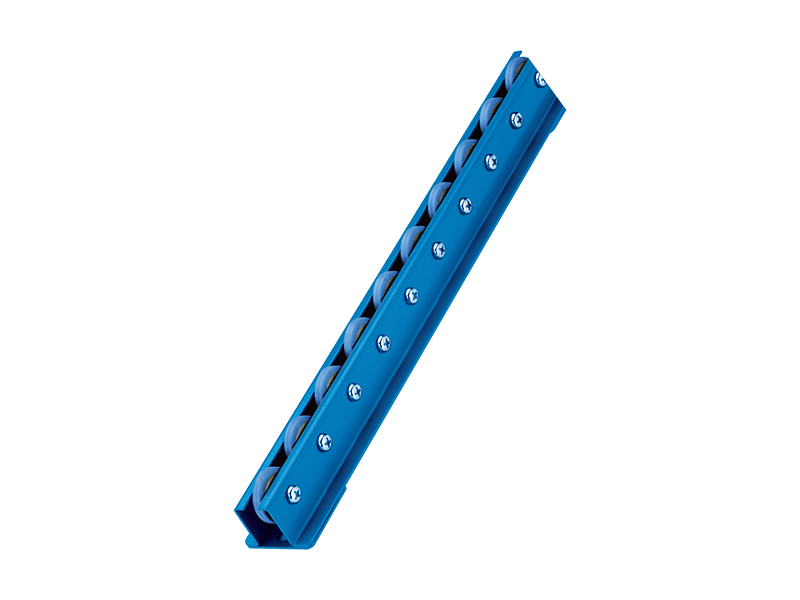

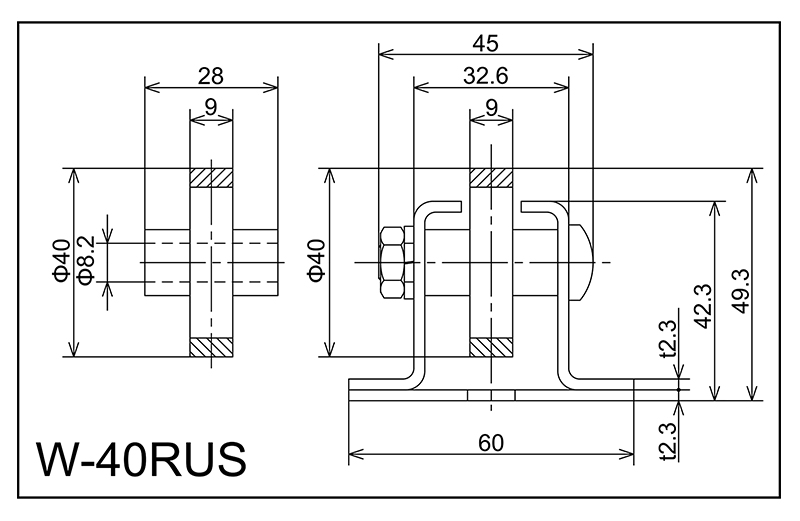

W-40RUS | 40x9x8.2x28 | M8x40L | 42.3x60x32.6x45x2.3 | 49.3 | 1800 · 2400 · 3000 | 50 · 75 · 100 · 150 | 30 | J | PU |
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading (kg) ...
Type | D*W*d*b | Shaft | Frame size h*w1*w2*w3*t |
Height H |
Length L |
Wheel pitch P |
Single wheel loading (kg) |
Frame type | Rubber |

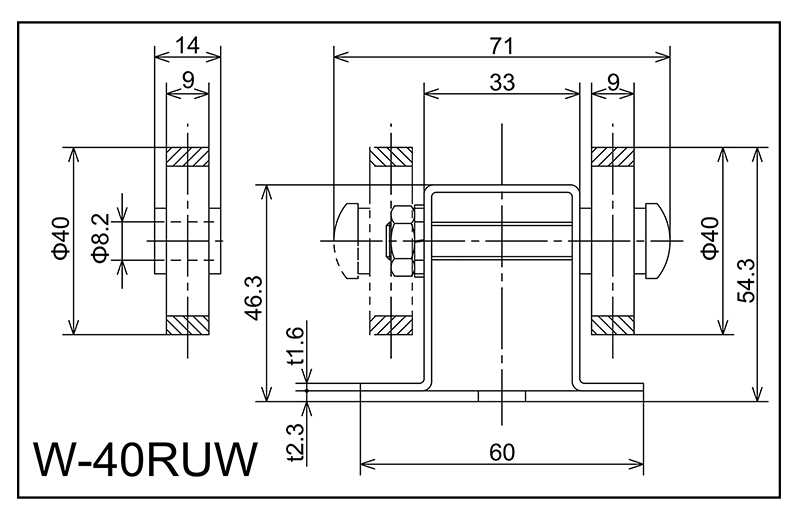

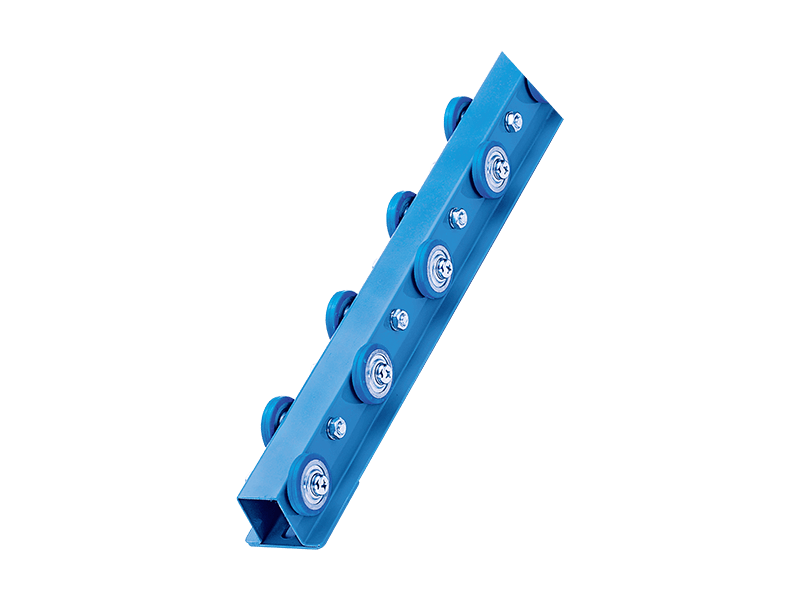

W-40RUW | 40x9x8.2x14 | M8x55L | 46.3x60x33x71×23 | 54.3 | 1800 · 2400 · 3000 | 50 · 75 · 100 · 150 | 30 | K | PU |
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading (kg) ...
Type | D*W*d*b | Shaft | Frame size h*w1*w2*w3*t |
Height H |
Length L |
Wheel pitch P |
Single wheel loading (kg) |
Frame type | Rubber |

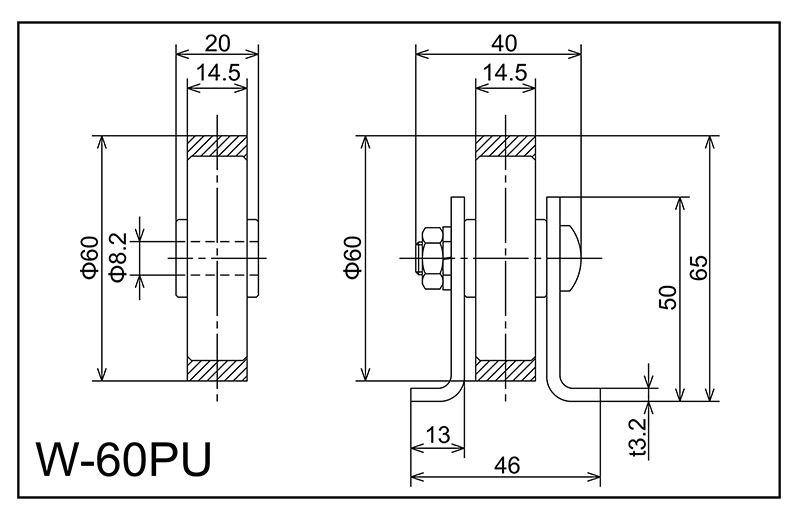

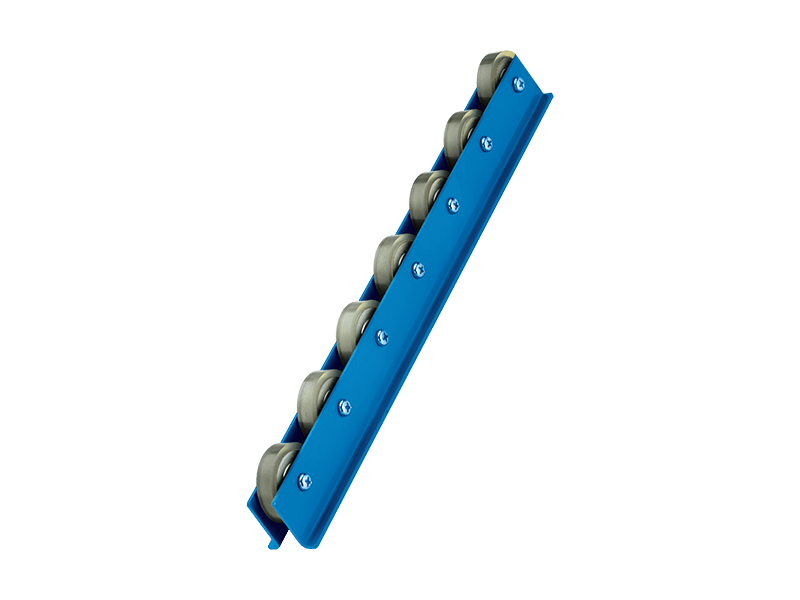

W-60PU | 60x14.5x8.2x20 | M8x35L | 50x46x13x40x3.2 | 65 | 1800 · 2400 · 3000 | 75 · 100 · 150 · 200 | 50 | C | PU |
