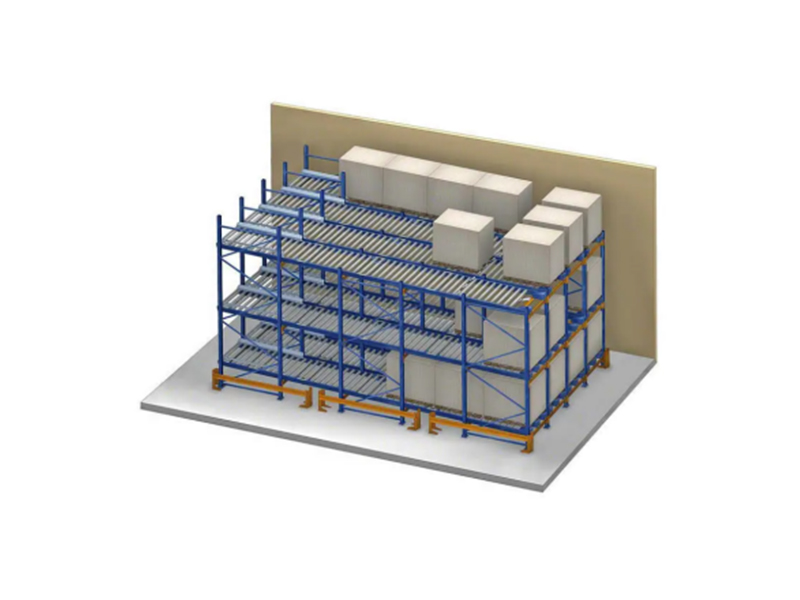

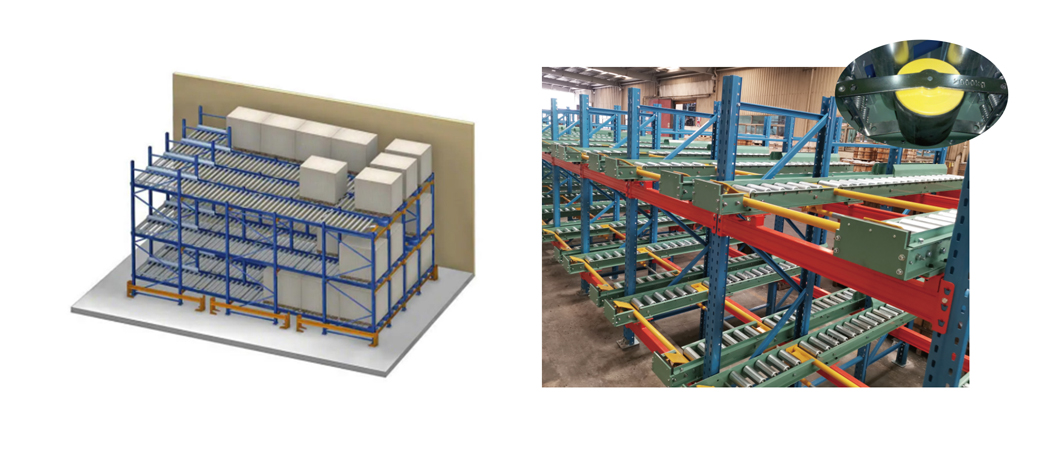

Gravity Rack

Functions

FlFO gravity rack is based on inclination (4%) of slide track and dead weight of goods. Gravity straight rollers are used as a support for sliding down. lts throughput is high. Storing and retrieving can be performed simultaneously, so flow speed of goods is increased.

Purposes

lt is suitable for pallet or large-volume storing and retrieving, w/ less kinds of goods. Every sliding track is used for storing and retrieving as one kind of goods as possible. lt has wide application in such industries as mechanical, chemical, electronic, beverage and food etc.

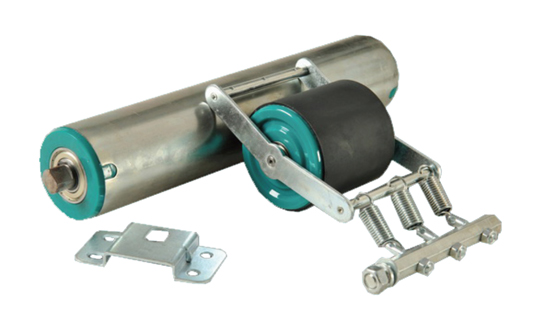

Brake roller

1. 1.Compared with a common pallet rack, it can save 35%-65% of storing density.
2.
3. 2.As for large articles, storing and retrieving are performed by forklift truck and stacker.
4.
5. 3. As for storing and retrieving goods, load is <1200kg generally
6.
7. 4. Due to gravity, rear goods slides to front location automatically
8.
9. 5. First-in first-out (FIFO) is a storing/retrieving mode.
10.
11. 6. This rack structure, in general, is suitable for business warehouse where input / output frequency is high and kinds of goods are less.
12.
13. 7. This rack is simple in structure, w/o noise and power consumption.
14.
15. 8. The first goods that is output will separate from rear goods.

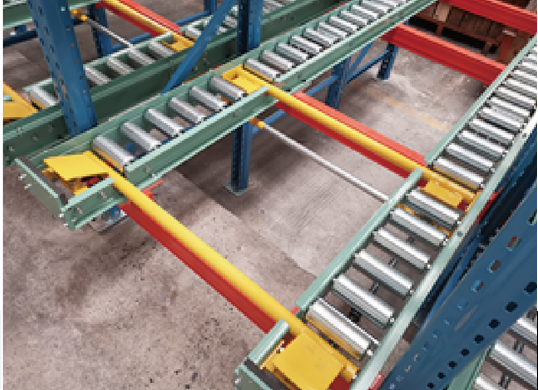

Pallet Security separator
