LBC MBC
Cat:Standard type conveyor
Model LBC-1 LBC-2 MBC-1 MBC-2 Belt Black rubber belt Black rubber belt Black rubber belt Bl...

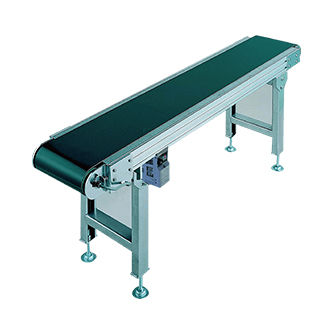

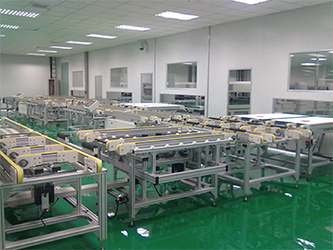

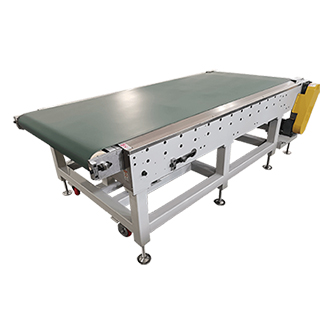

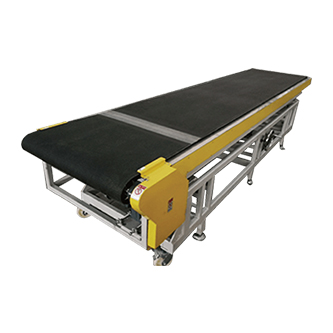

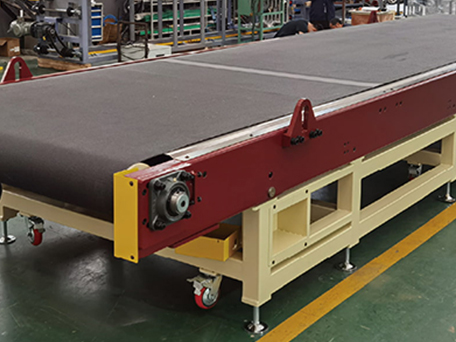

The belt conveyor is a continuous conveying machinery that transports materials via friction drive. Its main components include the frame, belt, carrier rollers, driven rollers, tensioning device, and drive system. The belt conveyor enables a seamless material transfer process along a defined conveyor line from the initial loading point to the final unloading point. It is particularly suitable for conveying loose materials and performs effectively in such applications. Belt conveyors are commonly used in industrial settings as assembly lines, packaging lines, and more.
Model LBC-1 LBC-2 MBC-1 MBC-2 Belt Black rubber belt Black rubber belt Black rubber belt Bl...
Model | LBC-1 | LBC-2 | MBC-1 | MBC-2 | |
Belt | Black rubber belt | Black rubber belt | Black rubber belt | Black rubber belt | |
Belt width | BW | 300~600 | 300~500 | 300~700 | 300~700 |
Camer roller | Diameter * Thickness * Shaft | 38X1.2X12 | 38X1.2X12 | 57.2X2.1X12 | 57.2X2.1X12 |
Return roller | Diameter * Thickness * Shaft | 57X2.1X12 | 57X2.1X12 | 57.2X2.1X12 | 57.2X2.1X12 |
Frame size | 1*K*t | 90X30X3.2 | 90X30X3.2 | 120X30X3.2 | 120X30X3.2 |
Length | L(mm) | 1200~20000 | 4000~15000 | 1200~25000 | 4000~20000 |
Conveyor width | W(mm) | BW+125 | BW+125 | BW+125 | BW+125 |
Height | H(mm) | min500 | min500 | min500 | min500 |
Capability | (kg/m) | max50 | max50 | max100 | max100 |
Speed | V(m/min) | max36 | max36 | max36 | max36 |
Motor power | (KW) | 0.2 · 0.4 · 0.75 · 1.5 | 0.2 · 0.4 · 0.75 · 1.5 | 0.2 · 0.4 · 0.75 · 1.5 | 0.2 · 0.4 · 0.75 · 1.5 |
Model JBS Belt Resin belt Belt width BW 400~1000 Camer roller Diameter * Thickness * Sh...
Model | JBS | |
Belt | Resin belt | |
Belt width | BW | 400~1000 |
Camer roller | Diameter * Thickness * Shaft | 48.6X1.6X12 |
Return roller | Diameter * Thickness * Shaft | 48.6X1.6X12 |
Frame size | 1*K*t | 120X30X2.3 |
Length | L(mm) | 1200~23000 |
Conveyor width | W(mm) | W+125 |
Height | H(mm) | min500 |
Capability | (kg/m) | max70 |
Speed | V(m/min) | max36 |
Motor power | (KW) | 0.2 · 0.4 · 0.75 · 1.5 |
Model JBK Belt Resin belt Belt width BW 400~1000 Camer roller Diameter * Thickness * Sh...
Model | JBK | |
Belt | Resin belt | |
Belt width | BW | 400~1000 |
Camer roller | Diameter * Thickness * Shaft | 57.2X2.1X12 |
Return roller | Diameter * Thickness * Shaft | 57.2X2.1X12 |
Frame size | 1*K*t | 120X30X2.3 |
Length | L(mm) | 3400~23000 |
Conveyor width | W(mm) | W+125 |
Height | H(mm) | min500 |
Capability | (kg/m) | max70 |
Speed | V(m/min) | max36 |
Motor power | (KW) | 0.2 · 0.4 · 0.75 · 1.5 |

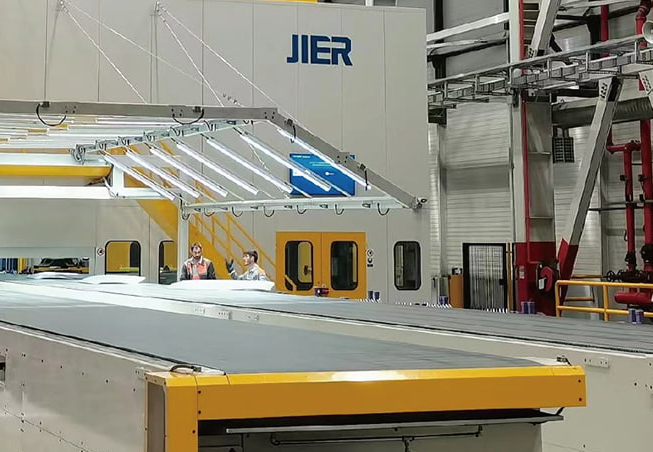

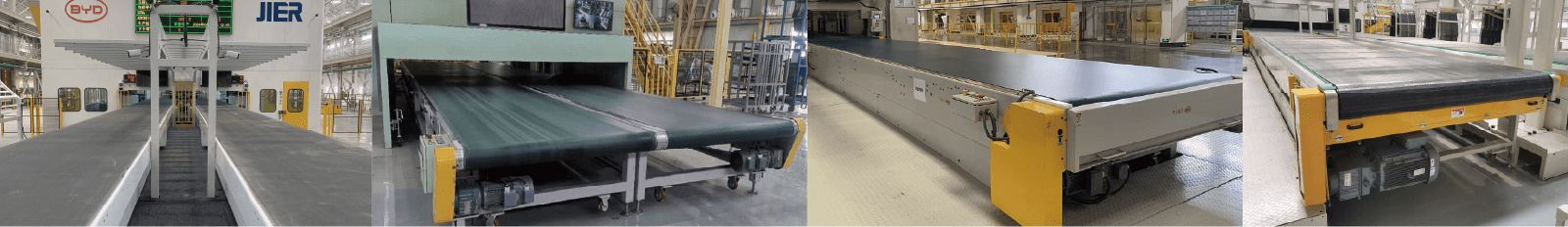

Type SBC-1Horizontal type SBC-2Telescoping type SBC-3Lifting type SBC-4Telescoping with lifting t...
Type | SBC-1 Horizontal type |
SBC-2 Telescoping type |
SBC-3 Lifting type |
SBC-4 Telescoping with lifting type |
SBC-5 POM type |
|
Belt | PVC PVK PU POM | |||||
Belt width | 500-300 | |||||
Drive method | Chain drive(12A duplex chain) | |||||
Drive roller | ODxtxd | 265×15×65 galvanized | 225×20×60 galvanized | 265×15×65 galvanized | 225×20×60 galvanized | 24-tooth PA sprocket |
Idler roller | 200×15×50 galvanized | 155×14×50 galvanized | 200×15×50 galvanized | 155×14×50 galvanized | 24-tooth PA sprocket | |
Tension roller | 120×10×50 galvanized | 120×10×50 galvanized | ||||
Telescoping roller | 120×10×50 galvanized | 120×10×50 galvanized | ||||
Frame size 1×K×t | 280×84×9.5(28b) | 320×92×12(32c) | 280×84×9.5(28b) | 320×92×12(32c) | 200×120×8t | |
Ength/motor L(m) | max30 | max20 | max30 | max20 | max30 | |
Conveyor width | Belt width+184 | Belt width+250 | Belt width+184 | Belt width+250 | Belt width+271 | |
Conveyor height H | min900 | min900 | min900 | min900 | min900 | |
Load capacity (kg/m) | max200 | max200 | max200 | max200 | max200 | |
Speed V(m/min) | max120 | max120 | max120 | max120 | max120 | |
Motor power(KW) | 1.5/2.2/3.7/5.5/7.5/11 | 1.5/2.2/3.7/5.5/7.5/11 | 1.5/2.2/3.7/5.5/7.5/11 | 1.5/2.2/3.7/5.5/7.5/11 | 1.5/2.2/3.7/5.5/7.5/11 | |
Electric power voltage (V) | 3PH200V 3PH380V 3PH460V |

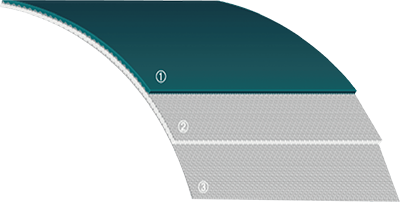

Upper surface With different layer materials/thicknesses/patterns to the belt adaptability on certain used. Strong layer Use different special fabrics to largely dictate The belt's tracking feature load/ductility, electrostatic, flatness and bel adaptability for knife edge and curve are directly dependent on the belt's fabric structure. Bottom surface The bottom structure dictates the belt noise level, durable and adaptability of belt support plates /rollers with different Layer materials/thicknesses/pattens to the belt adaptability on certain used. |
Trannstex has 33 kinds of belt can meet your any requirements for belts.
PVC | PVK | PU | POM | |
(impregnated fabric) | (impregnated special fabric) | (Polyurethane coated fabric) | (Polyoxymethylene) | |
Strong, durable | ++ | +++ | +++ | ++++ |
anti-cutting | + | +++ | +++ | ++++ |
UV resistance | + | + | + | + |
Puncture resistance | + | ++ | +++ | ++++ |
Groovable | +++ | + | + | + |
lateral stiffness | +/++ | +/++ | +++ | ++++ |
Adjustable height belt conveyor |
Telescopic belt conveyor |
Telescopic lifting type (electric) |
|
Single-side lifting mode (manual+2 sides) |
Single-side lifting form (electric) |
Lifting device |
Expansion device |

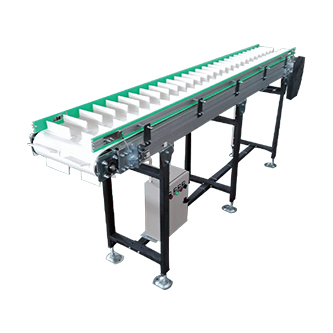

Plastic module chain conveyor line (the picture shows the overall electric lifting type) |

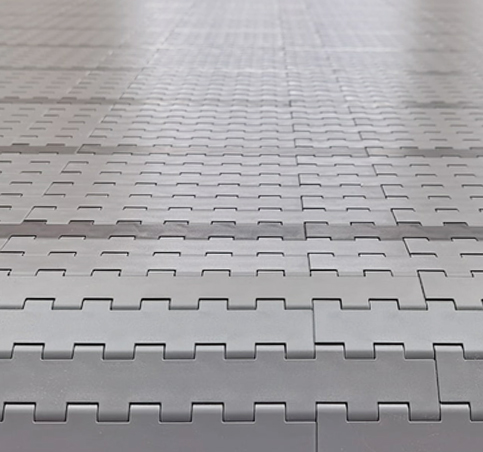

POM chain belt (with antistatic module) |

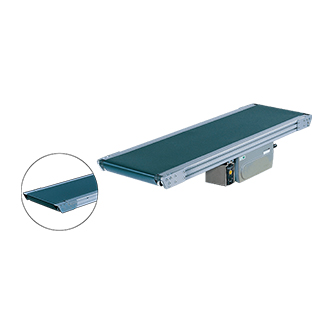

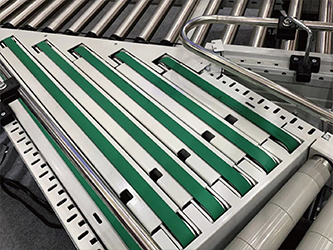

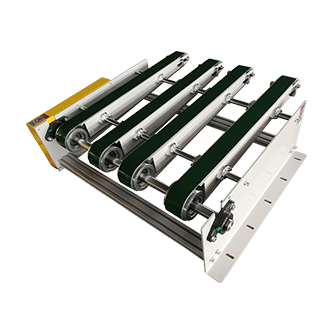

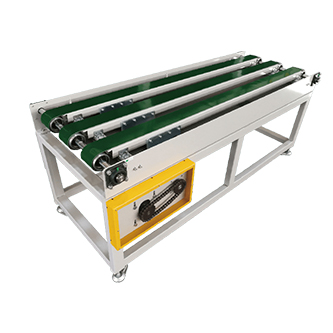

SI Standard Type ● This is standard type of 34mm belt conveyor, driving center is moved by Timing be...
SI Standard Type
● This is standard type of 34mm belt conveyor, driving center is moved by Timing belt.
● The belt has good capability of silence and wearability.
GI Guide Type
● This type of belt conveyor goes with oriented gibbous belt, which can assure movement more smoothly and steadily; convenient to use with other equipment, suitable for high requiring situations of time and stability.
● Moreover, clockwise and anti-clockwise running can be choosed by different conditions, and different colors by different purposes.
Standard Dimension
Belt width | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 500 | 600 | |||||||||
Conveyor Width | 140 | 190 | 240 | 290 | 340 | 390 | 440 | 540 | 640 | |||||||||
Conveyor Length | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 | 5000 | 6000 | 7000 | 8000 |
Height | 169 | Power | AC100V (single-phase) · AC200V (single-phase) · AC200V (three-phase) |
Speed | Fixed/Variable speed | Belt | Polyurethane belt |
Capability | Reference ability table | Option | Support, Guide, Others |
Motor power | 25W、40W、60W、90W |
Actual dimension of belt is narrowed 5mm than above standard belt; If the length of machine exceeds 4m, with specifications of belt 500, 600 for width it will be narrowed 10mm.
lf the length exceeds 6m, there will be a support in the middle.
Belt Speed
Ratio | Speed No. | Fixed speed 50/60(Hz)(m/min) |
Speed No. | Variable speed 50 ·60(Hz)(m/min) |
1/180 | T1 | 1.9/2.3 | H1 | 0.13~2.5 |
1/2050 | T2 | 2.3/2.7 | H2 | 0.15~3.0 |
1/2020 | T3 | 2.8/3.4 | H3 | 0.19~3.8 |
1/2000 | T4 | 3.4/4.1 | H4 | 0.23~4.5 |
1/90 | T5 | 3.8/4.5 | H5 | 0.26~5.1 |
1/75 | T6 | 4.6/5.5 | H6 | 0.31~6.1 |
1/60 | T7 | 5.7/6.8 | H7 | 0.38~7.6 |
1/50 | T8 | 6.8/8.2 | H8 | 0.46~9.1 |
1/36 | T9 | 9.5/11.4 | H9 | 0.63~12.6 |
1/30 | T10 | 11.4/13.7 | H10 | 0.76~15.2 |
1/25 | T11 | 13.7/16.4 | H11 | 0.91~18.2 |
1/18 | T12 | 19.0/22.8 | H12 | 1.27~25.3 |
1/15 | T13 | 22.8/27.3 | H13 | 1.52~30.4 |
1/12.5 | T14 | 27.3/32.8 | H14 | 1.82~36.4 |
1/9 | T15 | 37.9/45.5 | H15 | 2.53~50.6 |
Speed calculation of fixed speed : rotate speed 1500/1800rpm(50/60Hz), Driving roller ∅76.3, Driving efficiency: 95%
Speed calculation of variable speed : rotate speed 2000rpm(50;60Hz), Driving roller ∅76.3, Driving efficiency: 95%
If exact speed is required, please choose variable forms.
Ability Table
This is capability data of equal dispersal loading. As moving bag-shape goods, please refer to 40% of aboving capability data.
Capability will be changed by different conditions.
Motor Machine Width Dimension Beyond
Fixed Speed
Power\Belt width | 100 | 150 |
25W | 21.5(11) | - |
40W | 59(41) | 9 |
60W | 85 | 35 |
90W | 100 | 50 |
Variable Speed
Power\Belt width | 100 |
25W | - |
40W | 11 |
90W | 22 |
Standard Power
Standard assembly is brushless DC motor and controlling unit at variable speed model.
From low speed to high speed with immovable exporting torsion.
Speed extension 100r/min~2000r/min can be adjustable.(speed proportion 1:20).
Drawing
Standard Dimension Belt width 50 75 Conveyor Width 90 115 Conveyor Length 500 1,000 1,50...
Standard Dimension
Belt width | 50 | 75 | ||||||||
Conveyor Width | 90 | 115 | ||||||||
Conveyor Length | 500 | 1,000 | 1,500 | 2,000 | 2,500 | 3,000 | 3,500 | 4,000 | 5,000 | 6,000 |
Height | 150 | Power | AC100V (single-phase) · AC200V (single-phase) · AC200V (three-phase) |
Speed | FixedNariable speed | Belt | Polyurethane belt |
Capability | Reference ability table | Option | Support, Guide, Others |
Motor power | 25W、40W、60W、90W |
Actual dimension of belt is narrowed 5mm than aboving standard belt.
Belt Speed
Ratio | Speed No. |
Fixed speed 50/60(Hz)(m/min) |
Speed No. |
Variable speed 50/60(Hz)(m/min) |
1/180 | T1 | 16./1.9 | H1 | 0.11~2.1 |
1/2050 | T2 | 1.9/2.3 | H2 | 0.13~2.6 |
1/2020 | T3 | 2.4/2.9 | H3 | 0.16~3.2 |
1/2000 | T4 | 2.9/3.5 | H4 | 0.20~3.9 |
1/90 | T5 | 3.2/3.9 | H5 | 0.22-4.3 |
1/75 | T6 | 3.9/4.6 | H6 | 0.26~5.2 |
1/60 | T7 | 4.8/5.8 | H7 | 0.33~6.5 |
1/50 | T8 | 5.8/7.0 | H8 | 0.39~7.7 |
1/36 | T9 | 8.1/9.7 | H9 | 0.54~10.8 |
1/30 | T10 | 9.7/11.6 | H10 | 0.65~12.9 |
1/25 | T11 | 11.6/14.0 | H11 | 0.78~15.5 |
1/18 | T12 | 16.2/19.4 | H12 | 1.08~21.5 |
1/15 | T13 | 19.4/23.3 | H13 | 1.30~25.9 |
1/12.5 | T14 | 23.3/27.9 | H14 | 1.55~31.0 |
1/9 | T15 | 32.3/38.8 | H15 | 2.16~43.1 |
Ability Table
This is capability data of equal dispersal loading. As moving bag-shape goods, please refer to 40% of aboving capability data.
Capability will be changed by different conditions.
Motor Machine Width Dimension Beyond
Fixed Speed
Power\Belt width | 50 | 75 |
25W | 46.5(36) | 21.5(11) |
40W | 84(66) | 59(41) |
Variable Speed
Power\Belt width | 50 | 75 |
25W | 3.5 | - |
40W | 36(18) | 11 |
Drawing
JI: Be suytable for using un the middle of equipment conveying or conveying equipment conveying, sho...
JI: Be suytable for using un the middle of equipment conveying or conveying equipment conveying, shortest length is 300mm.
J Model, Type-J is anti deviation belt conveyor. lt is Suitable for using in difficult maintenance. lt can be set for forward and back running. lt is also can be used in hard conditions.
Standard Dimension
Belt width | 50 | 75 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 500 | ||
Conveyor Width | 90 | 115 | 140 | 190 | 240 | 290 | 340 | 390 | 440 | 540 | ||
Conveyor Length | 300 | 500 | 1000 | 1500 | 2000 | 2500 | 3000 |
Height | 250 | Power | AC100V (single-phase) · AC200V (single-phase) · AC200V (three-phase) |
Speed | FixedNariable speed | Belt | Polyurethane belt |
Capability | 15Kg/set (JI) 10kg/set (JGI) |
Option | Support, Guide, Others |
Motor power | 25W、40W、60W、90W |
Actual dimension of belt is narrowed 5mm than aboving standard belt.
Belt Speed
Ratio | Speed No. |
Fixed speed 50/60(Hz)(m/min) |
Speed No. |
Variable speed 50/60(Hz)X(m/min) |
1/180 | T1 | 1.7/2.1 | H1 | 0.12~2.3 |
1/2050 | T2 | 2.1/2.3 | H2 | 0.14~2.7 |
1/2020 | T3 | 2.6/3.1 | H3 | 0.18~3.5 |
1/2000 | T4 | 3.1/3.7 | H4 | 0.21~4.1 |
1/90 | T5 | 3.5./4.1 | H5 | 0.23~4.6 |
1/75 | T6 | 4.2/5.0 | H6 | 0.28~5.5 |
1/60 | T7 | 5.2/6.2 | H7 | 0.35-6.9 |
1/50 | T8 | 6.2/7.5 | H8 | 0.42~8.3 |
1/36 | T9 | 8.7/10.4 | H9 | 0.58-11.5 |
1/30 | T10 | 10.4/12.5 | H10 | 0.70~13.9 |
1/25 | T11 | 12.6/15.0 | H11 | 0.83~16.6 |
1/18 | T12 | 17.4/21.0 | H12 | 1.16~23.2 |
1/15 | T13 | 21.0/25.0 | H13 | 1.39~27.8 |
1/12.5 | T14 | 25.0/30.0 | H14 | 1.67~33.3 |
1/9 | T15 | 34.6/41.7 | H15 | 2.32-46.4 |
Standard Power
JI
Length/Beit width | 50~200 | 250~500 |
300~3,000 | 25W、40W | 40W、60W |
JGI
Length/Beit width | 75~250 | 300~350 |
300~3,000 | 40W | Fixed speed 60W, variable speed 90W |
Motor Machine Width Dimension Beyond
Fixed Speed
Power\Belt width | 50 | 75 | 100 | 150 |
25W | 62.5(52) | 37.5(27) | 12.5(2) | - |
40W | 100(82) | 75(57) | 50(32) | - |
60W | - | 101 | 76 | 26 |
Variable Speed
Power\Belt width | 50 | 75 | 100 |
25W | 19.5(9) | - | - |
40W | 52(34) | 27(9) | 2 |
90W | - | 38 | 13 |
Drawing
Standard Dimension Belt width 100 150 200 250 300 350 400 500 Conveyor Width 140 190 ...
Standard Dimension
Belt width | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 500 | ||
Conveyor Width | 140 | 190 | 240 | 290 | 340 | 390 | 440 | 540 | ||
Conveyor Length | 1,000 | 1,500 | 2,000 | 2,500 | 3,000 |
Height | 280 | Power | AC100V (single-phase) · AC200V (single-phase) · AC200V (three-phase) |
Speed | FixedNariable speed | Belt | Polyurethane belt |
Capability | Reference ability table | Option | Support, Guide, Others |
Motor power | 60W、90W |
Actual dimension of belt is narrowed 5mm than aboving standard belt.
Belt Speed
Ratio | Speed No. |
Fixed speed 50/60(Hz)(m/min) |
Speed No. |
Variable speed 50/60(Hz)(m/min) |
1/180 | T1 | 16./1.9 | H1 | 0.11~2.1 |
1/2050 | T2 | 1.9/2.3 | H2 | 0.13~2.6 |
1/2020 | T3 | 2.4/2.9 | H3 | 0.16~3.2 |
1/2000 | T4 | 2.9/3.5 | H4 | 0.20~3.9 |
1/90 | T5 | 3.2/3.9 | H5 | 0.22~4.3 |
1/75 | T6 | 3.9/4.6 | H6 | 0.26~5.2 |
1/60 | T7 | 4.8/5.8 | H7 | 0.33~6.5 |
1/50 | T8 | 5.8/7.0 | H8 | 0.39~7.7 |
1/36 | T9 | 8.1/9.7 | H9 | 0.54~10.8 |
1/30 | T10 | 9.7/11.6 | H10 | 0.65~12.9 |
1/25 | T11 | 11.6/14.0 | H11 | 0.78~15.5 |
1/18 | T12 | 16.2/19.4 | H12 | 1.08~21.5 |
1/15 | T13 | 19.4/23.3 | H13 | 1.30~25.9 |
1/12.5 | T14 | 23.3/27.9 | H14 | 1.55~31.0 |
Ability Table
This is capability data of equal dispersal loading. As moving bag-shape goods, please refer to 40% of aboving capability data.
Capability will be changed by different conditions.
Motor Machine Width Dimension Beyond
Fixed Speed
Power\Belt width | 100 | 150 |
60W | 45 | - |
90W | 60 | 10 |
Variable Speed
Power\Belt width | 100~500 |
1,000~4,000 | Fixed speed 60W, variable speed 90W |
Drawing
Standard Dimension Belt width 200 250 300 400 500 600 Conveyor Width 280 330 380 480 ...
Standard Dimension
Belt width | 200 | 250 | 300 | 400 | 500 | 600 | ||||
Conveyor Width | 280 | 330 | 380 | 480 | 580 | 680 | ||||
Conveyor Length | 1,000 | 1,500 | 2,000 | 2,500 | 3,000 |
Height | 300 | Power | AC100V (single-phase) · AC200V (single-phase) · AC200V (three-phase) |
Speed | FixedNariable speed | Belt | Polyurethane belt |
Capability | Reference ability table | Option | Support, Guide, Others |
Motor power | 90W |
Actual dimension of belt is narrowed 5mm than aboving standard belt.
Belt Speed
Rato | Speed No |
Fixed speed 50/60(Hz)(m/min) |
Speed No. |
Variable speed 50/60(Hz)(m/min) |
1/180 | T1 | 1.9/2.3 | H1 | 0.13~2.5 |
1/2050 | T2 | 2.3/2.7 | H2 | 0.15~3.0 |
1/2020 | T3 | 2.8/3.4 | H3 | 0.19~3.8 |
1/2000 | T4 | 3.4/4.1 | H4 | 0.23~4.5 |
1/90 | T5 | 3.8/4.5 | H5 | 0.26~5.1 |
1/75 | T6 | 4.6/5.5 | H6 | 0.31~6.1 |
1/60 | T7 | 5.7/6.8 | H7 | 0.38~7.6 |
1/50 | T8 | 6.8/8.2 | H8 | 0.46~9.1 |
1/36 | T9 | 9.5/11.4 | H9 | 0.63~12.6 |
1/30 | T10 | 11.4/13.7 | H10 | 0.76~15.2 |
1/25 | T11 | 13.7/16.4 | H11 | 0.91~18.2 |
1/18 | T12 | 19.0/22.8 | H12 | 1.27~25.3 |
1/15 | T13 | 22.8/27.3 | H13 | 1.52~30.4 |
1/12.5 | T14 | 27.3/32.8 | H14 | 1.82~36.4 |
Ability Table
This is capability data of equal dispersal loading. As moving bag-shape goods, please refer to 40% of aboving capability data.
Capability will be changed by different conditions.
Drawing
SI Standard Type ● This is standard type of 34mm belt conveyor, driving center is moved by Timing be...
SI Standard Type
● This is standard type of 34mm belt conveyor, driving center is moved by Timing belt.
● The belt has good capability of silence and wearability.
GI Guide Type
● This type of belt conveyor goes with oriented gibbous belt, which can assure movement more smoothly and steadily; convenient to use with other equipment, suitable for high requiring situations of time and stability.
● Moreover, clockwise and anti-clockwise running can be choosed by different conditions, and different colors by different purposes.
Standard Dimension
Belt width | 200 | 250 | 300 | 350 | 400 | 500 | 600 | (700) | (800) |
Conveyor Width | 280 | 330 | 380 | 430 | 480 | 580 | 680 | (780) | (880) |
Conveyor Length | 500 | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 | 7000 | 8000 |
The models with belt widths of 700 and 800 are standard products.
Height | 195 | Power | AC100V (single-phase) · AC200V (single-phase) · AC200V (three-phase) |
Speed | Fixed/Variable speed | Belt | Polyurethane belt |
Capability | Reference ability table | Option | Support, Guide, Others |
Motor power | 60W、90W |
If the length exceed 6m,the middle place goes with belt support structure.
Belt Speed
Ratio | Speed No. | Fixed speed 50/60(Hz)(m/min) |
Speed No. | Variable speed 50/60(Hz)(m/min) |
1/180 | T1 | 1.9/2.3 | H1 | 0.13~2.5 |
1/2050 | T2 | 2.3/2.7 | H2 | 0.15~3.0 |
1/2020 | T3 | 2.8/3.4 | H3 | 0.19~3.8 |
1/2000 | T4 | 3.4/4.1 | H4 | 0.23~4.5 |
1/90 | T5 | 3.8/4.5 | H5 | 0.26~5.1 |
1/75 | T6 | 4.6/5.5 | H6 | 0.31~6.1 |
1/60 | T7 | 5.7/6.8 | H7 | 0.38~7.6 |
1/50 | T8 | 6.8/8.2 | H8 | 0.46~9.1 |
1/36 | T9 | 9.5/11.4 | H9 | 0.63~12.6 |
1/30 | T10 | 11.4/13.7 | H10 | 0.76~15.2 |
1/25 | T11 | 13.7/16.4 | H11 | 0.91~18.2 |
1/18 | T12 | 19.0/22.8 | H12 | 1.27~25.3 |
1/15 | T13 | 22.8/27.3 | H13 | 1.52~30.4 |
1/12.5 | T14 | 27.3/32.8 | H14 | 1.82~36.4 |
1/9 | T15 | 37.9/45.5 | H15 | 2.53~50.6 |
Speed calculation of fixed speed : rotate speed 1500/1800rpm(50/60Hz), Driving roller ∅76.3, Driving efficiency: 95%
Speed calculation of variable speed : rotate speed 2000rpm(50;60Hz), Driving roller ∅76.3, Driving efficiency: 95%
If exact speed is required, please choose variable forms.
Ability Table
This is capability data of equal dispersal loading. As moving bag-shape goods, please to 40% of aboving capability data.
The specification of 500,600 width of belt is 80% of aboving capability data.
Capability will be changed by different conditions.
Standard Power
Standard assembly is brushless DC motor and controlling unit at variable speed model.
From low speed to high speed with immovable exporting torsion.
Speed extension 100r/min~2000r/min can be adjustable.(speed proportion 1:20)
Drawing
Standard Dimension Belt width 200 250 300 350 400 500 600 700 800 Conveyor Width 280 330 380 43...
Standard Dimension
Belt width | 200 | 250 | 300 | 350 | 400 | 500 | 600 | 700 | 800 |
Conveyor Width | 280 | 330 | 380 | 430 | 480 | 580 | 680 | 780 | 880 |
Conveyor Length | 500 | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 | 7000 | 8000 |
Height | 277 | Power | AC100V (single-phase) · AC200V (single-phase) · AC200V (three-phase) · DC24V(direct) |
Speed | Fixed/Variable speed | Belt | Polyurethane belt |
Capability | Reference ability table | Option | Support, Others |
Motor power | 60W、90W、120W |
Actual dimension of belt is narrowed 5mm than aboving standard belt; lf the length of machine exceed 4m narrowed 10mm.
Ability Table
This is capability data of equal dispersal loading. As moving bag-shape goods, please refer to 40% of aboving capability data.
Capability will be changed by different conditions.
Drawing

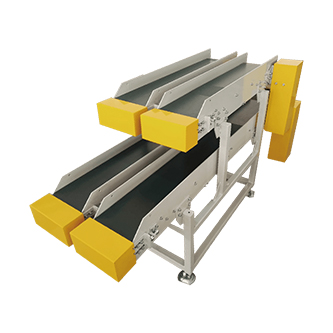

Inclined carry inclined type Max angle of inclination can reach 45 degree Protection cover and hoppe...
Inclined carry inclined type
Max angle of inclination can reach 45 degree
Protection cover and hopper can be chooses as your request
Standard Dimension
Belt width | 300 | 400 | 500 | 600 |
Effective belt width | 200 | 300 | 400 | 500 |
Conveyor Width | 380 | 480 | 580 | 680 |
Head of delivery | 2500 |
Height | 300H(h1) | Power |
Fixed: AC200V (three-phase) · AC100V (single-phase) Variable: AC200V (single-phase) · AC200V (three-phase) |
Speed | Fixed/Variable speed | Belt | Polyurethane rail type belt; Colour: green |
Capability | Reference ability table | Option | Support |
Motor power | 200W |
Belt Speed
Ratio | Speed No | Fixed speed 50/60(Hz) (m/min) |
Speed No. | Variable speed 50/60(Hz) (m/min) |
1/75 | T1 | 5.3/6.4 | H1 | 2.1~6.4 |
1/50 | T2 | 8.1/9.6 | H2 | 3.2~9.6 |
1/30 | T3 | 13.4/16.1 | H3 | 5.3~16.1 |
1/18 | T4 | 22.3/26.8 | H4 | 8.9~26.8 |
Ability Table
Head of delivery | Tilt | Motor power | Speed No | Capability |
460~3800 | 30" 45" |
200W | 1 | 30 |
2 | 25 | |||
3 | 20 | |||
4 | 12 |
Powder and ball shape can not be carried.
Drawing

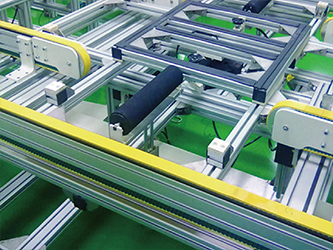

The assembly line masters the assembly of the conveyor. Among other things, it promotes specialization and thus increases productivity. If a failure o...
READ MOREThe assembly line masters the assembly of the conveyor. Among other things, it promotes specialization and thus increases productivity. If a failure o...
READ MOREThe assembly line masters the assembly of the conveyor. Among other things, it promotes specialization and thus increases productivity. If a failure o...
READ MOREBringing Craftsmanship to the Future.
No.60,Zhenhu North Road,Hudai Town,Binhu District,Wuxi 214100,China
+86 139-2153-1116
+86-510-8558 1519/8558 1530
+86-510-8558 1520
