HR-TC220
Cat:Taper Roller Conveyor
Width W(mm) 200 A(φ) Diameter 31.3 Thickness 3.5 B(φ) Diameter 60.5 Thickness 2.0 ...
Advanced structure, high-quality performance, easy to use, high reliability and durability.

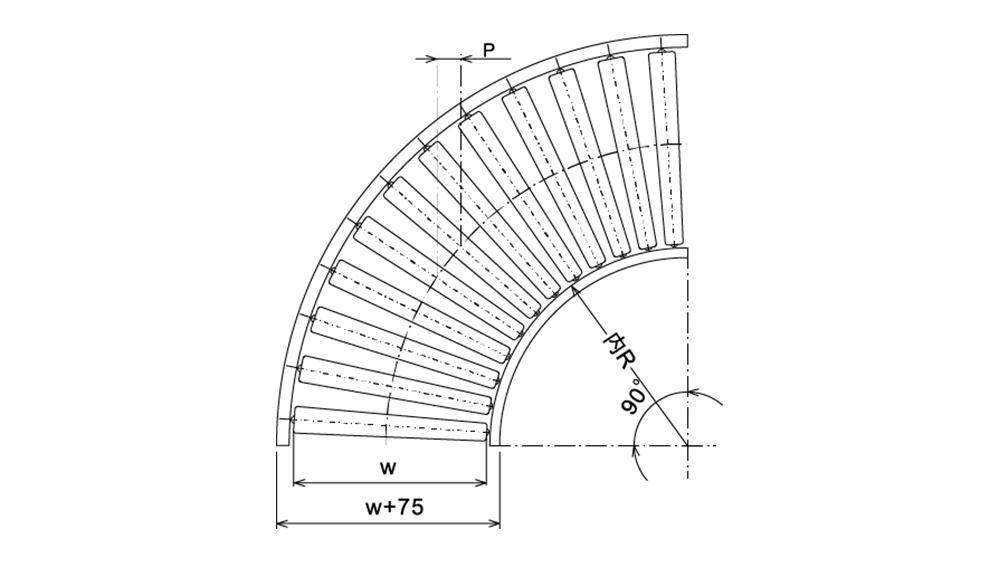

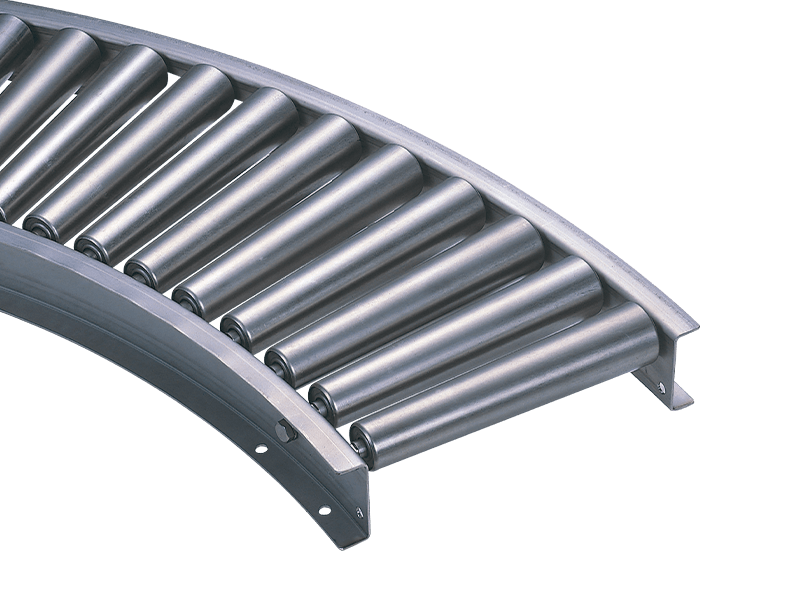

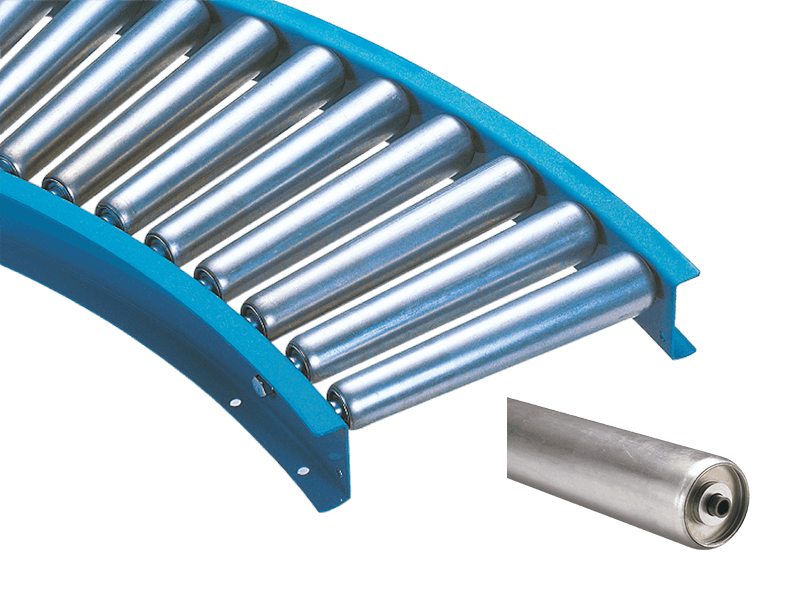

Also known as the curve roller conveyor, the taper roller conveyor allows for turning angles of 30, 45, 60, 90, and 180 degrees. It is mainly used for direction changes in conveyor lines, with 30, 45, and 60 degrees often used for branching and merging conveyors. This conveyor is a lightweight type with a load capacity generally not exceeding 200 KG.
R | Type\Width | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | Roller Pitch |

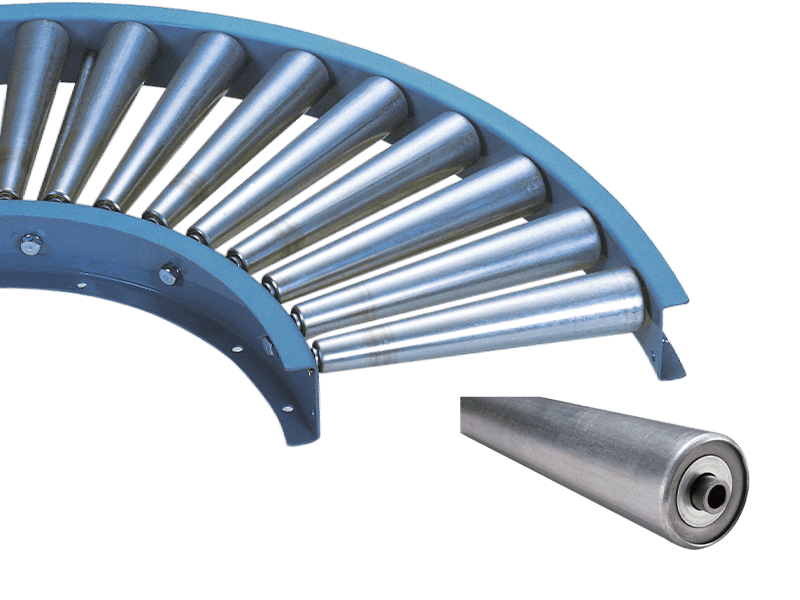

220 | HR-TC220 | ○ | - | - | - | - | - | - | - | - | - | - | 50,75,100 |

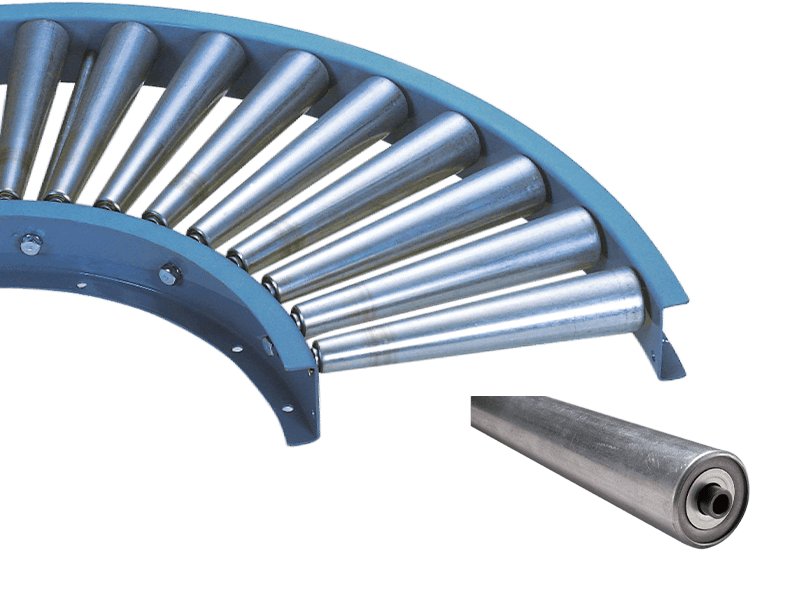

320 | HR-TC320 | - | ○ | - | - | - | - | - | - | - | - | - | 50,75,100 |
500 | HR-TC500A | - | ○ | ○ | ○ | ○ | ○ | - | - | - | - | - | 75 |
700 | HR-TC700 | ○ | ○ | ○ | ○ | ○ | - | - | - | - | - | - | 75,100,150 |

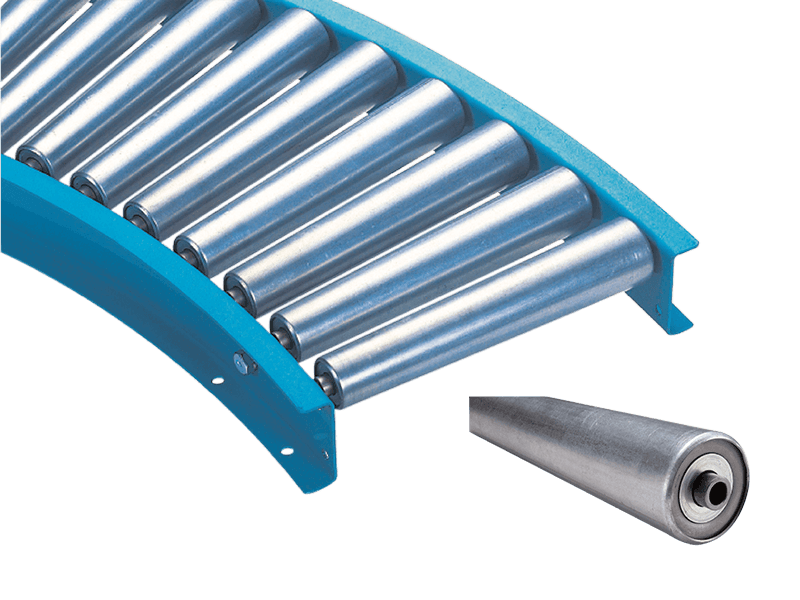

900 | HR-TCN | - | ○ | ○ | ○ | ○ | ○ | ○ | - | - | - | - | 75,100,150 |
HR-TC900 | ○ | ○ | ○ | ○ | ○ | - | - | - | - | - | - | 75,100,150 | |
HR-TC900A | - | ○ | ○ | ○ | ○ | ○ | ○ | - | - | - | - | 75,100 | |

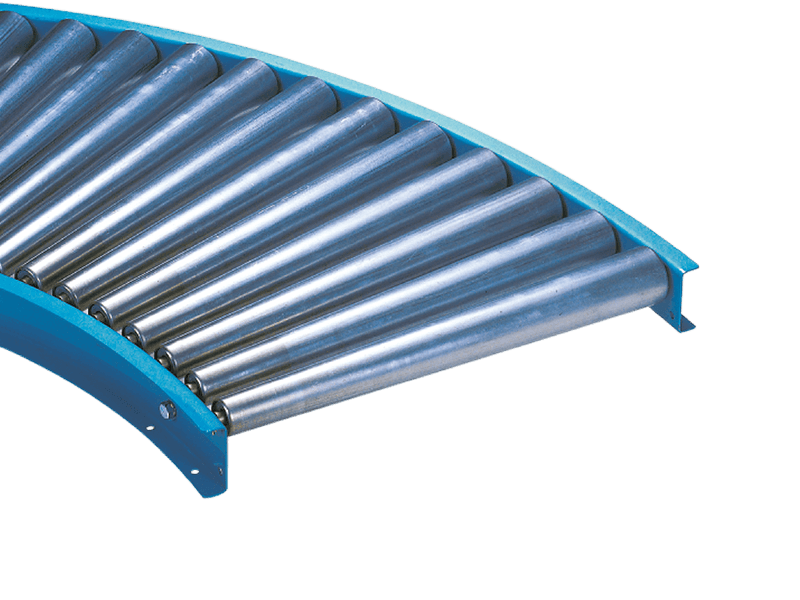

HR-TCL | - | - | - | - | - | - | - | ○ | ○ | ○ | ○ | 75,100,150,200 | |
1200 | HR-TC1200 | ○ | ○ | ○ | ○ | ○ | - | - | - | - | - | - | 75,100,150 |
HR-TC1200A | - | - | - | - | - | - | ○ | ○ | ○ | ○ | ○ | 75.100 | |

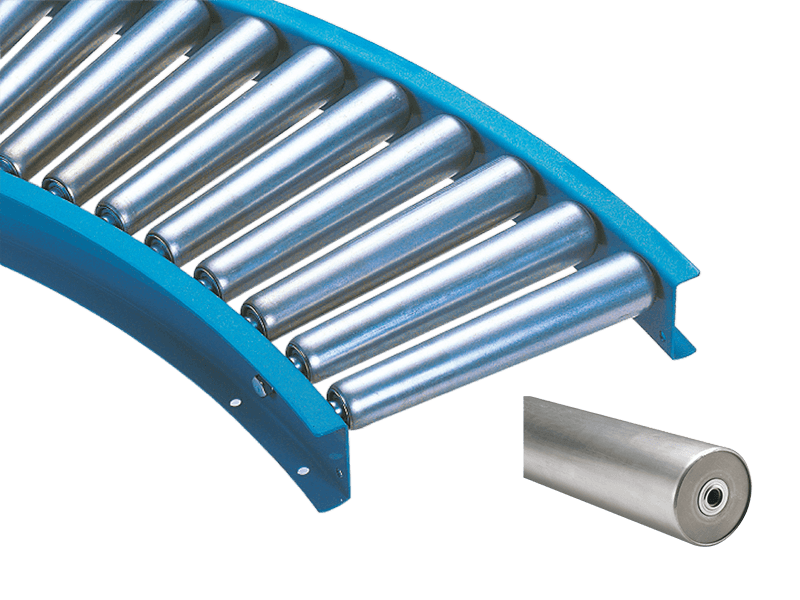

1600 | HR-TC1600 | - | - | ○ | ○ | ○ | ○ | ○ | - | - | - | - | 75,100,150,200 |

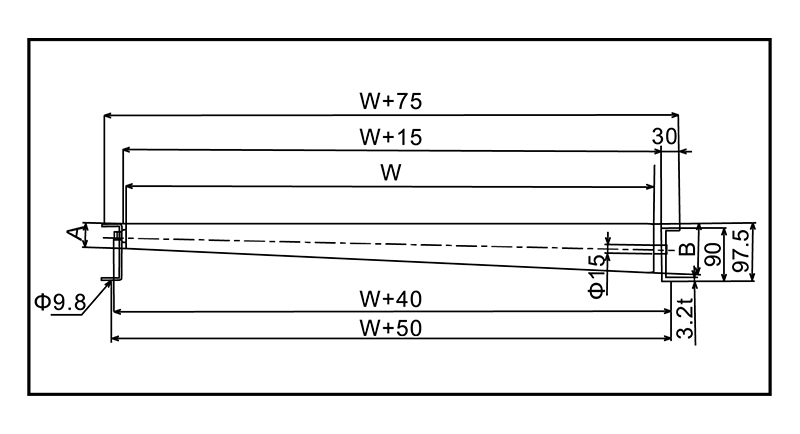

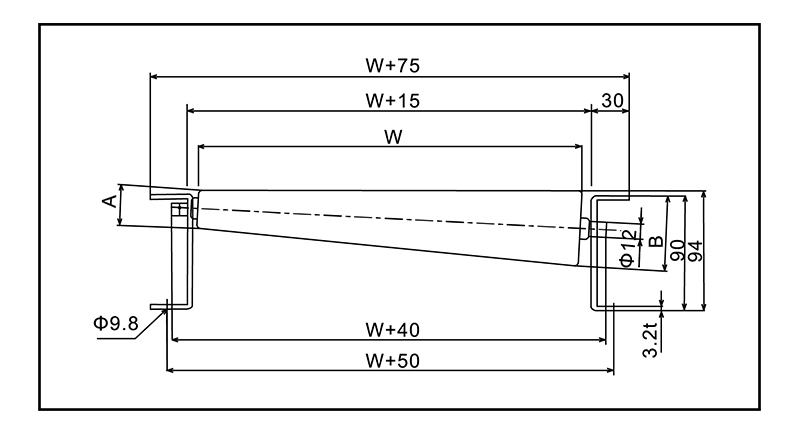

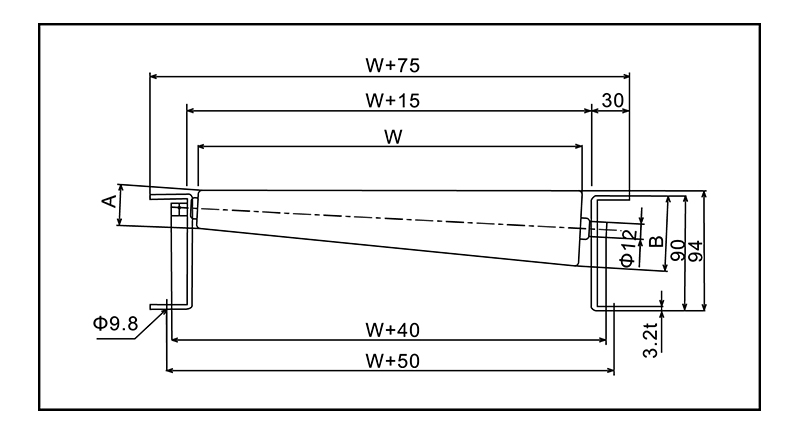

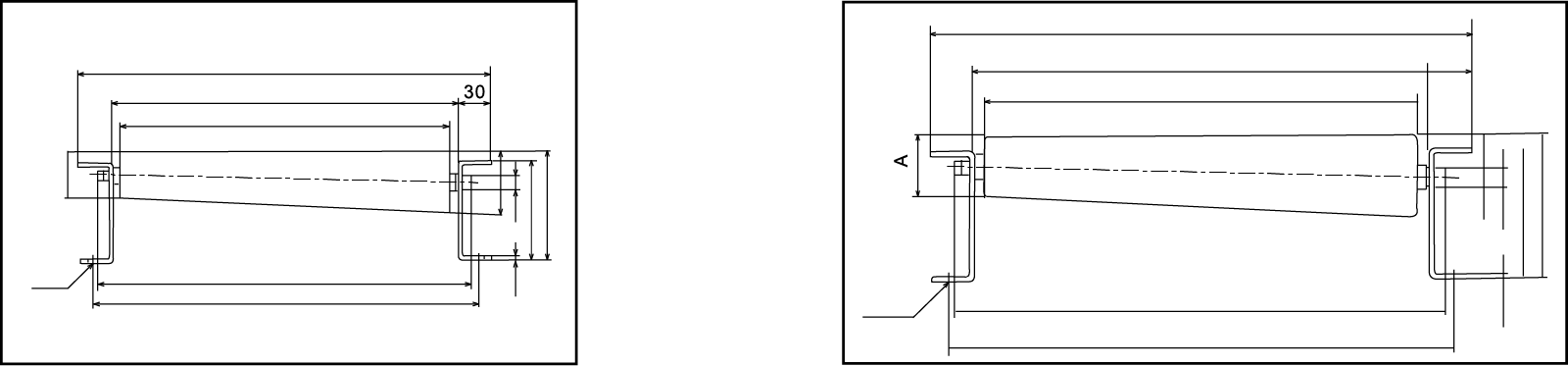

Width W(mm) 200 A(φ) Diameter 31.3 Thickness 3.5 B(φ) Diameter 60.5 Thickness 2.0 ...
Width W(mm) | 200 | |
A(φ) | Diameter | 31.3 |
Thickness | 3.5 | |
B(φ) | Diameter | 60.5 |
Thickness | 2.0 | |
Loading of roller(kg) | 100 |
Width W(mm) 300 A(φ) Diameter 31.2 Thickness 3.6 B(φ) Diameter 60.5 Thickness 2.1 Loadi...
Width W(mm) | 300 | |
A(φ) | Diameter | 31.2 |
Thickness | 3.6 | |
B(φ) | Diameter | 60.5 |
Thickness | 2.1 | |
Loading of roller(kg) | 100 |

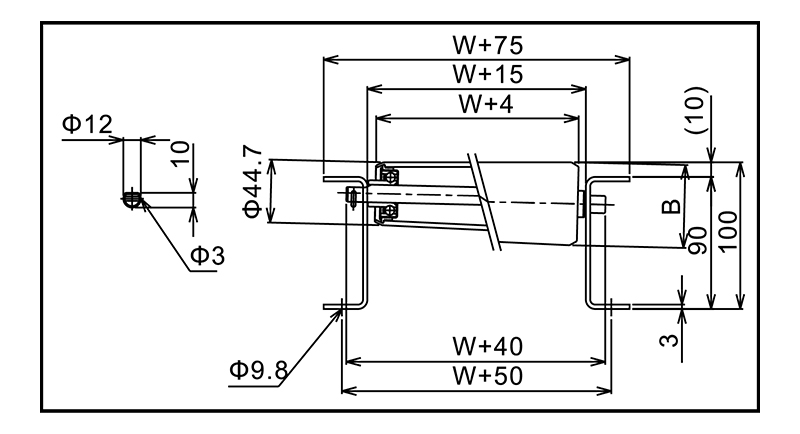

Width W(mm) 300 400 500 600 700 800 A(φ) Diameter 42.7 42.7 42.7 42.7 42.7 42.7 T...
Width W(mm) | 300 | 400 | 500 | 600 | 700 | 800 | |
A(φ) | Diameter | 42.7 | 42.7 | 42.7 | 42.7 | 42.7 | 42.7 |
Thickness | 3.2 | 3.2 | 3.1 | 3.1 | 3.1 | 3.1 | |
B(φ) | Diameter | 56.8 | 61.3 | 66.4 | 71.3 | 76.2 | 80.0 |
Thickness | 2.1 | 2.1 | 2.1 | 2.1 | 2.0 | 2.0 | |
Loading of roller(kg) | 100 | 90 | 85 | 76 | 59 | 54 |

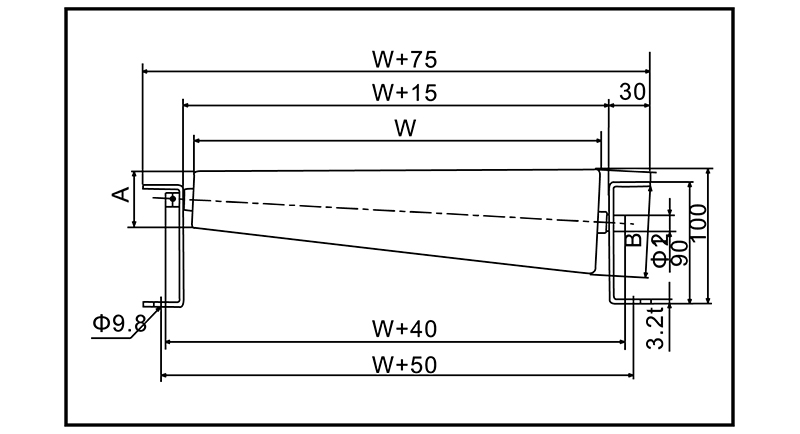

Width W(mm) 900 1000 1100 1200 A(φ) Diameter 42.7 42.7 42.7 42.7 Thickness 3.5 3.8 ...
Width W(mm) | 900 | 1000 | 1100 | 1200 | |
A(φ) | Diameter | 42.7 | 42.7 | 42.7 | 42.7 |
Thickness | 3.5 | 3.8 | 4.5 | 4.5 | |
B(φ) | Diameter | 86.7 | 91.0 | 95.3 | 100.0 |
Thickness | 2.0 | 1.8 | 2.0 | 1.8 | |
Loading of roller(kg) | 110 | 95 | 87 | 80 |
Width W(mm) 200 300 400 500 600 A(φ) Diameter 41.3 41.3 41.3 41.3 41.3 Thickness 3....
Width W(mm) | 200 | 300 | 400 | 500 | 600 | |
A(φ) | Diameter | 41.3 | 41.3 | 41.3 | 41.3 | 41.3 |
Thickness | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | |
B(φ) | Diameter | 52.2 | 57.6 | 63.1 | 68.6 | 74.0 |
Thickness | 2.5 | 2.4 | 2.4 | 2.3 | 2.3 |
Width W(mm) 200 300 400 500 600 A(φ) Diameter 45.0 45.0 45.0 45.0 45.0 Thickness 3....
Width W(mm) | 200 | 300 | 400 | 500 | 600 | |
A(φ) | Diameter | 45.0 | 45.0 | 45.0 | 45.0 | 45.0 |
Thickness | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
B(φ) | Diameter | 54.9 | 59.9 | 64.9 | 69.8 | 74.8 |
Thickness | 2.2 | 2.2 | 2.1 | 2.1 | 2.0 |
Width W(mm) 200 300 400 500 600 A(φ) Diameter 48.0 48.0 48.0 48.0 48.0 Thickness 3....
Width W(mm) | 200 | 300 | 400 | 500 | 600 | |
A(φ) | Diameter | 48.0 | 48.0 | 48.0 | 48.0 | 48.0 |
Thickness | 3.1 | 3.1 | 3.1 | 3.1 | 3.1 | |
B(φ) | Diameter | 56.8 | 61.2 | 65.7 | 70.1 | 74.5 |
Thickness | 2.3 | 2.3 | 2.2 | 2.2 | 2.1 |
Width W(mm) 400 500 600 700 800 A(φ) Diameter 50.0 50.0 50.0 50.0 50.0 Thickness 3....
Width W(mm) | 400 | 500 | 600 | 700 | 800 | |
A(φ) | Diameter | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 |
Thickness | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | |
B(φ) | Diameter | 63.0 | 66.3 | 69.5 | 72.8 | 76.0 |
Thickness | 2.3 | 2.2 | 2.2 | 2.1 | 2.0 |
Width W(mm) 300 400 500 600 700 800 A(φ) Diameter 42 42 42 42 42 42 Thickness 2 ...
Width W(mm) | 300 | 400 | 500 | 600 | 700 | 800 | |
A(φ) | Diameter | 42 | 42 | 42 | 42 | 42 | 42 |
Thickness | 2 | 2 | 2 | 2 | 2 | 2 | |
B(φ) | Diameter | 79 | 91 | 103 | 116 | 128 | 140 |
Thickness | 20.5 | 26.5 | 32.5 | 39.0 | 45.0 | 51.0 |
Width W(mm) 200 300 400 500 600 700 A(φ) Diameter 44.7 44.7 44.7 44.7 44.7 44.7 T...
Width W(mm) | 200 | 300 | 400 | 500 | 600 | 700 | |
A(φ) | Diameter | 44.7 | 44.7 | 44.7 | 44.7 | 44.7 | 44.7 |
Thickness | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | |
B(φ) | Diameter | 54.6 | 59.6 | 64.5 | 69.5 | 74.4 | 75 |
Thickness | 2.4 | 2.3 | 2.3 | 2.2 | 2.2 | 2.2 |

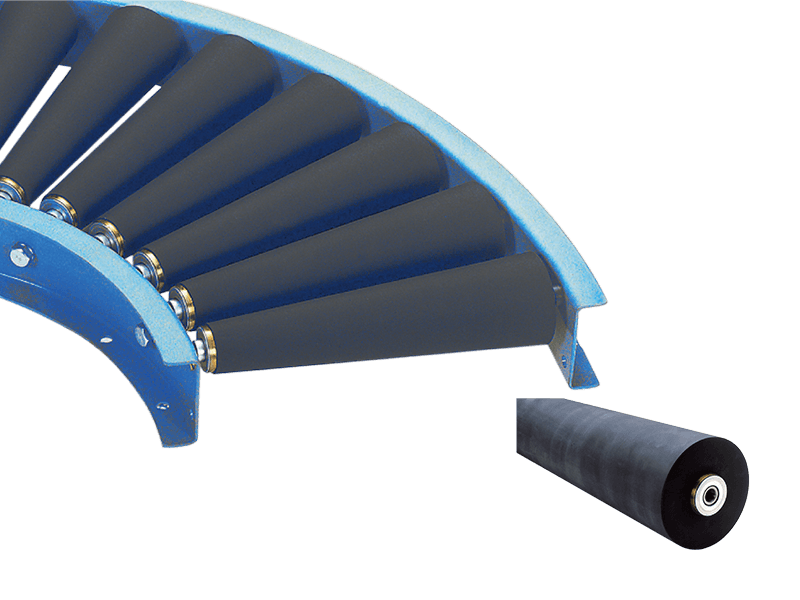

Type Mark Rigidity Heat resistance Cold resistance Oil resistance Wear resistance Natural rubb...
Type | Mark | Rigidity | Heat resistance | Cold resistance | Oil resistance | Wear resistance | |||
Natural rubber | NR | About 60 | 120C | -50°℃ | X | O | |||
Ding nitrile rubber | NBR | About 60 | 130C° | -10°C | O | O | |||
Polyurethane rubber | PU | About 90 | 80C° | -30°C | O | O |

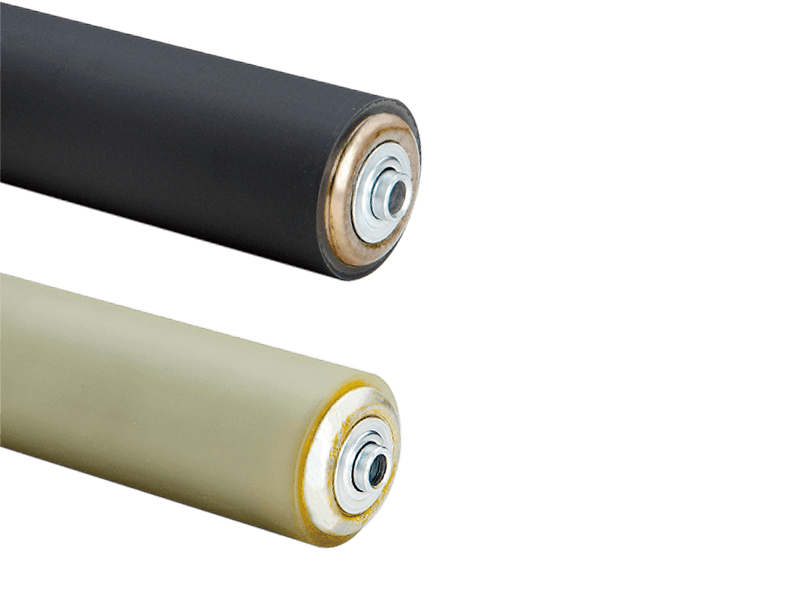

Natural rubber | Ding nitrile rubber | Roller | Diameter*Thickness*Axis diameter | Roller width | |||||
RR-4812P | RRG-4812P | R-3812P | 48*5*12 | 100~1500 | |||||
RR-4816 | RRG-4816 | R-3816 | 48*5*12 | 100~1500 | |||||
RR-6721P | RRG-6721P | R-5721P | 67*5*12 | 100~1500 |

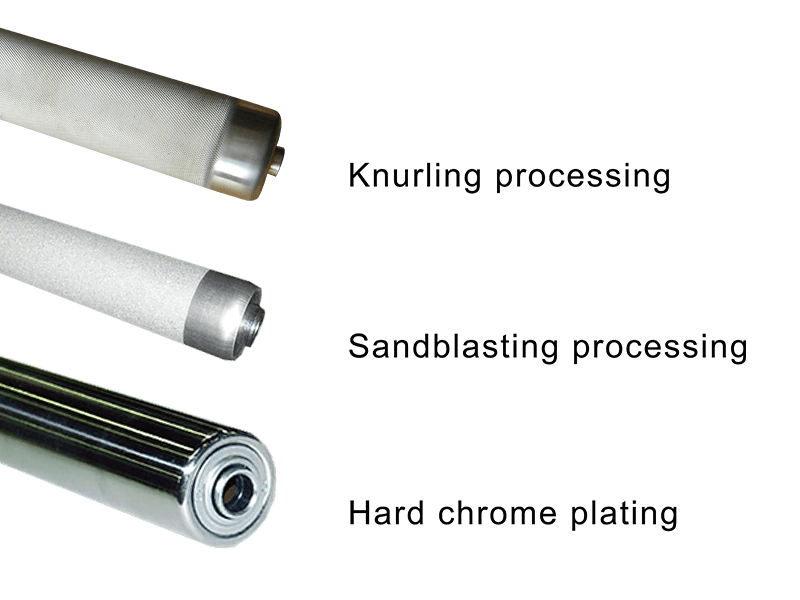

Plating types Advantages Plating thickness Electric galvanized White zinc, blue-white zinc, tri...
Plating types | Advantages | Plating thickness |
Electric galvanized | White zinc, blue-white zinc, trivalent chromium | More than 5 microns |
Hard chrome plating | High hardness | More than 3 microns |
