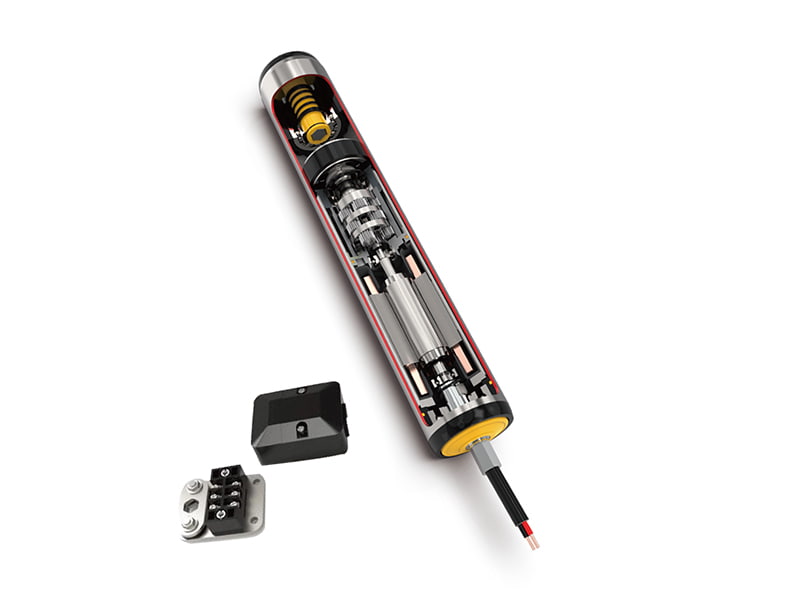

عربىAC Service Motor Roller
Cat:AC Service Motor Roller
Model Representation Model Type Roller length Thickness Shaft Thickness Power Voltage Speed AC5...
See Details
Motor Roller Conveyor
The motor roller conveyor is a type of conveyor where electric rollers replace the traditional drive motor to rotate the rollers. This design maximizes space savings, making it especially suitable for multi-level conveyors and applications requiring ultra-low heights. Motor rollers are classified into two types based on voltage: AC (alternating current) and DC (direct current).
-

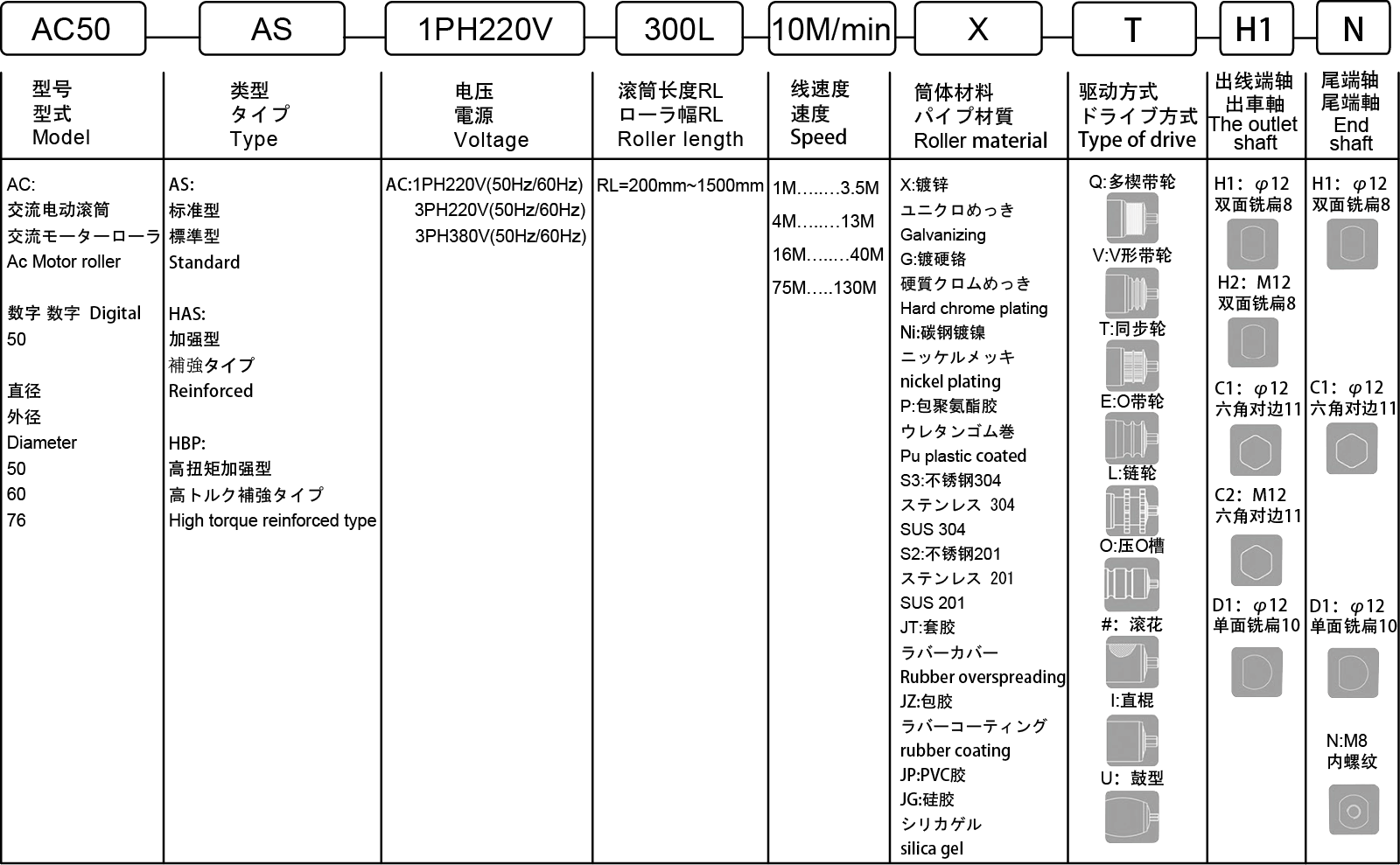

Model Representation
Model Type Roller length Thickness Shaft Thickness Power Voltage Speed AC50 AS 200-1500 1.5 12 8 22W 3PH220V(50Hz/60Hz)
3PH380V(50Hz/60Hz)
1PH220V(50Hz/60Hz)1M~3.5M
4M-13M
16M~40M
75M-130MASS 15W AU 15W AC60/57 AS 200-1500 1.5 12 8 30W 3PH220V(50Hz/60Hz)
3PH380V(50Hz/60Hz)
1PH220V(50Hz/60Hz)1M~3.5M
4M~13M
16M-40M
75M-130MASS 20W BP 45W BPS 20W AU 30W AC60/76 170~1500 2.5 15 11 60W
90W
120W
150W3PH220V(50Hz/60Hz)
3PH380V(50Hz/60Hz)
1PH220V(50Hz/60Hz)1M~3.6M
4.4M-13.3M
15.8M-48M
100.5M~181.8M
Standard Dimensions
-

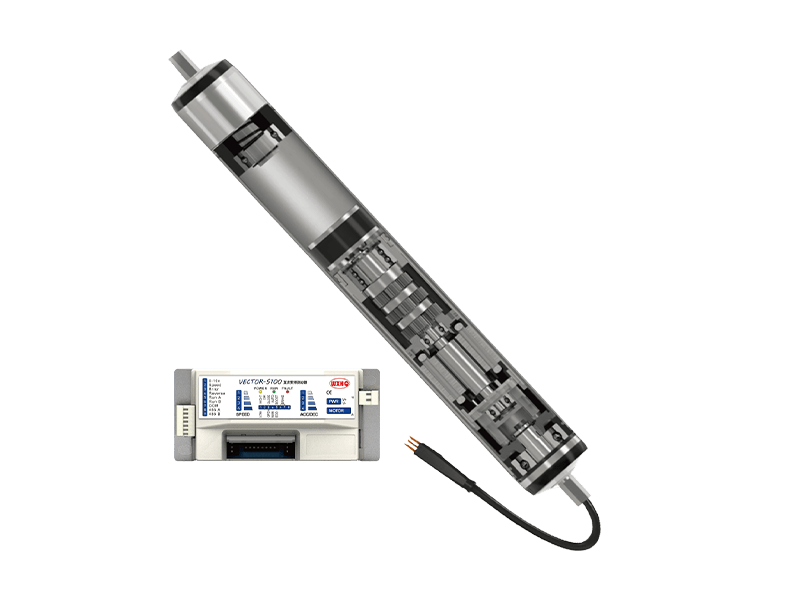

DC Series Motor Roller
Cat:DC Series Motor Roller

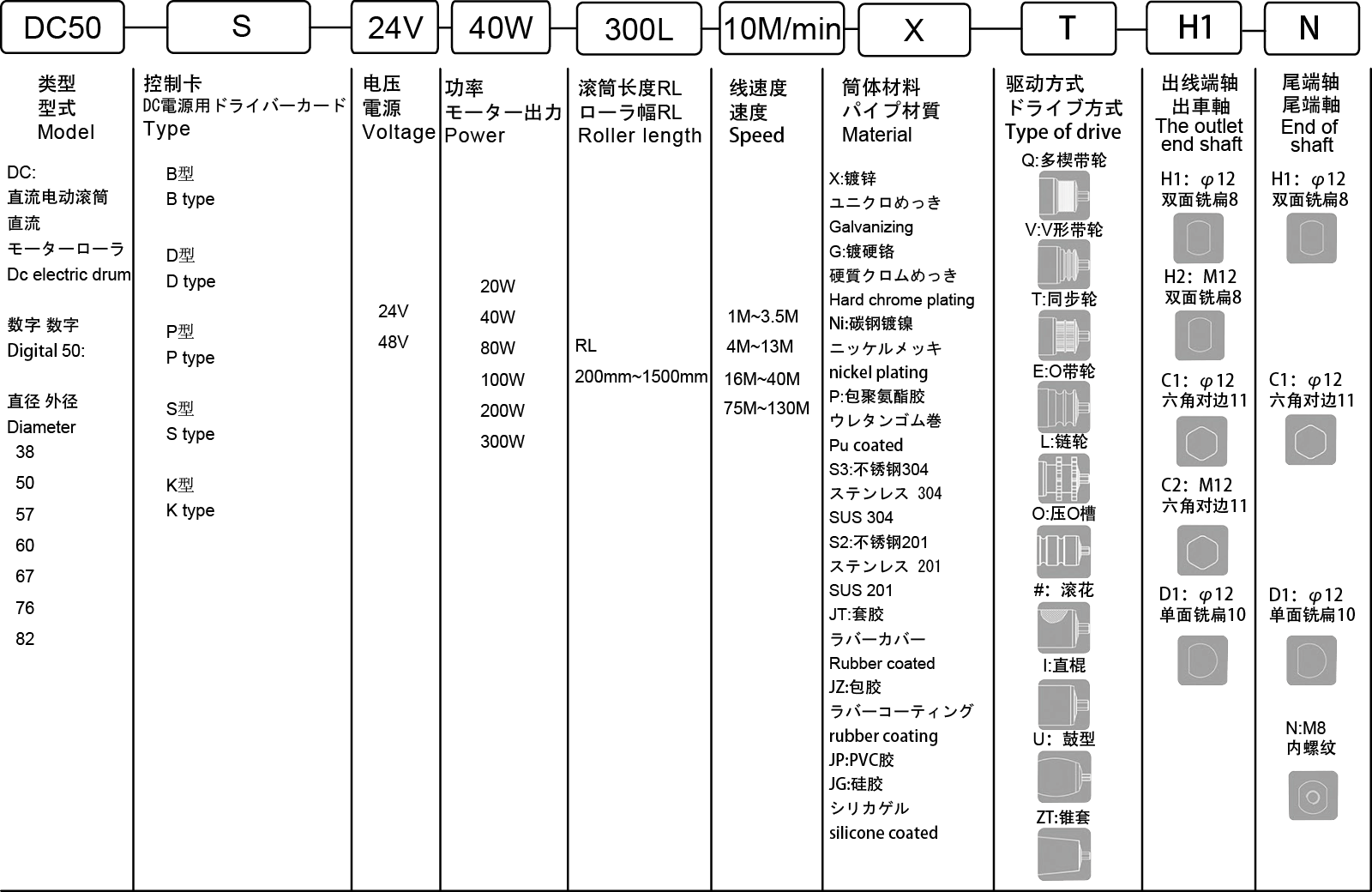

Model Representation Standard Dimensions Special Requiments
See DetailsModel Representation

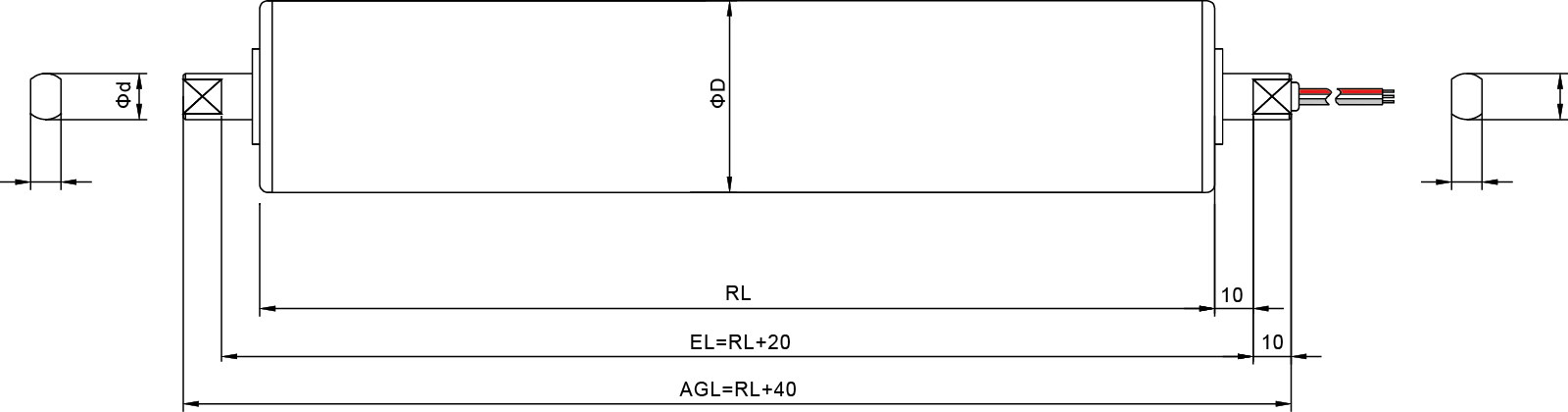

Standard Dimensions
Special Requiments
-

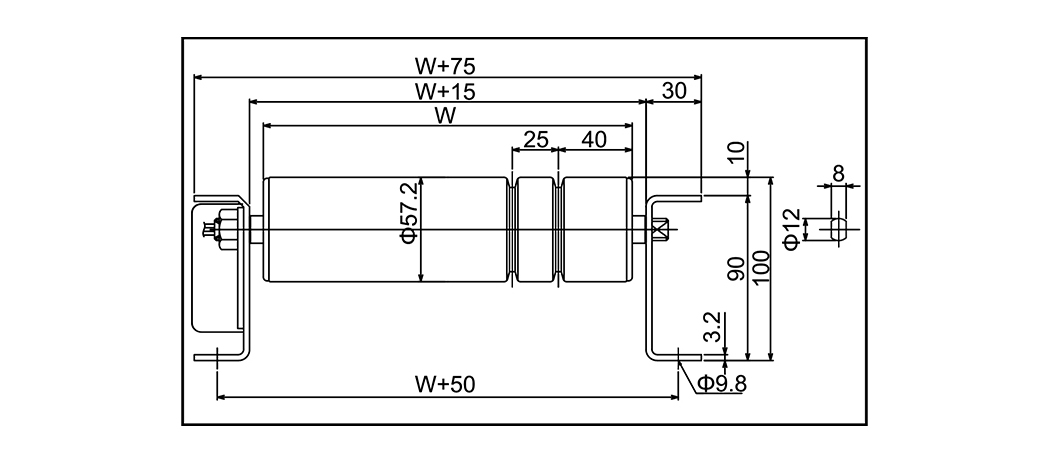

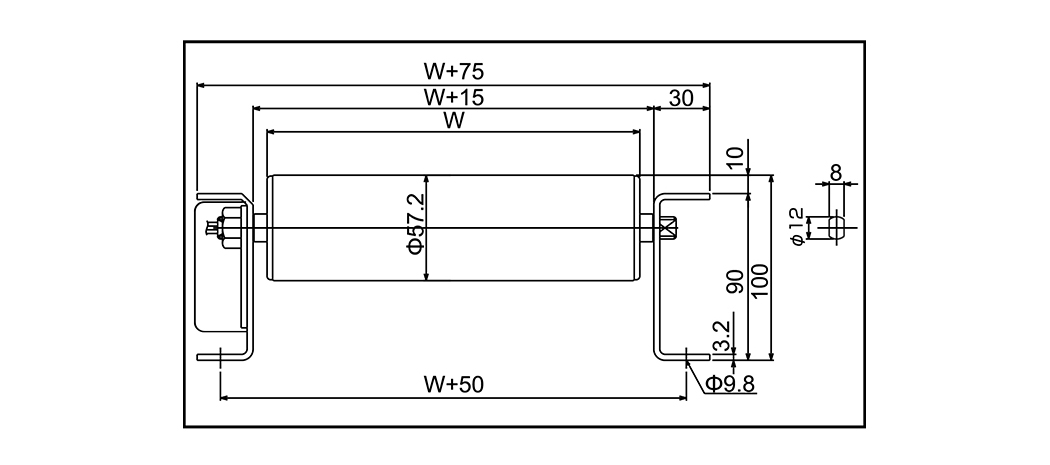

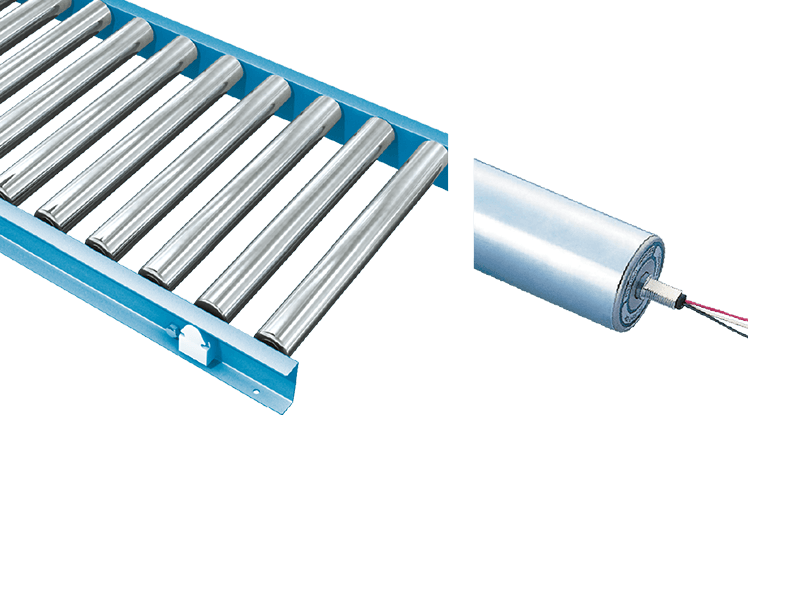

SST-57A(SST-60A) AC Motor Roller Conveyor
Cat:Electric Motor Roller Conveyor
Model SST-57A(SST-60A) Drive mode Motor roller(Single action) Auxiliary RollerDiameter x Thic...
See DetailsModel SST-57A
(SST-60A)Drive mode Motor roller(Single action) Auxiliary Roller
Diameter x Thickness x Shaft57.2×1.4x12
(60.5×2.3×12
(Galvanizing)Roller width 200～1,000 Roller pitch 75 100 150 Frame size 90×30×3.2 Length (L) 1000(1050) 1500
2000(1950) 3000mConveyor width W+75 Height(H) 100 (102) Capability(kg/m) Speed(m/min) 50/60HZ
03 type：2.5/2.8
04 type：3.4/3.8
05 type：4.7/5.2
10 type：9.1/10.8
15 type：12.4/14.8
20 type：17.0/20.2Motor power Power AC200V(three-phase)
AC380V(three-phase)
-

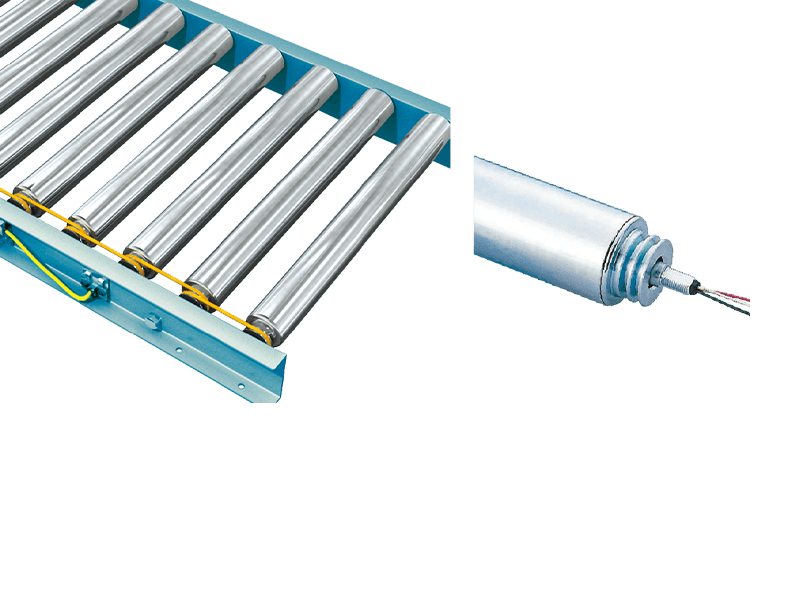

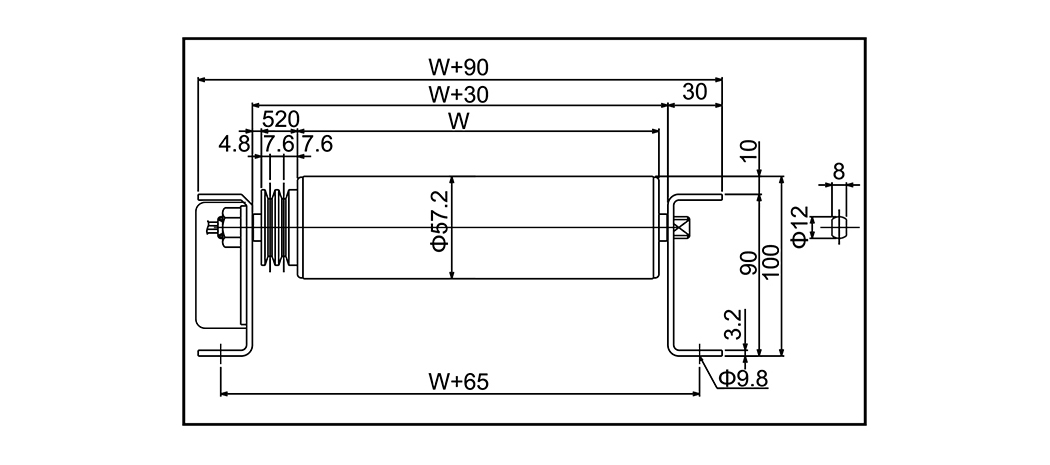

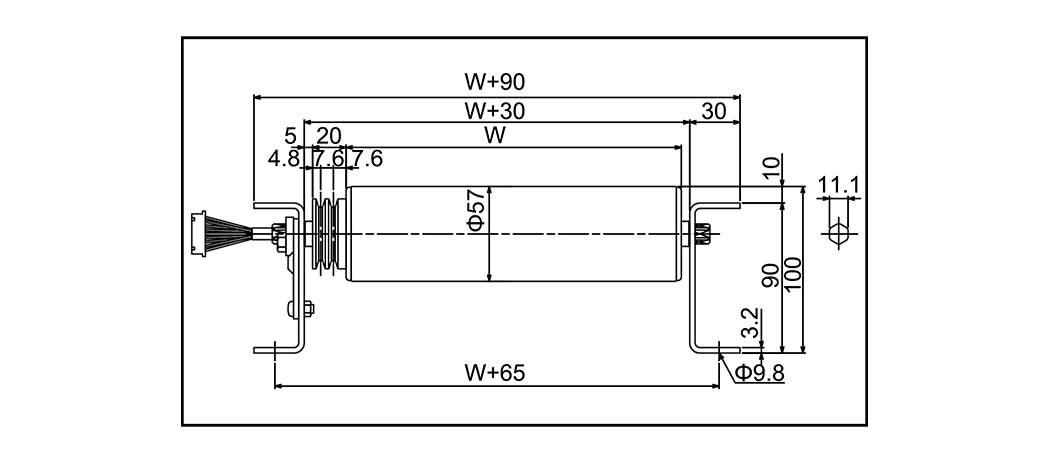

SST-57B(SST-60B) AC Motor Roller Conveyor
Cat:Electric Motor Roller Conveyor
Model SST-57B(SST-60B) Drive mode Motor roller(PU V belt) Auxiliary RollerDiameter x Thicknes...
See DetailsModel SST-57B
(SST-60B)Drive mode Motor roller(PU V belt) Auxiliary Roller
Diameter x Thickness x Shaft57.2×1.4×12
(60.5x2.3x12)
(Galvanizing)Roller width 300～1000 Roller pitch 75 100 150 Frame size 90×30×3.2 Length (L) 1000(1050) 1500
2000(1950) 3000mConveyor width W+90 Height(H) 100(102) Capability(kg/m) Speed(m/min) 50/60HZ
03 type：2.5/2.8
04 type：3.4/3.8
05 type：4.7/5.2
10 type：9.1/10.8
15 type：12.4/14.8
20 type：17.0/20.2Motor power Power AC200V(three-phase)
AC380V(three-phase)
-

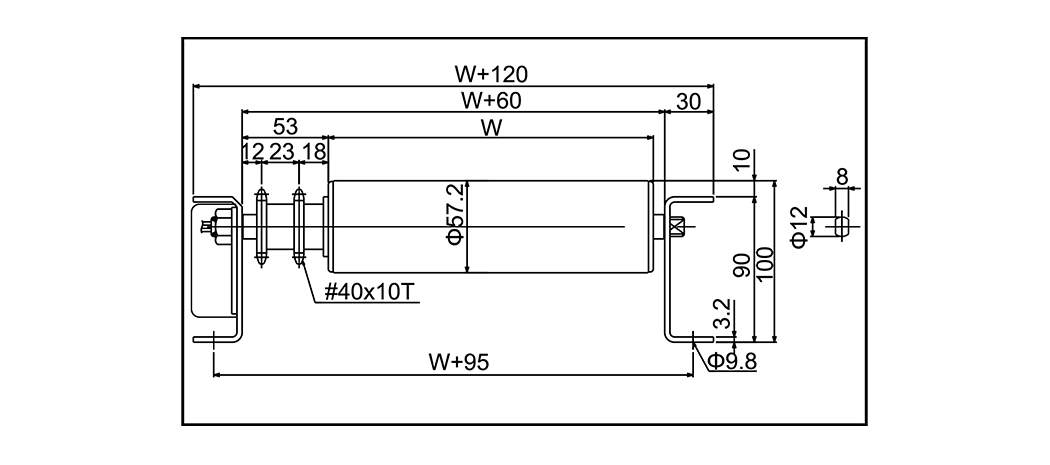

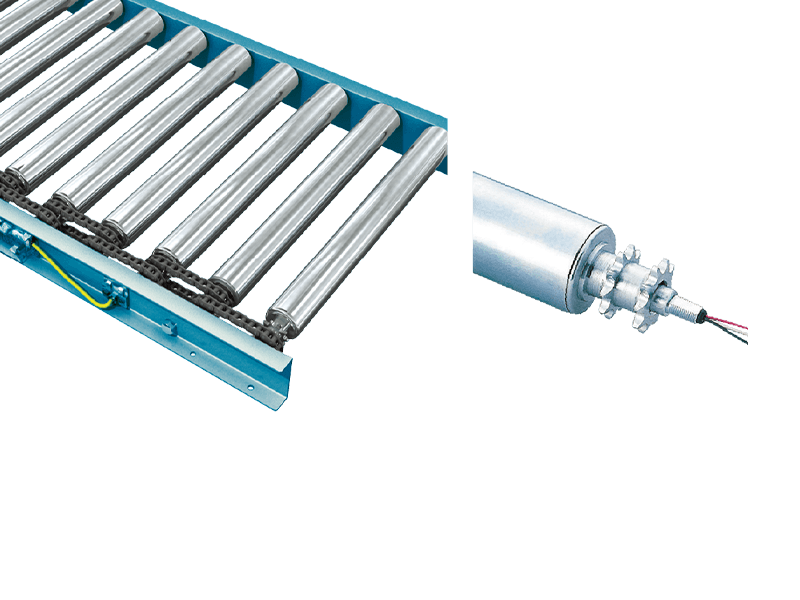

SST-57C(SST-60C) AC Motor Roller Conveyor
Cat:Electric Motor Roller Conveyor
Model SST-57C(SST-60C) Drive mode Motor roller r(#40 Sprocket) Auxiliary RollerDiameter x Thi...
See DetailsModel SST-57C
(SST-60C)Drive mode Motor roller r(#40 Sprocket) Auxiliary Roller
Diameter x Thickness x Shaft57.2×2.1×12
(60.5x2.3x12)
(Galvanizing)Roller width 300～1000 Roller pitch 75 100 150 Frame size 90×30×3.2 Length (L) 1000(1050) 1500
2000(1950) 3000mConveyor width W+120 Height(H) 100(102) Capability(kg/m) Speed(m/min) 50/60HZ
03 type：2.5/2.8
04 type：3.4/3.8
05 type：4.7/5.2
10 type：9.1/10.8
15 type：12.4/14.8
20 type：17.0/20.2Motor power Power AC200V{three-phase)
AC380V(three-phase)
-

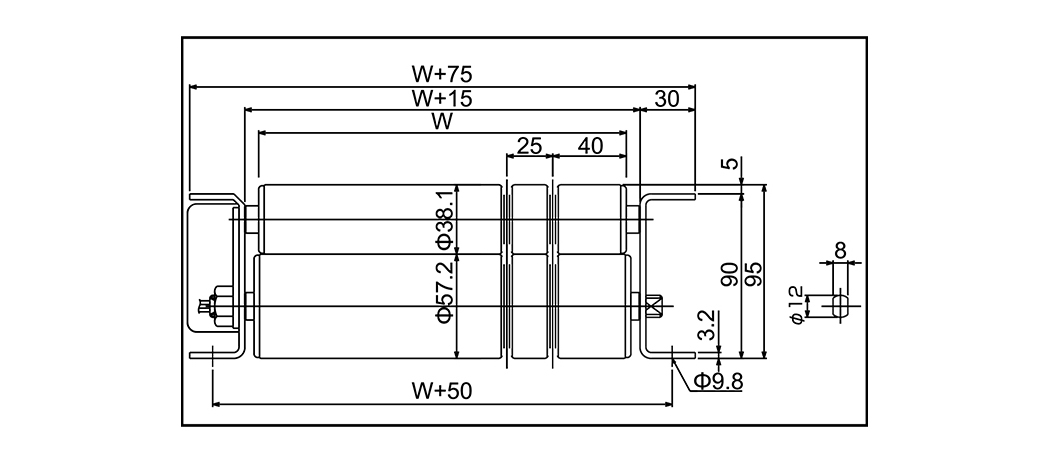

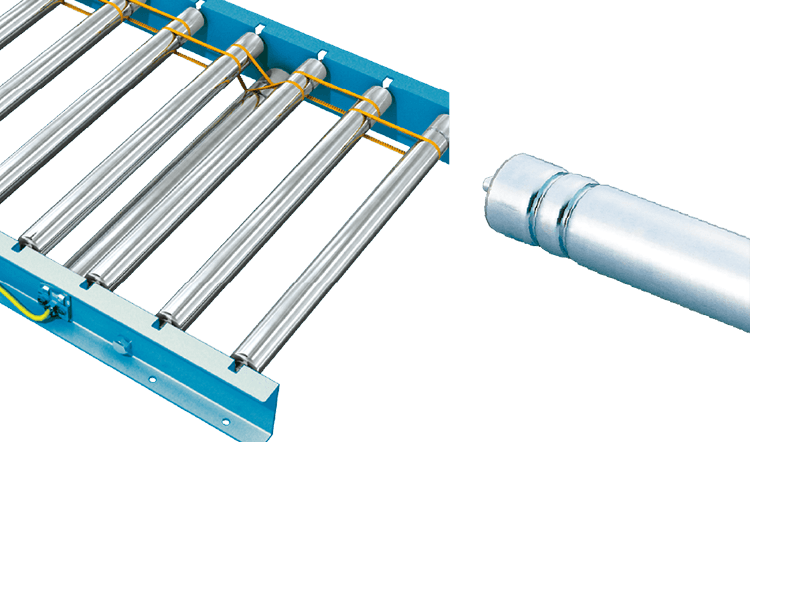

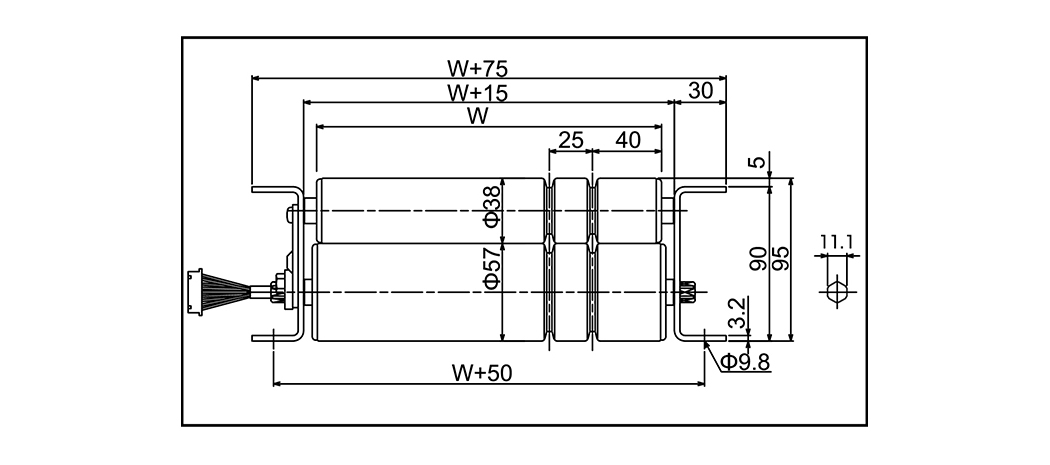

SST-38D AC Motor Roller Conveyor
Cat:Electric Motor Roller Conveyor
Model SST-38D Drive mode Motor roller(PU V belt ) Auxiliary RollerDiameter x Thickness x Shaf...
See DetailsModel SST-38D Drive mode Motor roller(PU V belt ) Auxiliary Roller
Diameter x Thickness x Shaft38.1×1.2×12
(Galvanizing)Roller width 300～800 Roller pitch 53 75 100 Frame size 90×30×3.2 Length (L) 1000(1050) 1500
2000(1950) 3000mConveyor width W+75 Height(H) 95 Capability(kg/m) Speed(m/min) 50/60HZ
03 type：2.5/2.8
04 type：3.4/3.8
05 type：4.7/5.2
10 type：9.1/10.8
15 type：12.4/14.8
20 type：17.0/20.2Motor power Power AC200V(three-phase)
AC380V(three-phase)
-

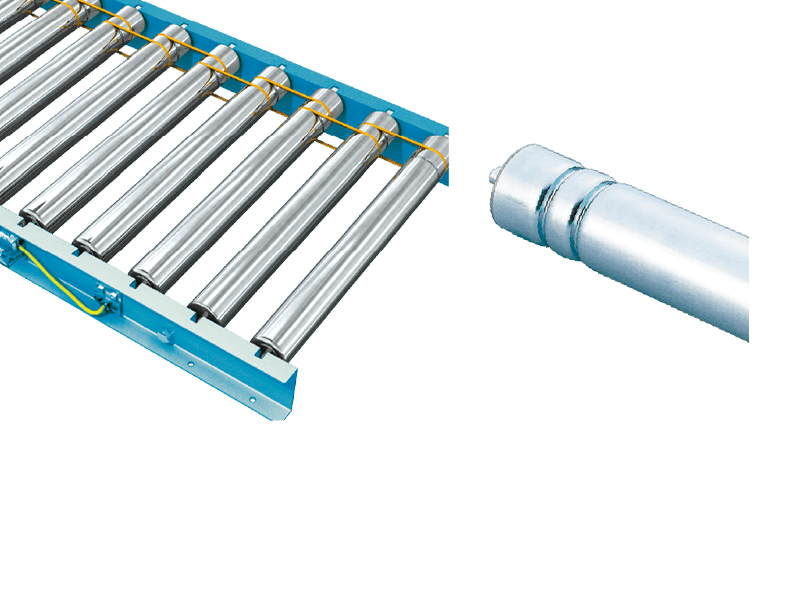

SST-57D(SST-60D) AC Motor Roller Conveyor
Cat:Electric Motor Roller Conveyor
Model SST-57D(SST-60D) Drive mode Motor roller(PU V belt) Auxiliary RollerDiameter x Thicknes...
See DetailsModel SST-57D
(SST-60D)Drive mode Motor roller(PU V belt) Auxiliary Roller
Diameter x Thickness x Shaft57.2×1.4×12
(60.5x2.3x12)
(Galvanizing)Roller width 300～1000 Roller pitch 75 100 150 Frame size 90×30×3.2 Length (L) 1000(1050) 1500
2000(1950) 3000mConveyor width W+75 Height(H) 100(102) Capability(kg/m) Speed(m/min) 50/60HZ
03 type：2.5/2.8
04 type：3.4/3.8
05 type：4.7/5.2
10 type：9.1/10.8
15 type：12.4/14.8
20 type：17.0/20.2Motor power Power AC200V(three-phase)
AC380V(three-phase)
-

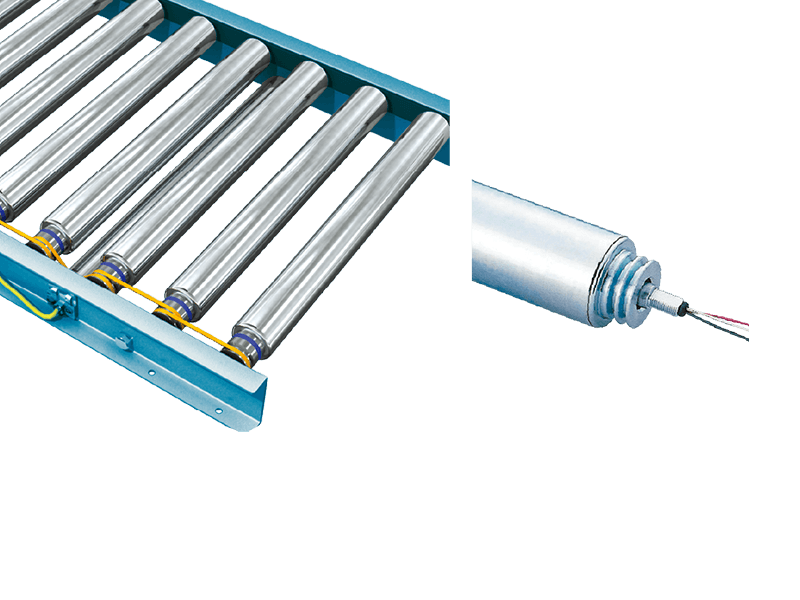

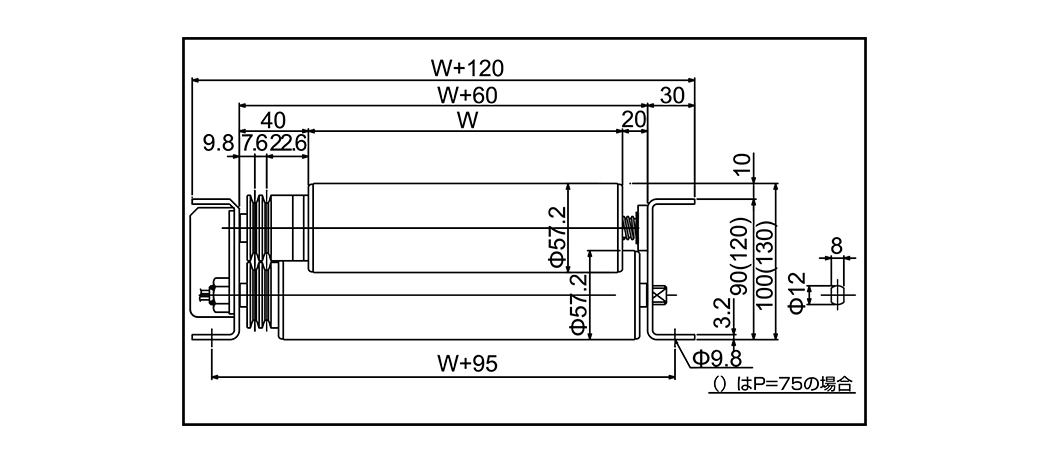

SST-57AQ(SST-60AQ) AC Motor Roller Conveyor
Cat:Electric Motor Roller Conveyor
Model SST-57AQ(SST-60AQ) Drive mode Motor roller(PUV belt) Auxiliary RollerDiameter x Thickne...
See DetailsModel SST-57AQ
(SST-60AQ)Drive mode Motor roller(PUV belt) Auxiliary Roller
Diameter x Thickness x Shaft57.2×1.4×12
(60.5×2.3x12)
(Galvanizing)Roller width 300～1000 Roller pitch 75 100 150 Frame size 90×30×3.2 Length (L) 1000(1050) 1500
2000(1950) 3000mConveyor width W+120 Height(H) 100、130(102、130) Capability(kg/m) Speed(m/min) 50/60HZ
03 type：2.5/2.8
04 type：3.4/3.8
05 type：4.7/5.2
10 type：9.1/10.8
15 type：12.4/14.8
20 type：17.0/20.2Motor power Power AC200V(three-phase)
AC380V(three-phase)
-

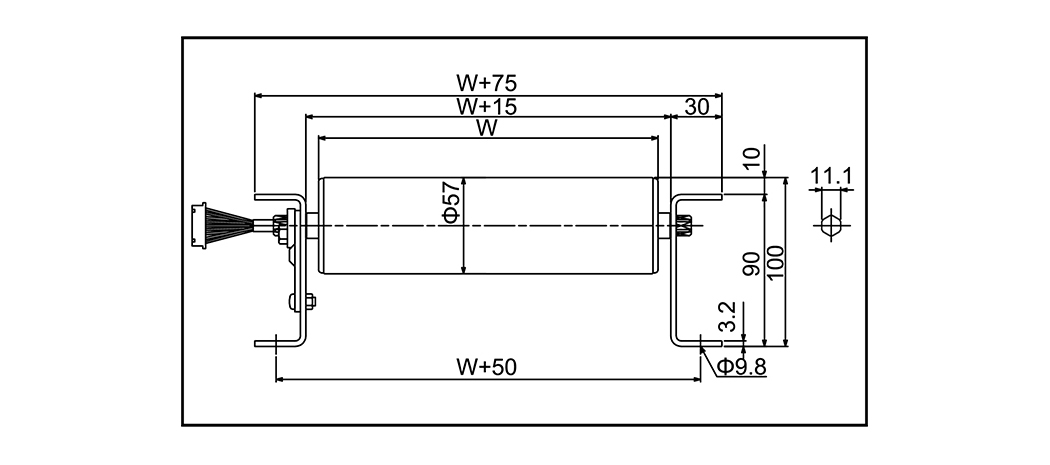

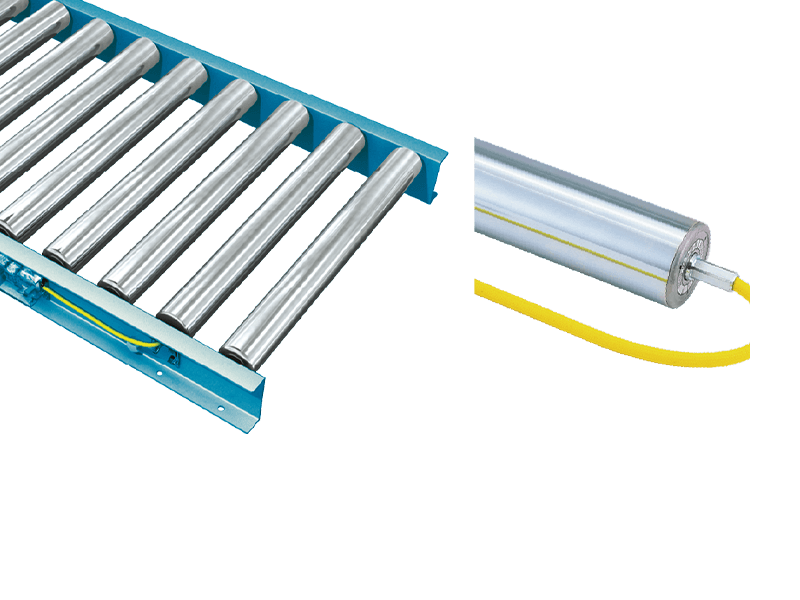

DC-57A(DC-60A) DC Motor Roller Conveyor
Cat:Electric Motor Roller Conveyor
Model DC-57A(DC-60A) Drive mode Motor roller(Single action) Auxiliary RollerDiameter x Thickn...
See DetailsModel DC-57A
(DC-60A)Drive mode Motor roller(Single action) Auxiliary Roller
Diameter x Thickness x Shaft57.2×1.4×12
(60.5×2.3×12)
(Galvanizing)Roller width 280～1000 Roller pitch 75 100 150 Frame size 90×30×3.2 Length (L) 1000(1050) 1500
2000(1950) 3000mConveyor width W+75 Speed(m/min) Model
25 type
30 type
40 type
95 typeMIN
6.0
7.3
9.9
21.6MAX
23.5
28.5
39.1
85.9Motor power 35W Power DC24V
-

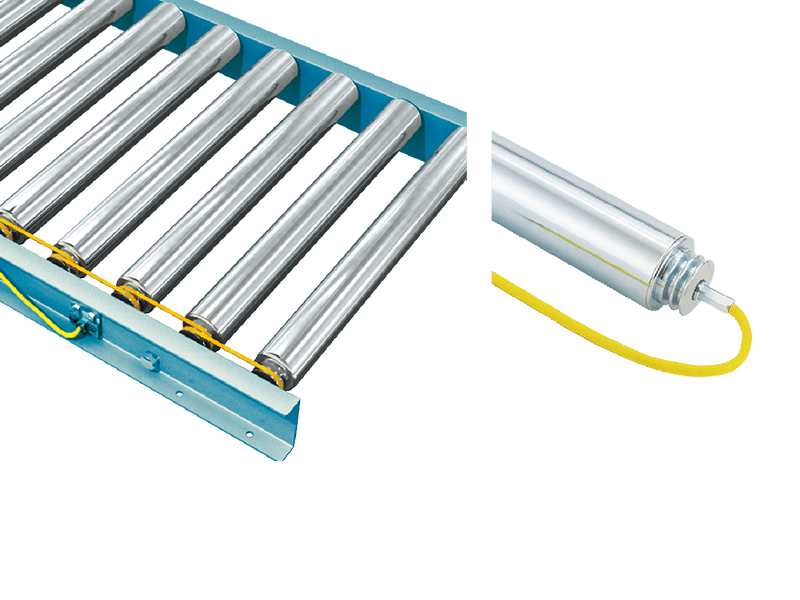

DC-57B(DC-60B) DC Motor Roller Conveyor
Cat:Electric Motor Roller Conveyor
Model DC-57B(DC-60B) Drive mode Motor roller (PU V belt) Auxiliary RollerDiameter x Thickness...
See DetailsModel DC-57B
(DC-60B)Drive mode Motor roller (PU V belt) Auxiliary Roller
Diameter x Thickness x Shaft57.2×1.4×12
( 60.5×2.3×12)
(Galvanizing)Roller width 300~1000 Roller pitch 75 100 150 Frame size 90×30×3.2 Length (L) 1000(1050) 1500
2000(1950) 3000mConveyor width W+90 Speed(m/min) Model
25 type
30 type
40 type
95 typeMIN
6.0
7.3
9.9
21.6MAX
23.5
28.5
39.1
85.9Motor power 35W Power DC24V
-

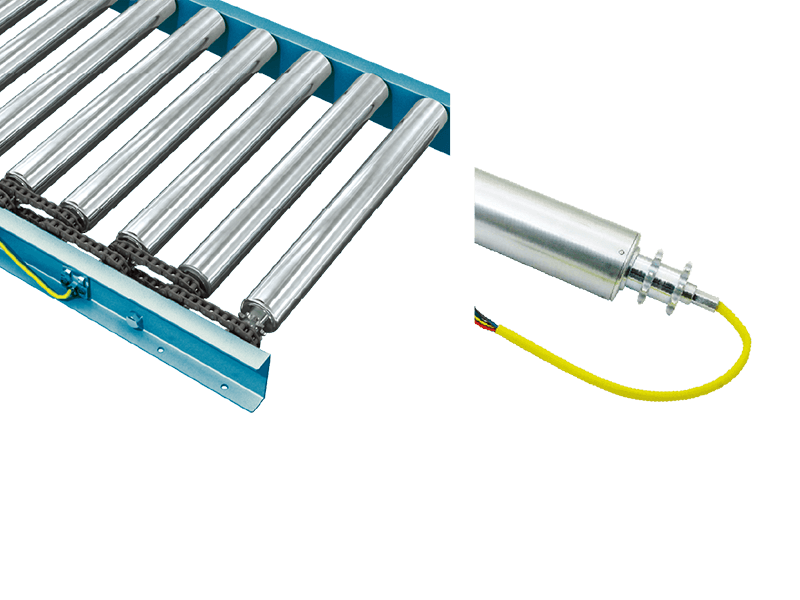

DC-57C(DC-60C) DC Motor Roller Conveyor
Cat:Electric Motor Roller Conveyor
Model DC-57C(DC-60C) Drive mode Motor roller r(#40 Sprocket ) Auxiliary RollerDiameter x Thi...
See DetailsModel DC-57C
(DC-60C)Drive mode Motor roller r(#40 Sprocket ) Auxiliary Roller
Diameter x Thickness x Shaft57.2x2.1×12
( 60.5×2.3×12)
(Galvanizing)Roller width 300～1000 Roller pitch 75 100 150 Frame size 90×30×3.2 Length (L) 1000(1050) 1500
2000(1950) 3000mConveyor width W+120 Speed(m/min) Model
25 type
30 type
40 type
95 typeMIN
6.0
7.3
9.9
21.6MAX
23.5
28.5
39.1
85.9Motor power 35W Power DC24V
-

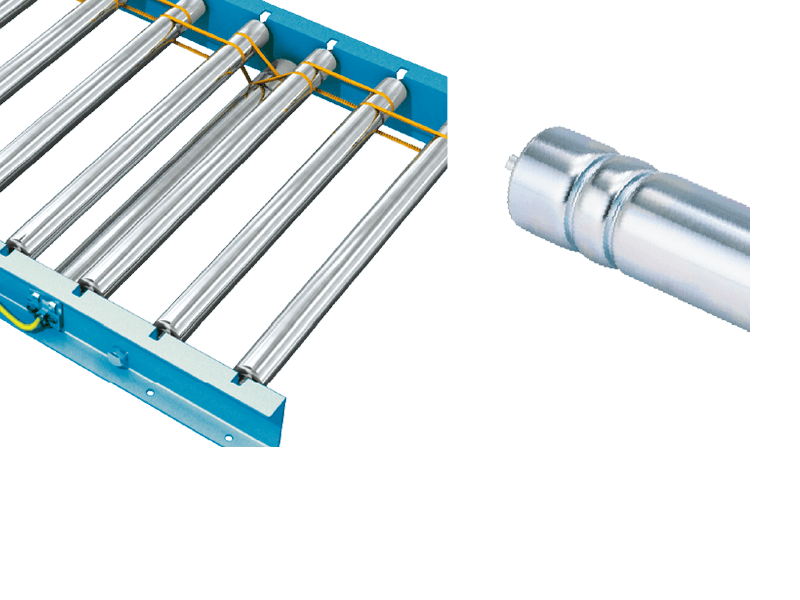

DC-38D DC Motor Roller Conveyor
Cat:Electric Motor Roller Conveyor
Model DC-38D Drive mode Motor roller (PU V belt) Auxiliary RollerDiameter x Thickness x Shaft...
See DetailsModel DC-38D Drive mode Motor roller (PU V belt) Auxiliary Roller
Diameter x Thickness x Shaft38×1.2×12
(Galvanizing)Roller width 300～800 Roller pitch 53 75 100 Frame size 90×30×3.2 Length (L) 1000(1050) 1500
2000(1950) 3000mConveyor width W+75 Speed(m/min) Model
25 type
30 type
40 type
95 typeMIN
5.8
7.0
9.6
21.2MAX
31.4
38.3
52.4
115.0Motor power 35W Power DC24V
