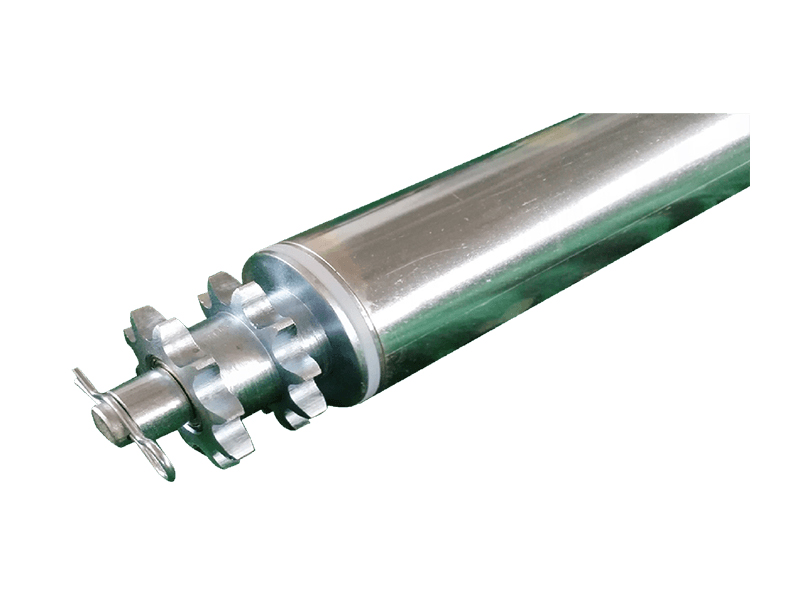

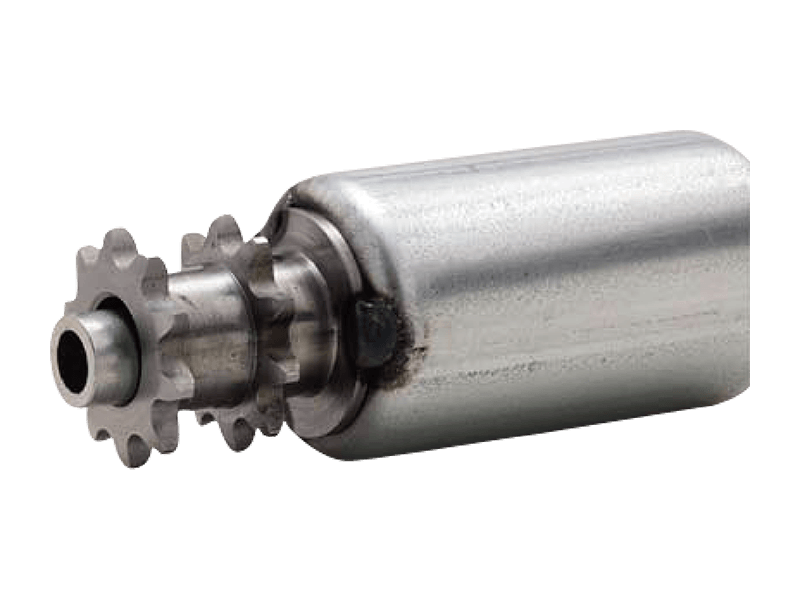

Single Row Sprocket Drive Roller
Cat:Sprocket Drive Roller
Type Roller size Roller width Roller material Bearing Shaft diameter Liner size Sprocket d d2 A B...
A driven roller is a type of idler roller used in powered roller conveyors, typically equipped with drive wheels such as sprockets, multi-wedge pulleys, timing pulleys, V-belt pulleys, or O-grooved rollers. Driven rollers with sprockets offer high load capacity, with sprockets usually made of steel and available in various specifications based on load requirements. Driven rollers with multi-wedge pulleys, timing pulleys, and V-belt pulleys are designed for belt-driven systems and have lighter load capacities. O-grooved rollers are also used for light-duty roller conveyors, with load capacities lower than belt-driven rollers.
Type Roller size Roller width Roller material Bearing Shaft diameter Liner size Sprocket d d2 A B...
Type | Roller size | Roller width | Roller material | Bearing | Shaft diameter | Liner size | Sprocket | d | d2 | A | B | W1 | BB |
KR-384010S | 38.1×2.3 | 100~800 | STKM | 6001ZZ · 6201Z | 12.0 | 18×12.2×26 | #40×10TS | 46 | 41.1 | 12 | 14 | W-1 | W+28 |
KR-424010S | 42.7×2.3 | 100~800 | STKM | 6001ZZ · 6201Z | 12.0 | 18x12.2×26 | #40×10TS | 46 | 41.1 | 12 | 14 | W | W+28 |
KR-484010S | 48.6×3.5 | 100~800 | SGP40A | 6001ZZ · 6201Z | 12.0 | 18×12.2×26 | #40×10TS | 46 | 41.1 | 12 | 11 | W+5 | W+28 |
KR-504010S | 50.8×1.6 | 100~800 | STKM | 6001ZZ · 6201Z | 12.0 | 18×12.2×26 | #40×10TS | 46 | 41.1 | 12 | 13 | W-1 | W+28 |
KR-574010S | 57.1×2.1 | 100~1000 | STKM | 6001ZZ · 6201Z | 12.0 | 18×12.2×26 | #40×10TS | 46 | 41.1 | 12 | 13 | W | W+28 |
KR-604010S | 60.5×2.3 | 100~1000 | STKM | 6001ZZ · 6201Z | 12.0 | 18×12.2×26 | #40×10TS | 46 | 41.1 | 12 | 13 | W | W+28 |
KR-605011S | 60.5×3. | 100~1000 | SGP50A | 6002ZZ | 15.0 | 21×15.2×41.5 · 21×15.2×12 | #50×11TS | 63 | 56.35 | 20 | 18 | W+3 | W+48 |
KR-765011S | 76.3×4.2 | 100~1000 | SGP65A | 6002ZZ | 15.0 | 21×15.2×41.5 · 21×152×12 | #50×11TS | 63 | 56.35 | 20 | 18 | W+2 | W+48 |
KR-605013S | 60.5×3.8 | 100~1000 | SGP50A | 6004ZZ | 20.0 | 29×20.2×38.5 · 29×20.2×15 | #50×13TS | 73 | 66.34 | 20 | 18 | W+1 | W+48 |
KR-765013S | 76.3×4.2 | 100~1000 | SGP65A | 6004ZZ | 20.0 | 29x20.2x38.5 · 29×20.2×15 | #50×13TS | 73 | 66.34 | 20 | 18 | W+2 | W+48 |
KR-895013S | 89.1×4.2 | 100~1000 | SGP80A | 6004ZZ | 20.0 | 29×20.2x38.5 · 29×202x15 | #50×13TS | 73 | 66.34 | 20 | 18 | W | W+48 |
KR-1146014S | 114.3×4.5 | 300~2000 | SGP100A | 6205ZZ | 25.0 | 35×26×19 · 35×26×21 | #60×14TS | 93 | 85.61 | 20 | 23 | W | W+58 |
KR-1406016S | 139.8×4.5 | 300~2000 | SGP125A | 6206ZZ | 30.0 | 38×31.1×19 · 38×31.1×21 | #60×16TS | 107 | 97.65 | 20 | 23 | W | W+58 |
Type Roller size Roller width Roller material Bearing Shaft diameter Liner size Sprocket d1 d2 A ...
Type | Roller size | Roller width | Roller material | Bearing | Shaft diameter | Liner size | Sprocket | d1 | d2 | A | B | C | W1 | BB |
KR-384010SW | 38.1×2.3 | 100~800 | STKM | 6001ZZ · 6201Z | 12.0 | 18×12.2×53 | #40×10TSW | 46 | 41.1 | 12 | 23 | 18 | W-1 | W+58 |
KR-424010SW | 42.7×2.3 | 100~800 | STKM | 6001ZZ · 6201Z | 12.0 | 18×12.2×53 | #40×10TSW | 46 | 41.1 | 12 | 23 | 18 | W | W+58 |
KR-484010SW | 48.6×3.5 | 100~800 | SGP40A | 6001ZZ · 6201Z | 12.0 | 18×12.2×53 | #40×10TSW | 46 | 41.1 | 12 | 23 | 15 | W+5 | W+58 |
KR-504010SW | 50.8×1.6 | 100~800 | STKM | 6001ZZ · 6201Z | 12.0 | 18×12.2×53 | #40x10TSW | 46 | 41.1 | 12 | 23 | 18 | W-1 | W+58 |
KR-574010SW | 57.1×2.1 | 100~1000 | STKM | 6001ZZ · 6201Z | 12.0 | 18×12.2×53 | #40×10TSW | 46 | 41.1 | 12 | 23 | 18 | W | W+58 |
KR-604010SW | 60.5×2.3 | 100~1000 | STKM | 6001ZZ · 6201Z | 12.0 | 18×12.2×53 | #40×10TSW | 46 | 41.1 | 12 | 23 | 18 | W | W+58 |
KR-605011SW | 60.5×3.8 | 100~1000 | SGP50A | 6002ZZ | 15.0 | 21x15.2×66.5 · 21×15.2x12 | #50×11TSW | 63 | 56.35 | 20 | 25 | 18 | W+3 | W+73 |
KR-765011SW | 76.3×4.2 | 100~1000 | SGP65A | 6002ZZ | 15.0 | 21×15.2×66.5 · 21×15.2×12 | #50×11TSW | 63 | 56.35 | 20 | 25 | 18 | W+2 | W+73 |
KR-605013SW | 60.5×3.8 | 100~1000 | SGP50A | 6004ZZ | 20.0 | 29×20.2×63.5 · 29×20.2×15 | #50×13TSW | 73 | 66.34 | 20 | 25 | 18 | W+1 | W+73 |
KR-765013SW | 76.3×4.2 | 100~1000 | SGP65A | 600422 | 20.0 | 29×20.2×63.5 · 29×20.2x15 | #50×13TSW | 73 | 66.34 | 20 | 25 | 18 | W+2 | W+73 |
KR-895013SW | 89.1×4.2 | 100~1000 | SGP80A | 6004ZZ | 20.0 | 29×20.2×63.5 · 29×20.2×15 | #50×13TSW | 73 | 66.34 | 20 | 25 | 18 | W | W+73 |
Type Roller size Rollerwidth Roller matenal Bearng Shaft diameter Sprocket d1 d2 d3 A L BB P1 P2 ...
Type | Roller size | Rollerwidth | Roller matenal | Bearng | Shaft diameter | Sprocket | d1 | d2 | d3 | A | L | BB | P1 | P2 | P3 | P4 |
KPR-574015SW | 57.2×2.6 | 300~2000 | STKM | UCPA204 | 25xW+152 | #40×15TSW | 67 | 61.08 | 20 | 33 | W+152 | W+86 | 24 | 23 | 17 | 22 |
KPR-604015SW | 60.5×3.8 | 300~2000 | STKM | UCPA204 | 25xW+152 | #40×15TSW | 67 | 61.08 | 20 | 33 | W+152 | W+86 | 24 | 23 | 17 | 22 |
KPR-765013SW | 76.3×4.2 | 300~2000 | SGP65A | UCPA204 | 25xW+163 | #50×13TSW | 73 | 66.34 | 20 | 33 | W+163 | W+97 | 32 | 25 | 18 | 22 |
KPR-895013SW | 89.1×4.2 | 300~2000 | SGP80A | UCPA206 | 35xW+169 | #50×13TSW | 73 | 66.34 | 30 | 39 | W+169 | W+91 | 29 | 25 | 18 | 19 |
KPR-1015018SW | 101.6×4.5 | 300~2000 | SGP90A | UCPA206 | 35xW+169 | #50×18TSW | 98 | 91.42 | 30 | 39 | W+169 | W+91 | 29 | 25 | 18 | 19 |
KPR-1145018SW | 114.3×4.5 | 300~2000 | SGP100A | UCPA206 | 35xW+169 | #50×18TSW | 98 | 91.42 | 30 | 39 | W+169 | W+91 | 29 | 25 | 18 | 19 |
KPR-1405018SW | 139.8×4.5 | 300~2000 | SGP125A | UCPA206 | 35xW+169 | #50×18TSW | 98 | 91.42 | 30 | 39 | W+169 | W+91 | 29 | 25 | 18 | 19 |
Type Roller size Roller width Roller material Bearing Shaft diameter Liner size Sprocket MAC-CN...
Type | Roller size | Roller width | Roller material | Bearing | Shaft diameter | Liner size | Sprocket | |||||
MAC-CN384010S | 38.1×2.3 | 100~800 | STKM | 6001ZZ · 6201Z | 12.0 | 18×12.2×17 | #40×10TS | |||||
MAC-CN424010S | 42.7×2.3 | 100~1000 | STKM | 6001ZZ · 6201Z | 12.0 | 18x12.2×17 | #40×10TS | |||||
MAC-CN484010S | 48.6×3.5 | 100~1000 | SGP40A | 60012Z · 6201Z | 12.0 | 18×12.2×17 | #40×10TS | |||||
MAC-CN504010S | 50.8×1.6 | 100~1000 | STKM | 6001ZZ · 6201Z | 12.0 | 18×12.2×17 | #40×10TS | |||||
MAC-CN574010S | 57.1×2.1 | 100~1000 | STKM | 6001ZZ · 6201Z | 12.0 | 18×12.2×17 | #40×10TS | |||||
MAC-CN604010S | 60.5×2.3 | 100~1000 | STKM | 6001ZZ · 6201Z | 12.0 | 18×12.2×17 | #40×10TS |
Type | Roller size | Roller width | Roller material | Bearing | Shaft diameter | Sprocket | ||||||
MAC-CS384010S | 38.1×2.3 | 100~800 | STKM | 6001ZZ · 6201Z | 12.0 | #40×10TS | ||||||
MAC-CS424010S | 42.7×2.3 | 100~1000 | STKM | 6001ZZ · 6201Z | 12.0 | #40×10TS | ||||||
MAC-CS484010S | 48.6×3.5 | 100~1000 | SGP40A | 6001ZZ · 6201Z | 12.0 | #40×10TS | ||||||
MAC-CS504010S | 50.8×1.6 | 100~1000 | STKM | 6001ZZ · 6201Z | 12.0 | #40×10TS | ||||||
MAC-CS574010S | 57.1×2.1 | 100~1000 | STKM | 6001ZZ · 6201Z | 12.0 | #40×10TS | ||||||
MAC-CS604010S | 60.5×2.3 | 100~1000 | STKM | 6001ZZ · 6201Z | 12.0 | #40×10TS |
Type Roller size Roller width Roller material Bearing Shaft diameter Liner size Sprocket MAC-CN...
Type | Roller size | Roller width | Roller material | Bearing | Shaft diameter | Liner size | Sprocket |
MAC-CN384010SW | 38.1×2.3 | 100~800 | STKM | 6001Z · 6201Z | 12.0 | 18×12.2×17 | #40×10TS |
MAC-CN424010SW | 42.7×2.3 | 100~1000 | STKM | 6001ZZ · 6201Z | 12.0 | 18×12.2×17 | #40×10TS |
MAC-CN484010SW | 48.6×3.5 | 100~1000 | SGP40A | 6001ZZ · 6201Z | 12.0 | 18×12.2×17 | #40×10TS |
MAC-CN504010SW | 50.8×1.6 | 100~1000 | STKM | 6001Z · 6201Z | 12.0 | 18×12.2×17 | #40×10TS |
MAC-CN574010SW | 57.1×2.1 | 100~1000 | STKM | 6001ZZ · 6201Z | 12.0 | 18×12.2×17 | #40×10TS |
MAC-CN604010SW | 60.5×2.3 | 100~1000 | STKM | 6001ZZ · 6201Z | 12.0 | 18×12.2×17 | #40×10TS |
Type Roller size Roller width Roller material Bearing Shaft diameter Liner size Sprocket d1 d2 ...
Type | Roller size | Roller width | Roller material | Bearing | Shaft diameter | Liner size | Sprocket | d1 | d2 |
MAC-CN605010SW | 60.5×2.3 | 100~1000 | STKM | 6002Z7 · 61902Z | 15.0 | 20×15.2×16 | #50×10TS | 57.43 | 51.37 |
MAC-CN765013SW | 76.3×2.0 | 100~1000 | STKM | 6204ZZ · 61904Z | 20.0 | 25×20.2×22 | #50×13TS | 73 | 66.34 |
R Center 1000 Total length Roller width Wide of conveyor Narrow path Large diameter Loading of...
R Center | 1000 | Total length | Roller width | Wide of conveyor | Narrow path | Large diameter | Loading of roller | Weight of roller | |||
Sprocket | #40×10TSW | (∅) | Thickness | (∅) | Thickness | ||||||
W Roller width | 200~600 | 258 | 200 | 260 | 51.5 | 3.0 | 62.5 | 2.6 | 1842 | 1236 | |
Roller material | STKM | 358 | 300 | 360 | 48.8 | 3.0 | 65.2 | 2.6 | 1215 | 1643 | |
Beaning | 6001ZZ · 6201Z | 458 | 400 | 460 | 46.0 | 3.1 | 68.0 | 2.6 | 911 | 2050 | |
db Shaft diameter | 12.0 | 558 | 500 | 560 | 43.3 | 3.2 | 70.7 | 2.4 | 725 | 2456 | |
dC×dc×Lc/Liner size |
18×12.2×53 · 18×12.2×7 | 658 | 600 | 660 | 41.3 | 3.3 | 74.0 | 2.3 | 597 | 2863 |
R Center | 1200 | Total length | Roller width | Wide of conveyor | Narrow path | Large diameter | Loading of roller | Weight of roller | |||
Sprocket | #40×10TSW | (∅) | Thickness | (∅) | Thickness | ||||||
W Roller width | 200~600 | 258 | 200 | 260 | 52.1 | 2.9 | 61.9 | 2.5 | 1842 | 1.132 | |
Roller material | STKM | 358 | 300 | 360 | 49.7 | 3.0 | 64.3 | 2.4 | 1215 | 1487 | |
Beaning | 6001ZZ · 6201Z | 458 | 400 | 460 | 47.3 | 3.1 | 65.7 | 2.4 | 911 | 1842 | |
db Shaft diameter | 12.0 | 558 | 500 | 560 | 45.0 | 3.2 | 69.2 | 2.8 | 725 | 2197 | |
dC×dc×Lc/Liner size | 18×12.2×53 · 18×12.2×7 | 658 | 600 | 660 | 45.0 | 3.2 | 74.0 | 2 | 597 | 2552 |
R Center | 1500 | Total length | Roller width | Wide of conveyor | Narrow path | Large diameter | Loading of roller | Weight of roller | |||
Sprocket | #40×10TSW | (∅) | Thickness | (∅) | Thickness | ||||||
W Roller width | 200~600 | 258 | 200 | 260 | 52.6 | 2.7 | 61.4 | 2.8 | 1842 | 1233 | |
Roller material | STKM | 358 | 300 | 360 | 50.4 | 2.9 | 63.6 | 2.7 | 1215 | 1645 | |
Beaning | 6001ZZ · 6201Z | 458 | 400 | 460 | 48.0 | 3.1 | 65.4 | 2.4 | 911 | 2046 | |
db Shaft diameter | 12.0 | 558 | 500 | 560 | 48.0 | 3.4 | 69.8 | 2.4 | 725 | 2452 | |
dC×dc×Lc/Liner size | 18×12.2×53 · 18×12.2×7 | 658 | 600 | 660 | 48.0 | 3.1 | 74.0 | 2.1 | 597 | 2.86 |
R Center | 2000 | Total length | Roller width | Wde of conveyor | Narrow path | Large diameter | Loading of roller | Weight of roller | |||
Sprocket | #40×10TSW | (∅) | Thickness | (∅) | Thickness | ||||||
W Roller width | 400~800 | 458 | 400 | 460 | 50.0 | 3.0 | 62.5 | 2.3 | 911 | 1990 | |
Roller material | STKM | 558 | 500 | 560 | 50.0 | 3.0 | 65.6 | 2.2 | 725 | 2398 | |
Beaning | 6001ZZ · 6201Z | 658 | 600 | 660 | 50.0 | 3.0 | 68.8 | 2.2 | 597 | 2797 | |
db Shaft diameter | 12.0 | 758 | 700 | 760 | 50.0 | 3.0 | 71.9 | 2.1 | 519 | 3210 | |
dC×dc×Lc/Liner size | 18×12.2×53 · 18×12.2×7 | 858 | 800 | 860 | 50.0 | 3.0 | 75.0 | 2.0 | 450 | 3620 |
R Center 500 Total length Roller width Wide of conveyor Narrow path Large diameter Sprocket #...
R Center | 500 | Total length | Roller width | Wide of conveyor | Narrow path | Large diameter | |
Sprocket | #40×10TSW | (∅) | (∅) | ||||
W Roller width | 300~700 | 328 | 300 | 330 | 42.7 | 60 | |
Roller material | STKM | 428 | 400 | 430 | 42.7 | 65 | |
Beaning | 6001ZZ · 6201Z | 528 | 500 | 530 | 42.7 | 75 | |
db Shaft diameter | 12.0 | 628 | 600 | 630 | 42.7 | 80 | |
dC×dc×Lc/Liner size | 18×12.2×27 · 18×12.2×7 | 728 | 700 | 730 | 42.7 | 89 |
R Center | 900 | Total length | Roller width | Wide of conveyor | Narrow path | Large diameter | |
Sprocket | #40×10TSW | (∅) | (∅) | ||||
W Roller width | 300~700 | 328 | 300 | 330 | 42.7 | 56 | |
Roller material | STKM | 428 | 400 | 430 | 42.7 | 60 | |
Beaning | 6001ZZ · 6201Z | 528 | 500 | 530 | 42.7 | 65 | |
db Shaft diameter | 12.0 | 628 | 600 | 630 | 42.7 | 70 | |
dC×dc×Lc/Liner size | 18×12.2×27 · 18×12.2×7 | 728 | 700 | 730 | 42.7 | 75 |
R Center | 900 | Total length | Roller width | wide of conveyor | Narrow path | Large diameter | |
Sprocket | #40×10TSW | (∅) | (∅) | ||||
W Roller width | 800~1000 | 828 | 800 | 830 | 42.7 | 65 | |
Roller material | STKM | 928 | 900 | 930 | 42.7 | 70 | |
Beaning | 6001ZZ · 6201Z | 1028 | 1000 | 1030 | 42.7 | 75 | |
db Shaft diameter | 12.0 | ||||||
dC×dc×Lc/Liner size | 18×12.2×27 · 18×12.2×7 |
Type Roller size Roller width Roller material Bearing Shaft diameter Polyvee pulley DQR-3812 38...
Type | Roller size | Roller width | Roller material | Bearing | Shaft diameter | Polyvee pulley |
DQR-3812 | 38.1×12 | 100~1000 | STKM | 6001ZZ | 12.0 | Q235 |
DQRS-3815 | 38.1×1.5 | 100~1000 | SUS304/201 | 6001ZZ | 12.0 | Q235/SUS |
DQR-5015 | 50.8×1.5 | 100~1000 | STKM | 6002ZZ | 12.0 | Resin |
DQRS-5015 | 50×1.5 | 100~1000 | SUS304/201 | 6002ZZ | 12.0 | Resin |
DQR-5721 | 57.2×2.1 | 100~1000 | STKM | 6001ZZ | 12.0 | Q235 |
DQR-6023 | 60.5×2.3 | 100~1000 | STKM | 6002ZZ | 12.0 | Q235 |
DQRS-6020 | 60×2.0 | 100~1000 | SUS304/201 | 6002ZZ | 12.0 | Q235/SUS/Resin |
DQR-7620 | 76.3×2.0 | 100~1000 | STKM | 6001ZZ | 12.0 | Q235 |
DQRS-7620 | 76×2.0 | 100~1000 | SUS304/201 | 6001ZZ | 12.0 | Q235/SUS |
Type Roller size Roller width Roller material Bearing Shaft diameter Vnbbed pully VR-3812 38.1×...
Type | Roller size | Roller width | Roller material | Bearing | Shaft diameter | Vnbbed pully |
VR-3812 | 38.1×1.2 | 100~1000 | STKM | 6001ZZ | 12.0 | Q235 |
VRS-3815 | 38×1.5 | 100~1000 | SUS304/201 | 6001ZZ | 12.0 | Q235/SUS |
VR-5015 | 50.8×1.5 | 100~1000 | STKM | 6001ZZ | 12.0 | Q235 |
VRS-5015 | 50×1.5 | 100~1000 | SUS304/201 | 6001ZZ | 12.0 | Q235/SUS |
VR-5721 | 57.2×2.1 | 100~1000 | STKM | 6001ZZ | 12.0 | Q235 |
VR-6023 | 60.5×2.3 | 100~1000 | STKM | 6001ZZ | 12.0 | Q235 |
VRS-6020 | 60×2.0 | 100~1000 | SUS304/201 | 6001ZZ | 12.0 | Q235/SUS |
VR-7620 | 76.3×2.0 | 100~1000 | STKM | 6001ZZ | 12.0 | Q235 |
VRS-7620 | 76×2.0 | 100~1000 | SUS304/201 | 6001ZZ | 12.0 | Q235/SUS |
Type Roller size Roller width Roller material Shaft diameter Bearing OR-3812 38.1×1.2 100~1000 ...
Type | Roller size | Roller width | Roller material | Shaft diameter | Bearing |
OR-3812 | 38.1×1.2 | 100~1000 | STKM | 12.0 | SS |
ORS-3815 | 38.1×1.5 | 100~1000 | SUS304/201 | 12.0 | SS/SUS |
OR-4214 | 42.7×1.4 | 100~1000 | STKM | 12.0 | SS |
OR-5015 | 50.8×1.5 | 100~1000 | STKM | 12.0 | SS |
ORS-5015 | 50×1.5 | 100~1000 | SUS304/201 | 12.0 | SS/Resin |
OR-5721 | 57.2×2.1 | 100~1000 | STKM | 12.0 | SS |
OR-6023 | 60.5×2.3 | 100~1000 | STKM | 12.0 | SS |
ORS-6020 | 60×2.0 | 100~1000 | SUS304/201 | 12.0 | SS/Resin |
The integration of standard type belt conveyor with existing automation systems or machinery is a ch...
READ MOREIn the ever-evolving landscape of industrial automation, motor roller conveyors have emerged as a pi...
READ MOREIn the ever-evolving landscape of material handling, the quest for efficiency and innovation remains...
READ MOREBelt conveyor is indispensable tools in modern industries, designed to facilitate the efficient, con...
READ MOREBelt conveyor is indispensable in modern industrial processes, known for their versatility and effic...
READ MOREProduct Advantages of Wuxi Huiqian Driven Roller:High Durability and Load-Bearing Capacity
Wuxi Huiqian Logistics Machinery Manufacturing Co., LTD, renowned for its integration of advanced Japanese logistics technology, stands at the forefront of innovation in the material handling industry. The company specializes in producing a wide range of high-quality logistics equipment, including driven roller, roller conveyors, and various other critical components. With a comamitment to precision, reliability, and performance, Wuxi Huiqian’s driven rollers are designed to meet the diverse needs of industries that rely on efficient and reliable material handling systems.
Driven rollers play a crucial role in many logistics and manufacturing processes. Whether for moving large, heavy items or small packages, these rollers are integral to automated systems that streamline workflows and increase efficiency. Wuxi Huiqian's driven rollers, including sprocket drive rollers and tapered drive rollers, are engineered for durability and optimal performance in diverse operational environments. The combination of advanced materials, cutting-edge technology, and customizable designs make these rollers a preferred choice for industries across the globe.
Wuxi Huiqian driven roller is designed to withstand heavy loads and continuous use in demanding environments. The rollers are constructed using high-strength materials such as steel and stainless steel, which ensure long-lasting performance even under rigorous conditions. The robustness of these materials guarantees that the rollers can handle varying load capacities, from light industrial components to heavy machinery parts, without compromising their structural integrity.
The sprocket drive rollers, in particular, are built with durable, high-quality steel to ensure they can withstand the torque required to drive conveyor systems in demanding applications. Similarly, the tapered drive rollers, designed with an angle to facilitate smooth operation, also exhibit high strength and stability under heavy load conditions. The advanced material selection minimizes wear and tear, enhancing the rollers’ ability to perform over an extended lifespan.
One of the key advantages of Wuxi Huiqian driven rollers is their versatility and adaptability to meet specific customer requirements. With a strong R&D team at the helm, the company can develop customized solutions that align with unique operational needs. Driven rollers can be tailored in terms of size, material, and functionality to suit a wide range of applications. Whether it's customizing the roller diameter, length, or adding specialized coatings, Wuxi Huiqian works closely with customers to ensure the product matches the exact specifications.
The ability to provide tailored solutions makes these driven rollers ideal for various industries, including automotive manufacturing, food and beverage production, warehousing, logistics, and e-commerce. The rollers can be adapted to fit different types of conveyor systems and production lines, making them a versatile component in any material handling operation.
Wuxi Huiqian is known for its high standards of precision engineering, which is crucial for ensuring the reliable performance of driven rollers. The company uses advanced CNC (Computer Numerical Control) machines to manufacture its driven rollers with exceptional accuracy. This precision guarantees that the rollers are produced to the exact specifications required for each unique application, minimizing the chances of malfunction or inefficiency.
The use of CNC machinery also ensures that the rollers are manufactured consistently in large volumes, making it possible to maintain high production standards and reduce the risk of defects. The precision also extends to the design of sprockets and tapered features, ensuring that these critical components perform smoothly and seamlessly in the final assembly.
Wuxi Huiqian driven rollers are designed to provide high operational efficiency while requiring minimal maintenance. The rollers are engineered to reduce friction and wear, which decreases the frequency of maintenance tasks and extends the service life of the equipment. This feature is especially important in industries where continuous operation is required and downtime must be minimized.
The sprocket drive rollers are designed with interlocking teeth that reduce slippage and enhance the transfer of power, ensuring that the conveyor system operates efficiently even under high load conditions. Similarly, the tapered drive rollers are designed to minimize the risk of damage to the conveyor belt or surrounding components, improving the overall reliability of the system.
The low-maintenance design of Wuxi Huiqian’s driven rollers reduces operational costs by lowering maintenance needs and the potential for unexpected downtime. Additionally, the company offers a comprehensive after-sales service system, ensuring that any issues are addressed promptly and that customers can maintain the smooth operation of their equipment.
Driven rollers from Wuxi Huiqian are designed to be energy-efficient, which is crucial for reducing the operating costs of material handling systems. The rollers are engineered to minimize energy consumption while maintaining the power necessary to drive the conveyor systems. This focus on energy efficiency translates into lower electricity bills for businesses, contributing to overall cost savings and environmental sustainability.
In an era where businesses are increasingly concerned with their environmental impact, the energy-efficient design of Wuxi Huiqian’s driven rollers ensures that companies can operate sustainably without sacrificing performance or reliability.

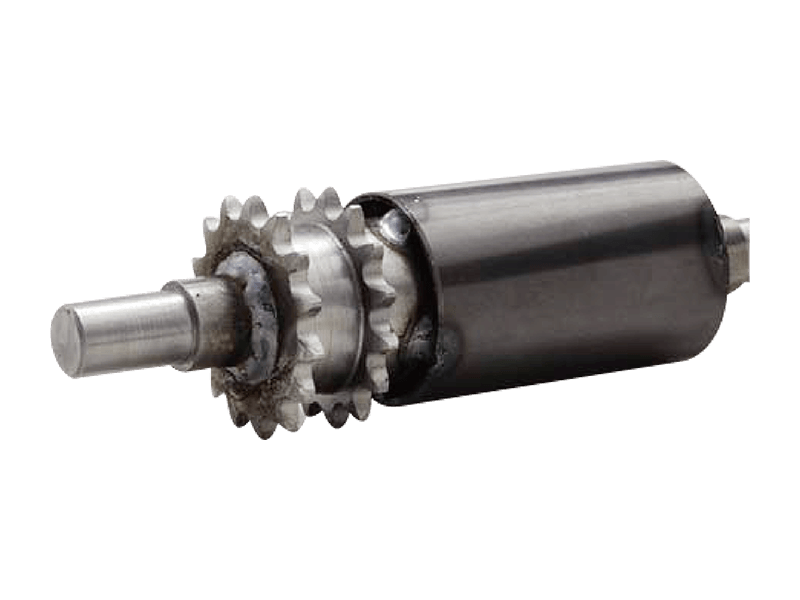

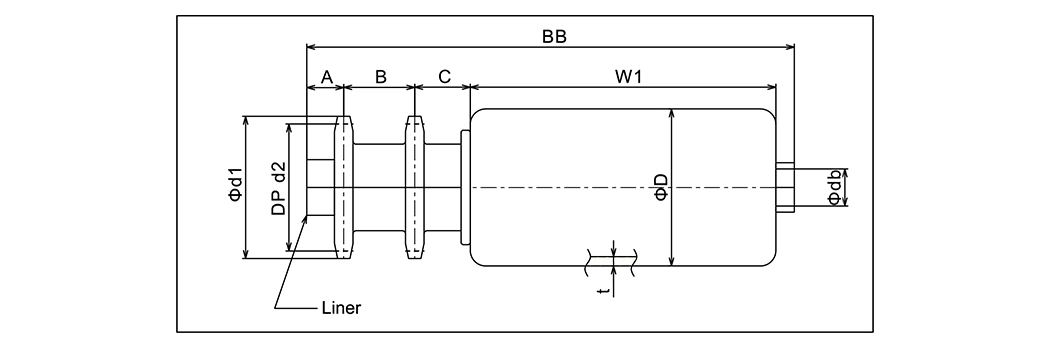

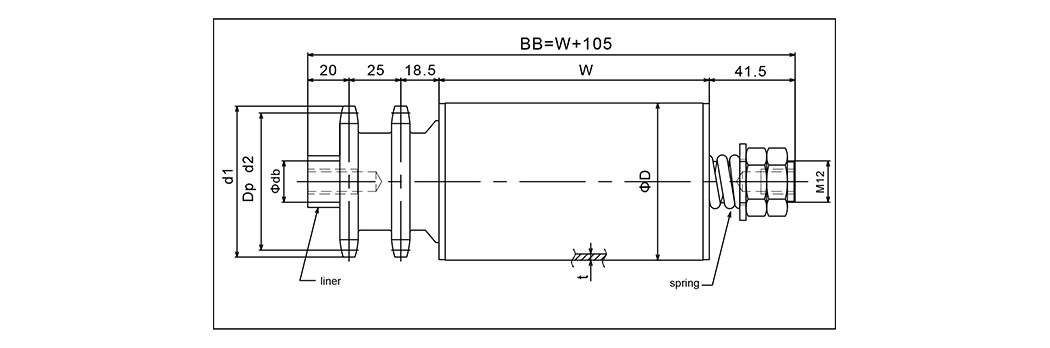

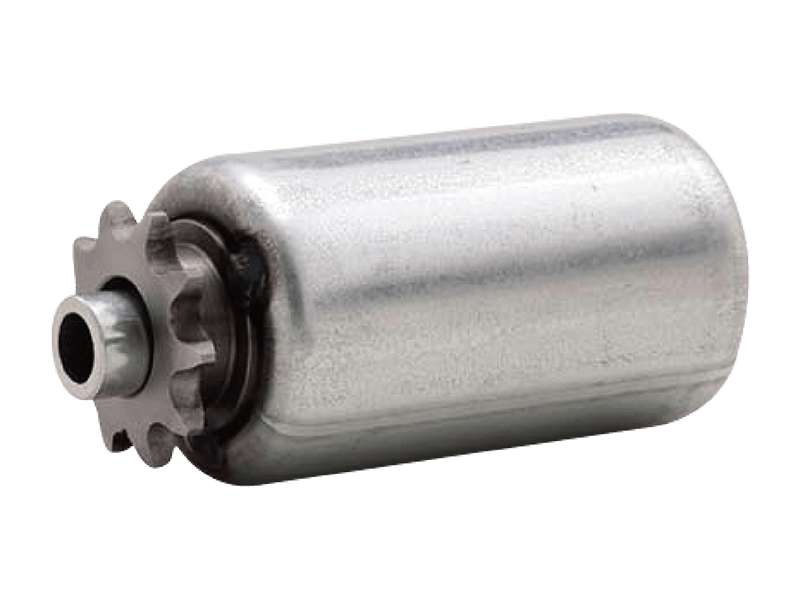

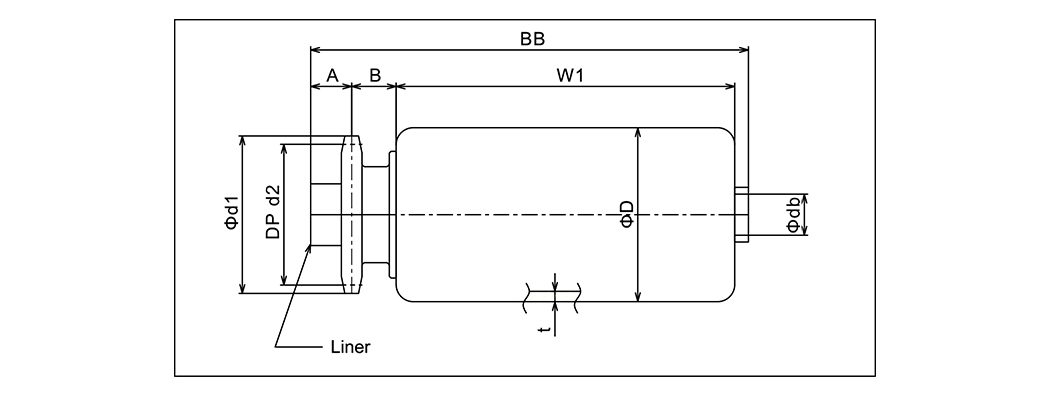

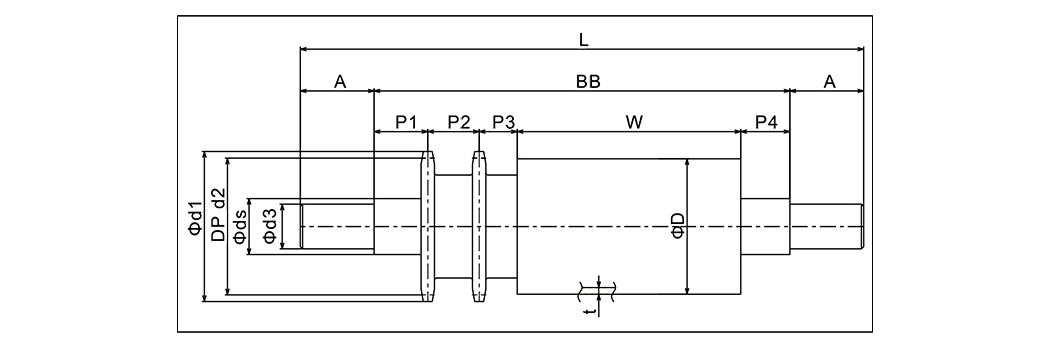

Sprocket drive rollers are one of the most commonly used types of driven rollers in conveyor systems. These rollers are designed to be driven by a chain and are equipped with sprockets that interlock with the chain, ensuring smooth and reliable operation. The material used for sprocket drive rollers is typically high-quality steel or stainless steel, chosen for its strength, durability, and ability to handle the torque generated by the chain drive.
The sprocket drive rollers from Wuxi Huiqian are designed with precise tolerances to ensure that the sprockets fit perfectly with the chain, minimizing slippage and maximizing power transmission. The rollers are also treated to resist wear and corrosion, enhancing their longevity and reducing maintenance needs. The use of high-strength materials ensures that these rollers can handle heavy loads, making them suitable for industrial applications in manufacturing, packaging, and distribution.
Tapered drive rollers feature a cone-shaped design that allows for smooth and efficient movement of materials on a conveyor system. The taper ensures that the materials are guided smoothly along the conveyor, reducing friction and enhancing the system’s overall efficiency. The material used for tapered drive rollers is typically stainless steel or high-strength alloy steel, which provides excellent resistance to wear and corrosion, making it suitable for a variety of environments, including food processing, pharmaceuticals, and heavy industrial use.
The tapered design also contributes to the roller’s ability to handle different sizes and weights of materials, making these rollers highly adaptable to a range of applications. Wuxi Huiqian's tapered drive rollers are manufactured with precision to ensure that the taper angle is consistent across all rollers, providing a uniform performance across the entire conveyor system.
The use of stainless steel and alloy steel in the construction of driven rollers ensures their durability in harsh or corrosive environments. These materials are highly resistant to rust, corrosion, and abrasion, making them ideal for industries where the rollers are exposed to moisture, chemicals, or other environmental challenges. For example, the food and beverage industry, where hygiene is a priority, benefits from the corrosion-resistant properties of stainless steel driven rollers.
The corrosion-resistant properties of the materials also help maintain the integrity of the conveyor system over time, preventing costly repairs and ensuring consistent performance.
Wuxi Huiqian Logistics Machinery Manufacturing Co., LTD's driven rollers, including sprocket drive and tapered drive models, offer significant advantages in terms of durability, customization, precision engineering, and efficiency. By utilizing high-quality materials such as steel and stainless steel, these rollers provide long-lasting, low-maintenance solutions for industries ranging from automotive manufacturing to logistics and food processing. Their ability to handle heavy loads, reduce energy consumption, and operate smoothly in demanding environments makes them a reliable choice for any business looking to optimize its material handling systems.
Bringing Craftsmanship to the Future.
No.60,Zhenhu North Road,Hudai Town,Binhu District,Wuxi 214100,China
+86 139-2153-1116
+86-510-8558 1519/8558 1530
+86-510-8558 1520
