Medium Case Rack
Cat:Medium Case Rack

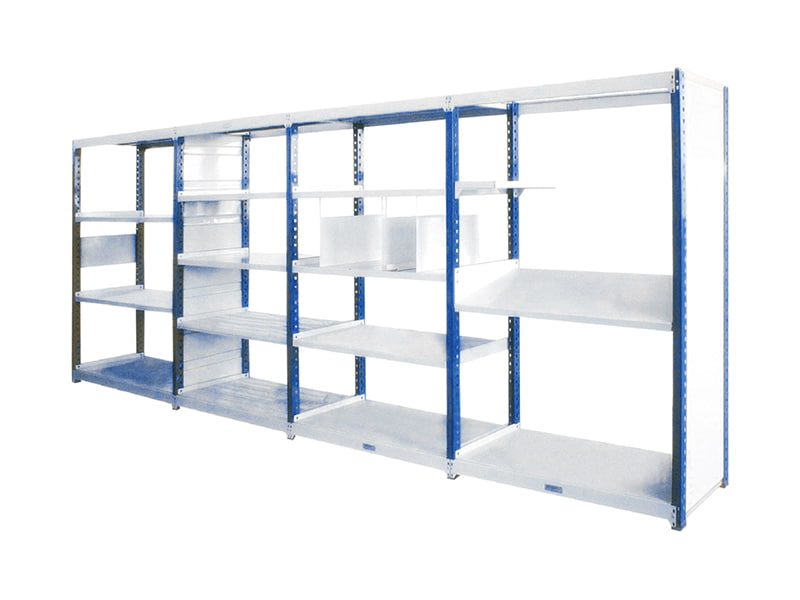

Medium case rack is suitable for storing many variety and few quantity of goods. Medium case rack is...
Warehouse racks, also known as storage racks, are essential tools for modern warehouses to improve efficiency by serving as storage equipment for packaged items. Racks are widely used in supermarkets, warehouses, and logistics centers. Different designs and configurations of racks can meet the storage needs of various locations, enhancing space utilization and operational efficiency.
Medium case rack is suitable for storing many variety and few quantity of goods. Medium case rack is...
Medium case rack is suitable for storing many variety and few quantity of goods.
Medium case rack is suitable for storing pint-sized goods, box goods or special goods which are less than 500kg.
Type | Truss size | Max loading | H | W | Effective width | Core width | Depth | |
1 layer loading(kg) | Max loading(kg) | |||||||
L | ![]() |
150 | 1000 | 1200 | 900 | 850 | 955 | 300 450 600 |
1200 | 1150 | 1255 | ||||||
1500 | 1450 | 1555 | ||||||
1800 | 1750 | 1855 | ||||||
M | 300 | 1500 | 1500 | 900 | 850 | 955 | 450 600 750 900 |
|
1200 | 1150 | 1255 | ||||||
1800 | 1500 | 1450 | 1555 | |||||
1800 | 1750 | 1855 | ||||||
H | 500 |
2500 | 2100 | 900 | 850 | 955 | ||
2400 | 1200 | 1150 | 1255 | |||||
1500 | 1450 | 1555 | ||||||
1800 | 1750 | 1855 |
Loading Capacity Sheet
Max Loading(kg)

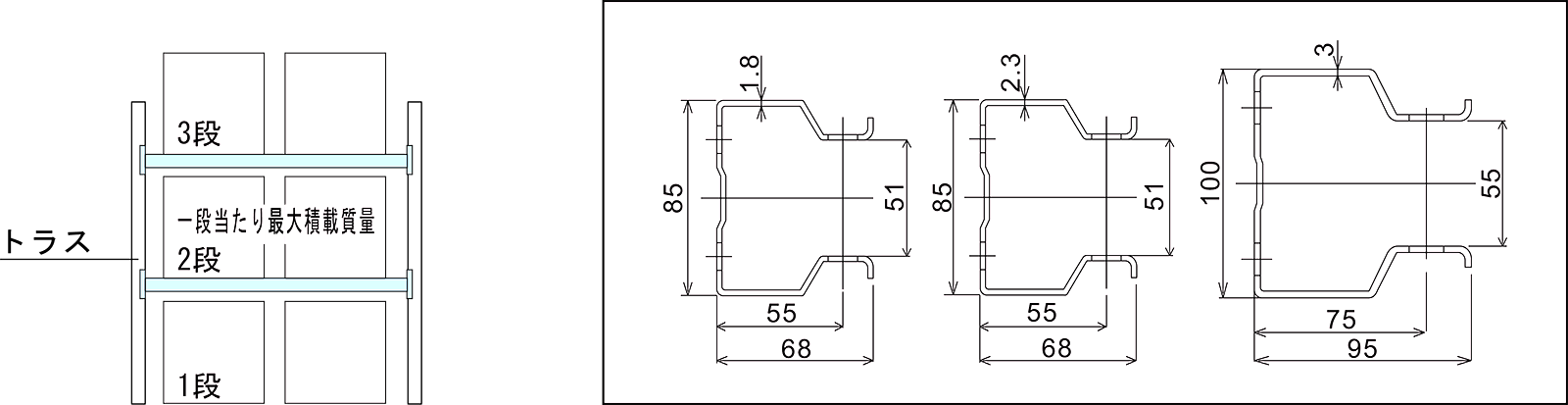

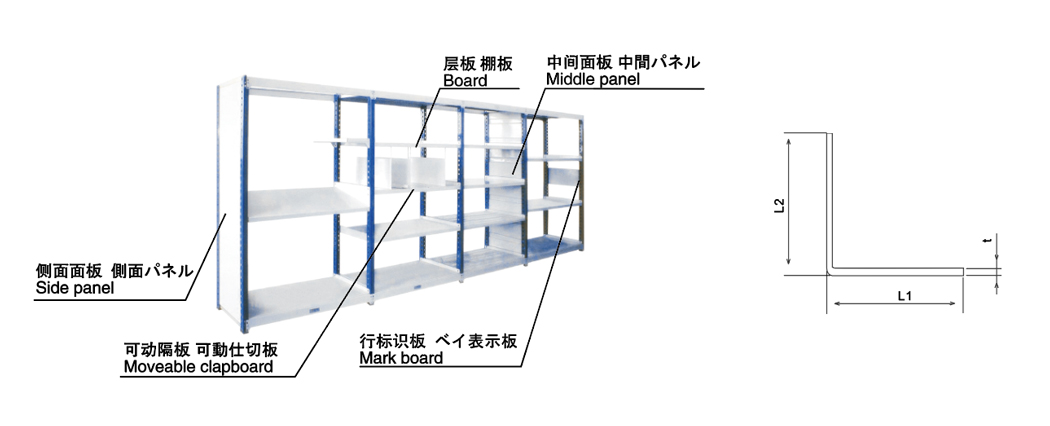

Type | Truss L1*L2*t |
Max loading(kg) | ||||
4 Layers | 5.6 Layers | |||||
A | 25*25*1.5 | 300 | 400 | |||
B | 32*32*1.5 | 450 | 600 | |||
C | 38*38*1.8 | 600 | 800 |
Max Loading(kg)
Depth/Length | 900(mm) | 1200(mm) | 1500(mm) | 1800(mm) | |||
300(mm) | 100 | - | - | - | |||
450(mm) | 150 | 150 | 100 | 60 | |||
600(mm) | 200 | 200 | 150 | 100 |

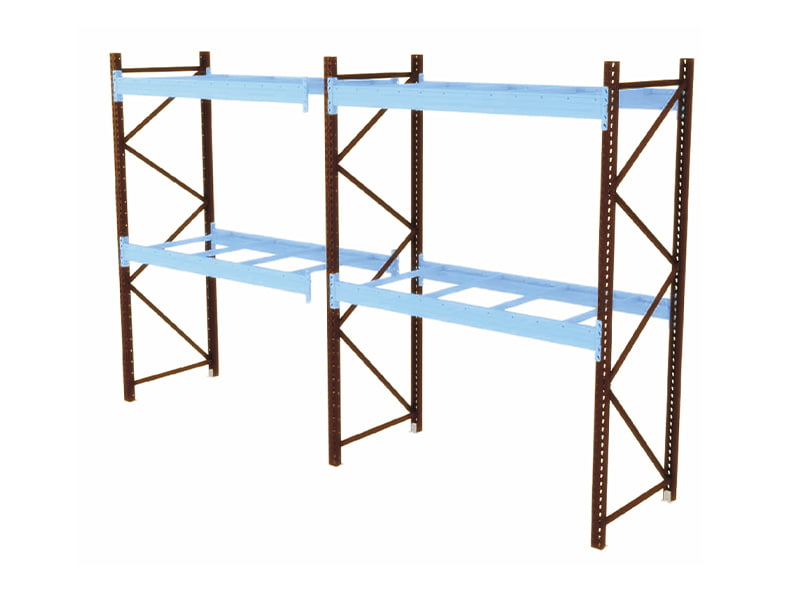

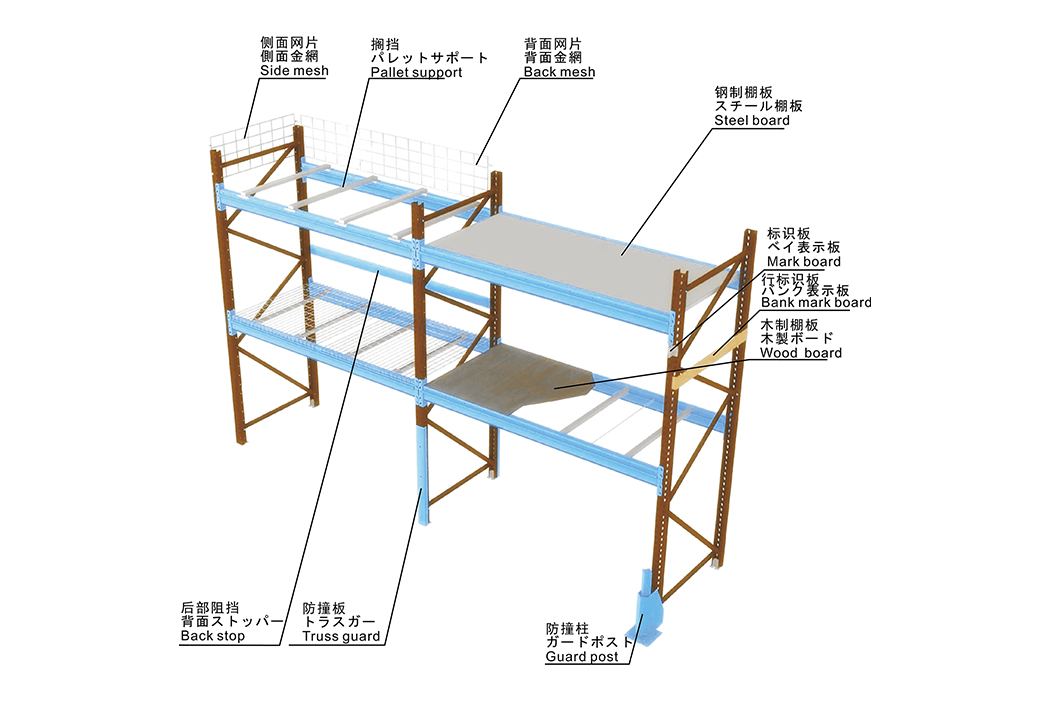

Option ·There are three types of this heavy rack: L, M, H ·The max loading capacity is depen...
Option
·There are three types of this heavy rack: L, M, H
·The max loading capacity is depending on height and layers, please refer to loading sheet.
·The condition of aboving loading capacity is concrete ground, and the rack should be fixed by expandable bolt. |
![]() |
Type | Height(mm) | Width(mm) | Depth(mm) |
L Type(Light Weight) | 2000 2500 3000 3500 4000 4500 5000 5500 6000 7000 8000 |
2000 2300 2500 2700 3000 3200 |
600 800 900 1000 1100 1200 |
M Type(Middling Weight) | |||
H Type(Heavy Weight) |
Max loading of Truss
Max loading of every layer(kg) | |||||||||||
Layers/Truss/Height(mm) | 2 layer | 3 layer | 4 layer | 5 layer | |||||||
L | M | L | M | H | L | M | H | L | M | H | |
2000 | 4440 | 5470 | 3140 | 3870 | 5190 | 2360 | 2900 | 3890 | 1880 | 2320 | 3110 |
2500 | 4020 | 4960 | 3130 | 3860 | 5190 | 2360 | 2900 | 3890 | 1880 | 2320 | 3110 |
3000 | 3670 | 4540 | 2920 | 3600 | 5120 | 2360 | 2900 | 3890 | 1880 | 2320 | 3110 |
3500 | 3380 | 4180 | 2730 | 3370 | 4830 | 2290 | 2820 | 3890 | 1880 | 2320 | 3110 |
4000 | 3130 | 3870 | 2560 | 3170 | 4560 | 2170 | 2680 | 3820 | 1880 | 2320 | 3110 |
4500 | 2920 | 3610 | 2420 | 2990 | 4330 | 2070 | 2550 | 3650 | 1800 | 2220 | 3110 |
5000 | 2730 | 3380 | 2290 | 2830 | 4120 | 1970 | 2430 | 3500 | 1730 | 2130 | 3040 |
5500 | 2570 | 3180 | 2170 | 2690 | 3920 | 1880 | 2330 | 3360 | 1660 | 2050 | 2940 |
6000 | 2420 | 3000 | 2070 | 2560 | 3750 | 1800 | 2230 | 3230 | 1600 | 1970 | 2840 |
7000 | 2180 | 2690 | 1880 | 2330 | 3440 | 1660 | 2060 | 3000 | 1490 | 1840 | 2660 |
8000 | 1960 | 2440 | 1730 | 2140 | 3180 | 1540 | 1910 | 2800 | 1390 | 1720 | 2500 |
Standard of none earthquake nation:k=0.03(level shaking coefficient)

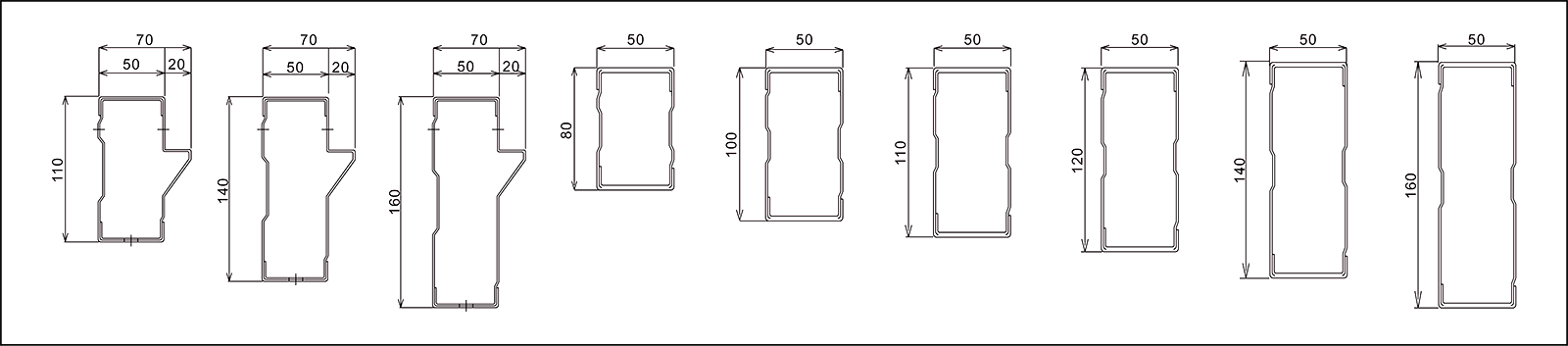

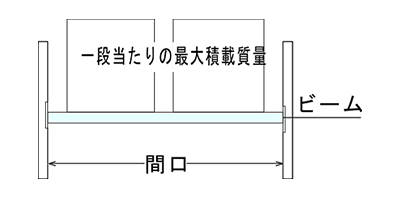

Max loading of beam
Max loading of every layer(kg) | |||||||
Width/Beam height | 2000 | 2300 | 2500 | 2700 | 3000 | 3200 | ![]() |
80 | 1777 | 1344 | 1137 | — | — | — | |
100 | 2560 | 2226 | 1917 | 1644 | 1331 | 1170 | |
110 | 2918 | 2538 | 2335 | 2055 | 1665 | 1463 | |
120 | 3277 | 2849 | 2621 | 2427 | 2042 | 1794 | |
140 | 4045 | 3517 | 3236 | 2996 | 2697 | 2528 | |
160 | — | 4998 | 4598 | 4257 | 3831 | 3592 |

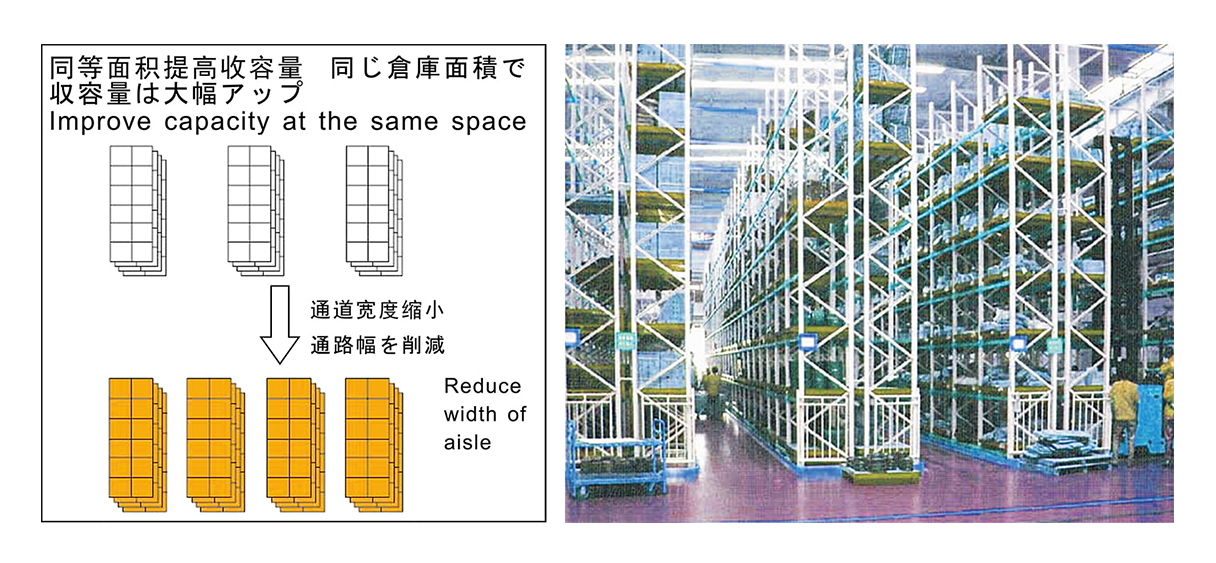

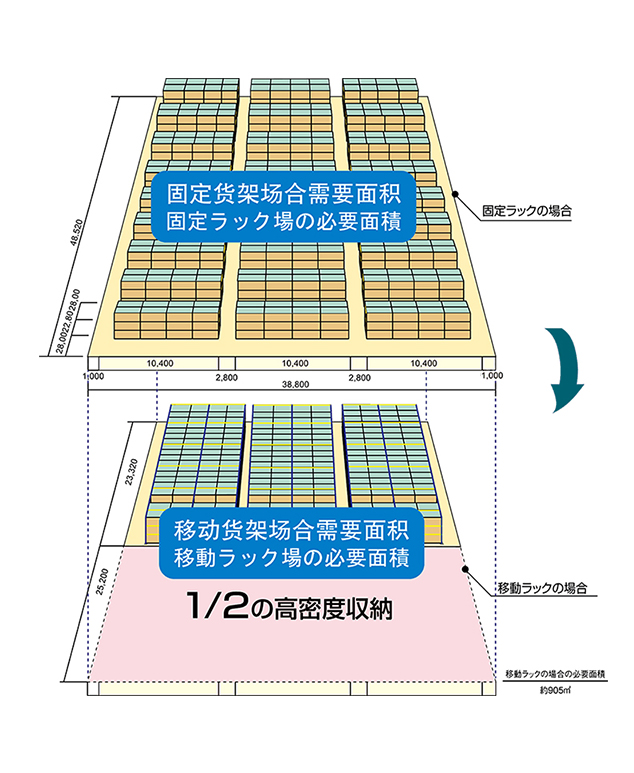

Different guide can be installed according to corresponding forklifts, which can reduce width of passing aisle and utilize the space.

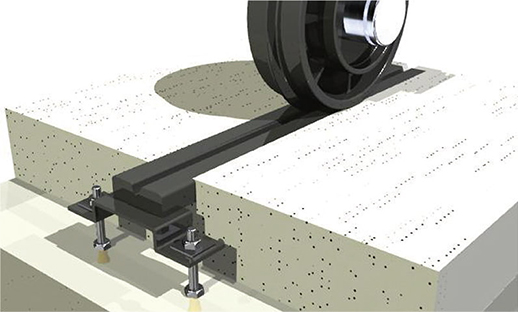

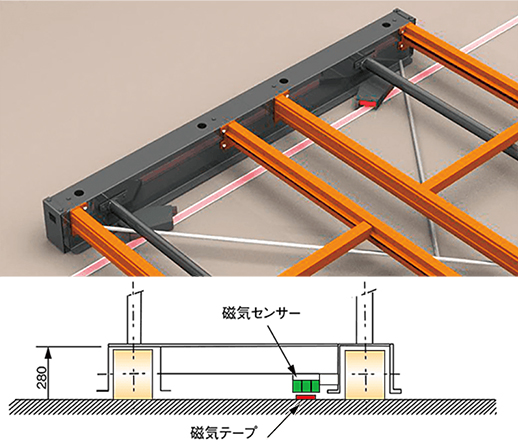

[Rail type]Rail can be decided by grounds Different setting condition can cause different work...
[Rail type]Rail can be decided by grounds Different setting condition can cause different working conditions |
Two types of rail Fixed rail used fpr sigle- side operation |
Manget bar without rail |
|

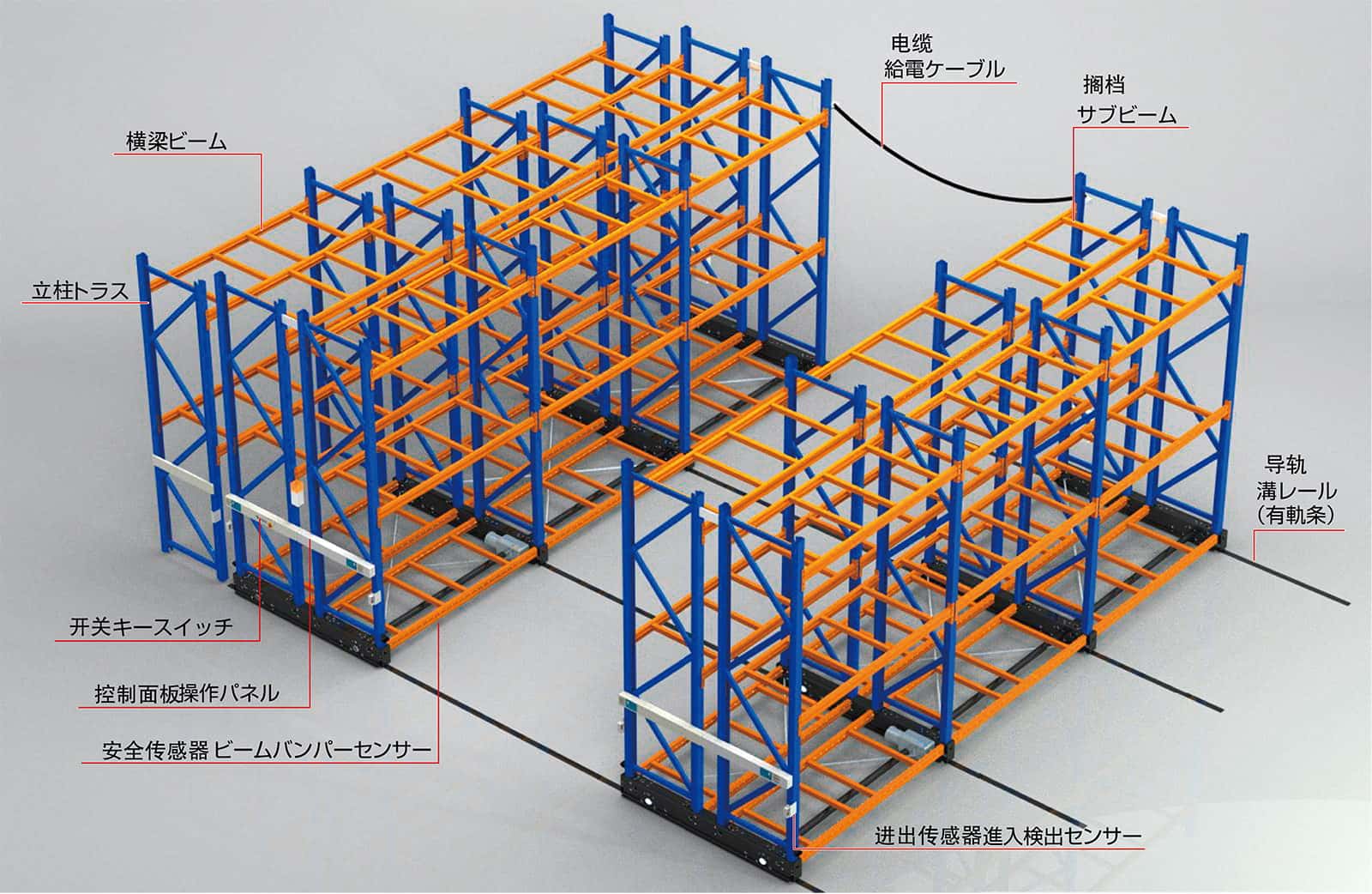

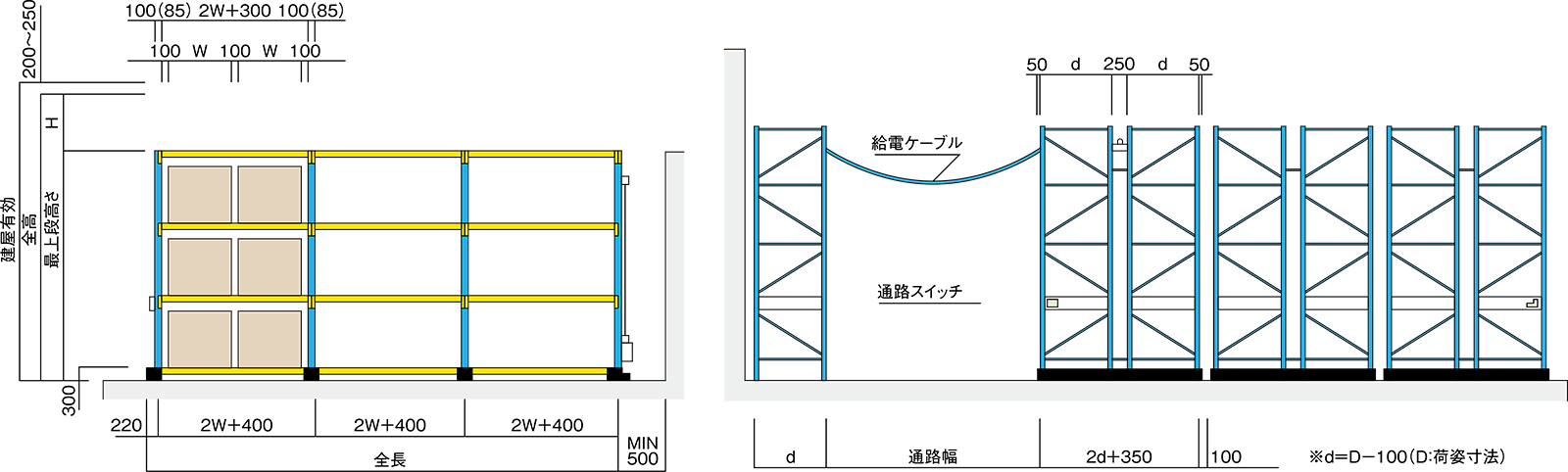

Structure
Basic Specification
Side panel | Speed | Motor | Power | Controlling | Secure equipment | |
Rail | 12T(2-wheel type) 24T(4-wheel type) |
MAX 10M/min | MAX 1.5KW | Single-phase Trinal-phase |
Controlled by network | Automatic locking aisle Enter into checking Light indicator lamp Over loading protection |
16T(2-wheel type) 32T(4-wheel type) |
||||||
Non-Rail | 8T(2-wheel type) 16T(4-wheel type) |
Adopt medium and heavy Aisle Rack of high frequency. Suitable for sequent slanting moveable rac...
Adopt medium and heavy Aisle Rack of high frequency. Suitable for sequent slanting moveable rack with high frequency. |
The rack can be selected by box size and quantities of goods. |
Widely used in the logistics warehouse or production line. |
|
Wheel-conveyor is convenient for fasten or discharge the rack. |
Capability
Easy structure Easy installation,frame and wheel-conveyor can be adjusted to the suitable place.Suitable for storage of large or small quantities of goods. |
![]() |
Standard wheel-conveyor Roller of iron core: Ф28 |
|
lmprovement of working efficiency Easy storage of goods,convenient for working |
Functions FlFO gravity rack is based on inclination (4%) of slide track and dead weight of goo...
Functions FlFO gravity rack is based on inclination (4%) of slide track and dead weight of goods. Gravity straight rollers are used as a support for sliding down. lts throughput is high. Storing and retrieving can be performed simultaneously, so flow speed of goods is increased. Purposes lt is suitable for pallet or large-volume storing and retrieving, w/ less kinds of goods. Every sliding track is used for storing and retrieving as one kind of goods as possible. lt has wide application in such industries as mechanical, chemical, electronic, beverage and food etc. |
Brake roller |
Features
|
Pallet Security separator |
Suitable for storage of pint-sized dies. Specification 1. Loading of each layer: Max 1000kg2. Maxlay...
Suitable for storage of pint-sized dies.
Specification
1. Loading of each layer: Max 1000kg
2. Maxlayers: 4Lagers
3. Dimension: 1300Wx800L
4. Heightofeachlayer: 500mm
5. Skidproofdouble-lock framework
6. Bolt fixation
7. Options: ①lron clapboard ②Four layers
Characteristic
Suitable for storage of heavy goods, resin die, stamping metal die and so on.
The layer of slide pallet can be increased and pulled.
Easy for moveable working.
Aisle Rack Suitable for storing few variety or large quantity of goods.
Aisle Rack Suitable for storing few variety or large quantity of goods.
|
![]() |
![]() |
