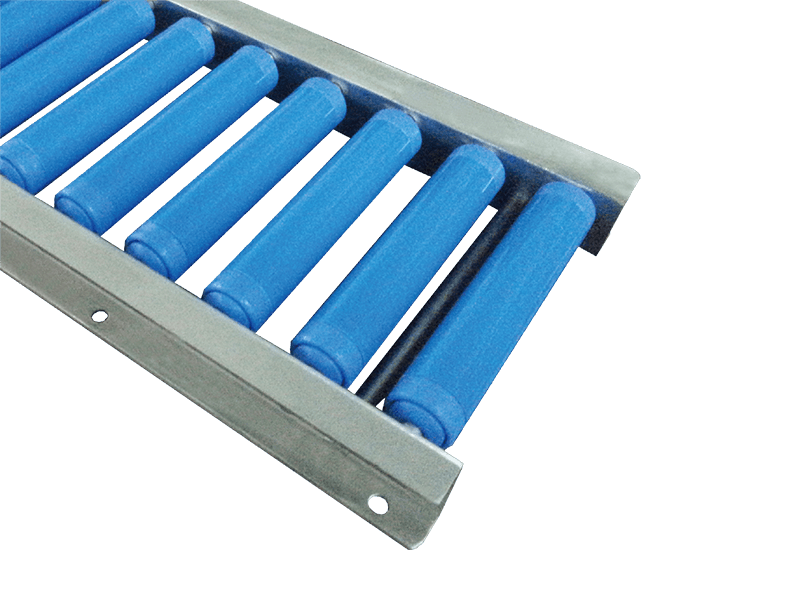

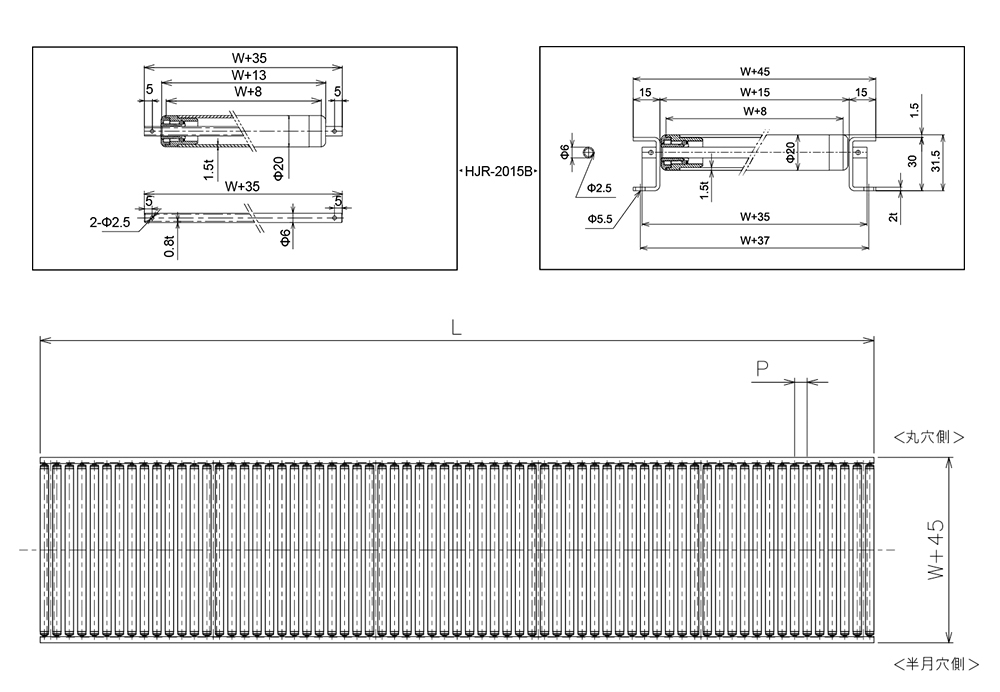

HJR-2015B
Cat:Resin Roller Conveyor
Width of roller W(mm) 100 200 300 400 500 Width of conveyor W+45(mm) 145 245 345 445 5...
Advanced structure, high-quality performance, easy to use, high reliability and durability.

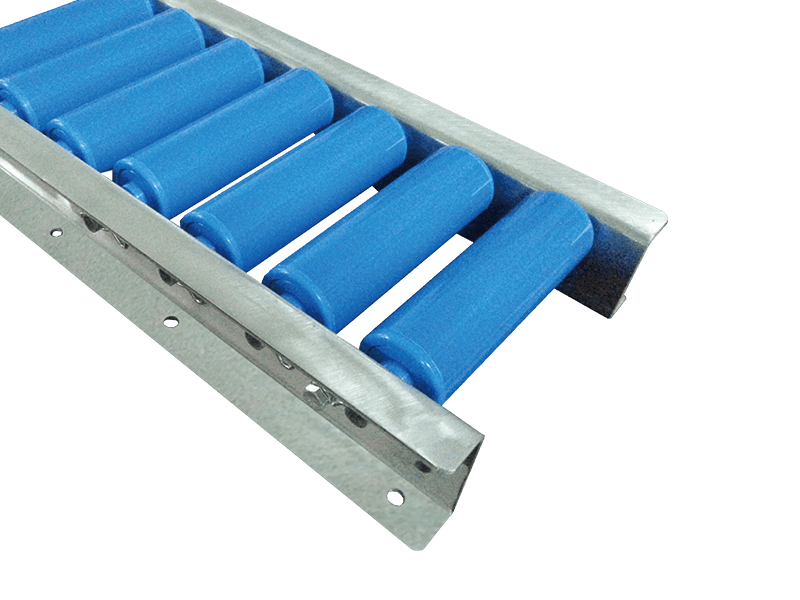

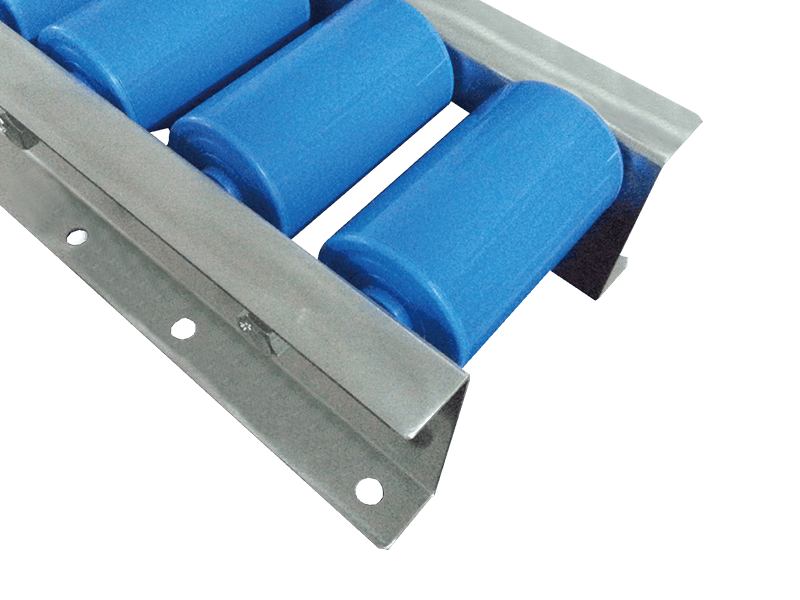

Resin roller conveyors typically feature PVC rollers with an integrated resin bearing and axle. The frame options include powder-coated steel, stainless steel, or aluminum. This conveyor type is suitable for light-load items and is also applicable in food, pharmaceutical, and chemical industries.
Width of roller W(mm) 100 200 300 400 500 Width of conveyor W+45(mm) 145 245 345 445 5...
Width of roller W(mm) | 100 | 200 | 300 | 400 | 500 | |
Width of conveyor W+45(mm) | 145 | 245 | 345 | 445 | 545 | |
Loading of roller(kg) | 11.5 | 10.7 | 10 | 9.2 | 7.0 | |
2000L Weight of conveyor(kg) | 25P | 4.3 | 6.4 | 8.5 | 10.7 | 12.8 |
30P | 3.8 | 5.7 | 7.5 | 9.4 | 11.3 | |
Weight of roller(g) | 33 | 55 | 78 | 100 | 12.2 |

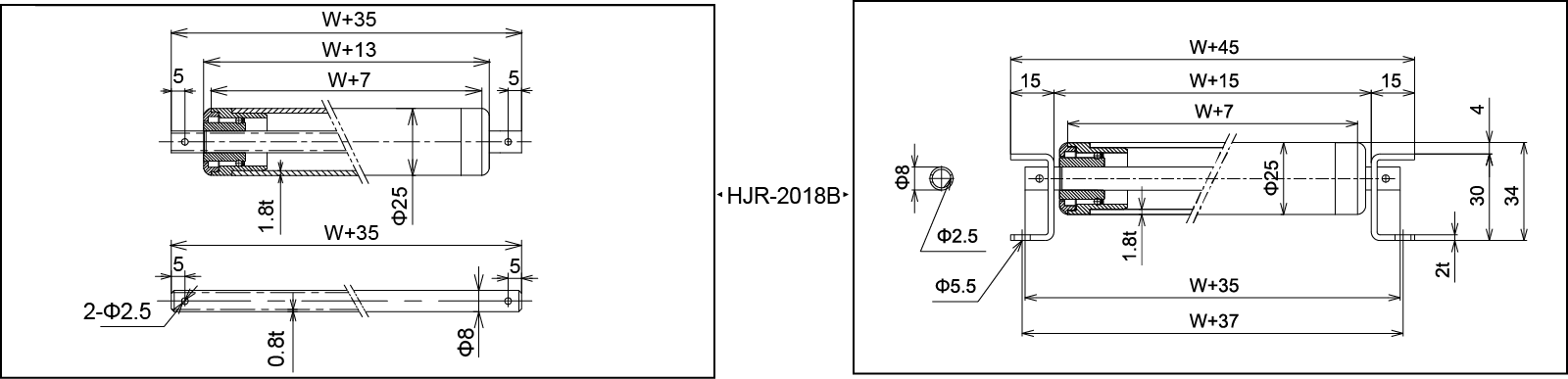

Width of roller W(mm) 100 200 300 400 Width of conveyor W+45(mm) 145 245 345 445 Load...
Width of roller W(mm) | 100 | 200 | 300 | 400 | |
Width of conveyor W+45(mm) | 145 | 245 | 345 | 445 | |
Loading of roller(kg) | 13.5 | 12.6 | 12.5 | 11.8 | |
2000L Weight of conveyor(kg) | 30P | 6.5 | 8.5 | 11 | 19 |
40P | 5 | 7.5 | 10 | 12.3 | |
Weight of roller(g) | 50.5 | 75 | 115 | 145 |

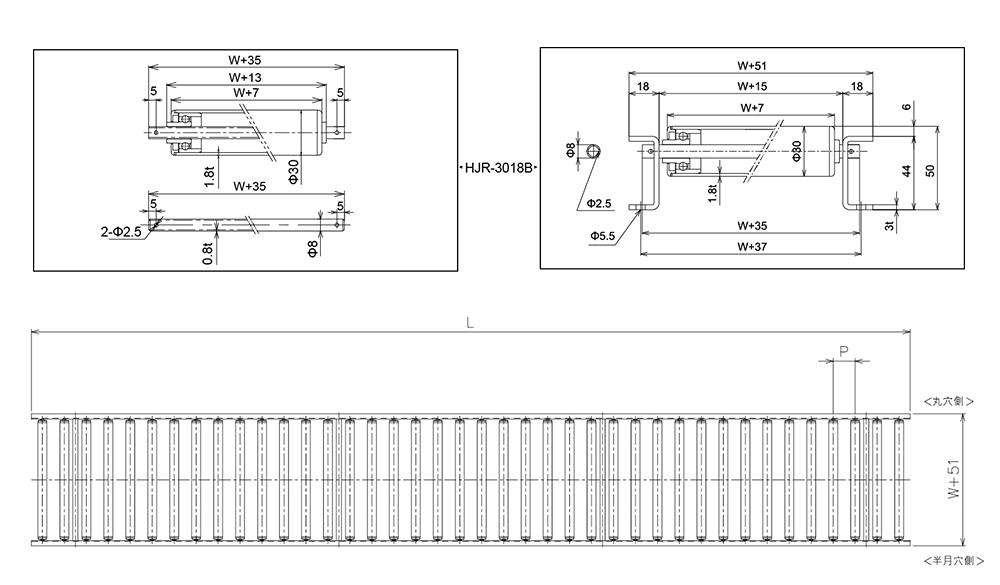

Width of roller W(mm) 100 200 300 400 500 Width of conveyor W+51(mm) 151 251 351 451 5...
Width of roller W(mm) | 100 | 200 | 300 | 400 | 500 | |
Width of conveyor W+51(mm) | 151 | 251 | 351 | 451 | 551 | |
Loading of roller(kg) | 16.5 | 15.7 | 15 | 14.2 | 13.5 | |
1500L Weight of conveyor(kg) | 40P | 7.2 | 10.8 | 14.5 | 18 | 21.7 |
50P | 6.2 | 9.2 | 12.2 | 15.1 | 18.2 | |
Weight of roller(g) | 64 | 106 | 149 | 191 | 235 |

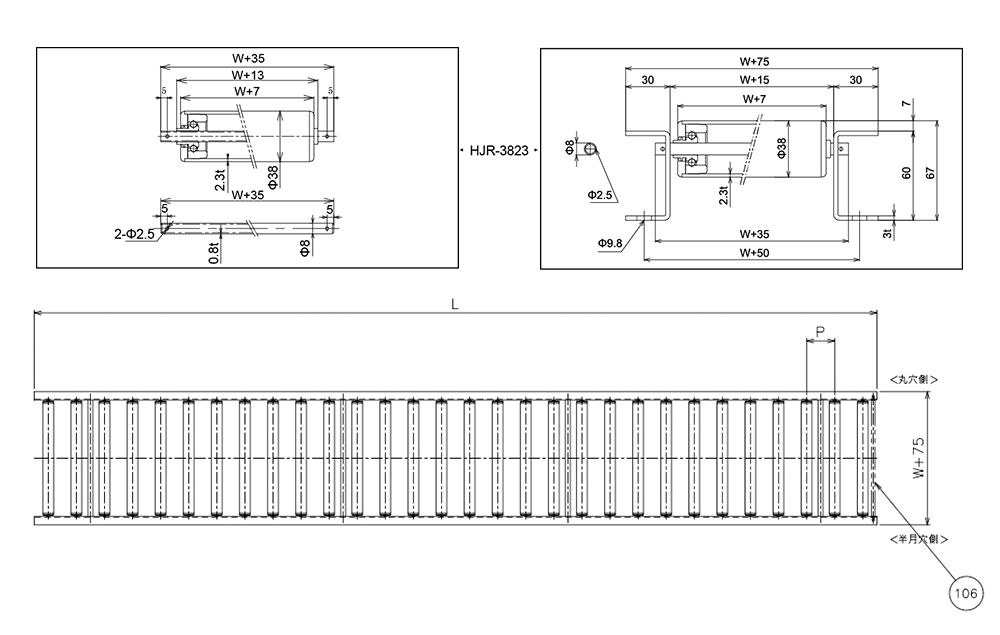

Width of roller W(mm) 100 200 300 400 500 Width of conveyor W+75(mm) 175 275 375 475 5...
Width of roller W(mm) | 100 | 200 | 300 | 400 | 500 | |
Width of conveyor W+75(mm) | 175 | 275 | 375 | 475 | 575 | |
Loading of roller(kg) | 21.5 | 20.8 | 20.1 | 19.5 | 18.6 | |
3000L Weight of conveyor(kg) | 50P | 11.5 | 15.2 | 18.8 | 22.5 | 26.2 |
75P | 9.7 | 12.3 | 14.8 | 17.5 | 20.0 | |
Weight of roller(g) | 91 | 145 | 199 | 253 | 307 |
Width of roller W(mm) 100 200 300 400 500 600 Width of conveyor W+75(mm) 175 275 375 4...
Width of roller W(mm) | 100 | 200 | 300 | 400 | 500 | 600 | |
Width of conveyor W+75(mm) | 175 | 275 | 375 | 475 | 575 | 675 | |
Loading of roller(kg) | 32 | 31 | 30 | 29.5 | 28.5 | 27.7 | |
3000L Weight of conveyor(kg) | 75P | 13.5 | 17.7 | 22.0 | 26.1 | 30.5 | 34.1 |
100P | 12.1 | 15.3 | 18.6 | 21.9 | 25.2 | 27.8 | |
Weight of roller(g) | 148 | 243 | 339 | 435 | 530 | 626 |
Width of roller W(mm) 100 200 300 400 500 600 Width of conveyor W+75(mm) 175 275 375 47...
Width of roller W(mm) | 100 | 200 | 300 | 400 | 500 | 600 | |
Width of conveyor W+75(mm) | 175 | 275 | 375 | 475 | 575 | 675 | |
Loading of roller(kg) | 35 | 34 | 33 | 30 | 29 | 28.5 | |
3000L Weight of conveyor(kg) | 75P | 14.4 | 19.3 | 24.2 | 29.0 | 34.0 | 38.2 |
100P | 12.7 | 16.5 | 20.3 | 23.9 | 27.8 | 30.9 | |
Weight of roller(g) | 172 | 283 | 395 | 506 | 617 | 728 |
