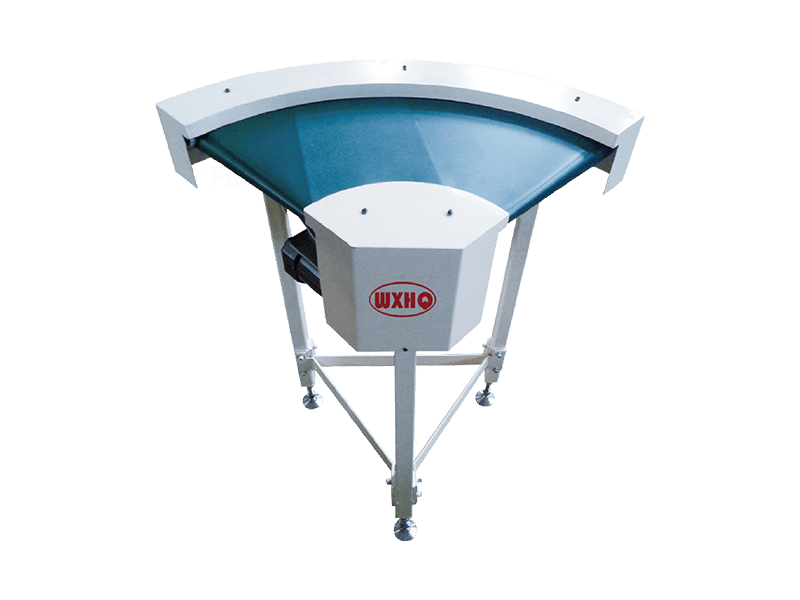

عربىHCII Small Belt Conveyor
Cat:Turning Belt Conveyor
Through the cooperation between the guide wheel and the guide rail, the belt can be pulled and guide...
See Details
Turning Belt Conveyors Suppliers
The turning belt turning machine is a common conveying equipment, mainly used to transfer materials from one belt conveyor line to another 90 degree or 180 degree reversing belt conveyor. It consists of components such as belts, frames, drive rollers, reversing rollers, load-bearing pallets, return rollers, and tensioning devices. The material of the conveyor belt of the belt turning machine includes various materials such as PVC, PU, PVK, etc. In addition to being used for conveying ordinary materials, it can also meet the transportation of materials with special requirements such as oil resistance, acid and alkali corrosion resistance, and anti-static.
-
Through the cooperation between the guide wheel and the guide rail, the belt can be pulled and guided to run.
Features: low cost, light load and low speed.Standard Dimension
HCII-S
Belt Width 200 300 400 500 Conveyor Width 520 620 720 820 Angle 90 Motor power 90W、120W、200W Height 270 to 1100 feet high with Power AC100V (single-phase) · AC200V (single-phase) · AC200V (three-phase) Speed Fixed/Variable speed Belt Polyurethane belt Capability 10kg/set (when horizontally dispersed load) As moving bag shape goods, please reter to 40% of aboving capability data.
HCII-MBelt Width 300 400 500 600 Conveyor Width 680 780 880 980 Angle 90 Motor power 200W、400W Height Please specify, legs are optional Power AC200V (three-phase) Speed Fixed speed Belt Polyurethane belt Capability 40kg/set (when horizontally dispersed load) As moving bag shape goods, please reter to 40% of aboving capability data.
HCII-S Belt SpeedRatio Speed No. Fixed speed
50/60(Hz)(m/min)
Speed No Variable speed
50/60(HzX(m/min)
1/180 T1 16./1.9 H1 0.11~2.1 1/2050 T2 1.8/2.2 H2 0.13~2.5 1/2020 T3 2.3/2.8 H3 0.16~3.1 1/90 T4 3.1/3.7 H4 0.21-4.2 1/75 T5 3.8/4.5 H5 0.25~5.0 1/60 T6 4.7/5.6 H6 0.31~6.2 1/50 T7 5.6/6.7 H7 0.38~7.5 1/36 T8 7.8/9.4 H8 0.52-10.4 1/30 T9 9.3/11.2 H9 0.63~12.5 1/25 T10 11.3/13.5 H10 0.75~15.0 1/18 T11 15.6/18.7 H11 1.04~20.8 1/15 T12 18.8/22.5 H12 1.25~25.0 1/12.5 T13 22.5/27.0 H13 1.50~30.0
HCII-M Belt SpeedRatio Speed No. Fixed speed
50/60(Hz)(m/min)
1/2020 T1 15/18 1/90 T2 20/24 Speed calculation of fixed speed: rotate speed 1500/1800rpm(50/60Hz), Driving roller Ф82.3, Driving efficiency: 95%

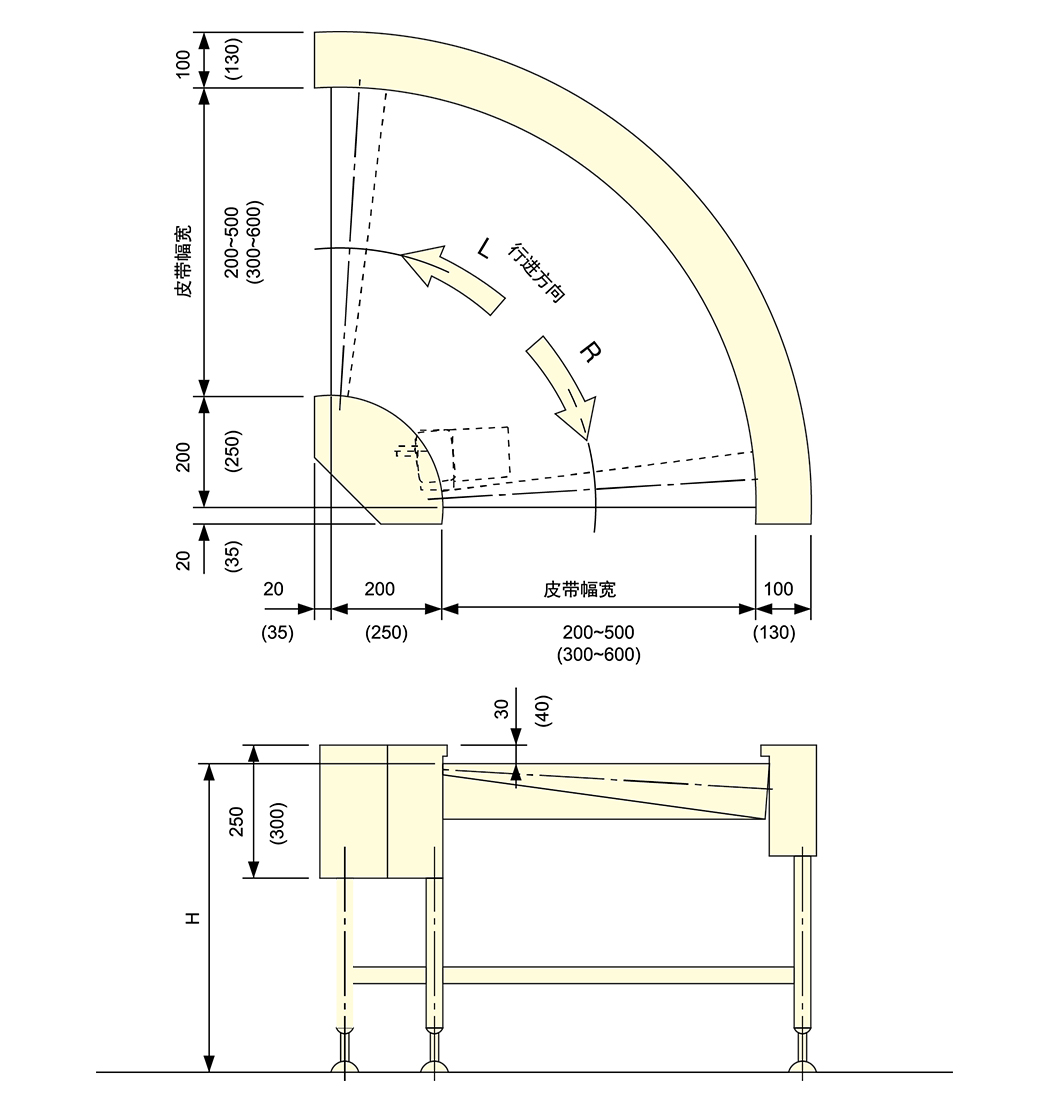

Speed calculation of variable speed: rotate speed 2000rpm(50;60Hz), Driving roller Ф82.3, Driving efficiency: 95%Drawing
-

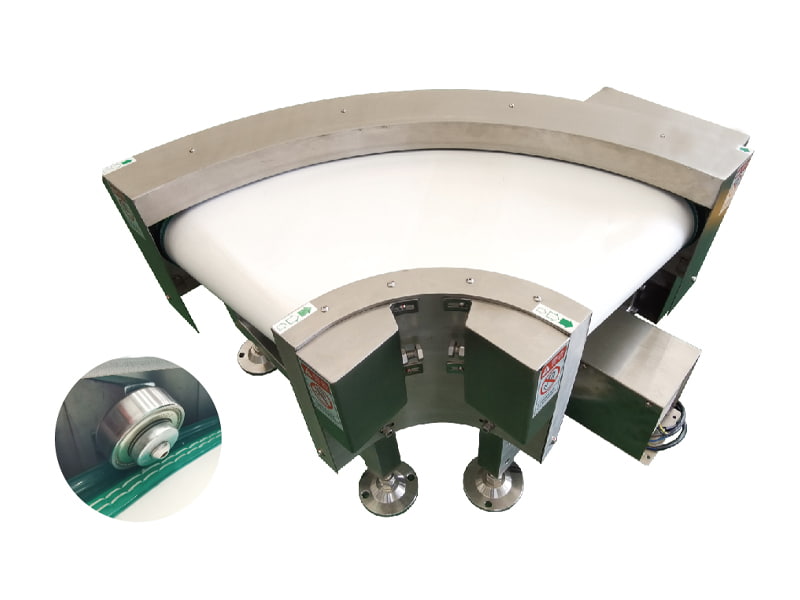

HCI-H Small Belt Conveyor
Cat:Turning Belt Conveyor
Through the cooperation between the guide wheel and the guide bar, the belt is pulled and guided to ...
See DetailsThrough the cooperation between the guide wheel and the guide bar, the belt is pulled and guided to run.
Features: low noise, high speed and even belt force.Standard Dimension
Belt Width 200 300 400 500 600 700 800 Conveyor Width 520 620 720 820 920 1020 1120 Angle 90 Motor power 200W、370W、750W Height 380 to 1100 feet high with Power A(AC110V single-phase)
B(AC200V single-phase)
C(AC200V/380V three-phase)
Speed Fixed speed Belt Polyurethane belt Capability 100kg/set (when horizontally dispersed load) As moving bag shape goods, please reter to 40% of aboving capability data.
Belt SpeedRatio Speed No. Fixed speed 50/60(Hz)(m/min) Speed No. Variable speed 50Hz(m/min) 1/180 T1 1.6/1.9 H1 0.09-1.7 1/2050 T2 1.9/2.3 H2 0.1-2.1 1/2020 T3 2.4/2.9 H3 0.13-2.6 1/90 T4 3.2/3.8 H4 0.17-3.5 1/75 T5 3.8/4.6 H5 0.2-4.2 1/60 T6 4.9/5.8 H6 0.25-5.1 1/50 T7 5.8/6.9 H7 0.3-6.2 1/36 T8 8/9.5 H8 0.4~8.6 1/30 T9 9.5/11.5 H9 0.5-10.4 1/25 T10 11.5/13.7 H10 0.6-12.4 1/18 T11 15.9/19 H11 0.9-17.3 1/15 T12 19.3/22.3 H12 1~20.6 1/12.5 T13 23/27.4 H13 1.2-24.8 1/7.5 T14 38.3/45.8 H14 2.1-41.4 1/5 T15 57.5/68.6 H15 3.1-62 1/3.6 T16 79.9/95.4 H16 4.3-86.1 1/3 T17 95.8/114.4 H17 5.2-103.4 Speed calculation of fixed speed: rotate speed 1500/1800rpm(50/60Hz), Driving roller Ф82.3, Driving efficiency: 95%

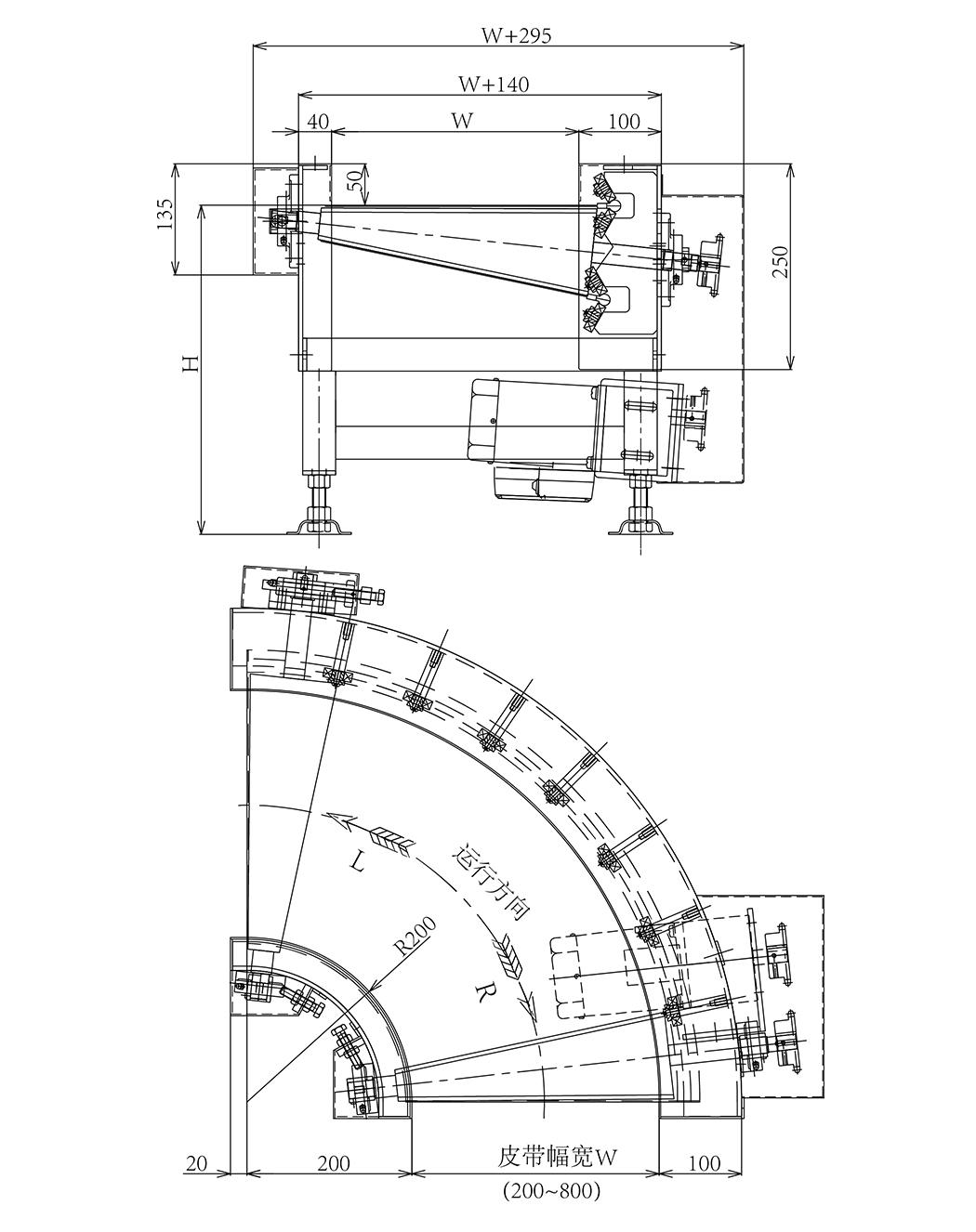

Speed calculation of variable speed: rotate speed 2000rpm(50;60Hz), Driving roller Ф82.3, Driving efficiency: 95%Drawing
-

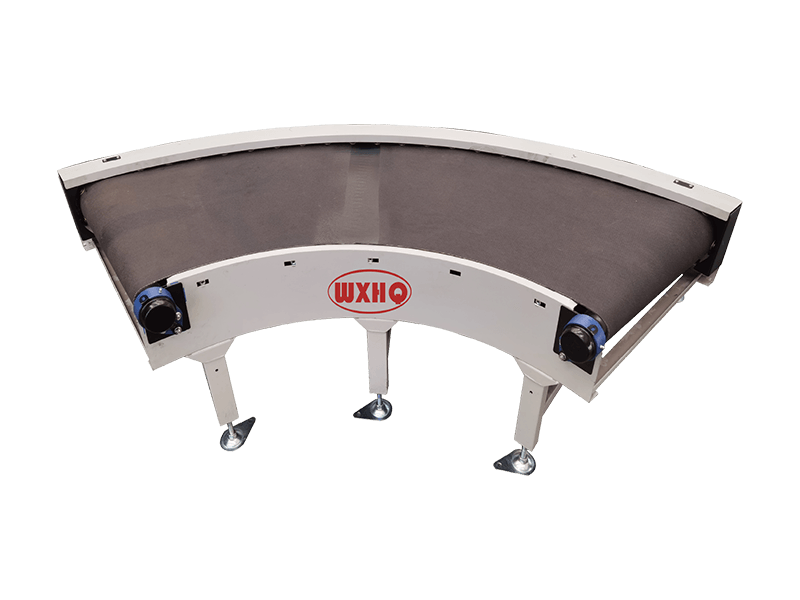

HCI-L Small Belt Conveyor
Cat:Turning Belt Conveyor
Through the cooperation between the chain and the guide wheel, the belt can be pulled and guided.Fea...
See DetailsThrough the cooperation between the chain and the guide wheel, the belt can be pulled and guided.
Features: heavy load and fast speed.Standard Dimension
Belt Width 400 600 800 1000 1200 1400 1600 1800 Conveyor Width 525 725 925 1125 1325 1525 1725 1925 Angle 90 Motor power 370W、750W、1.1KW、1.5KW、2.2KW Height 550 to 2000 feet high with Power A(AC110V single-phase)
B(AC200V single-phase)
C(AC200V/380V three-phase)
Speed Fixed speed Belt Poly(N-vinyl carbazole) Capability 200kg/set (when horizontally dispersed load) As moving bag shape goods, please reter to 40% of aboving capability data.
Belt SpeedRatio Speed No. Fixed speed 50/60(Hz)(m/min Speed No. Variable speed 50Hz(m/min) 1/2040 T1 2.6/3.0 H1 1.0-2.6 1/2020 T2 2.8/3.5 H2 1.1-2.8 1/2000 T3 3.5/4.2 H3 1.4~3.5 1/90 T4 4.0/6.7 H4 1.6~4.0 1/80 T5 4.4/5.4 H5 1.8-4.4 1/70 T6 4.9/5.8 H6 2.0-4.9 1/60 T7 5.8/7.0 H7 2.3-5.8 1/50 T8 7.0/8.4 H8 2.8~7.0 1/45 T9 7.7/9.3 H9 3.1~7.7 1/40 T10 8.6/10.5 H10 3.4~8.6 1/30 T11 11.6/14.0 H11 4.7~11.6 1/25 T12 14.0/16.8 H12 5.6~14.0 1/20 T13 17.5/21.0 H13 7.0-17.5 1/15 T14 23.3/28.0 H14 9.3~23.3 1/10 T15 35.0/41.9 H15 14.0-35.0 1/5 T16 70.0/83.8 H16 28.0-70.1 Speed calculation of fixed speed: rotate speed 1500/1800rpm(50/60Hz), Driving roller Ф82.3, Driving efficiency: 95%

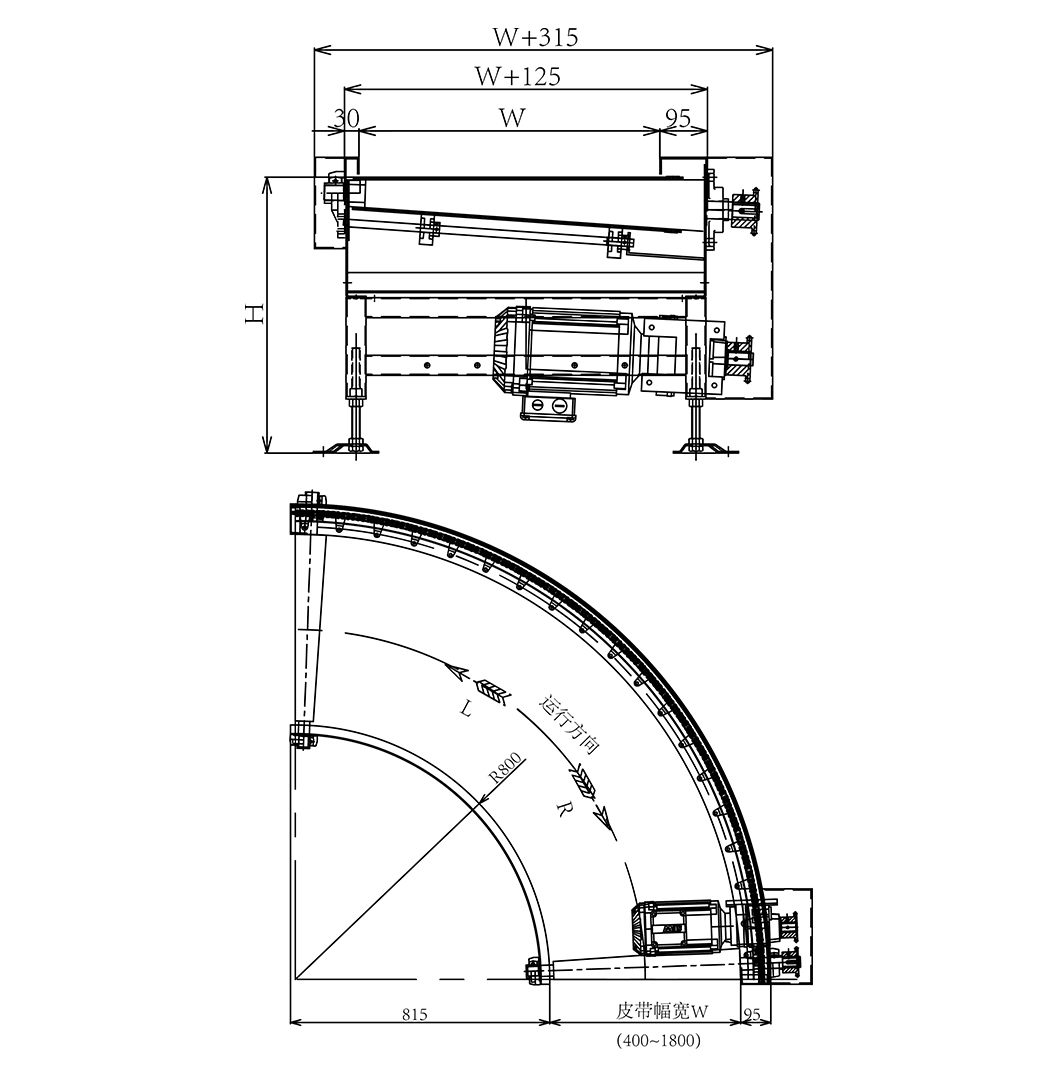

Speed calculation of variable speed: rotate speed 2000rpm(50;60Hz), Driving roller Ф82.3, Driving efficiency: 95%Drawing
