HRS-1210
Cat:Stainless Steel Roller Conveyor
Width of roller W(mm) 100 200 300 400 Width of conveyor W+45(mm) 145 245 375 445 Load...
wxhq56@foxmail.com
wxhq56@foxmail.com
Advanced structure, high-quality performance, easy to use, high reliability and durability.

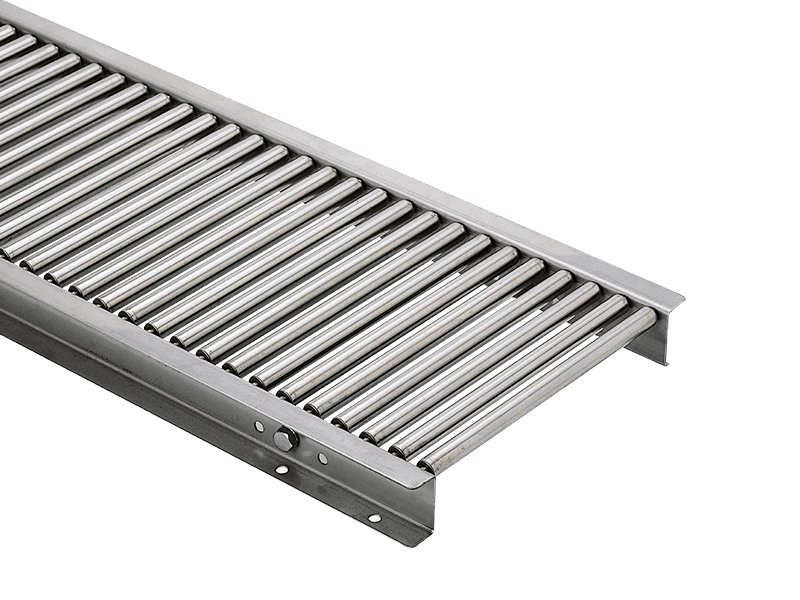

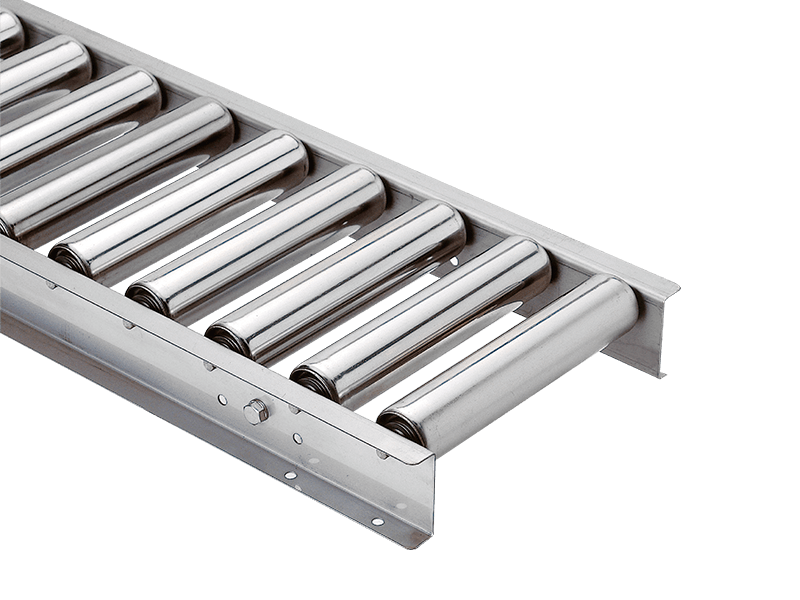

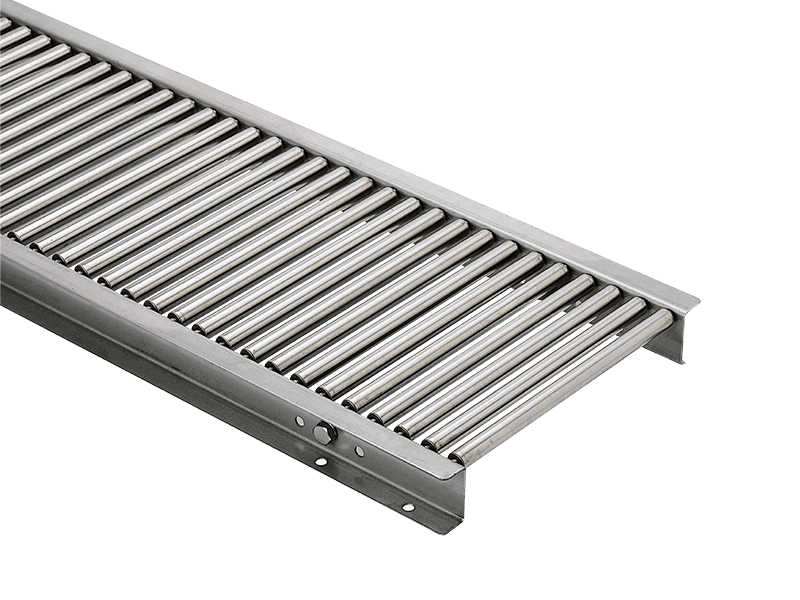

The stainless steel roller conveyor is commonly used in the food, pharmaceutical, and chemical industries. A narrow definition includes conveyors entirely made from stainless steel, including rollers, bearings, axles, screws, nuts, frames, and supports. Broadly, stainless steel roller conveyors may have some non-stainless steel components as per customer requirements, while still retaining of the stainless steel structure.

Width of roller W(mm) 100 200 300 400 Width of conveyor W+45(mm) 145 245 375 445 Load...
| Width of roller W(mm) | 100 | 200 | 300 | 400 | |
| Width of conveyor W+45(mm) | 145 | 245 | 375 | 445 | |
| Loading of roller(kg) | 22 | 18 | 12 | 10 | |
| 1000L Weight of conveyor(kg) | 15P | 5.5 | 8.9 | 12.2 | 15.6 |
| 20P | 4.5 | 7 | 9.6 | 12.2 | |
| Weight of roller(g) | 60 | 107 | 154 | 201 | |



Width of roller W(mm) 100 200 300 400 500 Width of conveyor W+75(mm) 175 275 375 475 5...
| Width of roller W(mm) | 100 | 200 | 300 | 400 | 500 | |
| Width of conveyor W+75(mm) | 175 | 275 | 375 | 475 | 575 | |
| Loading of roller(kg) | 30 | 21 | 14 | 10 | 7 | |
| 3000L Weight of conveyor(kg) | 22P | 21.3 | 28.9 | 36.5 | 44.1 | 51.7 |
| 44P | 16.1 | 20.1 | 24.0 | 27.9 | 31.9 | |
| Weight of roller(g) | 85 | 130 | 183 | 237 | 290 | |


Width of roller W(mm) 100 200 300 400 500 600 Width of conveyor W+45(mm) 175 275 375 4...
| Width of roller W(mm) | 100 | 200 | 300 | 400 | 500 | 600 | |
| Width of conveyor W+45(mm) | 175 | 275 | 375 | 475 | 575 | 675 | |
| Loading of roller(kg) | 35 | 35 | 35 | 27 | 22 | 18 | |
| 2000L Weight of conveyor(kg) | 30P | 15 | 21 | 27 | 32 | 39 | 45 |
| 50P | 12 | 15 | 19 | 23 | 27 | 30 | |
| Weight of roller(g) | 130 | 210 | 300 | 380 | 480 | 560 | |


Width of roller W(mm) 100 200 300 400 500 600 Width of conveyor W+75(mm) 175 275 375 4...
| Width of roller W(mm) | 100 | 200 | 300 | 400 | 500 | 600 | |
| Width of conveyor W+75(mm) | 175 | 275 | 375 | 475 | 575 | 675 | |
| Loading of roller(kg) | 75 | 70 | 46 | 35 | 28 | 23 | |
| 3000L Weight of conveyor(kg) | 50P | 24.3 | 32.4 | 40.5 | 48.6 | 56.7 | 64.2 |
| 75P | 20 | 25.5 | 31.1 | 36.6 | 42.2 | 47.1 | |
| Weight of roller(g) | 217 | 345 | 473 | 601 | 729 | 857 | |



Width of roller W(mm) 100 200 300 400 500 600 700 800 Width of conveyor W+75(mm) 175 2...
| Width of roller W(mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | |
| Width of conveyor W+75(mm) | 175 | 275 | 375 | 475 | 575 | 675 | 775 | 875 | |
| Loading of roller(kg) | 135 | 120 | 110 | 90 | 70 | 60 | 50 | 45 | |
| 3000L Weight of conveyor(kg) | 75P | 29.8 | 38.2 | 42.7 | 51.2 | 59.7 | 67.5 | 75.9 | 80.4 |
| 100P | 25.9 | 32.3 | 35.8 | 42.3 | 48.7 | 54.6 | 61.0 | 64.4 | |
| Weight of roller(g) | 380 | 561 | 742 | 923 | 1104 | 1285 | 1466 | 1647 | |



Width of roller W(mm) 100 200 300 400 500 600 700 800 Width of conveyor W+75(mm) 175 2...
| Width of roller W(mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | |
| Width of conveyor W+75(mm) | 175 | 275 | 375 | 475 | 575 | 675 | 775 | 875 | |
| Loading of roller(kg) | 128 | 112 | 96 | 80 | 63 | 52 | 47 | 43 | |
| 3000L Weight of conveyor(kg) | 75P | 32.6 | 45.8 | 59 | 72.3 | 85.5 | 98.1 | 111.3 | 124.5 |
| 100P | 28 | 38 | 48 | 58.1 | 68.1 | 77.5 | 87.5 | 97.5 | |
| Weight of roller(g) | 467 | 776 | 1084 | 1392 | 1700 | 2008 | 2316 | 2624 | |



Width of roller W(mm) 100 200 300 400 500 600 700 800 Width of conveyor W+75(mm) 175 2...
| Width of roller W(mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | |
| Width of conveyor W+75(mm) | 175 | 275 | 375 | 475 | 575 | 675 | 675 | 675 | |
| Loading of roller(kg) | 135 | 120 | 110 | 90 | 70 | 60 | 50 | 45 | |
| 3000L Weight of conveyor(kg) | 75P | 37.4 | 53.5 | 69.5 | 85.7 | 101.7 | 117.1 | 133.2 | 149.2 |
| 100P | 31.6 | 43.8 | 55.9 | 68.1 | 80.3 | 91.8 | 103.9 | 116.0 | |
| Weight of roller(g) | 544 | 923 | 1302 | 1681 | 2060 | 2439 | 2818 | 3197 | |

Aluminum roller conveyors are widely used in material handling systems for industries such as manufa...
READ MOREIndustry Highlight! A New Benchmark for Explosion-Proof Safety Recently, Wuxi Huiqian Logistics Mach...
READ MOREIn modern industrial environments, Stainless Steel Roller Conveyors play a vital role in ensuring sm...
READ MOREIn modern manufacturing, packaging, and distribution environments, the efficiency of material handli...
READ MOREIn modern manufacturing, warehousing, and logistics, the need to transport products safely, efficien...
READ MOREStainless steel roller conveyors are a cornerstone of efficient material handling in industries such as food processing, pharmaceuticals, and chemicals. Safety is a critical factor in conveyor design, as these systems often transport heavy or delicate goods in busy industrial environments. Wuxi Huiqian Logistics Machinery Manufacturing Co., Ltd., a leading Stainless Steel Roller Conveyor Supplier in China, has incorporated multiple safety features into their conveyors to ensure both operational efficiency and protection for workers.
Founded on the foundation of advanced Japanese technology, Wuxi Huiqian Logistics Machinery Manufacturing Co., Ltd. specializes in producing rollers, roller conveyors, belt conveyors, storage cages, logistics trolleys, mini conveyors, frames, and shelves. Headquartered in the Wuxi National Hi-Tech Technology Development District, the company benefits from excellent transportation links and comprehensive supporting facilities.
With a scientific quality management system (QMS), a skilled workforce, and state-of-the-art processing equipment, Wuxi Huiqian is recognized for integrity, strength, and product quality. As a Custom Stainless Steel Roller Conveyor Company, it provides professional guidance, high-quality products, and comprehensive after-sales technical support, ensuring clients can operate safely and efficiently.
Before exploring specific safety features, it’s important to understand why safety matters in conveyor systems:
Wuxi Huiqian’s conveyors are designed to meet both industry safety standards and the practical needs of operators. Some of the standout safety features include:
All rollers, axles, and bearings are designed with protective covers or side guards to prevent accidental contact. This reduces the risk of pinching or entanglement injuries during operation.
The rollers are engineered to maintain consistent grip on transported items, preventing products from slipping off the conveyor and creating hazards in the workspace.
Strategically placed emergency stop buttons and pull cords allow operators to halt conveyor movement immediately in case of an accident, jam, or other dangerous situation.
Wuxi Huiqian designs its stainless steel roller conveyors at optimal heights and widths, minimizing operator strain and reducing the likelihood of repetitive-stress injuries.
Using fully or predominantly stainless steel components—including rollers, frames, screws, and supports—ensures resistance to corrosion and contamination. This durability prevents structural failures that could compromise safety.
As a Custom Stainless Steel Roller Conveyor Company, Wuxi Huiqian can incorporate additional safety features such as side rails, conveyor speed limiters, and protective barriers based on specific operational requirements.
All conveyors are manufactured under a strict quality management system (QMS), ensuring compliance with local and international safety regulations, providing peace of mind for industrial operators.
By combining these safety measures with robust engineering, Wuxi Huiqian’s stainless steel roller conveyors:
Safety is not an afterthought in modern conveyor systems. Wuxi Huiqian Logistics Machinery Manufacturing Co., Ltd. integrates multiple layers of protection into its stainless steel roller conveyors, from guarded moving parts to customizable safety options. By choosing conveyors from a reputable supplier with a proven quality management system, businesses in the food, pharmaceutical, chemical, and logistics industries can enhance operational efficiency while protecting both their workforce and their products.
For anyone seeking a reliable and safe stainless steel roller conveyor solution, Wuxi Huiqian combines technological expertise, high-quality materials, and professional after-sales support to deliver conveyors that meet rigorous safety and operational standards.
