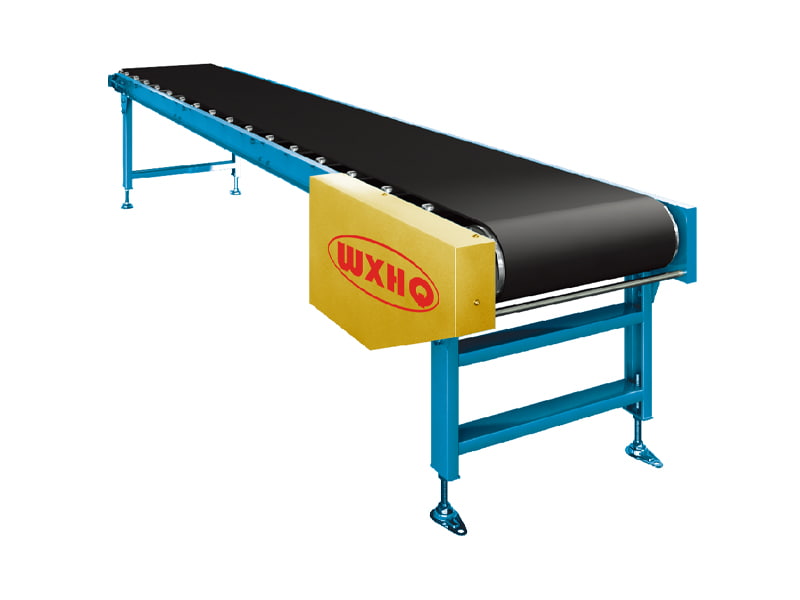

LBC MBC

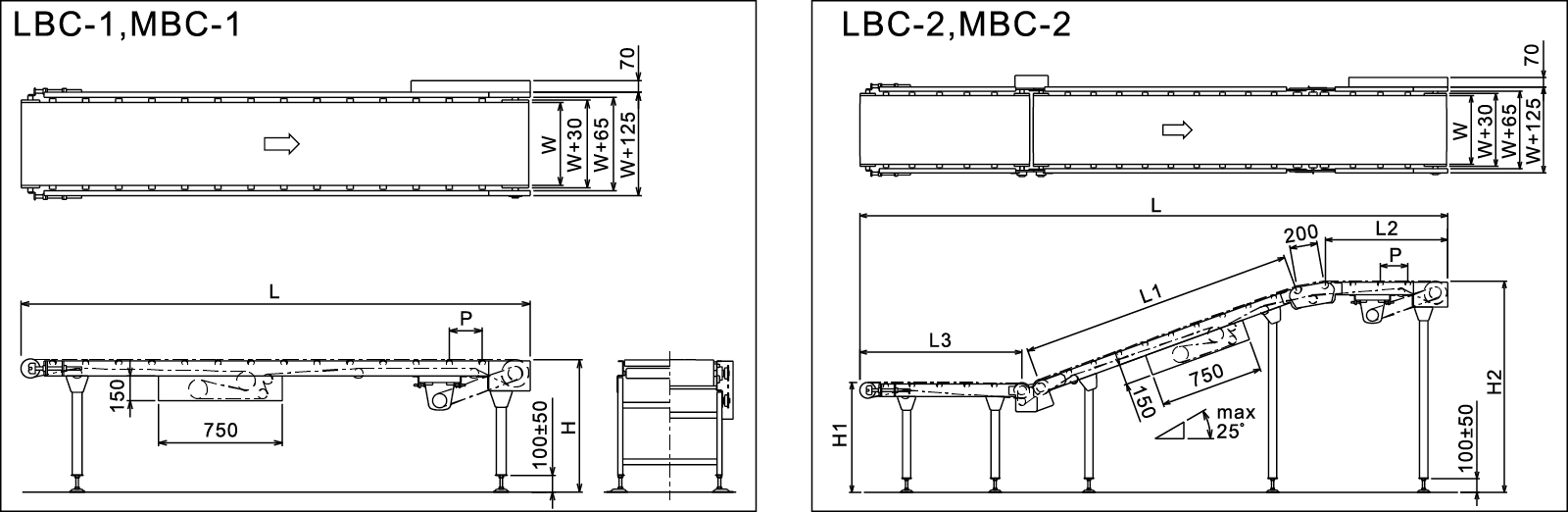

Cat:Standard type belt conveyor
Model LBC-1 LBC-2 MBC-1 MBC-2 Belt Black rubber belt Black rubber belt Black rubber belt Bl...
wxhq56@foxmail.com
wxhq56@foxmail.com
Advanced structure, high-quality performance, easy to use, high reliability and durability.
The standard belt conveyor is a lightweight belt conveyor that uses the continuous or intermittent motion of the conveyor belt to transport items weighing less than 100KG or in powder or granular form. Belt conveyors have the characteristics of fast running speed, smooth operation, and low noise. Belt conveyors can use conveyor belts made of multiple materials to meet different conveying requirements, such as PVC, PU, PVK, canvas belts, silicone belts, PTFE belts, and modular chain mesh belts used in special places.

Model LBC-1 LBC-2 MBC-1 MBC-2 Belt Black rubber belt Black rubber belt Black rubber belt Bl...
| Model | LBC-1 | LBC-2 | MBC-1 | MBC-2 | |
| Belt | Black rubber belt | Black rubber belt | Black rubber belt | Black rubber belt | |
| Belt width | BW | 300~600 | 300~500 | 300~700 | 300~700 |
| Camer roller | Diameter * Thickness * Shaft | 38X1.2X12 | 38X1.2X12 | 57.2X2.1X12 | 57.2X2.1X12 |
| Return roller | Diameter * Thickness * Shaft | 57X2.1X12 | 57X2.1X12 | 57.2X2.1X12 | 57.2X2.1X12 |
| Frame size | 1*K*t | 90X30X3.2 | 90X30X3.2 | 120X30X3.2 | 120X30X3.2 |
| Length | L(mm) | 1200~20000 | 4000~15000 | 1200~25000 | 4000~20000 |
| Conveyor width | W(mm) | BW+125 | BW+125 | BW+125 | BW+125 |
| Height | H(mm) | min500 | min500 | min500 | min500 |
| Capability | (kg/m) | max50 | max50 | max100 | max100 |
| Speed | V(m/min) | max36 | max36 | max36 | max36 |
| Motor power | (KW) | 0.2 · 0.4 · 0.75 · 1.5 | 0.2 · 0.4 · 0.75 · 1.5 | 0.2 · 0.4 · 0.75 · 1.5 | 0.2 · 0.4 · 0.75 · 1.5 |


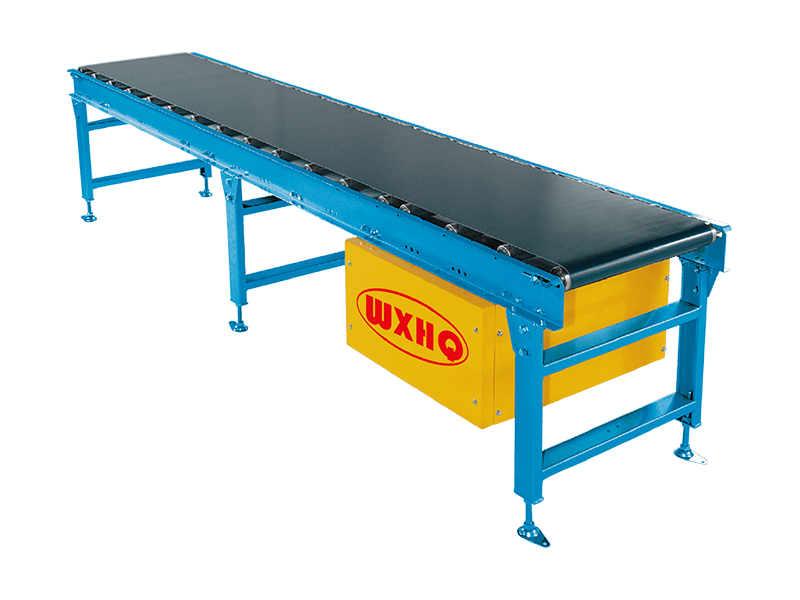

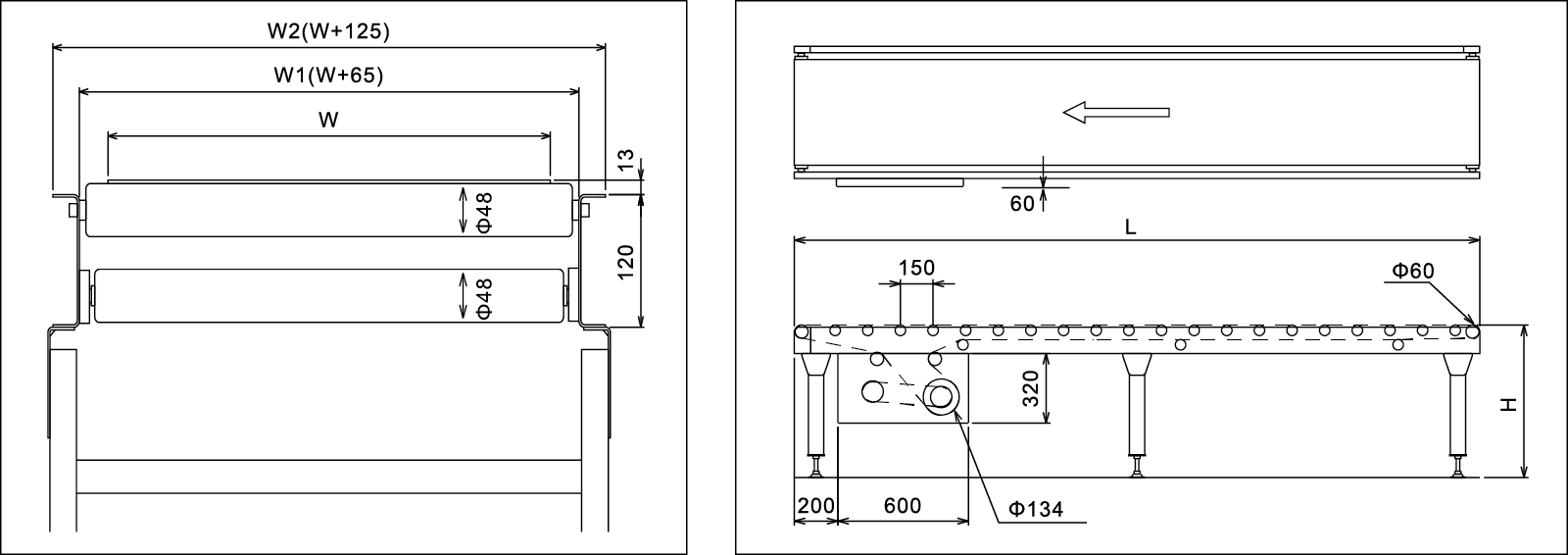

Model JBS Belt Resin belt Belt width BW 400~1000 Camer roller Diameter * Thickness * Sh...
| Model | JBS | |
| Belt | Resin belt | |
| Belt width | BW | 400~1000 |
| Camer roller | Diameter * Thickness * Shaft | 48.6X1.6X12 |
| Return roller | Diameter * Thickness * Shaft | 48.6X1.6X12 |
| Frame size | 1*K*t | 120X30X2.3 |
| Length | L(mm) | 1200~23000 |
| Conveyor width | W(mm) | W+125 |
| Height | H(mm) | min500 |
| Capability | (kg/m) | max70 |
| Speed | V(m/min) | max36 |
| Motor power | (KW) | 0.2 · 0.4 · 0.75 · 1.5 |


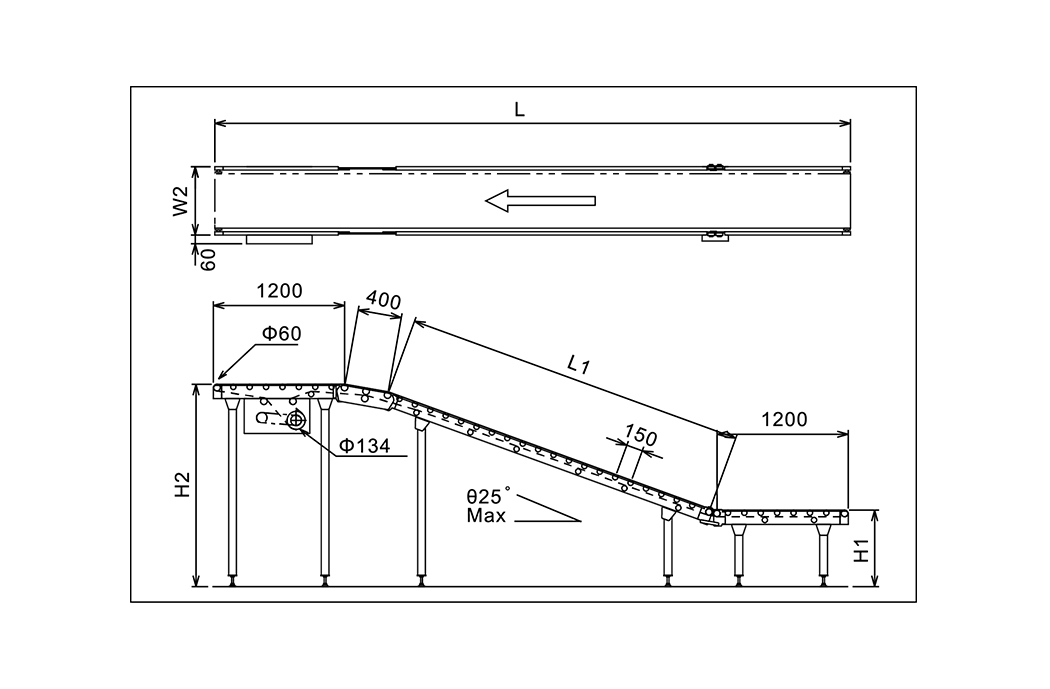

Model JBK Belt Resin belt Belt width BW 400~1000 Camer roller Diameter * Thickness * Sh...
| Model | JBK | |
| Belt | Resin belt | |
| Belt width | BW | 400~1000 |
| Camer roller | Diameter * Thickness * Shaft | 57.2X2.1X12 |
| Return roller | Diameter * Thickness * Shaft | 57.2X2.1X12 |
| Frame size | 1*K*t | 120X30X2.3 |
| Length | L(mm) | 3400~23000 |
| Conveyor width | W(mm) | W+125 |
| Height | H(mm) | min500 |
| Capability | (kg/m) | max70 |
| Speed | V(m/min) | max36 |
| Motor power | (KW) | 0.2 · 0.4 · 0.75 · 1.5 |

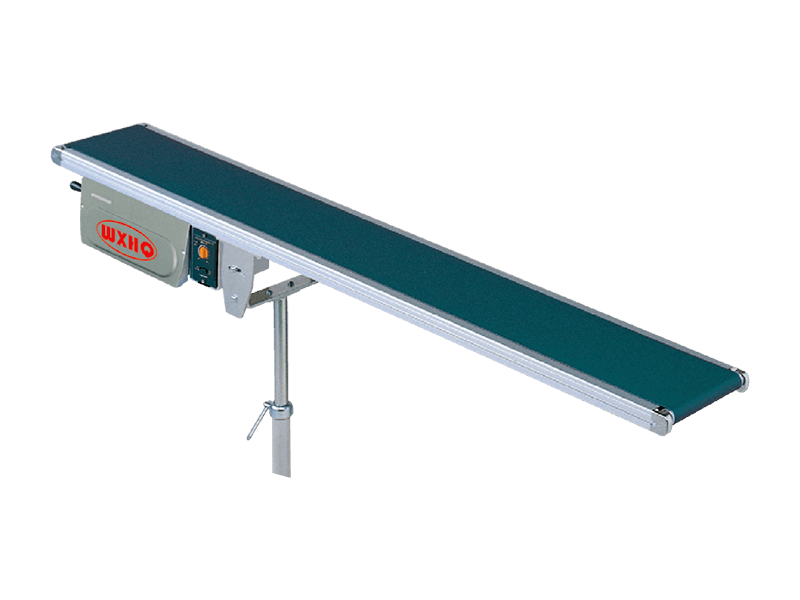

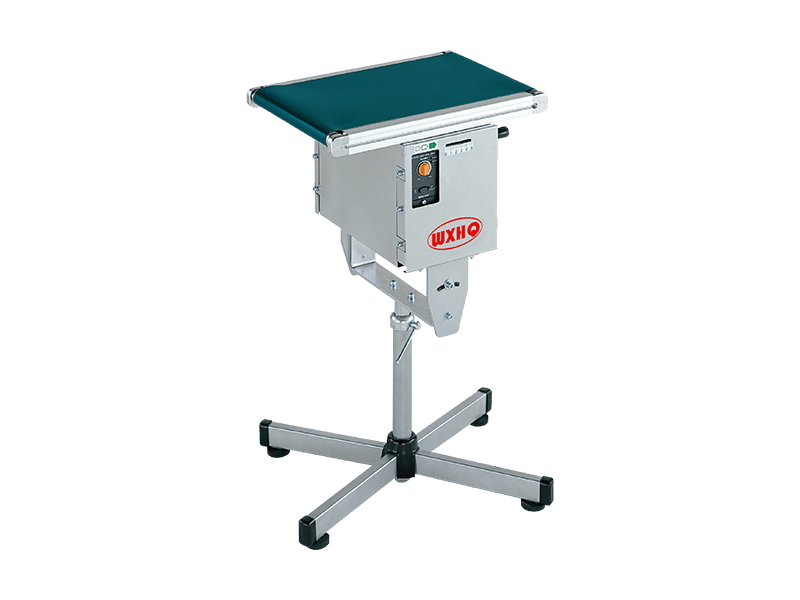

SI Standard Type ● This is standard type of 34mm belt conveyor, driving center is moved by Timing be...
SI Standard Type
● This is standard type of 34mm belt conveyor, driving center is moved by Timing belt.
● The belt has good capability of silence and wearability.
GI Guide Type
● This type of belt conveyor goes with oriented gibbous belt, which can assure movement more smoothly and steadily; convenient to use with other equipment, suitable for high requiring situations of time and stability.
● Moreover, clockwise and anti-clockwise running can be choosed by different conditions, and different colors by different purposes.

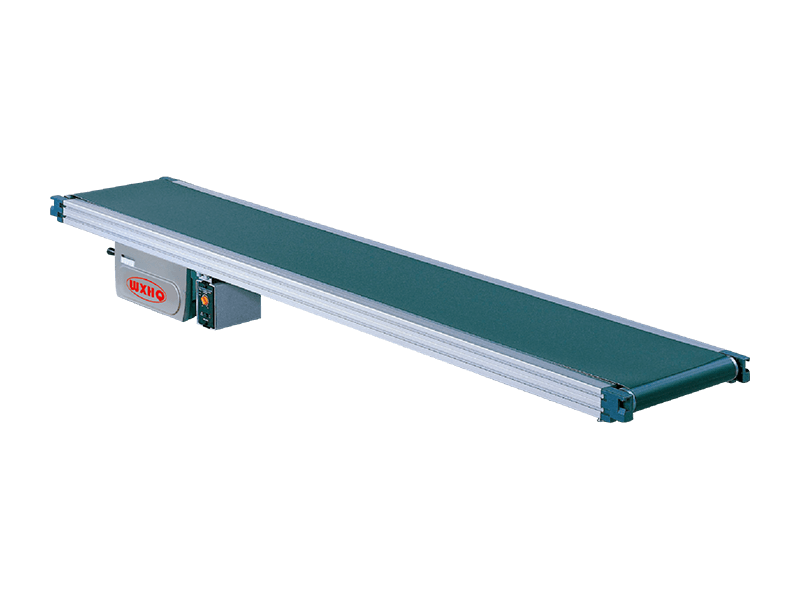

Standard Dimension
| Belt width | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 500 | 600 | |||||||||
| Conveyor Width | 140 | 190 | 240 | 290 | 340 | 390 | 440 | 540 | 640 | |||||||||
| Conveyor Length | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 | 5000 | 6000 | 7000 | 8000 | ||||||
| Height | 169 | Power | AC100V (single-phase) · AC200V (single-phase) · AC200V (three-phase) |
| Speed | Fixed/Variable speed | Belt | Polyurethane belt |
| Capability | Reference ability table | Option | Support, Guide, Others |
| Motor power | 25W、40W、60W、90W |
Actual dimension of belt is narrowed 5mm than above standard belt; If the length of machine exceeds 4m, with specifications of belt 500, 600 for width it will be narrowed 10mm.
lf the length exceeds 6m, there will be a support in the middle.
Belt Speed
| Ratio | Speed No. | Fixed speed 50/60(Hz)(m/min) |
Speed No. | Variable speed 50 ·60(Hz)(m/min) |
| 1/180 | T1 | 1.9/2.3 | H1 | 0.13~2.5 |
| 1/2050 | T2 | 2.3/2.7 | H2 | 0.15~3.0 |
| 1/2020 | T3 | 2.8/3.4 | H3 | 0.19~3.8 |
| 1/2000 | T4 | 3.4/4.1 | H4 | 0.23~4.5 |
| 1/90 | T5 | 3.8/4.5 | H5 | 0.26~5.1 |
| 1/75 | T6 | 4.6/5.5 | H6 | 0.31~6.1 |
| 1/60 | T7 | 5.7/6.8 | H7 | 0.38~7.6 |
| 1/50 | T8 | 6.8/8.2 | H8 | 0.46~9.1 |
| 1/36 | T9 | 9.5/11.4 | H9 | 0.63~12.6 |
| 1/30 | T10 | 11.4/13.7 | H10 | 0.76~15.2 |
| 1/25 | T11 | 13.7/16.4 | H11 | 0.91~18.2 |
| 1/18 | T12 | 19.0/22.8 | H12 | 1.27~25.3 |
| 1/15 | T13 | 22.8/27.3 | H13 | 1.52~30.4 |
| 1/12.5 | T14 | 27.3/32.8 | H14 | 1.82~36.4 |
| 1/9 | T15 | 37.9/45.5 | H15 | 2.53~50.6 |
Speed calculation of fixed speed : rotate speed 1500/1800rpm(50/60Hz), Driving roller ∅76.3, Driving efficiency: 95%
Speed calculation of variable speed : rotate speed 2000rpm(50;60Hz), Driving roller ∅76.3, Driving efficiency: 95%
If exact speed is required, please choose variable forms.

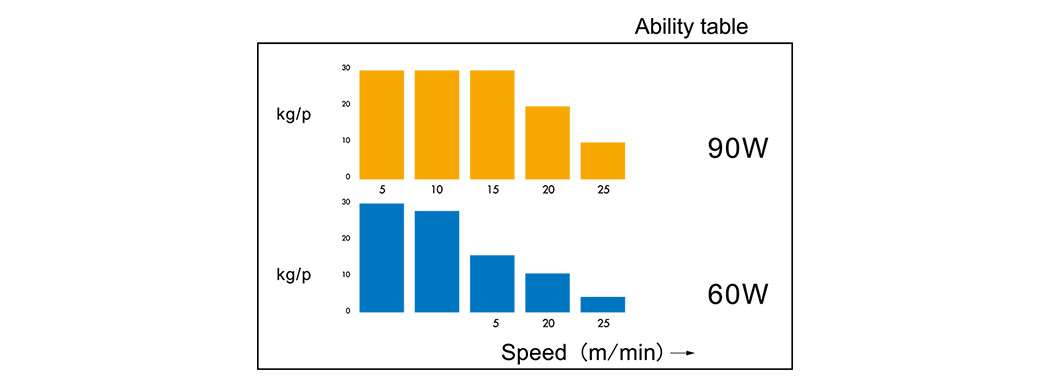

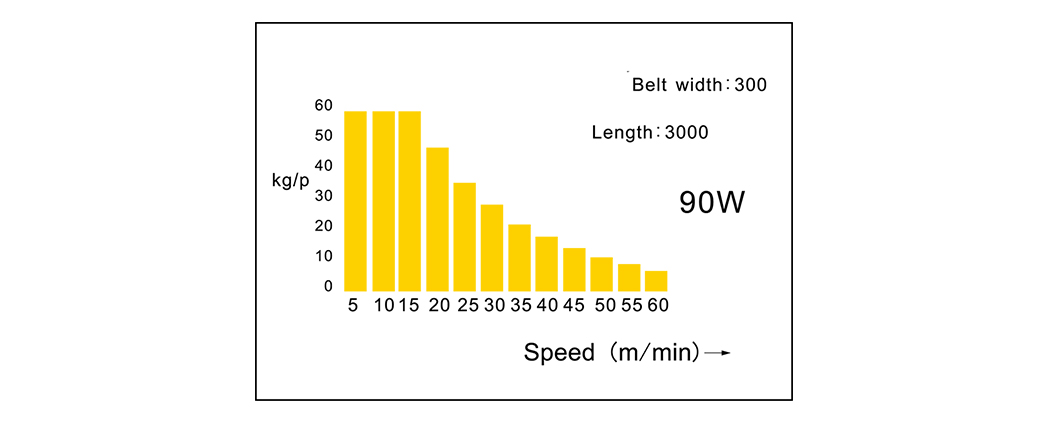

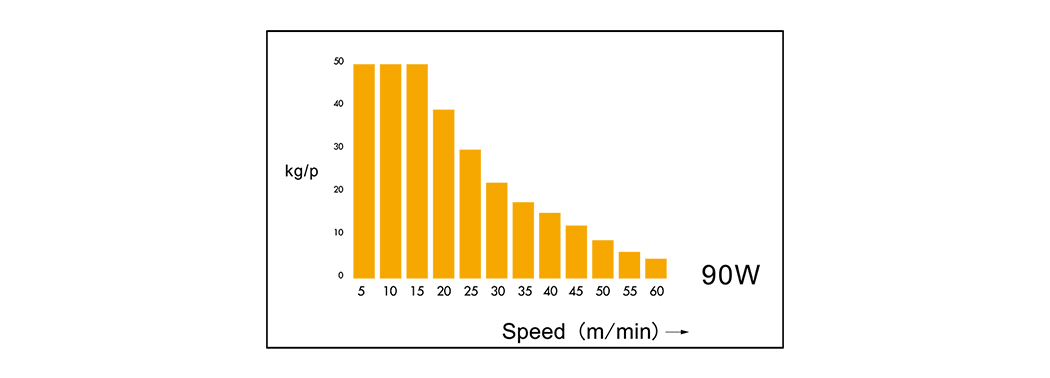

Ability Table

This is capability data of equal dispersal loading. As moving bag-shape goods, please refer to 40% of aboving capability data.
Capability will be changed by different conditions.
Motor Machine Width Dimension Beyond
Fixed Speed
| Power\Belt width | 100 | 150 |
| 25W | 21.5(11) | - |
| 40W | 59(41) | 9 |
| 60W | 85 | 35 |
| 90W | 100 | 50 |
Variable Speed
| Power\Belt width | 100 |
| 25W | - |
| 40W | 11 |
| 90W | 22 |
Standard Power
Standard assembly is brushless DC motor and controlling unit at variable speed model.
From low speed to high speed with immovable exporting torsion.
Speed extension 100r/min~2000r/min can be adjustable.(speed proportion 1:20).

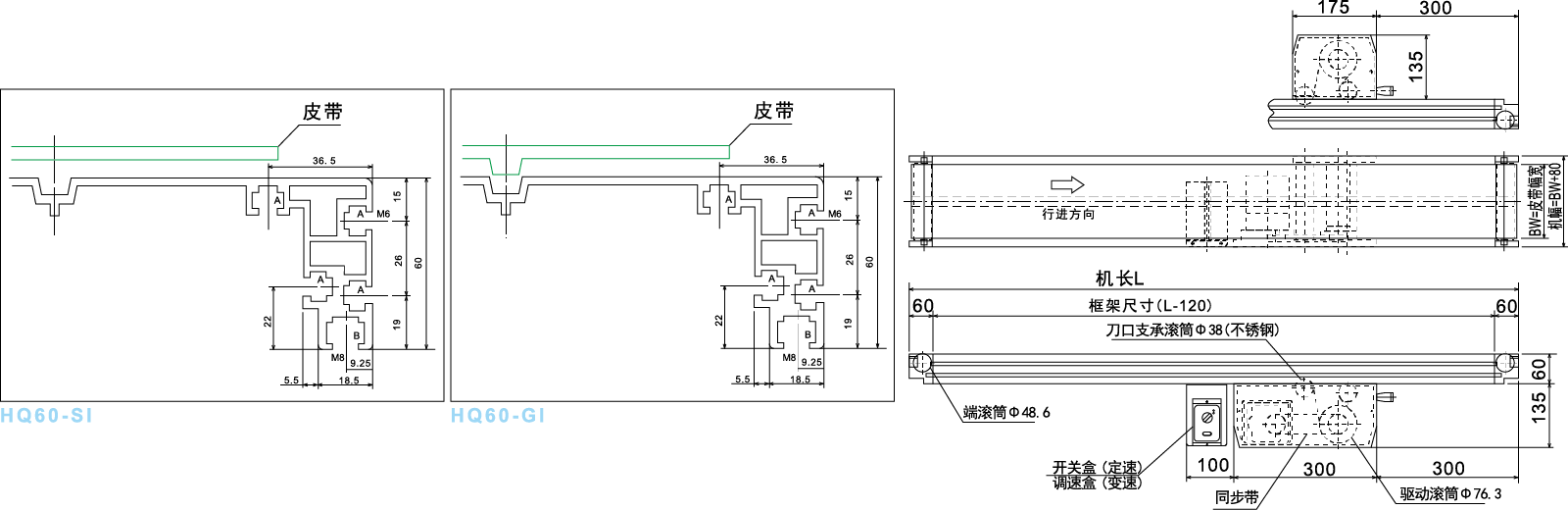

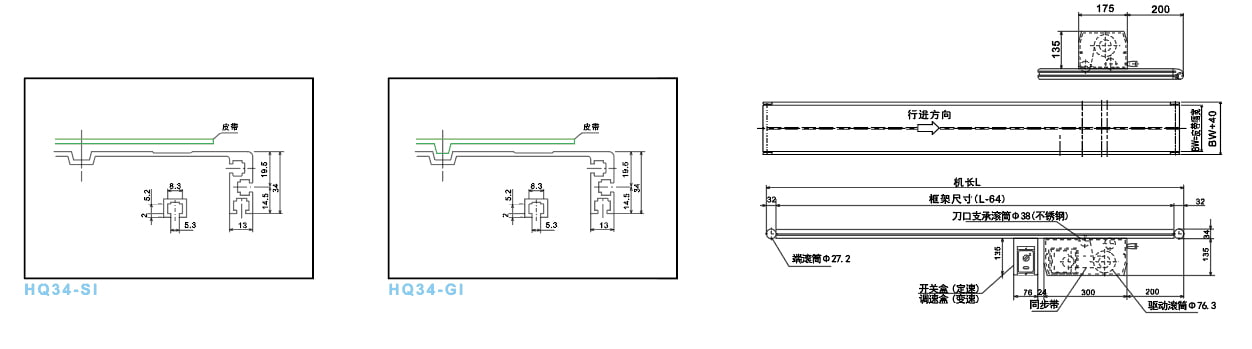

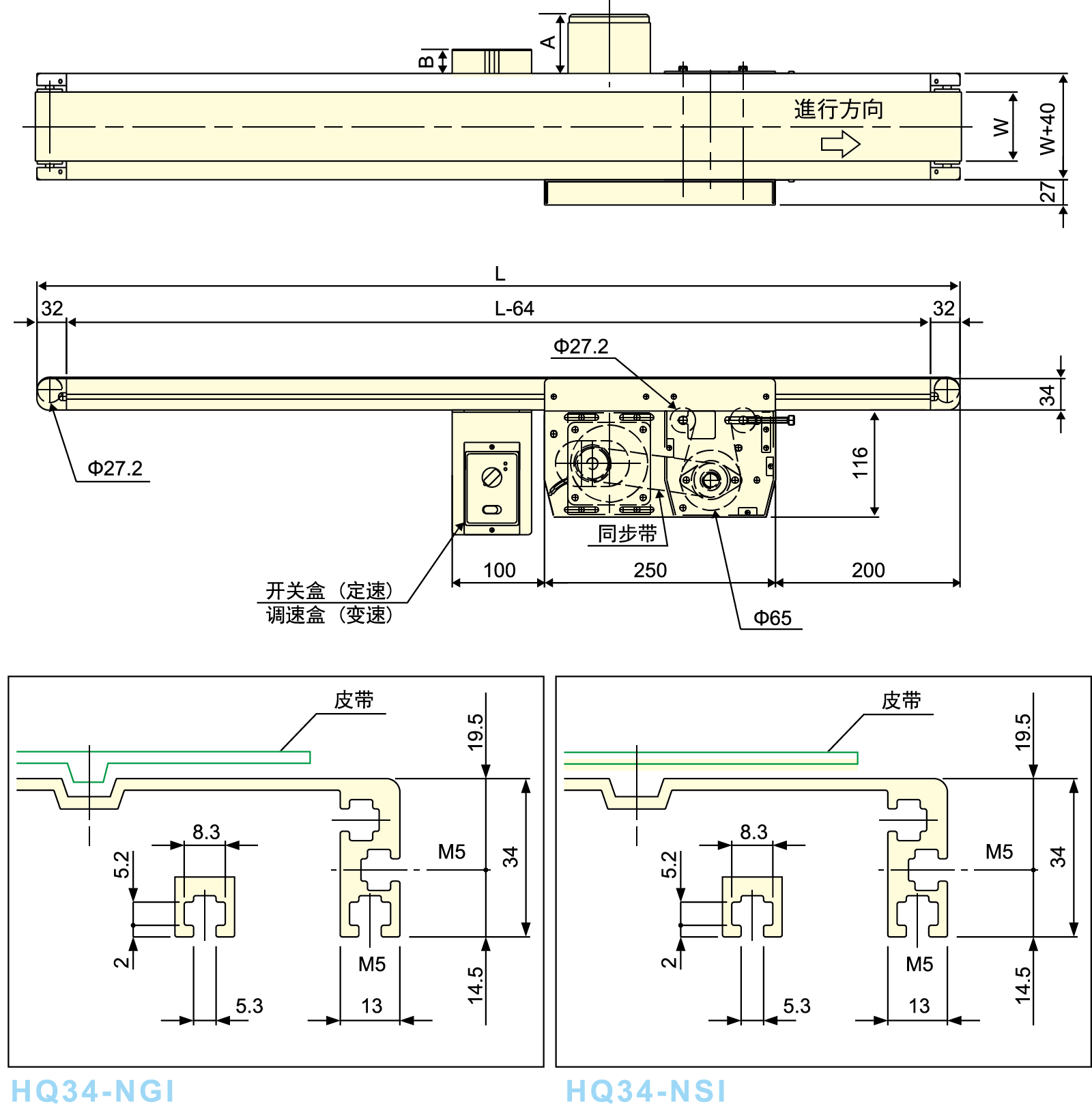

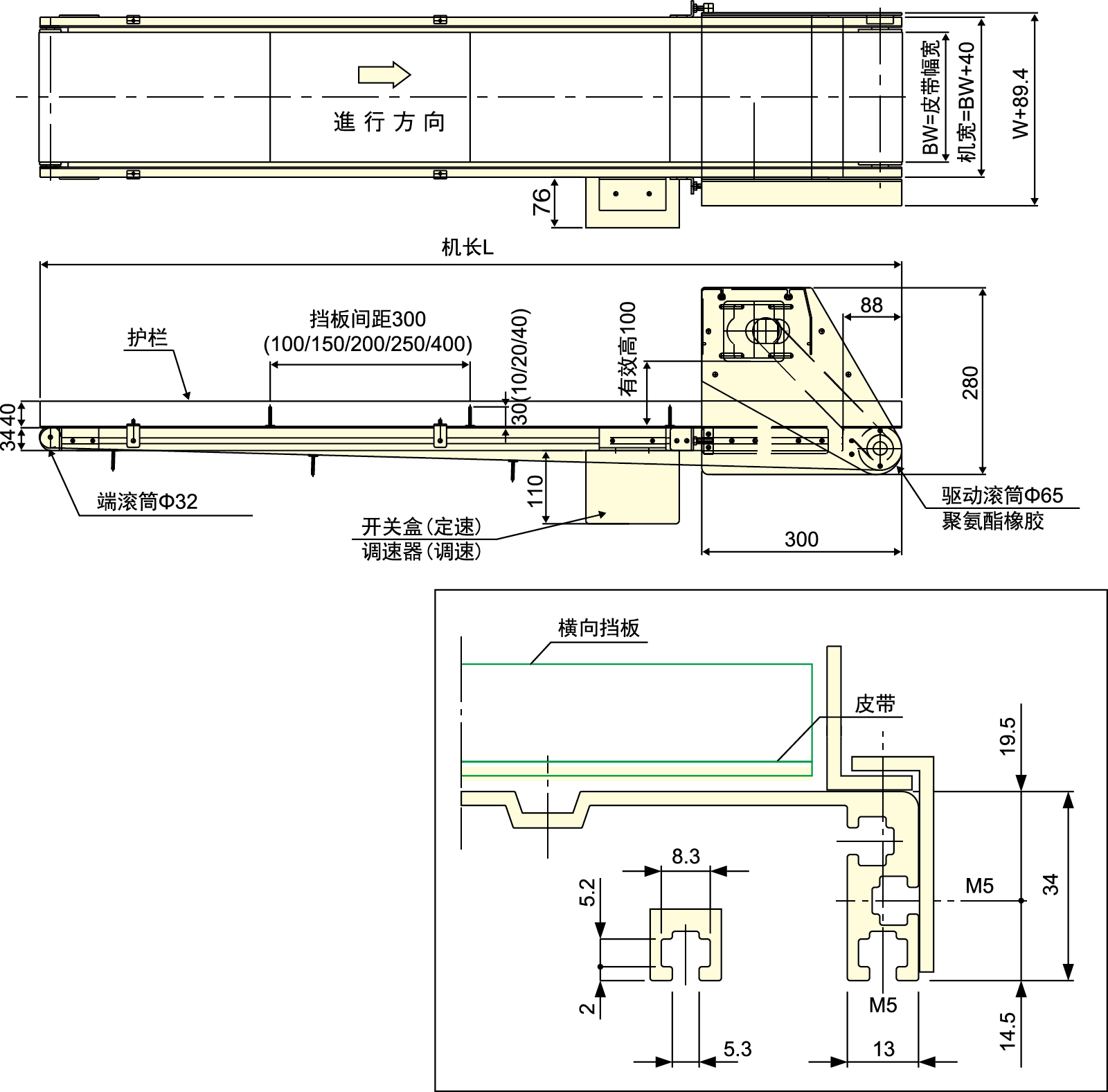

Drawing


Standard Dimension Belt width 50 75 Conveyor Width 90 115 Conveyor Length 500 1,000 1,50...
Standard Dimension
| Belt width | 50 | 75 | ||||||||
| Conveyor Width | 90 | 115 | ||||||||
| Conveyor Length | 500 | 1,000 | 1,500 | 2,000 | 2,500 | 3,000 | 3,500 | 4,000 | 5,000 | 6,000 |
| Height | 150 | Power | AC100V (single-phase) · AC200V (single-phase) · AC200V (three-phase) |
| Speed | FixedNariable speed | Belt | Polyurethane belt |
| Capability | Reference ability table | Option | Support, Guide, Others |
| Motor power | 25W、40W、60W、90W |
Actual dimension of belt is narrowed 5mm than aboving standard belt.
Belt Speed
| Ratio | Speed No. |
Fixed speed 50/60(Hz)(m/min) |
Speed No. |
Variable speed 50/60(Hz)(m/min) |
| 1/180 | T1 | 16./1.9 | H1 | 0.11~2.1 |
| 1/2050 | T2 | 1.9/2.3 | H2 | 0.13~2.6 |
| 1/2020 | T3 | 2.4/2.9 | H3 | 0.16~3.2 |
| 1/2000 | T4 | 2.9/3.5 | H4 | 0.20~3.9 |
| 1/90 | T5 | 3.2/3.9 | H5 | 0.22-4.3 |
| 1/75 | T6 | 3.9/4.6 | H6 | 0.26~5.2 |
| 1/60 | T7 | 4.8/5.8 | H7 | 0.33~6.5 |
| 1/50 | T8 | 5.8/7.0 | H8 | 0.39~7.7 |
| 1/36 | T9 | 8.1/9.7 | H9 | 0.54~10.8 |
| 1/30 | T10 | 9.7/11.6 | H10 | 0.65~12.9 |
| 1/25 | T11 | 11.6/14.0 | H11 | 0.78~15.5 |
| 1/18 | T12 | 16.2/19.4 | H12 | 1.08~21.5 |
| 1/15 | T13 | 19.4/23.3 | H13 | 1.30~25.9 |
| 1/12.5 | T14 | 23.3/27.9 | H14 | 1.55~31.0 |
| 1/9 | T15 | 32.3/38.8 | H15 | 2.16~43.1 |

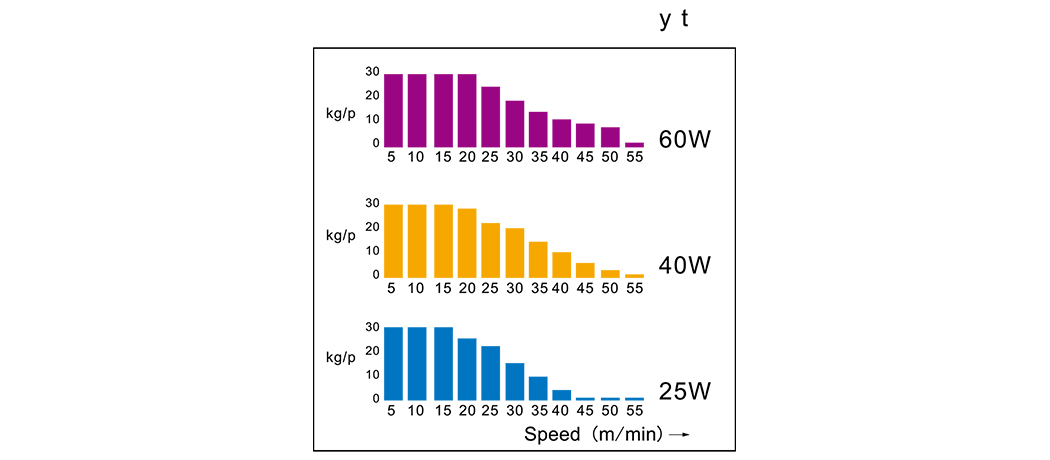

Ability Table

This is capability data of equal dispersal loading. As moving bag-shape goods, please refer to 40% of aboving capability data.
Capability will be changed by different conditions.
Motor Machine Width Dimension Beyond
Fixed Speed
| Power\Belt width | 50 | 75 |
| 25W | 46.5(36) | 21.5(11) |
| 40W | 84(66) | 59(41) |
Variable Speed
| Power\Belt width | 50 | 75 |
| 25W | 3.5 | - |
| 40W | 36(18) | 11 |
Drawing

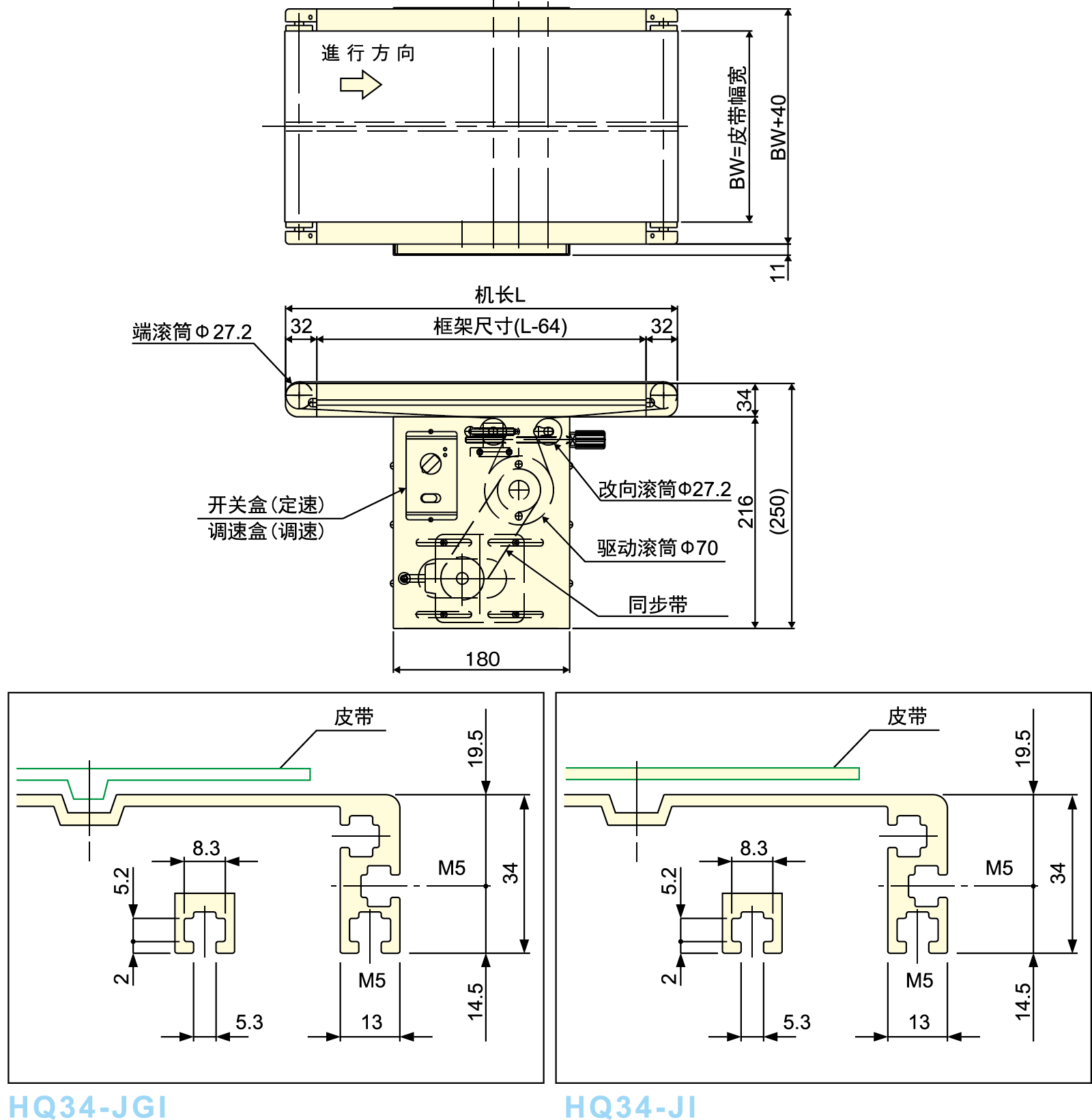

JI: Be suytable for using un the middle of equipment conveying or conveying equipment conveying, sho...
JI: Be suytable for using un the middle of equipment conveying or conveying equipment conveying, shortest length is 300mm.
J Model, Type-J is anti deviation belt conveyor. lt is Suitable for using in difficult maintenance. lt can be set for forward and back running. lt is also can be used in hard conditions.
Standard Dimension
| Belt width | 50 | 75 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 500 | ||
| Conveyor Width | 90 | 115 | 140 | 190 | 240 | 290 | 340 | 390 | 440 | 540 | ||
| Conveyor Length | 300 | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | |||||
| Height | 250 | Power | AC100V (single-phase) · AC200V (single-phase) · AC200V (three-phase) |
| Speed | FixedNariable speed | Belt | Polyurethane belt |
| Capability | 15Kg/set (JI) 10kg/set (JGI) |
Option | Support, Guide, Others |
| Motor power | 25W、40W、60W、90W |
Actual dimension of belt is narrowed 5mm than aboving standard belt.
Belt Speed
| Ratio | Speed No. |
Fixed speed 50/60(Hz)(m/min) |
Speed No. |
Variable speed 50/60(Hz)X(m/min) |
| 1/180 | T1 | 1.7/2.1 | H1 | 0.12~2.3 |
| 1/2050 | T2 | 2.1/2.3 | H2 | 0.14~2.7 |
| 1/2020 | T3 | 2.6/3.1 | H3 | 0.18~3.5 |
| 1/2000 | T4 | 3.1/3.7 | H4 | 0.21~4.1 |
| 1/90 | T5 | 3.5./4.1 | H5 | 0.23~4.6 |
| 1/75 | T6 | 4.2/5.0 | H6 | 0.28~5.5 |
| 1/60 | T7 | 5.2/6.2 | H7 | 0.35-6.9 |
| 1/50 | T8 | 6.2/7.5 | H8 | 0.42~8.3 |
| 1/36 | T9 | 8.7/10.4 | H9 | 0.58-11.5 |
| 1/30 | T10 | 10.4/12.5 | H10 | 0.70~13.9 |
| 1/25 | T11 | 12.6/15.0 | H11 | 0.83~16.6 |
| 1/18 | T12 | 17.4/21.0 | H12 | 1.16~23.2 |
| 1/15 | T13 | 21.0/25.0 | H13 | 1.39~27.8 |
| 1/12.5 | T14 | 25.0/30.0 | H14 | 1.67~33.3 |
| 1/9 | T15 | 34.6/41.7 | H15 | 2.32-46.4 |

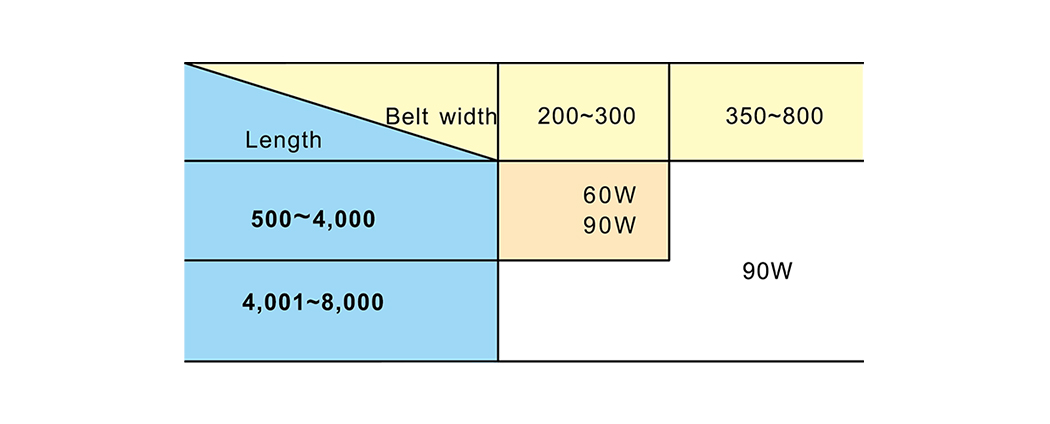

Standard Power
JI

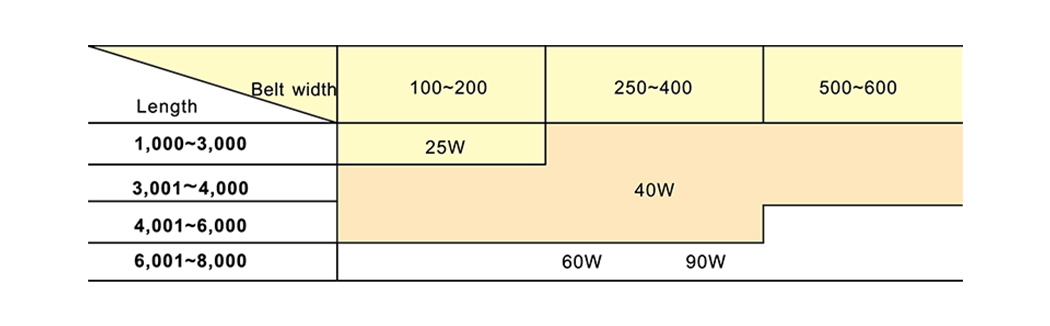

| Length/Beit width | 50~200 | 250~500 |
| 300~3,000 | 25W、40W | 40W、60W |
JGI
| Length/Beit width | 75~250 | 300~350 |
| 300~3,000 | 40W | Fixed speed 60W, variable speed 90W |
Motor Machine Width Dimension Beyond
Fixed Speed
| Power\Belt width | 50 | 75 | 100 | 150 |
| 25W | 62.5(52) | 37.5(27) | 12.5(2) | - |
| 40W | 100(82) | 75(57) | 50(32) | - |
| 60W | - | 101 | 76 | 26 |
Variable Speed
| Power\Belt width | 50 | 75 | 100 |
| 25W | 19.5(9) | - | - |
| 40W | 52(34) | 27(9) | 2 |
| 90W | - | 38 | 13 |

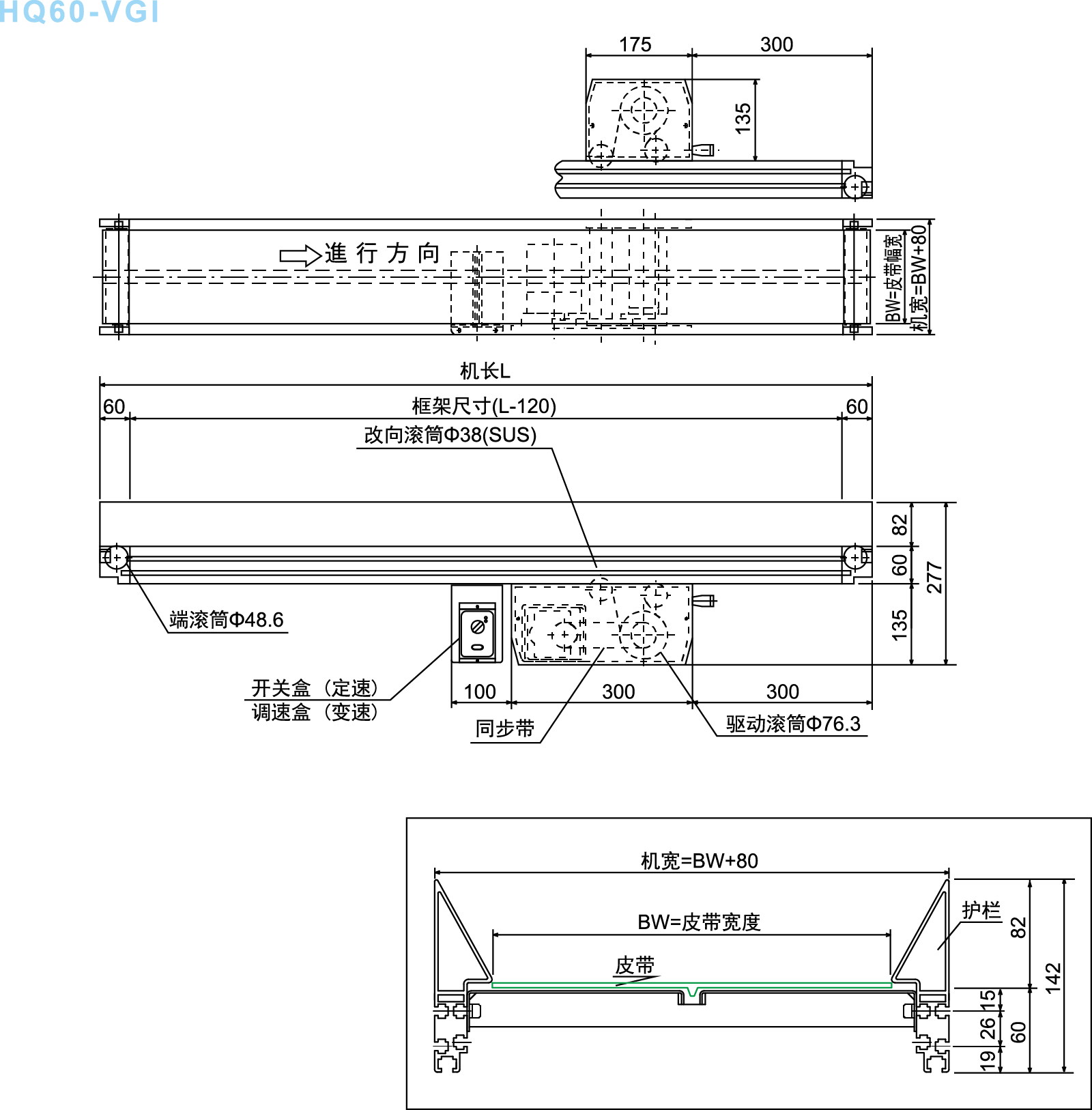

Drawing


Standard Dimension Belt width 100 150 200 250 300 350 400 500 Conveyor Width 140 190 ...
Standard Dimension
| Belt width | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 500 | ||
| Conveyor Width | 140 | 190 | 240 | 290 | 340 | 390 | 440 | 540 | ||
| Conveyor Length | 1,000 | 1,500 | 2,000 | 2,500 | 3,000 | |||||
| Height | 280 | Power | AC100V (single-phase) · AC200V (single-phase) · AC200V (three-phase) |
| Speed | FixedNariable speed | Belt | Polyurethane belt |
| Capability | Reference ability table | Option | Support, Guide, Others |
| Motor power | 60W、90W |
Actual dimension of belt is narrowed 5mm than aboving standard belt.
Belt Speed
| Ratio | Speed No. |
Fixed speed 50/60(Hz)(m/min) |
Speed No. |
Variable speed 50/60(Hz)(m/min) |
| 1/180 | T1 | 16./1.9 | H1 | 0.11~2.1 |
| 1/2050 | T2 | 1.9/2.3 | H2 | 0.13~2.6 |
| 1/2020 | T3 | 2.4/2.9 | H3 | 0.16~3.2 |
| 1/2000 | T4 | 2.9/3.5 | H4 | 0.20~3.9 |
| 1/90 | T5 | 3.2/3.9 | H5 | 0.22~4.3 |
| 1/75 | T6 | 3.9/4.6 | H6 | 0.26~5.2 |
| 1/60 | T7 | 4.8/5.8 | H7 | 0.33~6.5 |
| 1/50 | T8 | 5.8/7.0 | H8 | 0.39~7.7 |
| 1/36 | T9 | 8.1/9.7 | H9 | 0.54~10.8 |
| 1/30 | T10 | 9.7/11.6 | H10 | 0.65~12.9 |
| 1/25 | T11 | 11.6/14.0 | H11 | 0.78~15.5 |
| 1/18 | T12 | 16.2/19.4 | H12 | 1.08~21.5 |
| 1/15 | T13 | 19.4/23.3 | H13 | 1.30~25.9 |
| 1/12.5 | T14 | 23.3/27.9 | H14 | 1.55~31.0 |
Ability Table

This is capability data of equal dispersal loading. As moving bag-shape goods, please refer to 40% of aboving capability data.
Capability will be changed by different conditions.
Motor Machine Width Dimension Beyond
Fixed Speed
| Power\Belt width | 100 | 150 |
| 60W | 45 | - |
| 90W | 60 | 10 |
Variable Speed
| Power\Belt width | 100~500 |
| 1,000~4,000 | Fixed speed 60W, variable speed 90W |
Drawing


Standard Dimension Belt width 200 250 300 400 500 600 Conveyor Width 280 330 380 480 ...
Standard Dimension
| Belt width | 200 | 250 | 300 | 400 | 500 | 600 | ||||
| Conveyor Width | 280 | 330 | 380 | 480 | 580 | 680 | ||||
| Conveyor Length | 1,000 | 1,500 | 2,000 | 2,500 | 3,000 | |||||
| Height | 300 | Power | AC100V (single-phase) · AC200V (single-phase) · AC200V (three-phase) |
| Speed | FixedNariable speed | Belt | Polyurethane belt |
| Capability | Reference ability table | Option | Support, Guide, Others |
| Motor power | 90W |
Actual dimension of belt is narrowed 5mm than aboving standard belt.
Belt Speed
| Rato | Speed No |
Fixed speed 50/60(Hz)(m/min) |
Speed No. |
Variable speed 50/60(Hz)(m/min) |
| 1/180 | T1 | 1.9/2.3 | H1 | 0.13~2.5 |
| 1/2050 | T2 | 2.3/2.7 | H2 | 0.15~3.0 |
| 1/2020 | T3 | 2.8/3.4 | H3 | 0.19~3.8 |
| 1/2000 | T4 | 3.4/4.1 | H4 | 0.23~4.5 |
| 1/90 | T5 | 3.8/4.5 | H5 | 0.26~5.1 |
| 1/75 | T6 | 4.6/5.5 | H6 | 0.31~6.1 |
| 1/60 | T7 | 5.7/6.8 | H7 | 0.38~7.6 |
| 1/50 | T8 | 6.8/8.2 | H8 | 0.46~9.1 |
| 1/36 | T9 | 9.5/11.4 | H9 | 0.63~12.6 |
| 1/30 | T10 | 11.4/13.7 | H10 | 0.76~15.2 |
| 1/25 | T11 | 13.7/16.4 | H11 | 0.91~18.2 |
| 1/18 | T12 | 19.0/22.8 | H12 | 1.27~25.3 |
| 1/15 | T13 | 22.8/27.3 | H13 | 1.52~30.4 |
| 1/12.5 | T14 | 27.3/32.8 | H14 | 1.82~36.4 |

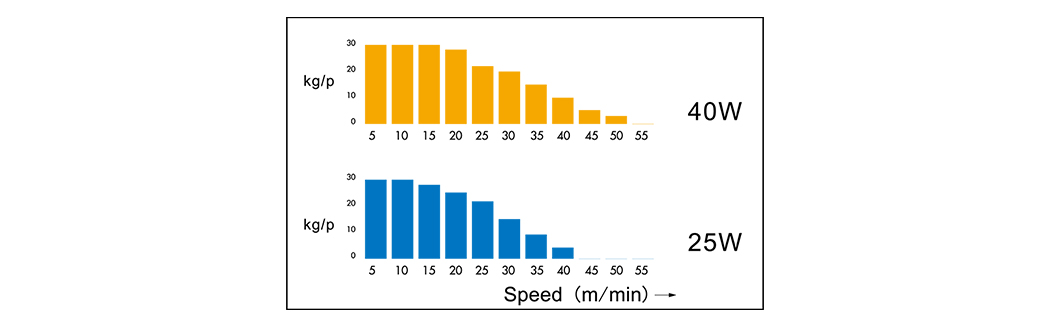

Ability Table

This is capability data of equal dispersal loading. As moving bag-shape goods, please refer to 40% of aboving capability data.
Capability will be changed by different conditions.

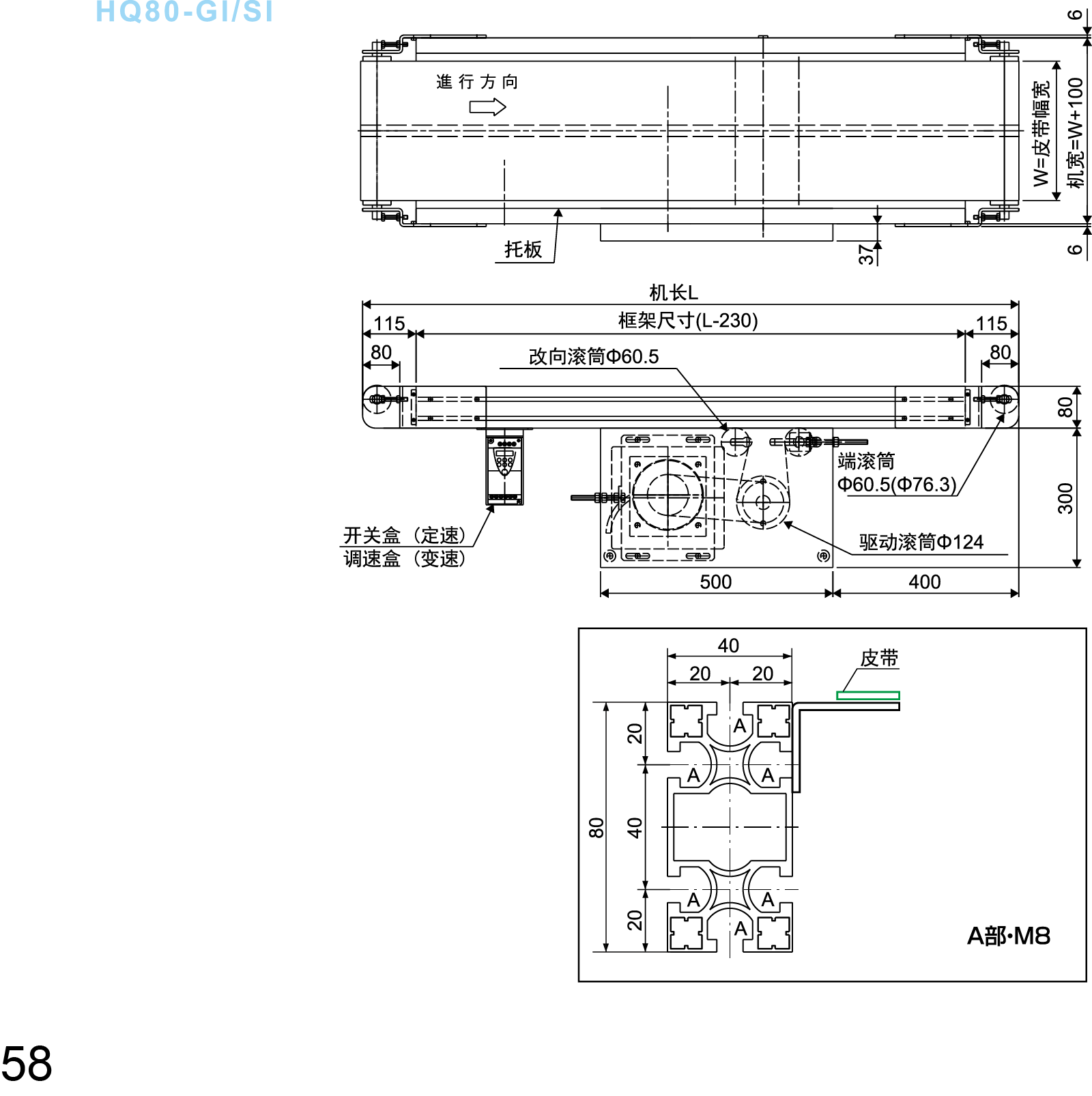

Drawing

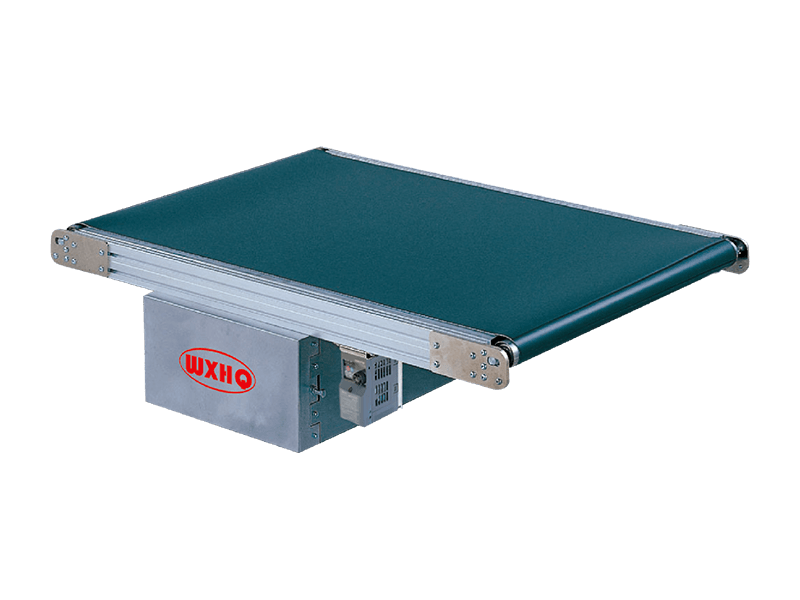

SI Standard Type ● This is standard type of 34mm belt conveyor, driving center is moved by Timing be...
SI Standard Type
● This is standard type of 34mm belt conveyor, driving center is moved by Timing belt.
● The belt has good capability of silence and wearability.
GI Guide Type
● This type of belt conveyor goes with oriented gibbous belt, which can assure movement more smoothly and steadily; convenient to use with other equipment, suitable for high requiring situations of time and stability.
● Moreover, clockwise and anti-clockwise running can be choosed by different conditions, and different colors by different purposes.
Standard Dimension
| Belt width | 200 | 250 | 300 | 350 | 400 | 500 | 600 | (700) | (800) |
| Conveyor Width | 280 | 330 | 380 | 430 | 480 | 580 | 680 | (780) | (880) |
| Conveyor Length | 500 | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 | 7000 | 8000 |
The models with belt widths of 700 and 800 are standard products.
| Height | 195 | Power | AC100V (single-phase) · AC200V (single-phase) · AC200V (three-phase) |
| Speed | Fixed/Variable speed | Belt | Polyurethane belt |
| Capability | Reference ability table | Option | Support, Guide, Others |
| Motor power | 60W、90W |
If the length exceed 6m,the middle place goes with belt support structure.
Belt Speed
| Ratio | Speed No. | Fixed speed 50/60(Hz)(m/min) |
Speed No. | Variable speed 50/60(Hz)(m/min) |
| 1/180 | T1 | 1.9/2.3 | H1 | 0.13~2.5 |
| 1/2050 | T2 | 2.3/2.7 | H2 | 0.15~3.0 |
| 1/2020 | T3 | 2.8/3.4 | H3 | 0.19~3.8 |
| 1/2000 | T4 | 3.4/4.1 | H4 | 0.23~4.5 |
| 1/90 | T5 | 3.8/4.5 | H5 | 0.26~5.1 |
| 1/75 | T6 | 4.6/5.5 | H6 | 0.31~6.1 |
| 1/60 | T7 | 5.7/6.8 | H7 | 0.38~7.6 |
| 1/50 | T8 | 6.8/8.2 | H8 | 0.46~9.1 |
| 1/36 | T9 | 9.5/11.4 | H9 | 0.63~12.6 |
| 1/30 | T10 | 11.4/13.7 | H10 | 0.76~15.2 |
| 1/25 | T11 | 13.7/16.4 | H11 | 0.91~18.2 |
| 1/18 | T12 | 19.0/22.8 | H12 | 1.27~25.3 |
| 1/15 | T13 | 22.8/27.3 | H13 | 1.52~30.4 |
| 1/12.5 | T14 | 27.3/32.8 | H14 | 1.82~36.4 |
| 1/9 | T15 | 37.9/45.5 | H15 | 2.53~50.6 |
Speed calculation of fixed speed : rotate speed 1500/1800rpm(50/60Hz), Driving roller ∅76.3, Driving efficiency: 95%
Speed calculation of variable speed : rotate speed 2000rpm(50;60Hz), Driving roller ∅76.3, Driving efficiency: 95%
If exact speed is required, please choose variable forms.

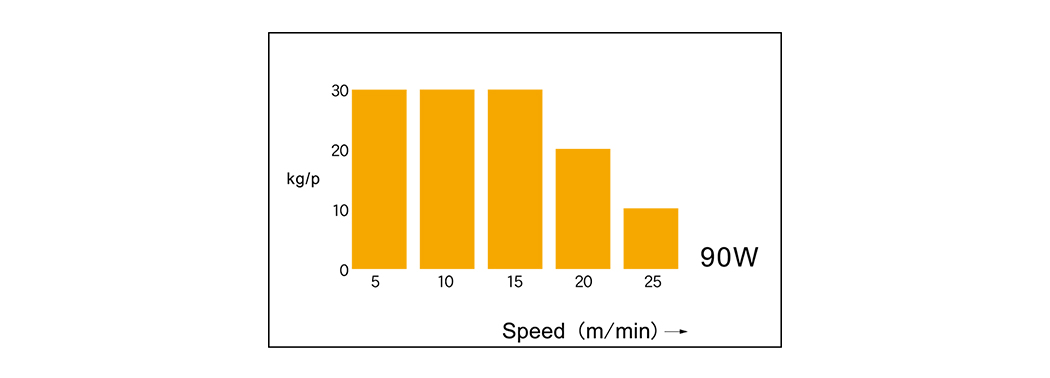

Ability Table

This is capability data of equal dispersal loading. As moving bag-shape goods, please to 40% of aboving capability data.
The specification of 500,600 width of belt is 80% of aboving capability data.
Capability will be changed by different conditions.
Standard Power

Standard assembly is brushless DC motor and controlling unit at variable speed model.
From low speed to high speed with immovable exporting torsion.
Speed extension 100r/min~2000r/min can be adjustable.(speed proportion 1:20)

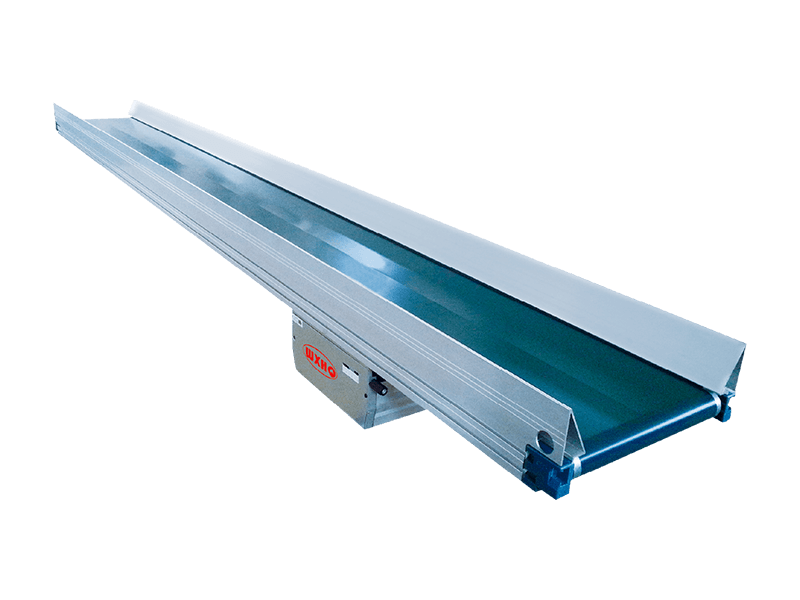

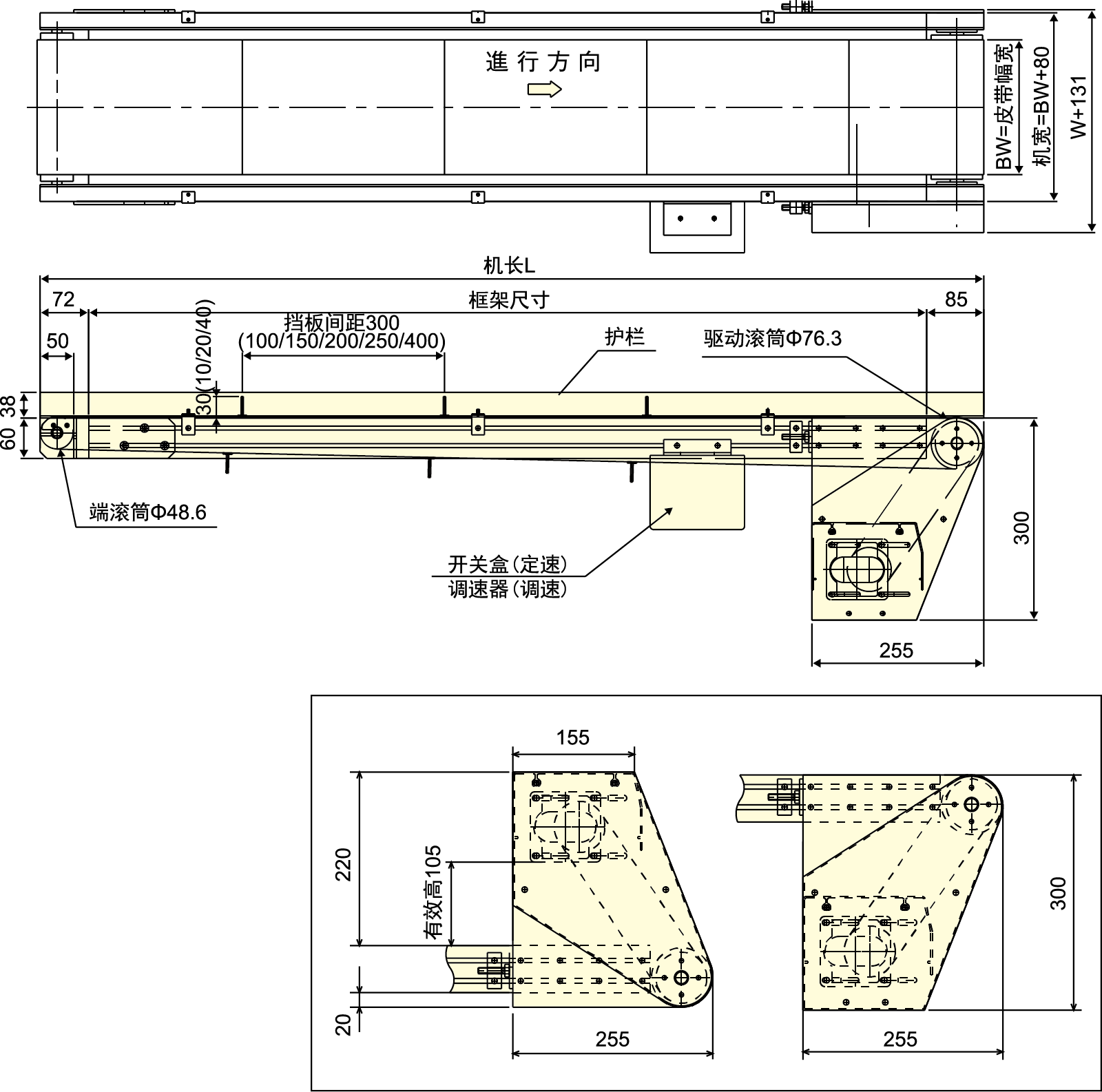

Drawing


Standard Dimension Belt width 200 250 300 350 400 500 600 700 800 Conveyor Width 280 330 380 43...
Standard Dimension
| Belt width | 200 | 250 | 300 | 350 | 400 | 500 | 600 | 700 | 800 |
| Conveyor Width | 280 | 330 | 380 | 430 | 480 | 580 | 680 | 780 | 880 |
| Conveyor Length | 500 | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 | 7000 | 8000 |
| Height | 277 | Power | AC100V (single-phase) · AC200V (single-phase) · AC200V (three-phase) · DC24V(direct) |
| Speed | Fixed/Variable speed | Belt | Polyurethane belt |
| Capability | Reference ability table | Option | Support, Others |
| Motor power | 60W、90W、120W |
Actual dimension of belt is narrowed 5mm than aboving standard belt; lf the length of machine exceed 4m narrowed 10mm.
Ability Table

This is capability data of equal dispersal loading. As moving bag-shape goods, please refer to 40% of aboving capability data.
Capability will be changed by different conditions.

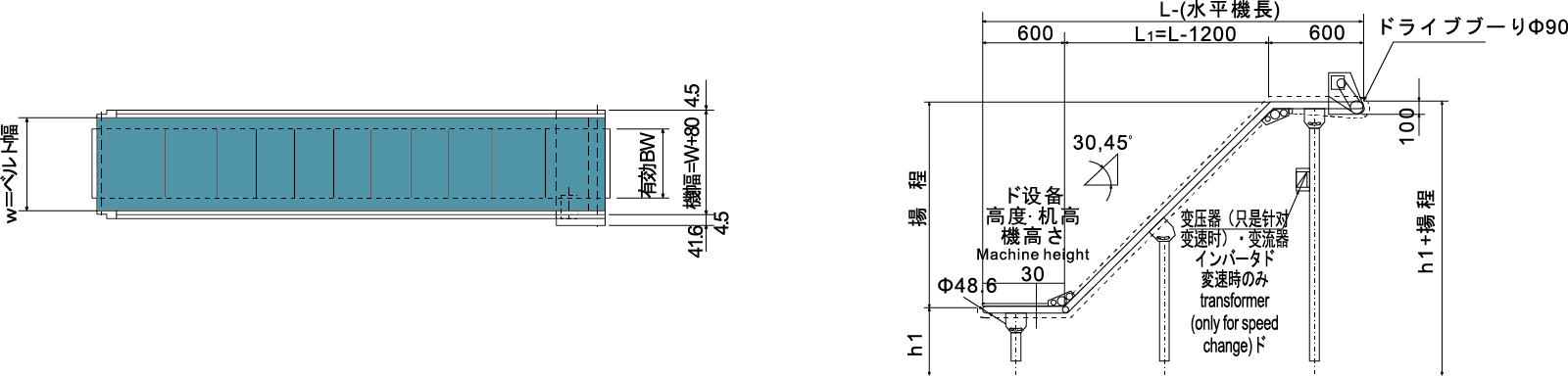

Drawing

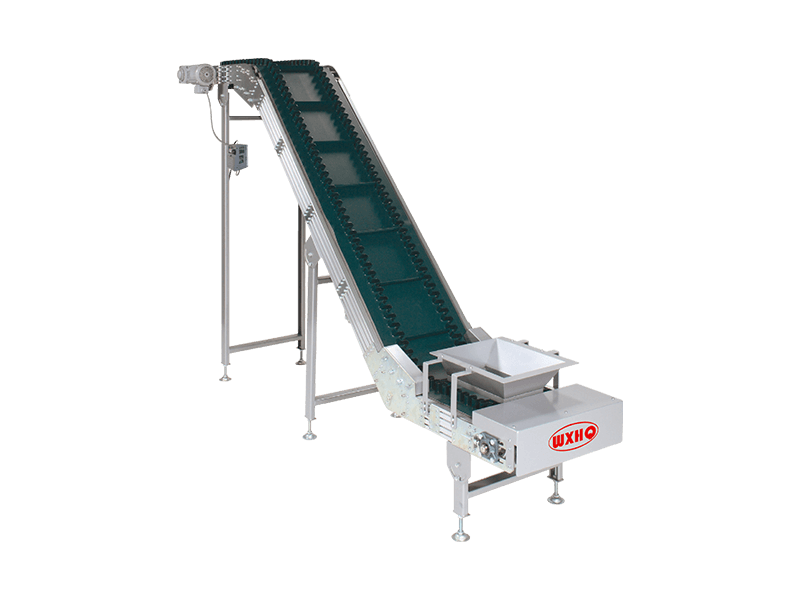

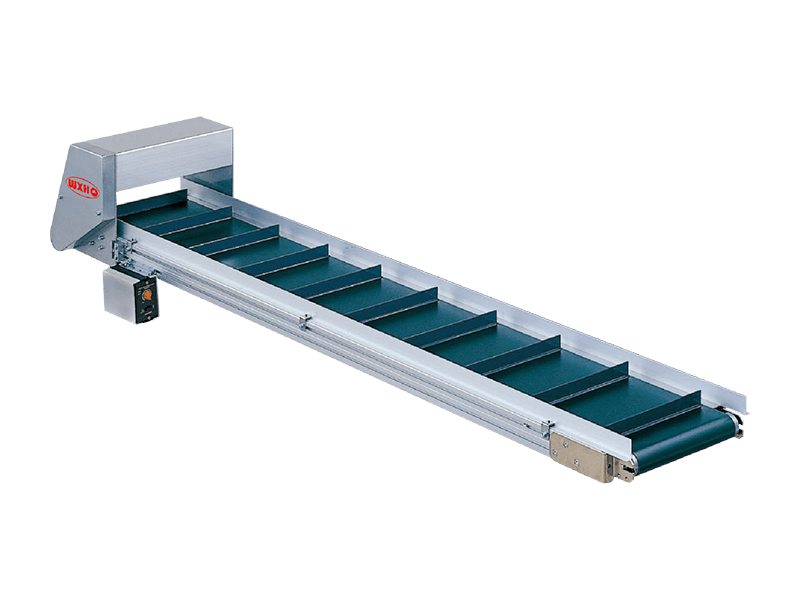

Inclined carry inclined type Max angle of inclination can reach 45 degree Protection cover and hoppe...

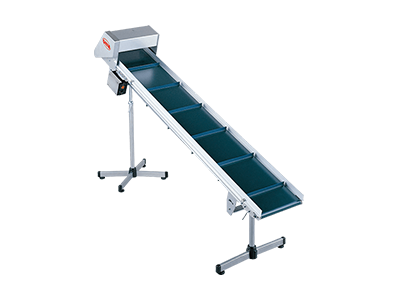

Inclined carry inclined type
Max angle of inclination can reach 45 degree
Protection cover and hopper can be chooses as your request
Standard Dimension
| Belt width | 300 | 400 | 500 | 600 |
| Effective belt width | 200 | 300 | 400 | 500 |
| Conveyor Width | 380 | 480 | 580 | 680 |
| Head of delivery | 2500 | |||
| Height | 300H(h1) | Power |
Fixed: AC200V (three-phase) · AC100V (single-phase) Variable: AC200V (single-phase) · AC200V (three-phase) |
| Speed | Fixed/Variable speed | Belt | Polyurethane rail type belt; Colour: green |
| Capability | Reference ability table | Option | Support |
| Motor power | 200W |
Belt Speed
| Ratio | Speed No | Fixed speed 50/60(Hz) (m/min) |
Speed No. | Variable speed 50/60(Hz) (m/min) |
| 1/75 | T1 | 5.3/6.4 | H1 | 2.1~6.4 |
| 1/50 | T2 | 8.1/9.6 | H2 | 3.2~9.6 |
| 1/30 | T3 | 13.4/16.1 | H3 | 5.3~16.1 |
| 1/18 | T4 | 22.3/26.8 | H4 | 8.9~26.8 |
Ability Table
| Head of delivery | Tilt | Motor power | Speed No | Capability |
| 460~3800 | 30" 45" |
200W | 1 | 30 |
| 2 | 25 | |||
| 3 | 20 | |||
| 4 | 12 |
Powder and ball shape can not be carried.

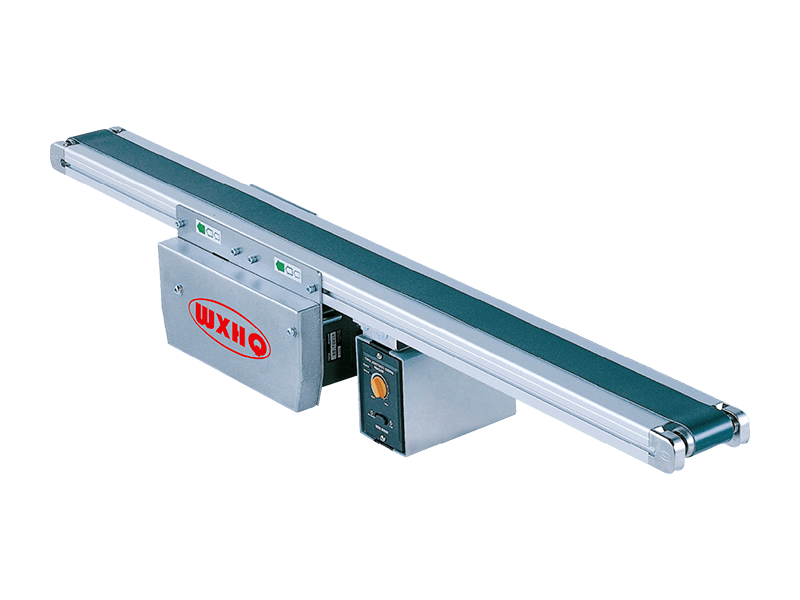

Drawing


Different specifications, the weight of the product is not a transport is also very stable, by way o...
Different specifications, the weight of the product is not a transport is also very stable, by way of conveying belt.
Standard Dimension
| Belt Width | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | ||||
| Conveyor Width | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | ||||
| Conveyor Length | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 | 7000 | 8000 | |||||
| Height | 380 | Power | AC100V (single-phase) · AC200V (single-phase) · AC200V (three-phase)· AC380V (three-phase) |
| Speed | Fixed/Variable speed | Belt | Polyurethane belt |
| Capability | Reference ability table | Option | Support, Others |
| Motor power | 100W、200W、400W |
Actual dimension of belt is narrowed 5mm than aboving standard belt; lf the length of machine exceed 4m narrowed 10mm.
Belt Speed
| Ratio | Speed No. |
Fixed speed 50/60(Hz)(m/min) |
Speed No. |
Variable speed 50/60(Hz)(m/min) |
| 1/450 | T1 | 1.1/1.3 | H1 | 0.1~1.1/0.45-1.3 |
| 1/375 | T2 | 1.4/1.6 | H2 | 0.45~1.4/0.51~1.6 |
| 1/300 | T3 | 1.7/2.0 | H3 | 0.56~1.7/0.68~2.0 |
| 1/200 | T4 | 2.6/3.1 | H4 | 0.85~2.6/1.0~3.1 |
| 1/160 | T5 | 3.2/3.8 | H5 | 1.1~3.2/1.3~3.5 |
| 1/2020 | T6 | 4.3/5.1 | H6 | 1.4~4.3/1.7~5.1 |
| 1/2000 | T7 | 5.1/6.1 | H7 | 1.7~5.1/2.0~6.1 |
| 1/80 | T8 | 6.4/7.7 | H8 | 2.1~6.4/2.6~7.7 |
| 1/60 | T9 | 8.5/10.2 | H9 | 2.8~8.5/3.4~10.2 |
| 1/50 | T10 | 10.2/12.2 | H10 | 3.4~10.2/4.1~12.2 |
| 1/40 | T11 | 12.8/15.3 | H11 | 4.3~12.8/5.1~15.3 |
| 1/30 | T12 | 17.0/20.4 | H12 | 5.7~17.0/6.8~20.4 |
| 1/25 | T13 | 20.4/24.5 | H13 | 6.8~20.4/8.2~24.5 |
| 1/20 | T14 | 20.5/30.6 | H14 | 8.5~25.5/10.2~30.6 |
| 1/15 | T15 | 34.0/40.8 | H15 | 11.3~34.0/13.6~40.8 |
Speed calculation of fixed speed rotate speed1500/1800rpm(50/60Hz) Driving roller ∅124, Driving efficiency: 95%
If exact speed is required please choose variable forms.
The standard transmission type inverter.

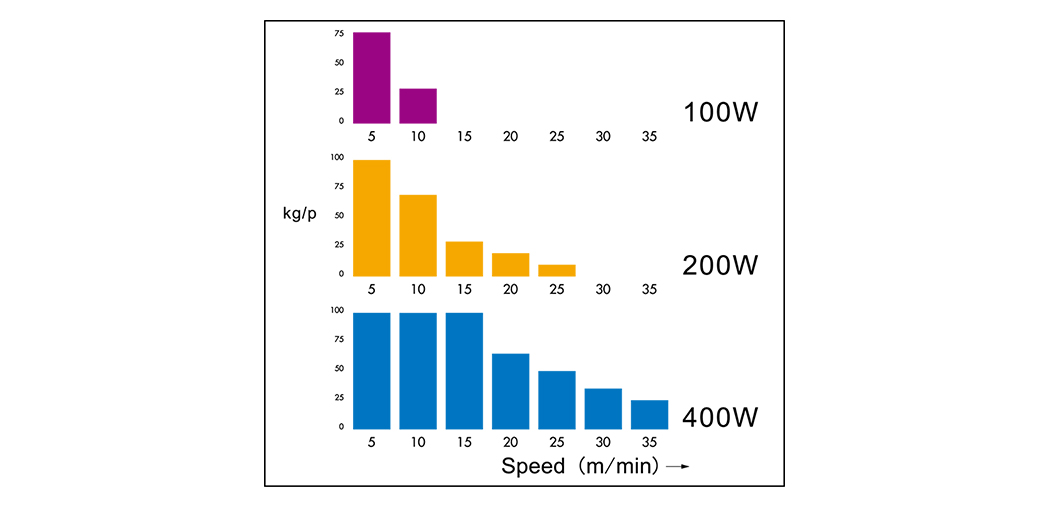

Ability Table

This is capability data of equal dispersal loading. As moving bag-shapegoods, please refer to 40% of aboving capability data.
Capability will be changed by different conditions.
Drawing

Wheel conveyors are an essential component in warehouses, distribution centers, and manufacturing fa...
READ MOREBelt conveyor is essential components in numerous industries, including mining, manufacturing, packa...
READ MOREAluminum roller conveyors are widely used in material handling systems for industries such as manufa...
READ MOREIndustry Highlight! A New Benchmark for Explosion-Proof Safety Recently, Wuxi Huiqian Logistics Mach...
READ MOREIn modern industrial environments, Stainless Steel Roller Conveyors play a vital role in ensuring sm...
READ MOREWuxi Huiqian Logistics Machinery Manufacturing Co., Ltd. is a professional logistics equipment manufacturer founded on the foundation of advanced Japanese technology. The company specializes in producing and selling rollers, roller conveyors, belt conveyors, storage cages, logistics trolleys, mini conveyors, frames, and shelves.
Located in the Wuxi National Hi-Tech Technology Development District, the company benefits from convenient transportation and complete surrounding facilities. With a scientific quality management system (QMS), advanced processing equipment, and a skilled workforce, Wuxi Huiqian has earned wide recognition for its integrity, technical strength, and product quality. As a custom standard type belt conveyor manufacturer, the company offers professional, all-round after-sales technical support to every customer.
A standard type belt conveyor is a lightweight and versatile system designed for efficiently transporting items. It operates using the continuous or intermittent motion of a conveyor belt, making it suitable for:
Key Features:
Belt Material Options:
Wuxi Huiqian offers a variety of belt materials to meet different industrial needs:
When it comes to low-temperature operations, several factors must be considered:
Belt Material Selection
Standard PVC or PU belts can become stiff or brittle in very cold conditions. For temperatures below freezing, materials like silicone or specialized low-temperature PU belts are recommended to maintain flexibility and durability.
Motor and Drive System Adaptation
Low temperatures can affect motor efficiency and increase wear on mechanical components. Wuxi Huiqian designs its belt conveyors with robust drive systems and can provide solutions for cold environments, such as motors with protective heating or insulation.
Maintenance and Lubrication
Regular maintenance is crucial, as lubricants and moving parts may thicken or seize in cold conditions. Wuxi Huiqian provides guidance on suitable lubricants and maintenance schedules to ensure smooth operation.
Wuxi Huiqian Logistics Machinery Manufacturing Co., Ltd.’s standard type belt conveyors can be effectively operated in low-temperature environments, provided that the right materials, drive systems, and maintenance practices are employed. With the company’s expertise and customization options, businesses can ensure reliable and efficient transport even in cold storage or outdoor facilities.
By choosing Wuxi Huiqian’s conveyors, companies gain flexible, durable, and professional solutions backed by decades of technical experience and industry recognition.
Bringing Craftsmanship to the Future.
No.60,Zhenhu North Road,Hudai Town,Binhu District,Wuxi 214100,China
wxhq56@foxmail.com
guijifeng@163.com
+86 139-2153-1116
+86-510-8558 1519/8558 1530
+86-510-8558 1520
