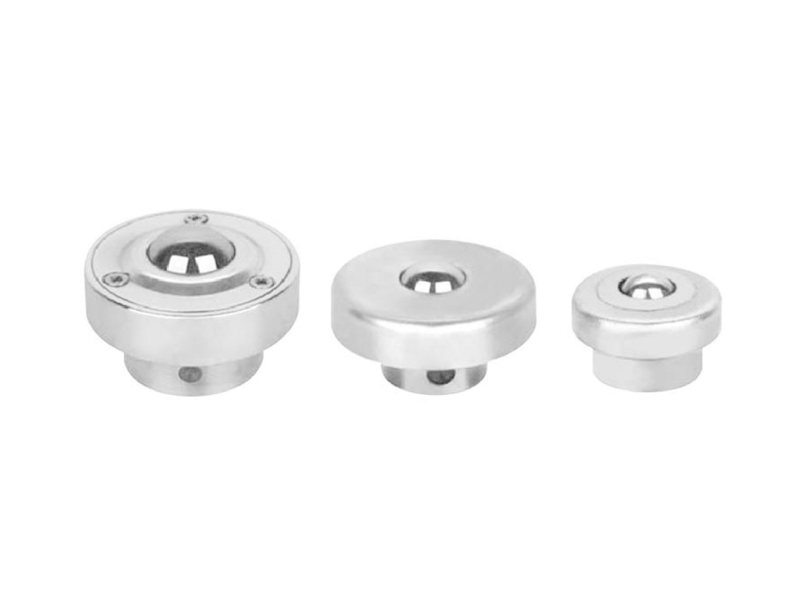

عربىMachined Steel Bolt D Series
Cat:Universal Ball
Model No. Number Loading Capacity(kg) (mm)Dimensions (kg)Weight Material Suggest Max. d D H ...
See Details
Universal Ball Suppliers
The universal ball is also called a universal conveying ball, universal ball, steel ball wheel, bull eye bearing, and so on. It has the performance of rolling flexibility and can move the work plate, material box, and other objects very flexible slip, its appearance greatly reduces the labor intensity of the staff, suitable for static and dynamic transmission systems, such as all kinds of universal ball for electronics, hardware, machinery, chemical, food, forest, mining, books, supermarkets, rubber and other industries. It is widely used in transmission systems, feeding systems, processing systems, processing machinery, and packaging machinery auxiliary equipment.
-
Model No. Number Loading Capacity(kg)
(mm)
Dimensions(kg)
WeightMaterial Suggest Max. d D H h1 h2 M D-2H(6) 6101 BS/CS 5 6 6.35 12 9 1.5 12 M6 0.035 D-3H(9) 6102 BS/CS 7 8 9.525 15 15 2.5 12 M6 0.042 D-4H(12) 6103 BS/CS 8 10 12.0 20 18 3 12 M8 0.055 D-5H(15) 6104 BS/CS 15 20 15.875 24 20.5 4 12 M6/M8 0.060 D-6H(19) 6105 BS/CS 40 50 19.05 32 26 4 20 M8 0.130 D-8H(25) 6106 BS/CS 100 150 25.4 42 42 7 21 M10 0.210 -

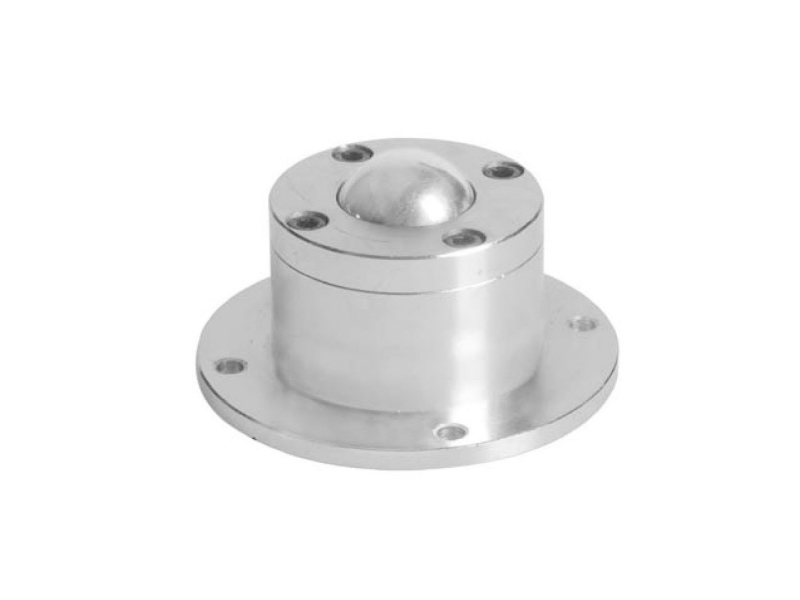

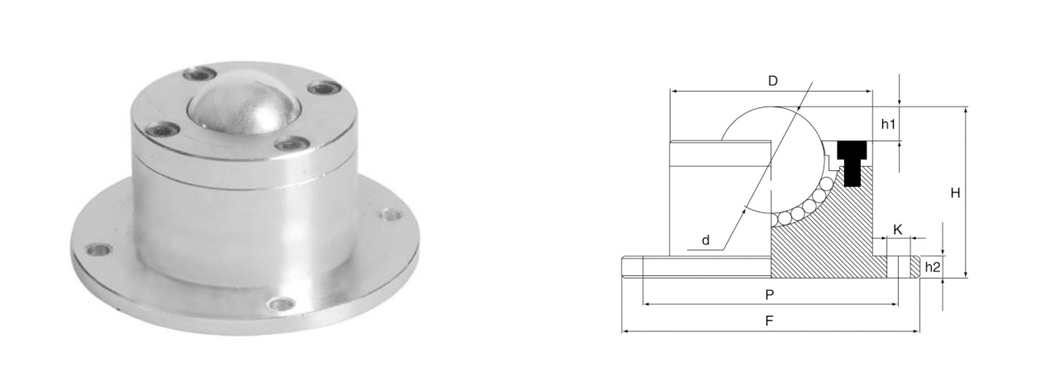

Heavy Duty D-HB Series
Cat:Universal Ball
Model No. (kg)Loading Capacity (mm)Dimensions (kg)Weight Material Suggest Max. d D h1 h2 H ...
See Details
Model No. (kg)Loading Capacity (mm)
Dimensions(kg)
WeightMaterial Suggest Max. d D h1 h2 H F P K D-8HB BS/CS 100 150 25.4 56 8 3 32 78 67 4-φ6.5 0.450 D-10H BS/CS 200 250 30.1 65 6.5 6 48 95 80 4-φ7 0.890 D-12H BS/CS 300 350 38.1 70 11 6 60 110 94 4-φ7 1.200 D-16H BS/CS 300 400 50 95 16 10 80 140 120 4-φ11 4.500 D-24H BS/CS 600 800 76.2 130 20 10 120 180 155 4-中11 5.400 -

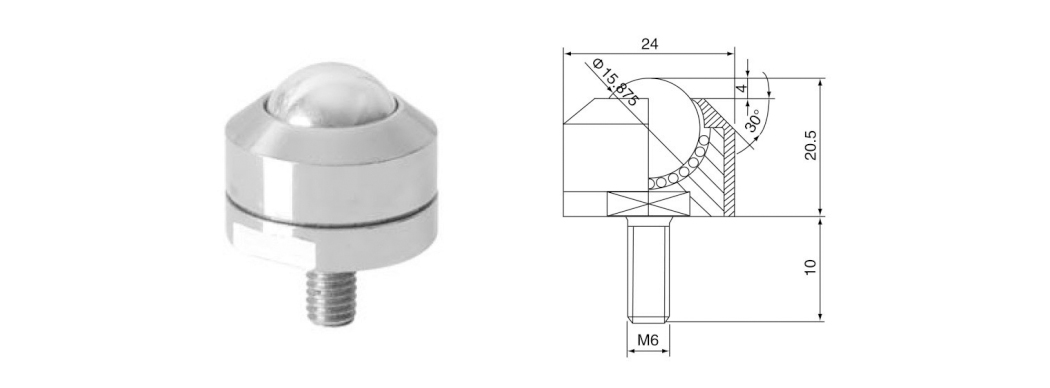

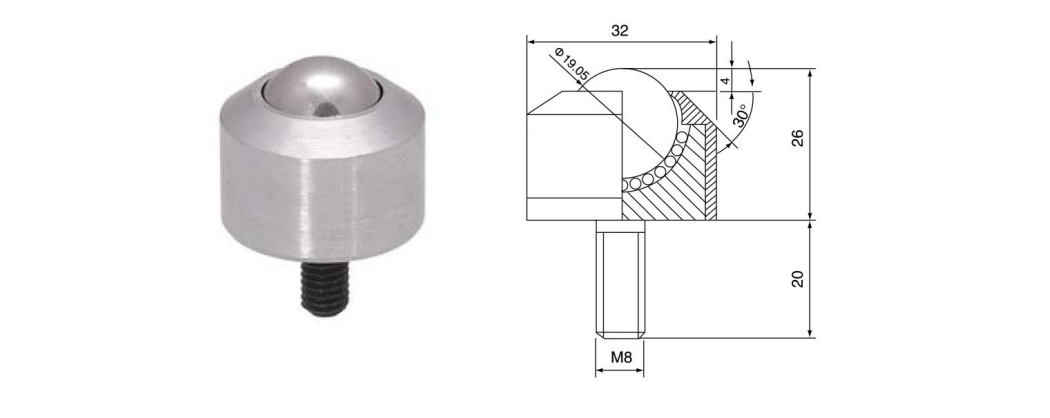

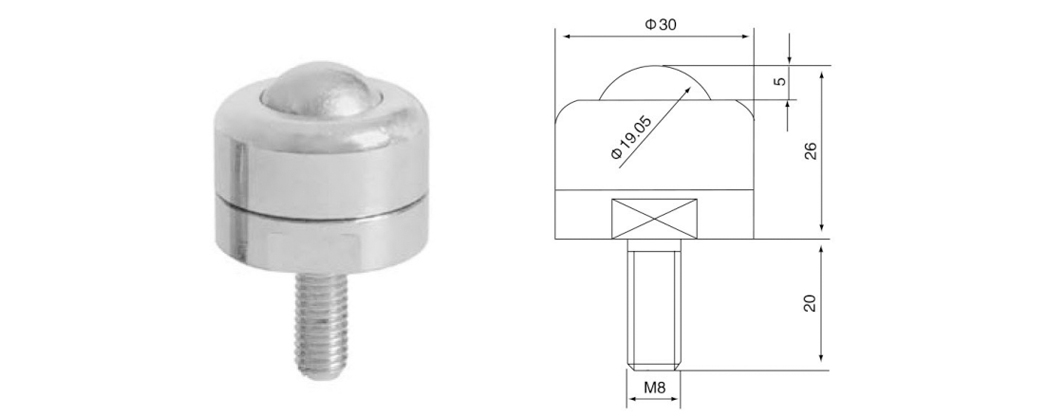

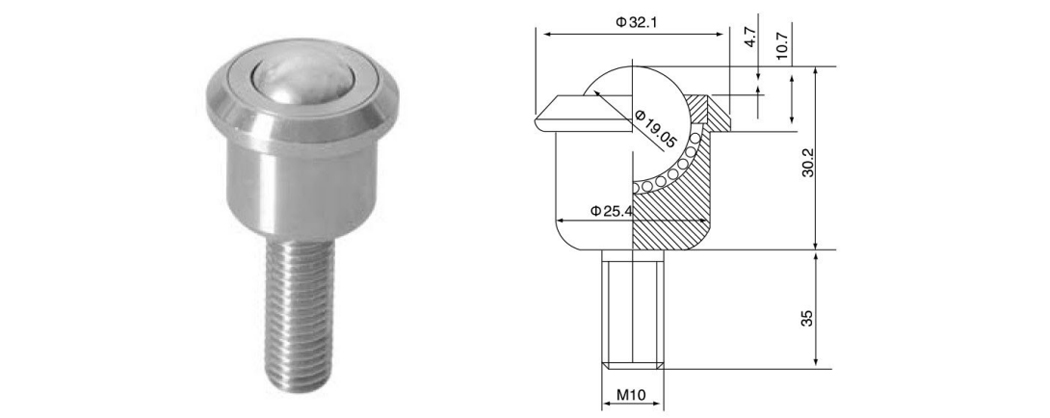

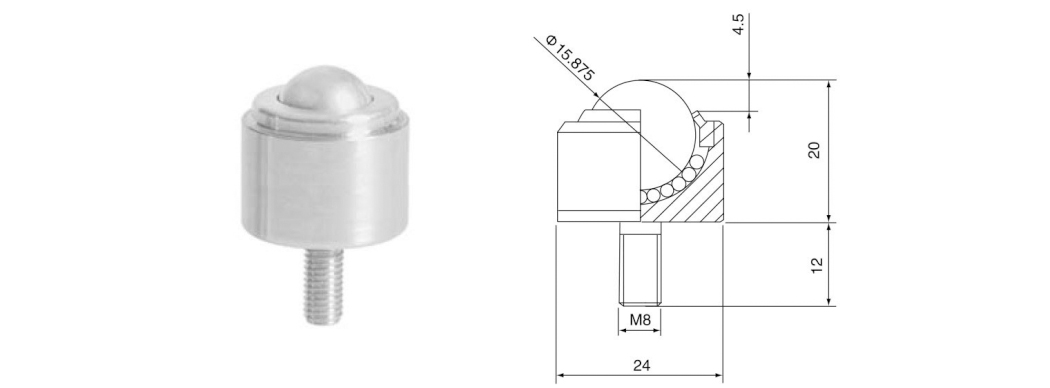

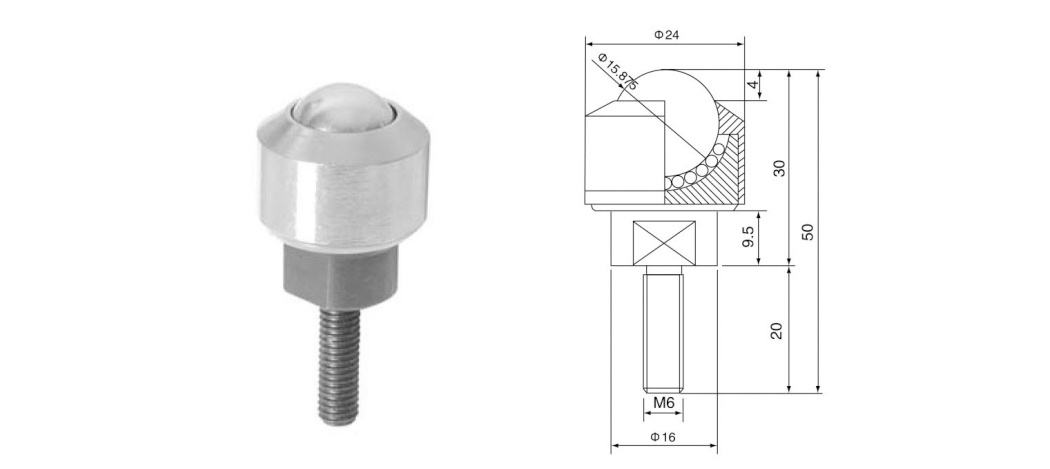

Bolt Mount D Series
Cat:Universal Ball

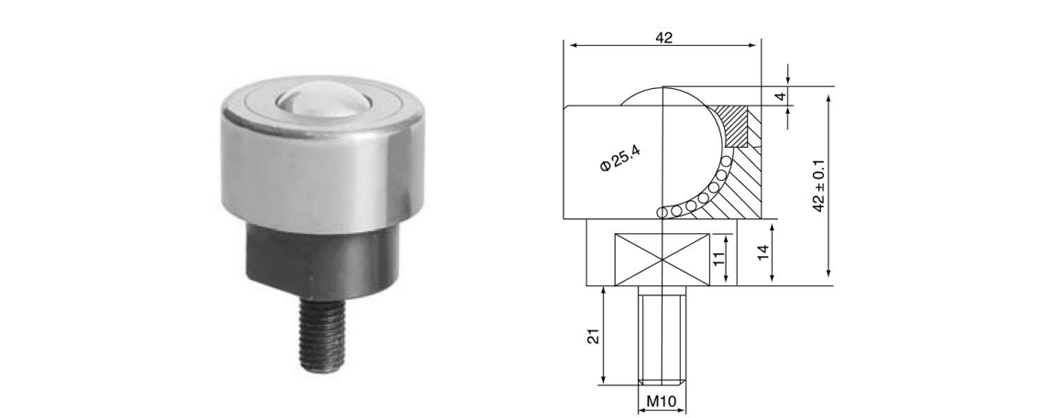

Model No. Material (kg)Loading Capacity (kg)Net Weight Suggest Max. D-5HC BS/CS 16 20 ...
See Details
Model No. Material (kg)
Loading Capacity(kg)
Net WeightSuggest Max. D-5HC BS/CS 16 20 0.055
Model No. Material (kg)
Loading Capacity(kg)
Net WeightSuggest Max. D-5HT BS/CS 16 20 0.120
Model No. Material (kg)
Loading Capacity(kg)
Net WeightSuggest Max. D-5HR BS/CS 16 20 0.065
Model No. Material (kg)
Loading Capacity(kg)
Net WeightSuggest Max. D-5HB BS/CS 80 100 0.370
Model No. Material (kg)
Loading Capacity(kg)
Net WeightSuggest Max. D-6HT BS/CS 40 50 0.150
Model No. Material (kg)
Loading Capacity(kg)
Net WeightSuggest Max. D-6HR BS/CS 60 70 0.210
Model No. Material (kg)
Loading Capacity(kg)
Net Weight建议
SuggestMax. D-6HC BS/CS 60 70 0.210
Model No. Material (kg)
Loading Capacity(kg)
Net WeightSuggest Max. D-6HN BS/CS 50 70 0.210
Model No. Material (kg)
Loading Capacity(kg)
Net WeightSuggest Max. D-8HN BS/CS 100 150 0.230
Model No. Material (kg)
Loading Capacity(kg)
Net WeightSuggest Max. D-12HA BS/CS 250 300 0.890
Model No. Material (kg)
Loading Capacity(kg)
Net WeightSuggest Max. D-12HAR BS/CS 250 300 0.890
Model No. Material (kg)
Loading Capacity(kg)
Net WeightSuggest Max. D-16HA BS/CS 350 450 2.200 -

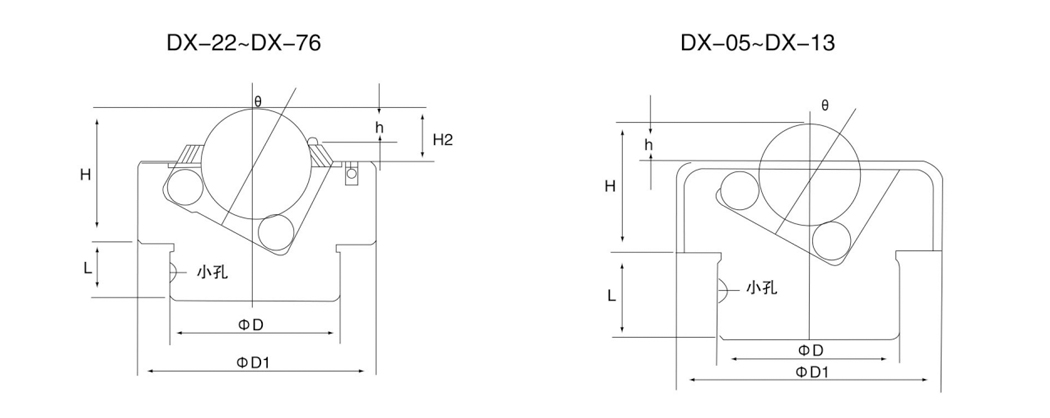

One-way Roller DX Series
Cat:Universal Ball
Set the right direction and be able to orientate long stroke. It is suitable for use without 360 deg...
See DetailsSet the right direction and be able to orientate long stroke.
It is suitable for use without 360 degrees of free rotation, or when the direction of control is uncertain, in addition to the friction coefficient is small but can achieve long-range motion characteristics.
It is mainly used for the lubricating surface and feeding device of the rotary table and the moving of heavy objects. It can be used for the stroke of piston movement and the conveying table.
Model Number Main Ball θ H H2 h L D D1 off-center (kg)
Weight(kg)
Loading CapacityDX-05 7101 3/16" 25 5.38 1.5 1.0 5.0 8 12.2 2.5 0.005 30 DX-06 7102 1/4" 25 7.17 2.5 1.8 6.0 12 16.2 2.6 0.010 40 DX-07 7103 5/16" 25 8.97 2.0 2.0 8.0 13 19.2 2.6 0.020 50 DX-08 7104 3/8" 25 12 3.0 3.0 9.0 17 26.2 3.4 0.050 70 DX-09 7105 1/2" 25 15 4.0 4.0 11.0 20 38.0 5.0 0.110 90 -

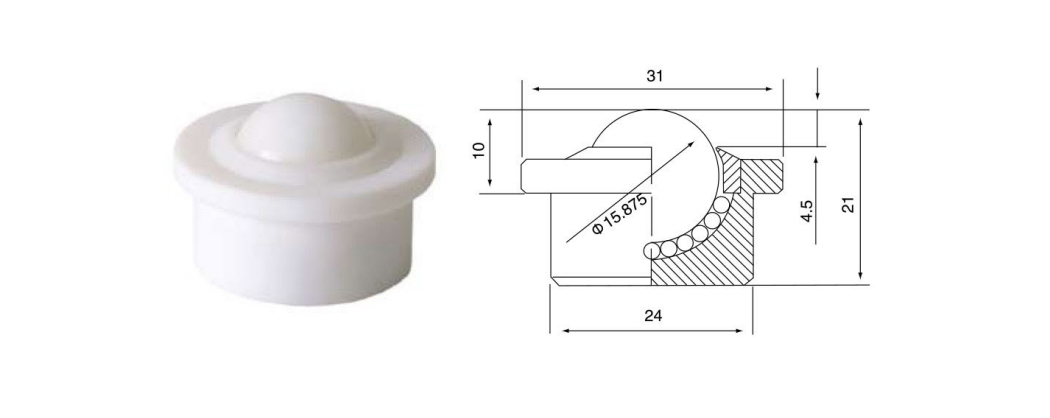

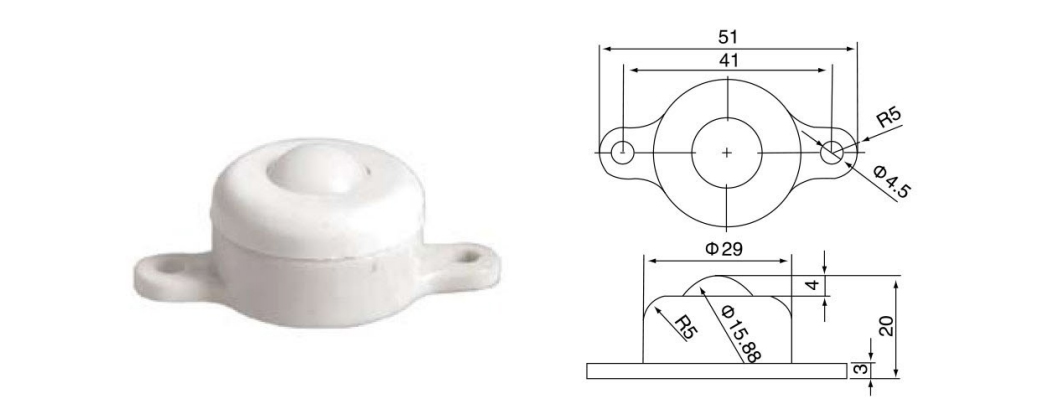

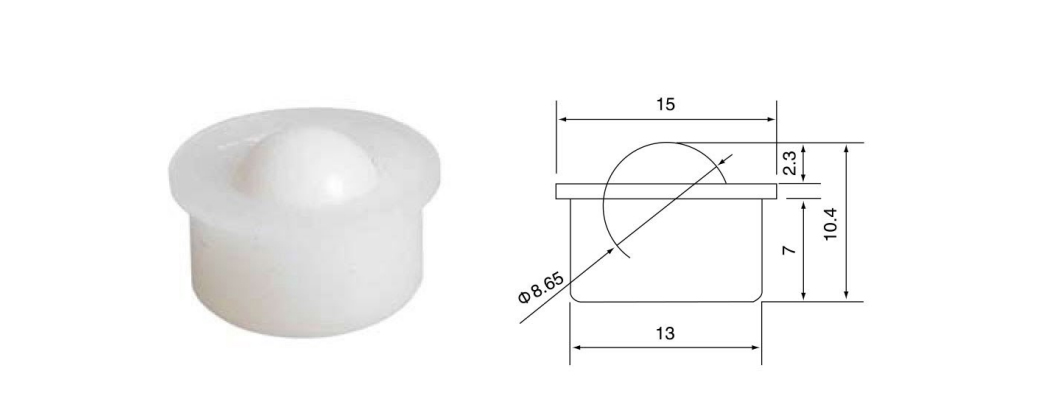

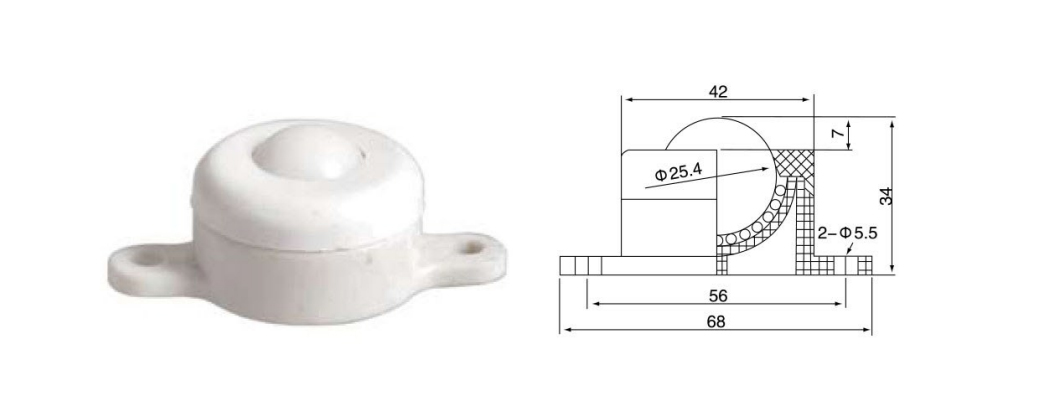

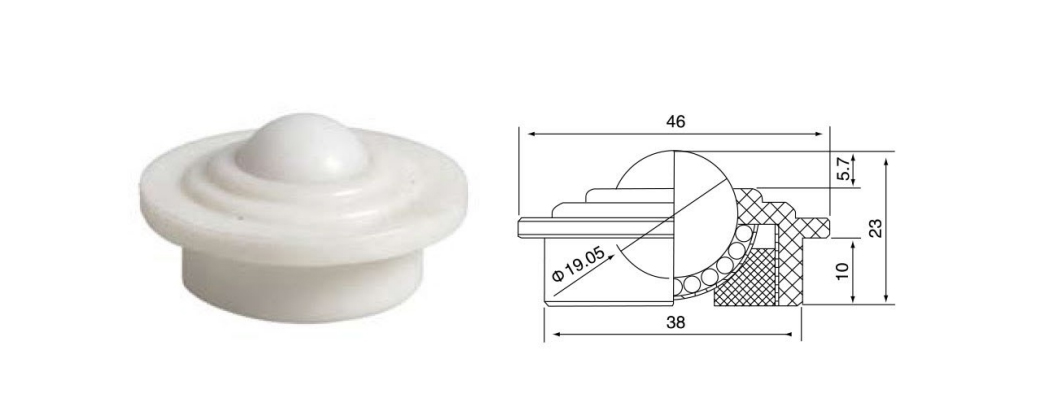

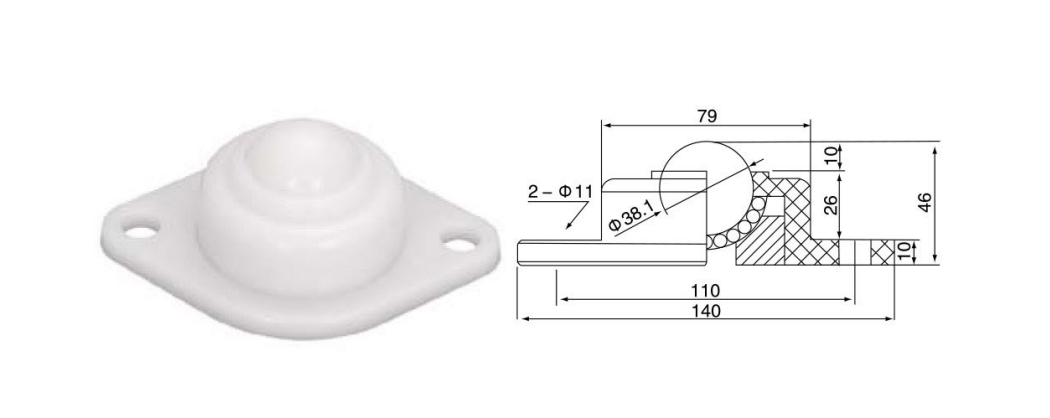

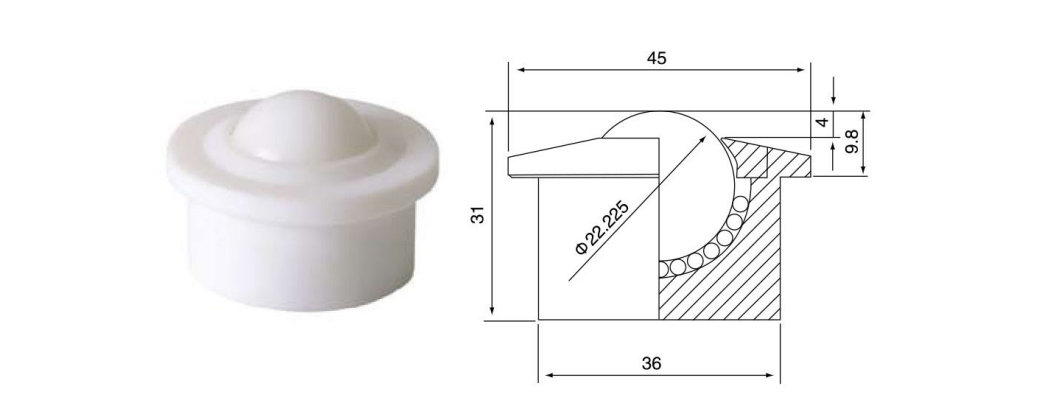

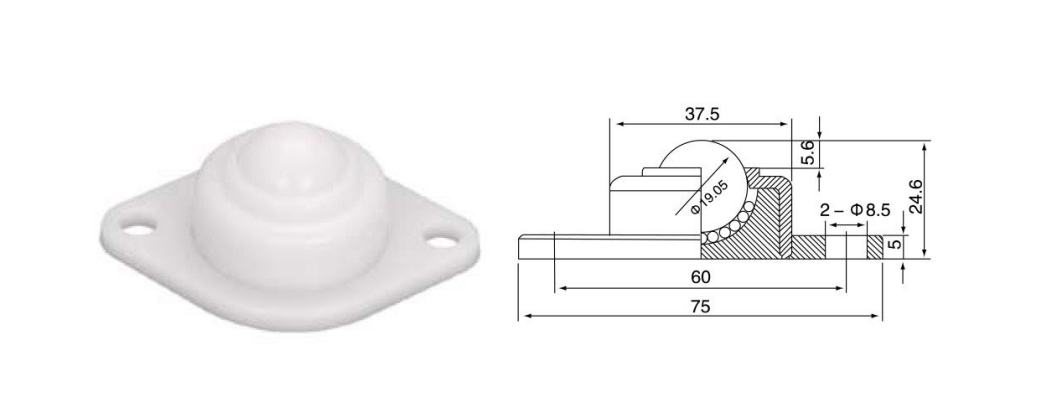

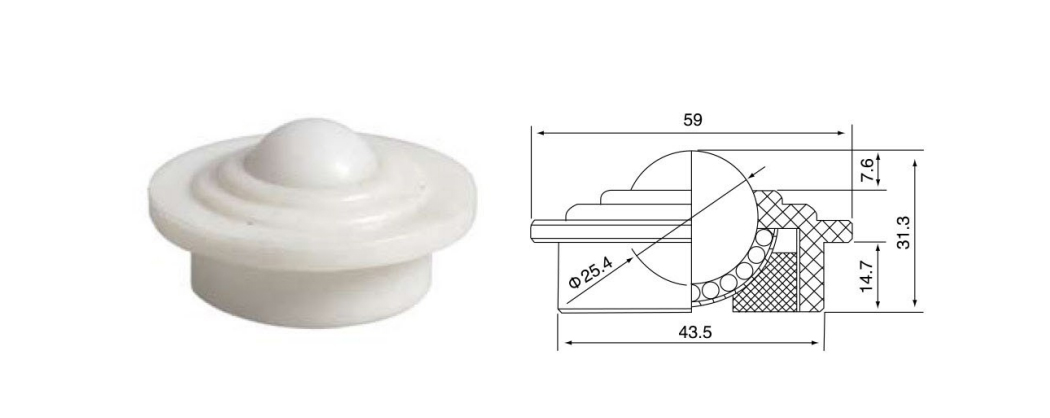

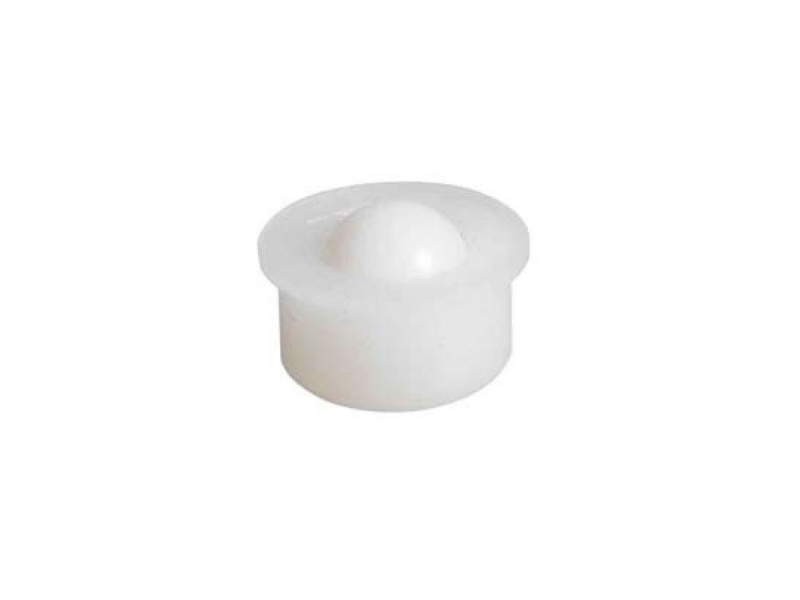

POM Plastic, Nylon NL Series
Cat:Universal Ball
Model No. Material (kg)Loading Capacity (kg)Net Weight Suggest Max. NL-8H PL/ABS 2 3 0.00...
See Details
Model No. Material (kg)
Loading Capacity(kg)
Net WeightSuggest Max. NL-8H PL/ABS 2 3 0.003
Model No. Material (kg)
Loading Capacity(kg)

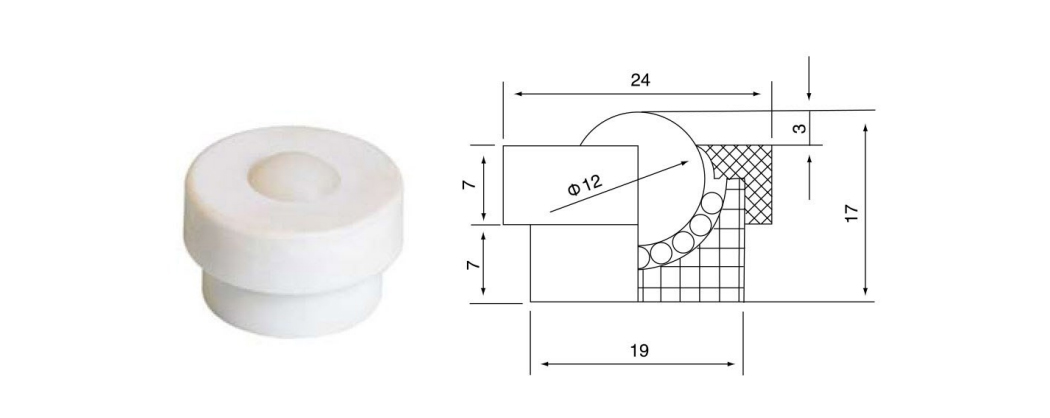

Net WeightSuggest Max. NP-12 PL/PL 5 10 0.020
Model No. Material (kg)
Loading Capacity(kg)
Net WeightSuggest Max. NP-15 PL/PL 8 15 0.030
Model No. Material (kg)
Loading Capacity(kg)
Net WeightSuggest Max. NP-22 PL/NL 12 20 0.060
Model No. Material (kg)
Loading Capacity(kg)

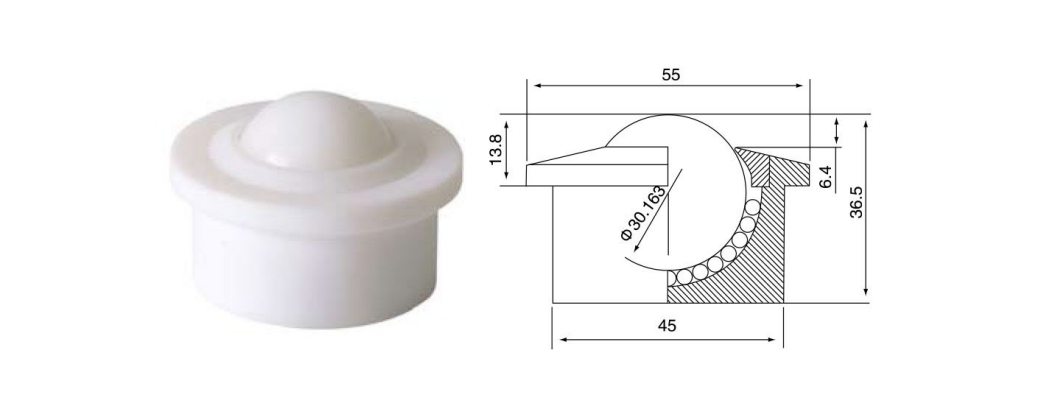

Net WeightSuggest Max. NP-25 PL/PL 20 30 0.100
Model No. Material (kg)
Loading Capacity(kg)
Net WeightSuggest Max. NP-30 PL/ABS 30 40 0.180
Model No. Material (kg)
Loading Capacity(kg)
Net WeightSuggest Max. NL-19C PL/PL 10 15 0.050 SS/PL 12 17 0.060
Model No. Material (kg)
Loading Capacity(kg)
Net WeightSuggest Max. NL-25C PL/PL 20 25 0.110 SS/PL 25 30 0.125
Model No. Material (kg)
Loading Capacity(kg)

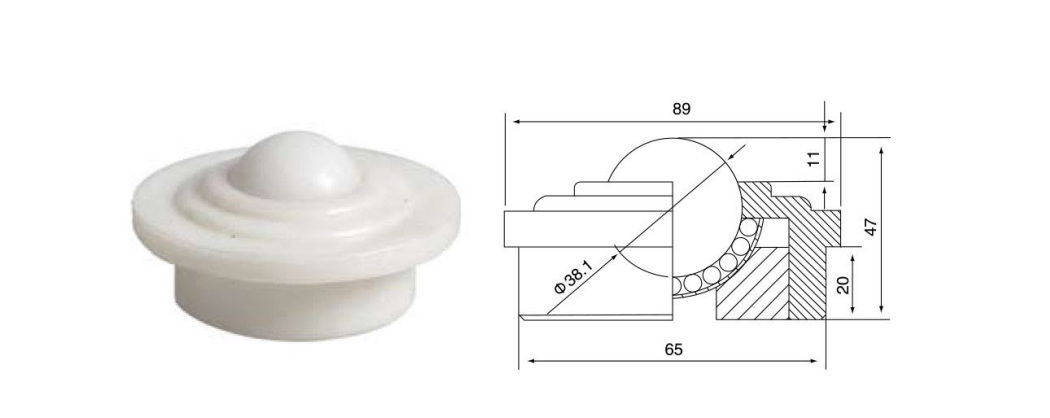

Net WeightSuggest Max. NL-38C PL/ABS 25 35 0.400 SS/ABS 30 40 0.650
Model No. Material (kg)
Loading Capacity(kg)

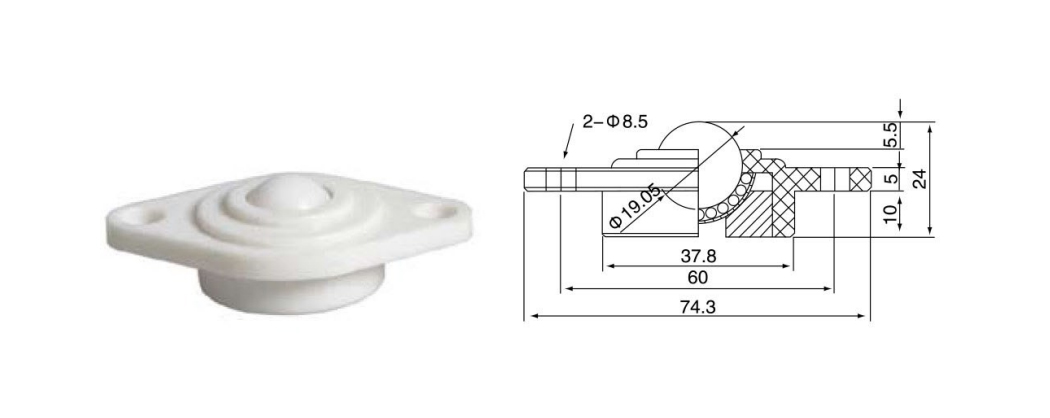

Net WeightSuggest Max. NL-19A PL/ABS 10 15 0.050 SS/ABS 12 17 0.060
Model No. Material (kg)
Loading Capacity(kg)

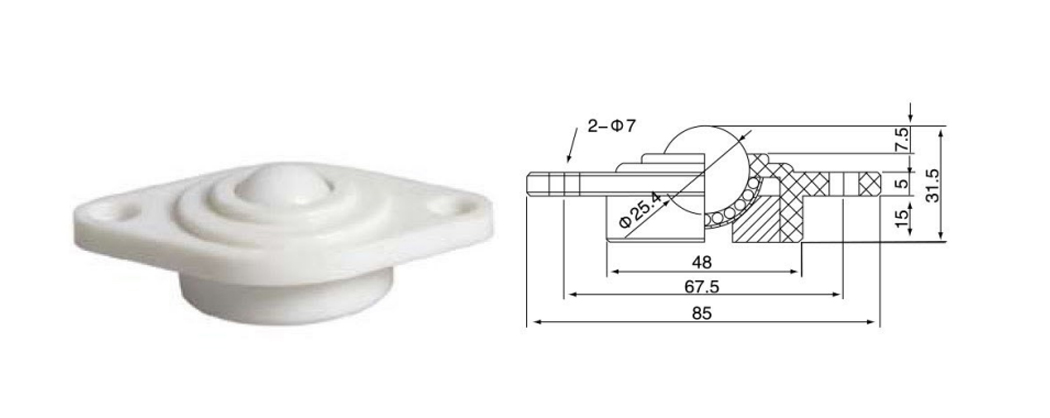

Net WeightSuggest Max. NL-25A PL/ABS 20 25 0.110 SS/ABS 25 30 0.125
Model No. Material (kg)
Loading Capacity(kg)

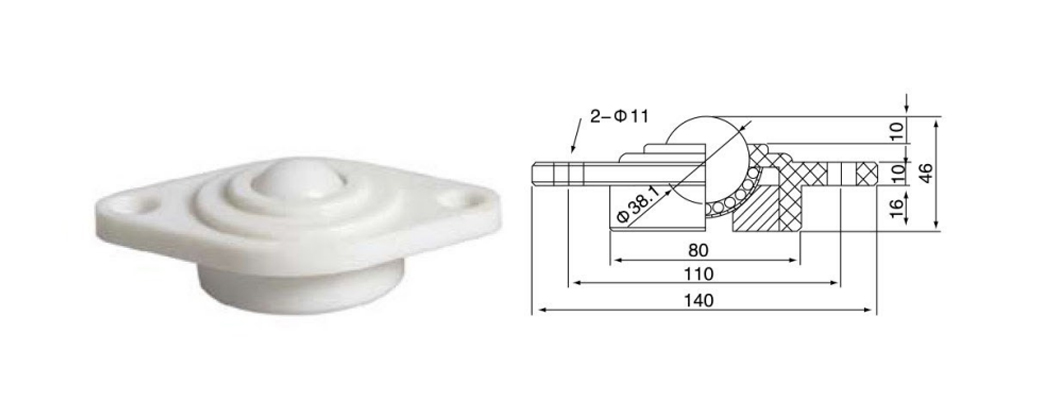

Net WeightSuggest Max. NL-38A PL/ABS 25 35 0.400 SS/ABS 30 40 0.650
Model No. Material (kg)
Loading Capacity(kg)
Net WeightSuggest Max. NL-19B PL/ABS 10 15 0.050 SS/ABS 12 17 0.060
Model No. Material (kg)
Loading Capacity(kg)
Net WeightSuggest Max. NL-25B PL/ABS 20 25 0.110 SS/ABS 25 30 0.125
Model Material (kg)
Loading Capacity(kg)
Net WeightSuggest Max. NL-38B PL/ABS 25 35 0.410
Model No. Material (kg)
Loading Capacity(kg)
Net WeightSuggest Max. NL-25AA PL/ABS 15 20 0.050
Model No. Material (kg)
Loading Capacity(kg)
Net WeightSuggest Max. NL-22AA PL/ABS 8 15 0.050
Model No. Material (kg)
Loading Capacity(kg)
Net WeightSuggest Max. NL-16AA PL/ABS 8 10 0.035 -

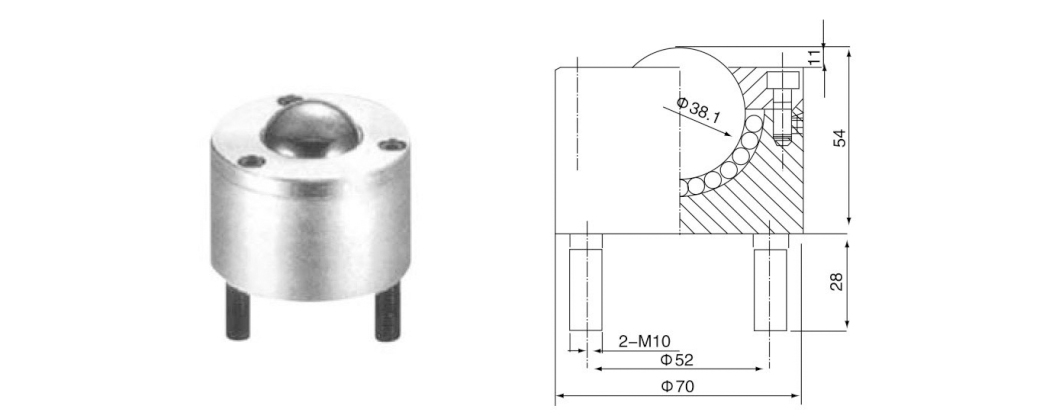

Customized special non-standard universal ball FB series
Cat:Universal Ball
Model No. ID Single loading Allowable loading Weight FB-001 8801 5kg 8kg 60g Model No....
See Details
Model No. ID Single loading Allowable loading Weight FB-001 8801 5kg 8kg 60g
Model No. ID Single loading Allowable loading Weight FB-002 8803 100kg 150kg 720g
Model No. ID Single loading Allowable loading Weight FB-003 8805 80kg 100kg 1.2kg
Model No. ID Single loading Allowable loading Weight FB-004 8807 35kg 40kg 150g
Model No. ID Single loading Allowable loading Weight FB-005 8809 250kg 300kg 1.7kg
Model No. ID Single loading Allowable loading Weight FB-006 8802 300kg 350kg 3.2kg
Model No. ID Single loading Allowable loading Weight FB-007 8804 400kg 500kg 2.62kg
Model No. ID Single loading Allowable loading Weight FB-008 8806 350kg 450kg 2.2kg
Model No. ID Single loading Allowable loading Weight FB-009 8808 1500kg 2000kg 6.5kg
Model No. ID Single loading Allowable loading Weight FB-010 8810 300kg 350kg 6.5kg
Model No. ID Single loading Allowable loading Weight FB-011 8811 100g 150kg 210g
Model No. ID Single loading Allowable loading Weight FB-012 8813 200kg 250kg 480g
Model No. ID Single loading Allowable loading Weight FB-013 8815 80kg 100kg 370g
Model No. ID Single loading Allowable loading Weight FB-014 8817 10kg 15kg 70g
Model No. ID Single loading Allowable loading Weight FB-015 8819 30kg 40kg 40g
Model No. ID Single loading Allowable loading Weight FB-016 8812 10kg 12kg 140g
Model No. ID Single loading Allowable loading Weight FB-017 8814 15kg 20kg 90g
Model No. ID Single loading Allowable loading Weight FB-018 8816 15kg 20kg 110g
Model No. ID Single loading Allowable loading Weight FB-019 8818 150kg 200kg 290g
Model No. ID Single loading Allowable loading Weight FB-020 8820 200kg 250kg 250g
Model No. ID Single loading Allowable loading Weight FB- 021 8821 250kg 300kg 320g
Model No. ID Single loading Allowable loading Weight FB-022 8823 250kg 300kg 450g
Model No. ID Single loading Allowable loading Weight FB-023 8825 200kg 250kg 600g
Model No. ID Single loading Allowable loading Weight FB-024 8827 200kg 250kg 1.4kg
Model No. ID Single loading Allowable loading Weight FB- 025 8829 250kg 300kg 430g
Model No. ID Single loading Allowable loading Weight FB- 026 8822 600kg 800kg 2.5kg
Model No. ID Single loading Allowable loading Weight FB-027 8824 400kg 500kg 1.5kg
Model No. ID Single loading Allowable loading Weight FB-028 8826 400kg 450kg 890g
Model No. ID Single loading Allowable loading Weight custom-029 8828 20kg 30kg 330kg
Model No. ID Single loading Allowable loading Weight custom-030 8830 10kg 15kg 110g -
Stainless Steel BCHA Series
Cat:Universal Ball
Model No. (kg)Loading Capacity ( mm )Dimensions (kg)Weight Material Suggest Max. d D D1 H ...
See Details
Model No. (kg)Loading Capacity ( mm )
Dimensions(kg)
WeightMaterial Suggest
Max.d D D1 H h1 h2 BCHA7.5 SS/SS 2 3 4 9
7.56.1 1.1
40.005 BCHA9 SS/SS 3 4 4.76 11 9 7.2 1.2 5 0.008 BCHA11 SS/SS 4 5 5.56 13 11 8.5 1.5 6 0.010 BCHA15 SS/SS 6 7 8.73 17 15 12.5 2.5 9 0.015 BCHA18 SS/SS 8 10 10.32 20 18 14.5 3.5 10 0.030 BCHA24 SS/SS 12 18 15.87 26 24 20.8 5.3 14 0.060 BCHA30 SS/SS 15 20 19.05 32 30 25.3 6.3 17 0.185 -
Stainless Steel BCHF Series
Cat:Universal Ball
Model No. (kg)Loading Capacity (mm)Dimensions Material Suggest Max. d D D1 H h1 h2 t P a B...
See Details
Model No. (kg)Loading Capacity (mm)
DimensionsMaterial Suggest Max. d D D1 H h1 h2 t P
aBCHF27 SS/SS 6 7 8.73 27 15 12 2.5 9.5 2 21 3.5 BCHF30 SS/SS 8 10 10.32 30 18 15 3.5 11.5 2 24 3.5 BCHF39 SS/SS 12 18 15.87 39 24 20 5.3 14.7 3
31.54.5 BCHF48 SS/SS 15 20 19.05 48 30 25 6.3 18.7 4 39 5.5 -
Stainless Steel BCHL Series
Cat:Universal Ball
Model No. (kg)Loading Capacity ( mm )Dimensions Material Suggest Max. d H h1 h2 M L S BC...
See Details
Model No. (kg)Loading Capacity ( mm )

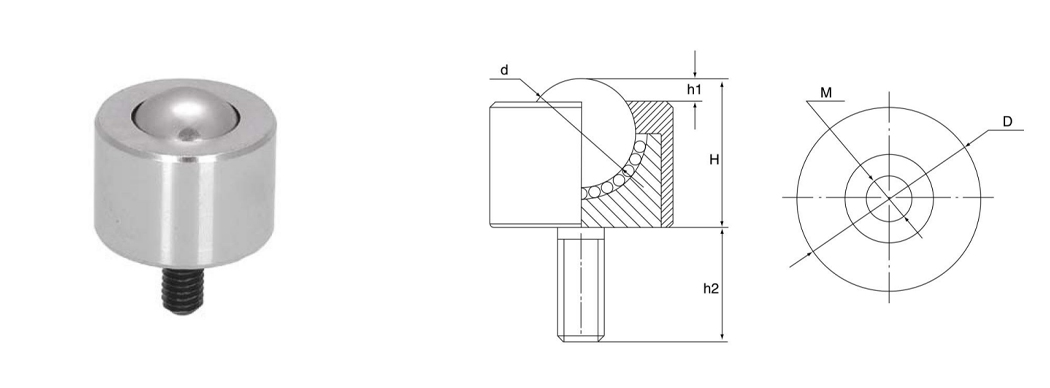

DimensionsMaterial Suggest Max. d H h1 h2 M L S BCHL5 SS/SS 2 3
412.1 1.1
55
6
8BCHL6 SS/SS 3 4 4.76 15.2 1.2 6 6 8 10 BCHL8 SS/SS 4
55.56 18.5 1.5
78 10 13 BCHL10 SS/SS 6 7 8.73 24.5 2.5 10 10 12 17 BCHL12 SS/SS 8 10 10.32 29.5 3.5 11 12 15 19 BCHL16 SS/SS 12 18 15.87 40.3 5.3 15 16 20 24 BCHL20 SS/SS 15 20 19.05 49.3 6.3 18 20 25 30 -
Stainless Steel BCHN Series
Cat:Universal Ball
Model No. (kg)Loading Capacity ( mm )Dimensions Material Suggest Max. d D1 H h1 h2 M L ...
See Details
Model No. (kg)Loading Capacity ( mm )
DimensionsMaterial Suggest Max. d D1 H h1 h2 M L BCHN12 SS/SS 4 5 5.56 12 23 1.5 6.5 6 15 BCHN16 SS/SS 6 7 8.73 16 27 2.5 9.5 6 15 BCHN19 SS/SS 8 10 10.32 19 35 3.5 11.5 8 20 BCHN25 SS/SS 12 18 15.87 25 40 5.3 14.7 8 20 BCHN31 SS/SS 15 20 19.05 31 50 6.3 18.7 10 25 -
Stainless Steel BCHM Series
Cat:Universal Ball
Model No. (kg)Loading Capacity (mm)Dimensions (kg)Weight Material Suggest Max. d D H h1 h2 M...
See Details
Model No. (kg)Loading Capacity (mm)
Dimensions(kg)
WeightMaterial Suggest Max. d D H h1 h2 M L P a BCHM10 SS/SS 6 7 8.73 18.5 24.5 2.5 10 10 12 15.4 2 0.060 BCHM12 SS/SS 8 10 10.32 22 29.5 3.5 11 12 15 18.5 2 0.070 BCHM16 SS/SS 12 18 15.87 27 40.3 5.3 15 16 20 24 2.5 0.090 BCHM20 SS/SS 15 20 19.05 33 49.3 6.3 18 20 25 29.6 2.5 0.140 -
Stainless Steel BCSB Series
Cat:Universal Ball
Model No. (kg)Loading Capacity (mm)Dimensions Material Suggest Max. d D H h1 M S BCSB8 SS/...
See Details
Model No. (kg)Loading Capacity (mm)
DimensionsMaterial Suggest Max. d D H h1 M S BCSB8 SS/SS 3 4 4.76 5 14 1.3 8 4 BCSB10 SS/SS 3 4 4.76 7 16 1.2 10 5 BCSB12 SS/SS 4 5 5.56 8 20 1.5 12 6 BCSB16 SS/SS 6 7 8.73 12 25 2.5 16 8 BCSB20 SS/SS 8 10 10.32 15 30 3.5 20 10
