W-2015SUS
Cat:SUS Wheel Conveyor
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading(kg) ...
wxhq56@foxmail.com
wxhq56@foxmail.com
Advanced structure, high-quality performance, easy to use, high reliability and durability.
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading(kg) ...
Type | D*W*d*b | Shaft | Frame size h*w1*w2*w3*t |
Height H |
Length L |
Wheel pitch P |
Single wheel loading (kg) |
Frame type |

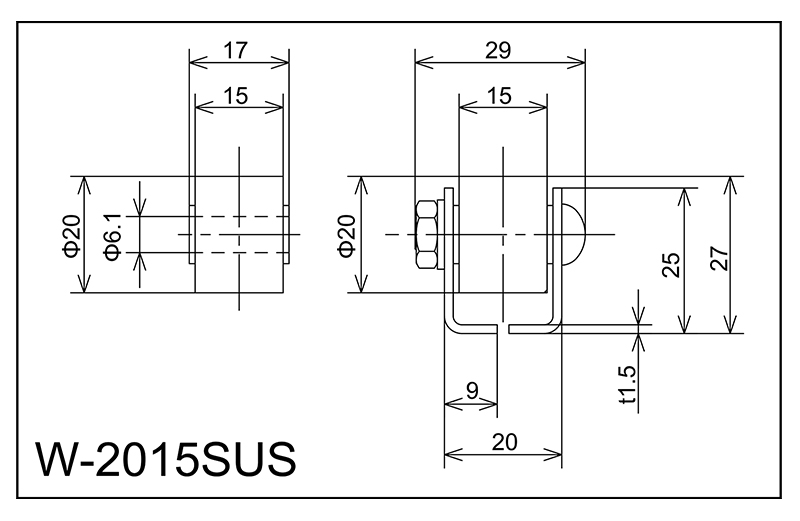

W-2015SUS | 20x15x6.1x17 | M6x25L | 25x20×9x29x1.5 | 27 | 1000 · 1500 · 2000 | 25 · 30 · 35 | 30 | A |
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading(kg) ...
Type | D*W*d*b | Shaft | Frame size h*w1*w2*w3*t |
Height H |
Length L |
Wheel pitch P |
Single wheel loading (kg) |
Frame type |

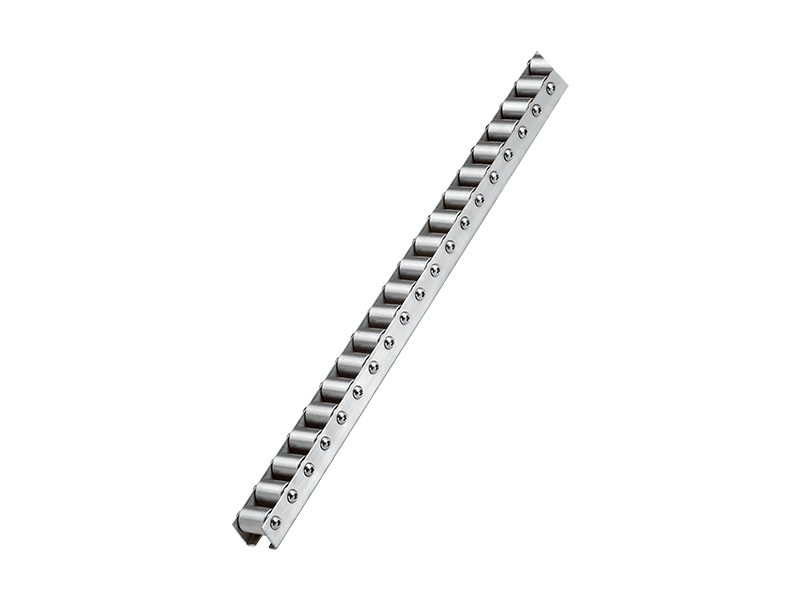

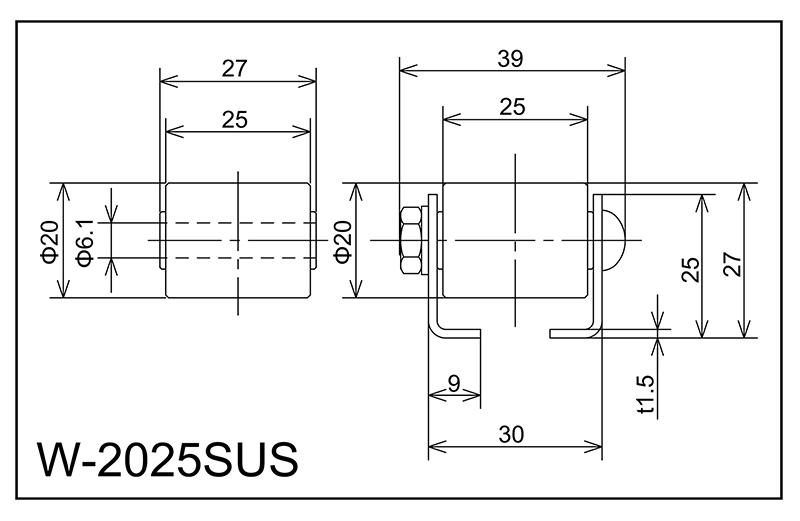

W-2025SUS | 20x25x6.1x27 | M6x35L | 25x30x9x39x1.5 | 27 | 1000 · 1500 · 2000 | 25 · 30 · 35 | 40 | A |
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading(kg) ...
Type | D*W*d*b | Shaft | Frame size h*w1*w2*w3*t |
Height H |
Length L |
Wheel pitch P |
Single wheel loading (kg) |
Frame type |

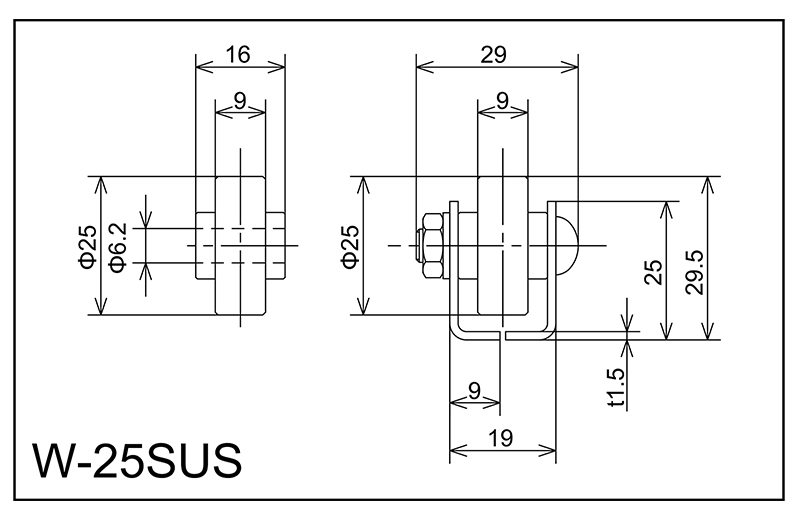

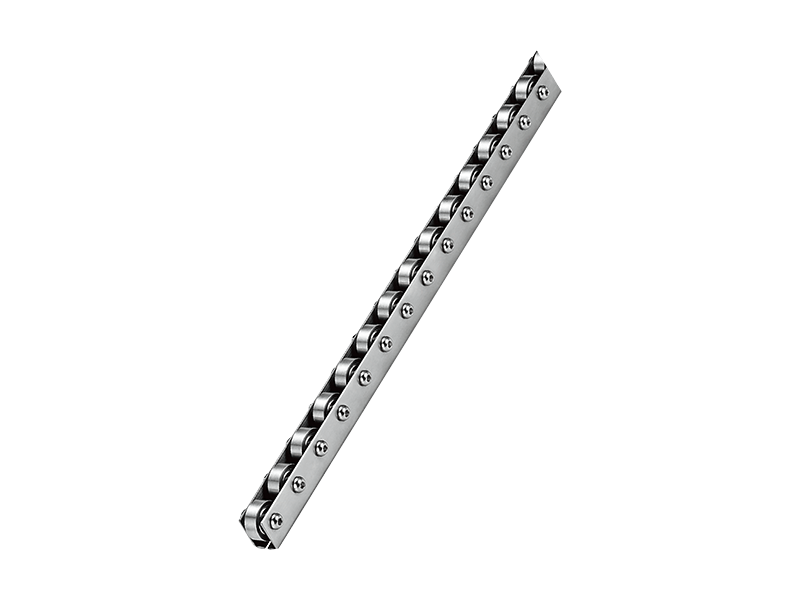

W-25SUS | 25x9x6.2x16 | M6x25L | 25x19x9x29x1.5 | 29.5 | 1000 · 1500 · 2000 | 30 · 35 | 30 | A |
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading(kg) ...
Type | D*W*d*b | Shaft | Frame size h*w1*w2*w3*t |
Height H |
Length L |
Wheel pitch P |
Single wheel loading (kg) |
Frame type |

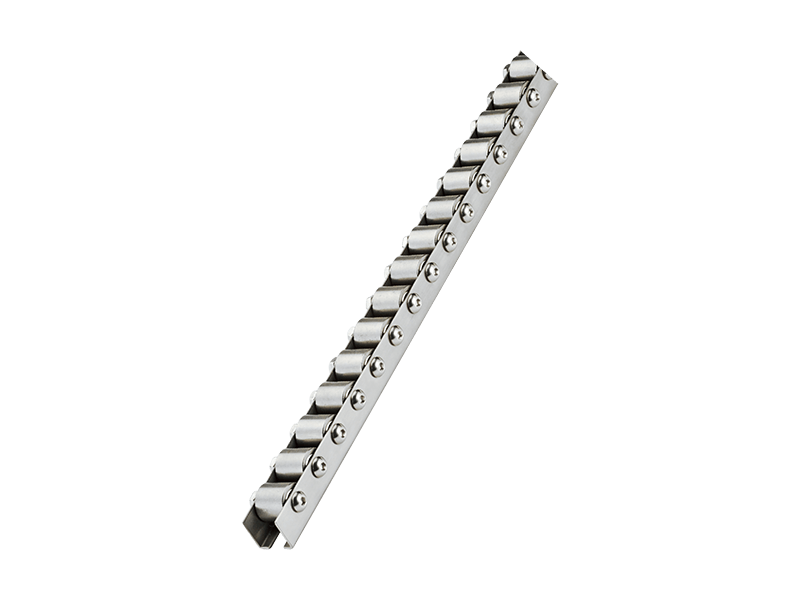

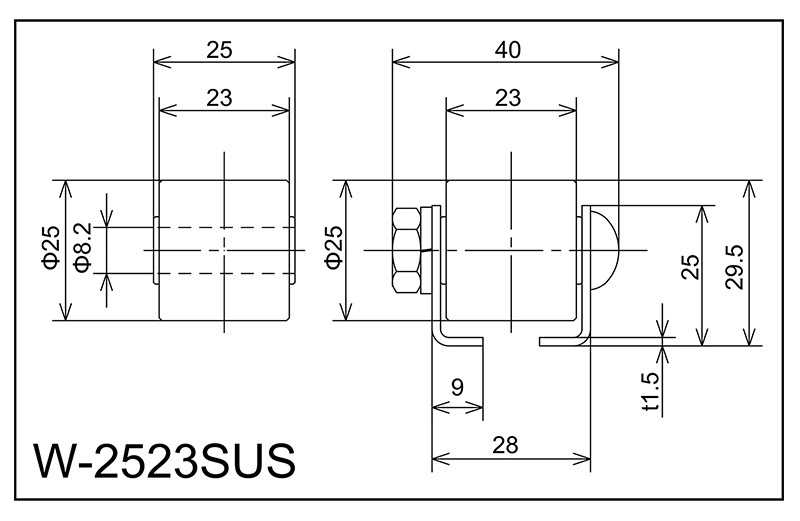

W-2523SUS | 25x23x8.2x25 | M8x35L | 25x28x9x40x1.5 | 29.5 | 1000 · 1500 · 2000 | 30 · 35 | 50 | A |
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading(kg) ...
Type | D*W*d*b | Shaft | Frame size h*w1*w2*w3*t |
Height H |
Length L |
Wheel pitch P |
Single wheel loading (kg) |
Frame type |

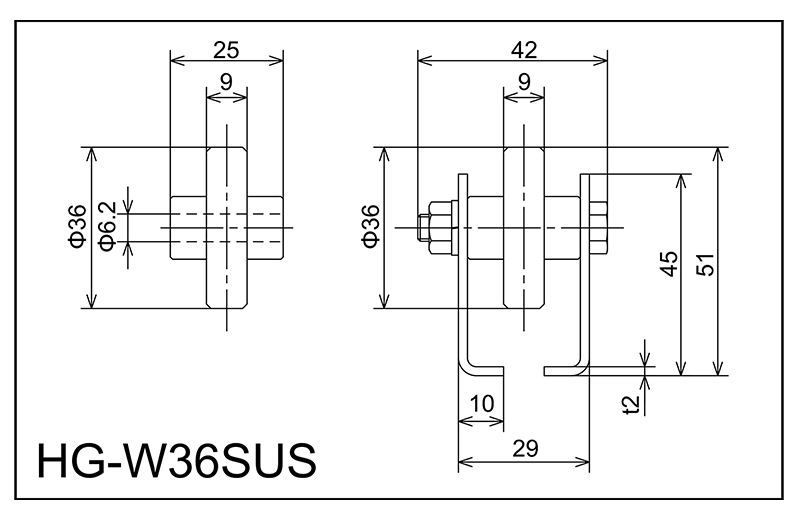

HG-W36SUS | 36x9x6.2x25 | M6x38L | 45x29x10x42x2.0 | 51 | 1800 · 2400 · 3000 | 50 · 75 · 100 · 150 | 40 | A |
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading(kg) ...
Type | D*W*d*b | Shaft | Frame size h*w1*w2*w3*t |
Height H |
Length L |
Wheel pitch P |
Single wheel loading (kg) |
Frame type |

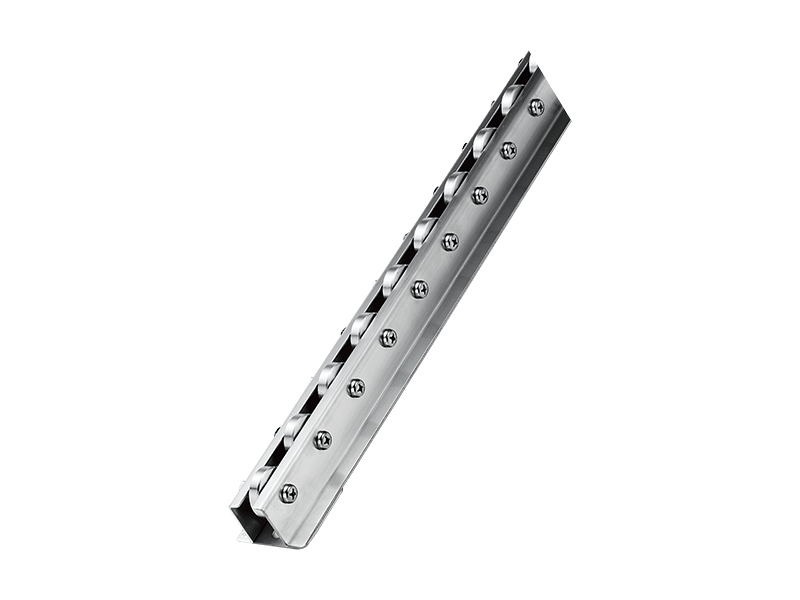

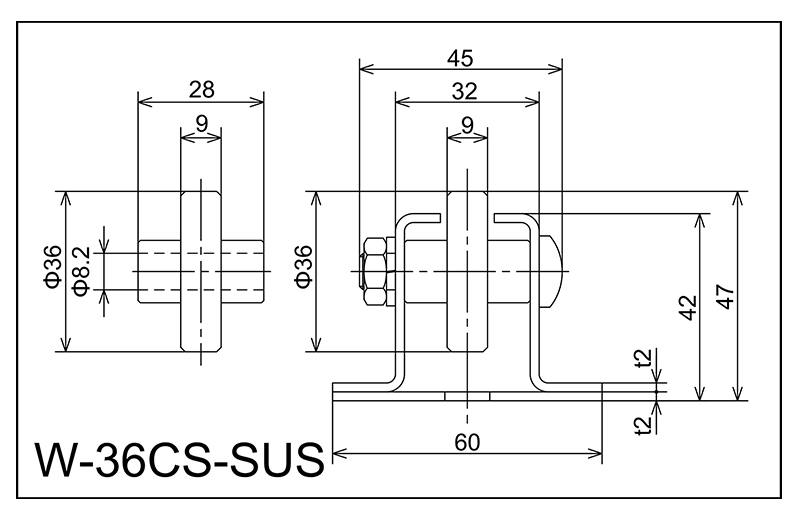

W-36CS-SUS | 36x9x8.2x28 | M8x40L | 42x60x32x45x2.0 | 47 | 1800 · 2400 · 3000 | 50.75 · 100 · 150 | 40 | J |
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading(kg) ...
Type | D*W*d*b | Shaft | Frame size h*w1*w2*w3*t |
Height H |
Length L |
Wheel pitch P |
Single wheel loading (kg) |
Frame type |

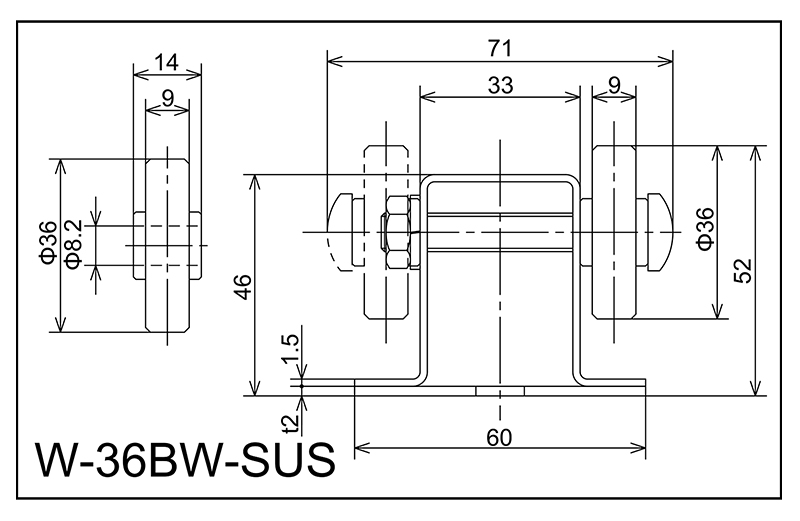

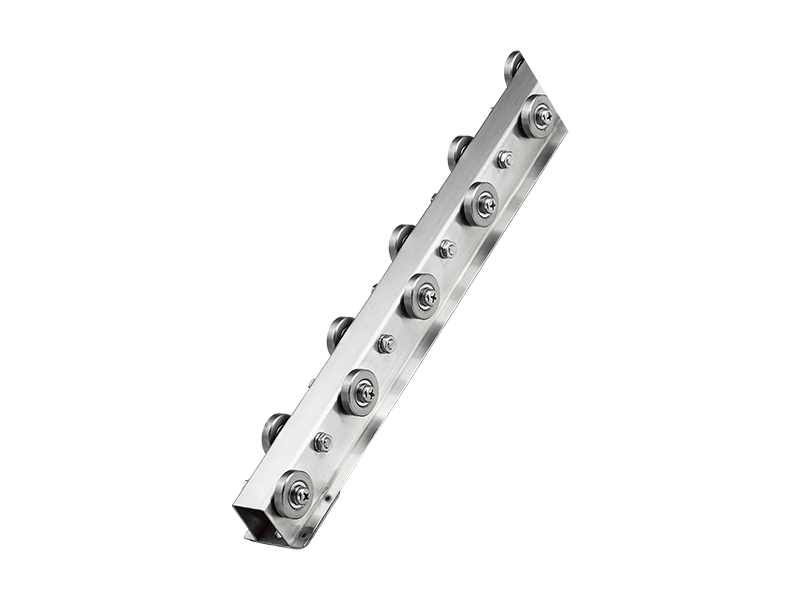

W-36BW-SUS | 36x9x8.2x14 | M8x55L | 46x60x33×71 1.5 2.0 | 52 | 1800 · 2400 · 3000 | 50 · 75 · 100 · 150 | 40 | K |
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading(kg) ...
Type | D*W*d*b | Shaft | Frame size h*w1*w2*w3*t |
Height H |
Length L |
Wheel pitch P |
Single wheel loading (kg) |
Frame type |

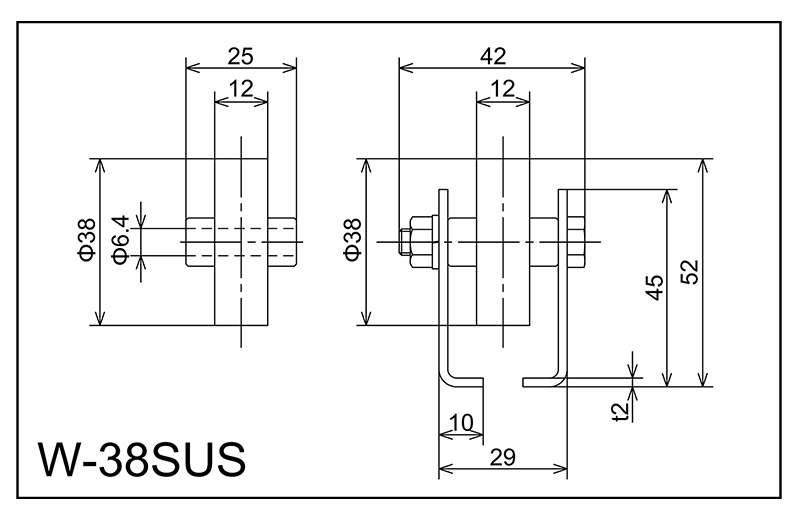

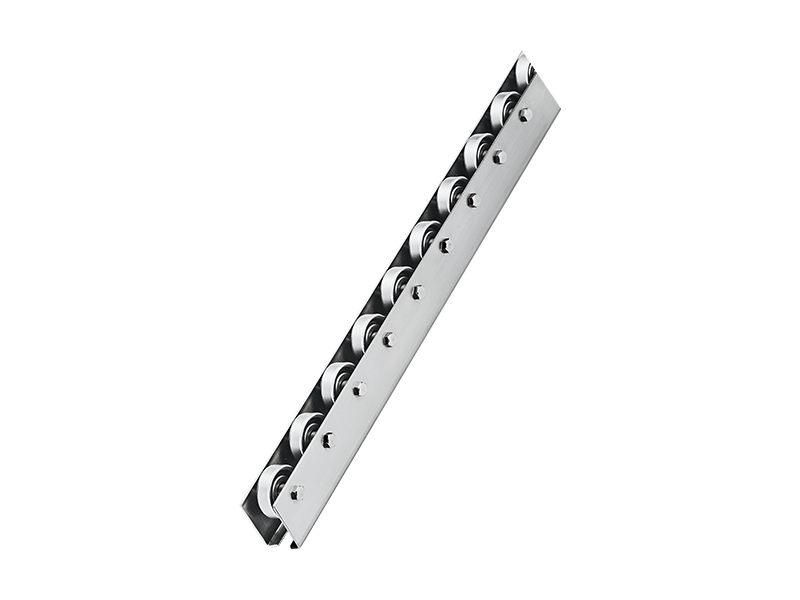

W-38SUS | 38x12x6.4x25 | M6x38L | 45x29x10x42x2.0 | 52 | 1800 · 2400 · 3000 | 50 · 75 · 100 · 150 | 20 | A |
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading(kg) ...
Type | D*W*d*b | Shaft | Frame size h*w1*w2*w3*t |
Height H |
Length L |
Wheel pitch P |
Single wheel loading (kg) |
Frame type |

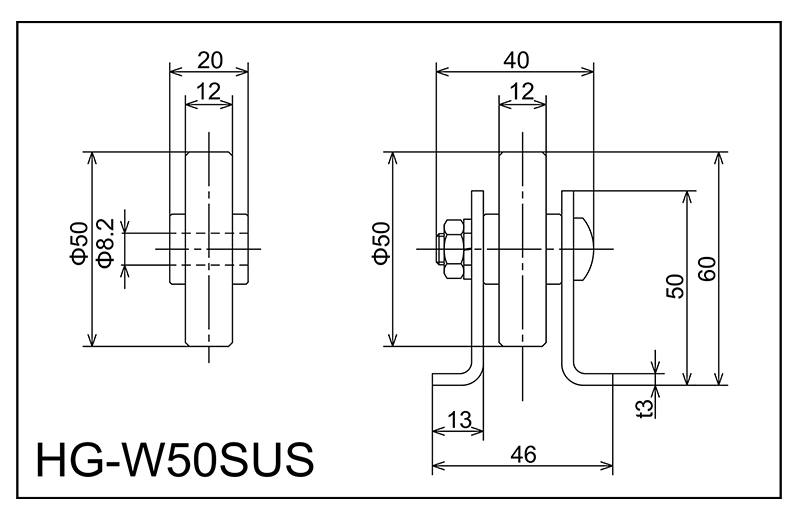

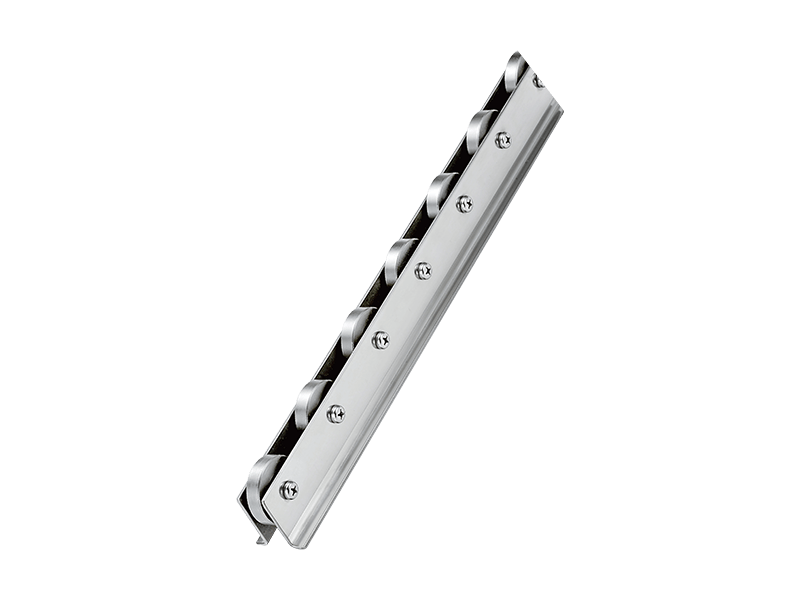

HG-W50SUS | 50x12x8.2x20 | M8x35L | 50x46x13x40x3.0 | 60 | 1800 · 2400 · 3000 | 75 · 100 · 150 · 200 | 80 | C |
