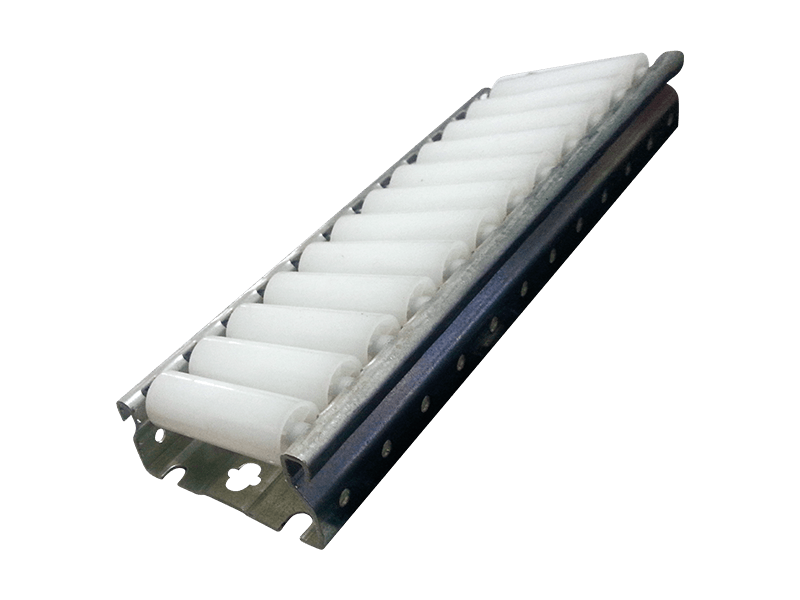

W-1542NPS
Cat:Galvanized Frame Wheel Conveyor
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading(kg) F...
wxhq56@foxmail.com
wxhq56@foxmail.com
Advanced structure, high-quality performance, easy to use, high reliability and durability.
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading(kg) F...
Type | D*W*d*b | Shaft | Frame size h*w1*w2*w3*t |
Height H |
Length L |
Wheel pitch P |
Single wheel loading (kg) |
Frame type | Roller maternal |

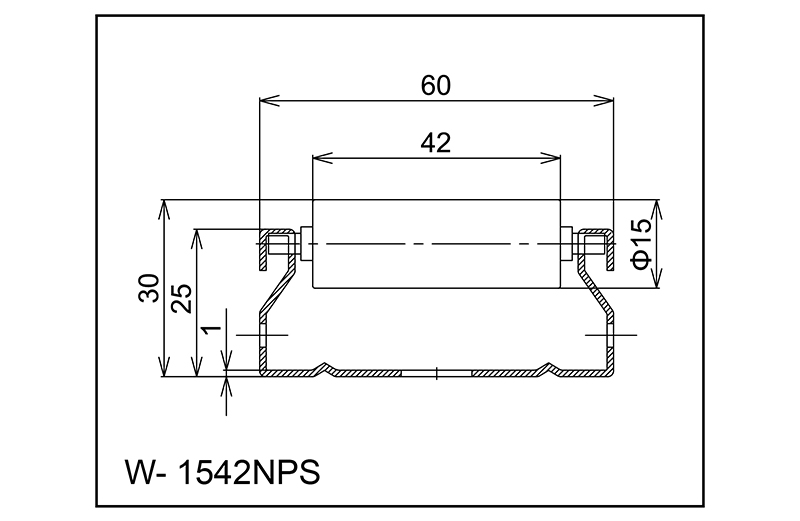

W-1542NPS | 15×42.5×3.5 | 3.5×56L | 25×60×1.0 | 30 | 1000 ·2000 ·3000 | 16 | 20 | Electro galvanized | PE white ABS yellow |
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading(kg) F...
Type | D*W*d*b | Shaft | Frame size h*w1*w2*w3*t |
Height H |
Length L |
Wheel pitch P |
Single wheel loading (kg) |
Frame type | Roller maternal |

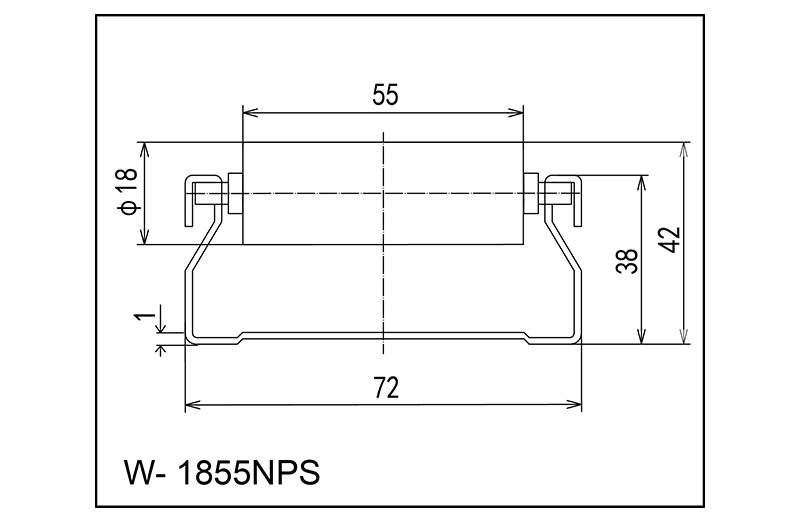

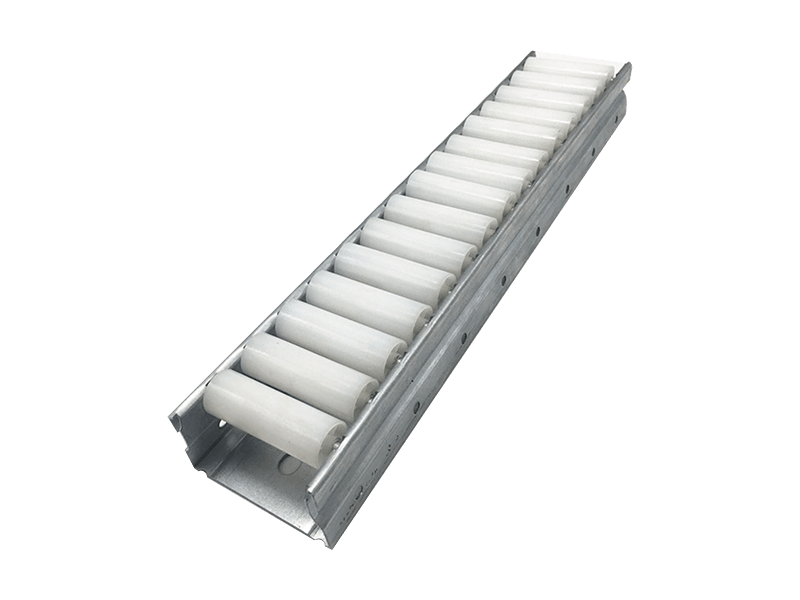

W-1855NPS | 18×55×5 | 5×68L | 42×72×0.8(1.0) | 42 | 1000 ·2000 ·3000 | 20 | 10 | Electro galvanized | ABS PE |
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading(kg) F...
Type | D*W*d*b | Shaft | Frame size h*w1*w2*w3*t |
Height H |
Length L |
Wheel pitch P |
Single wheel loading (kg) |
Frame type | Roller maternal |

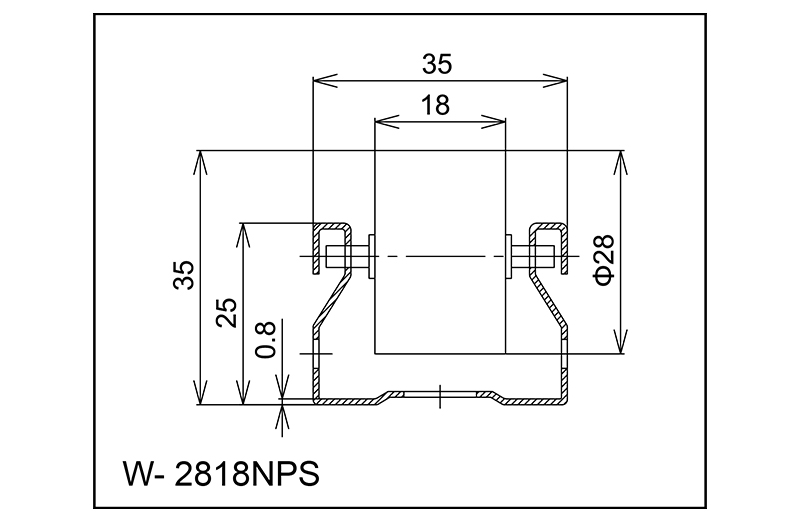

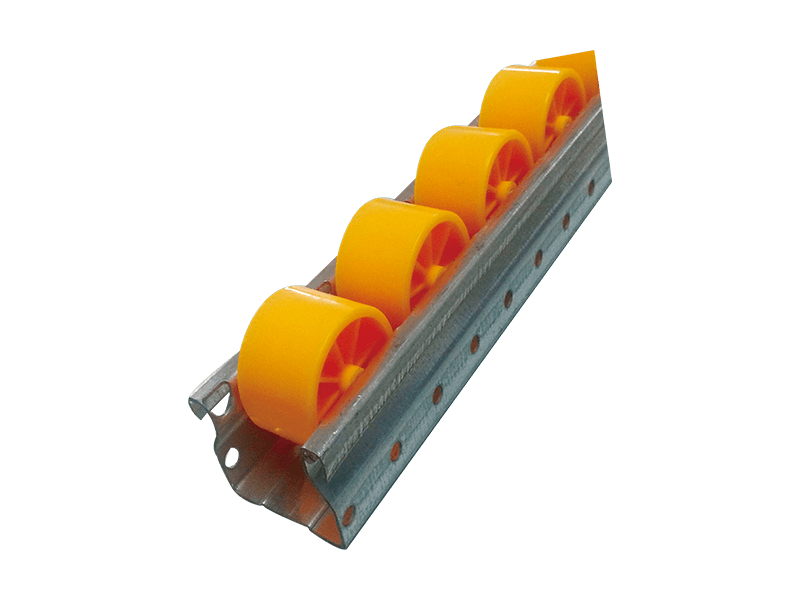

W-2818NPS | 28×18×3 | 3×42L | 25×35×0.8 | 35 | 1000 ·2000 ·3000 | 33 | 10 | Electro galvanized | ABS |
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading(kg) F...
Type | D*W*d*b | Shaft | Frame size h*w1*w2*w3*t |
Height H |
Length L |
Wheel pitch P |
Single wheel loading (kg) |
Frame type | Roller maternal |

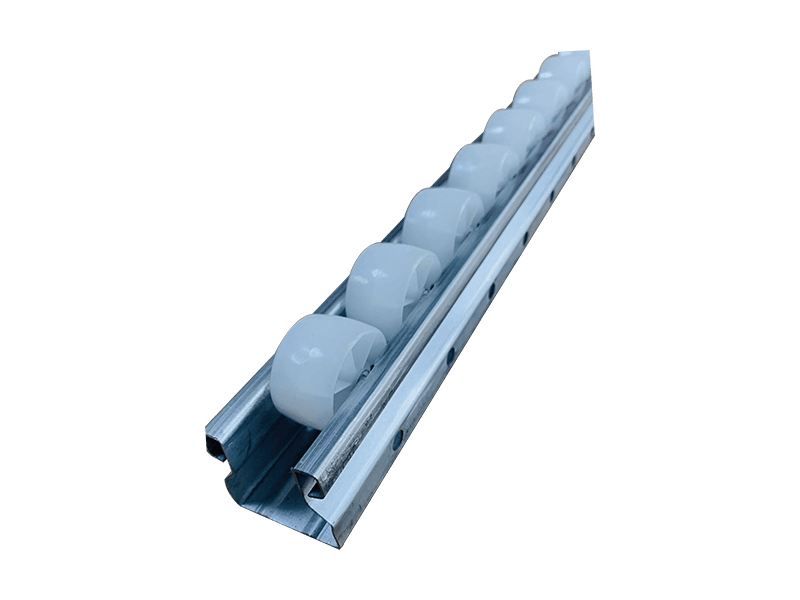

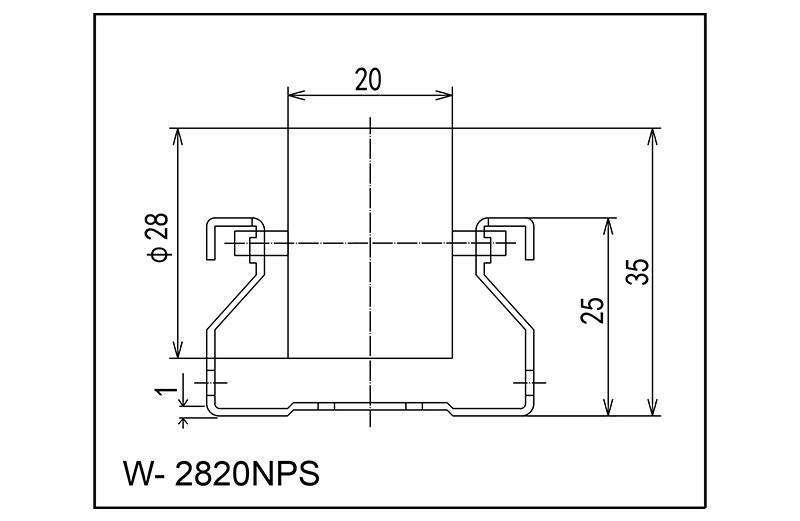

W-2820NPS | 28×20×3 | 3×33L | 25×35×0.8(1.0) | 35 | 1000 ·2000 ·3000 | 33 · 49.5 · 66 | 10 | Electro galvanized | ABS PE |
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading(kg) F...
Type | D*W*d*b | Shaft | Frame size h*w1*w2*w3*t |
Height H |
Length L |
Wheel pitch P |
Single wheel loading (kg) |
Frame type | Roller maternal |

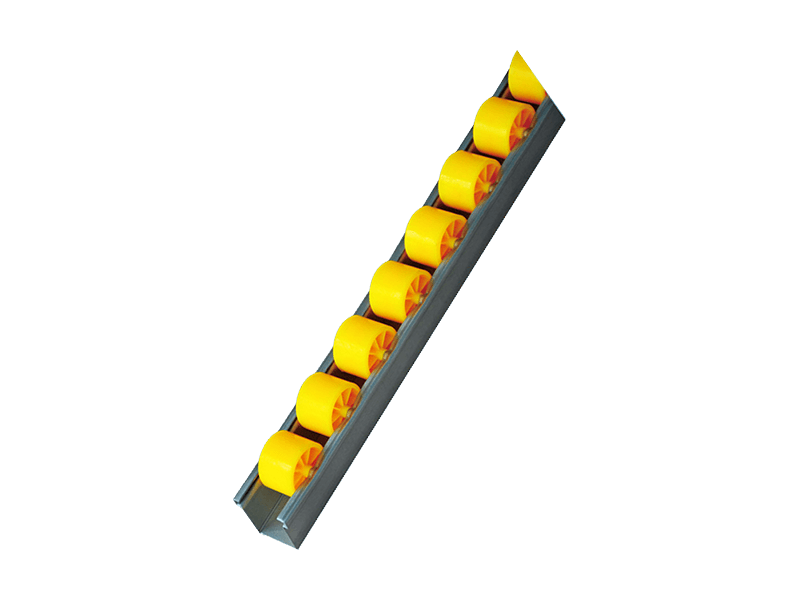

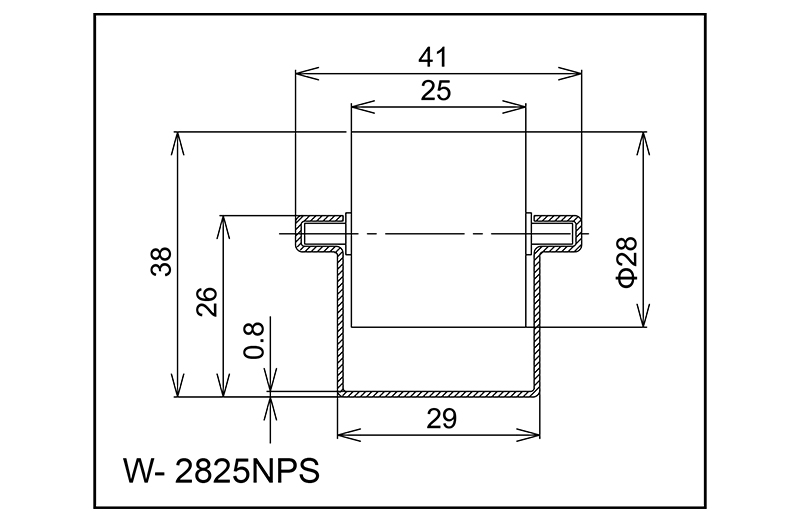

W-2825NPS | 28×25×3 | 3×38L | 26×41/29×0.8(1.0) | 38 | 1000 ·2000 ·3000 | 33 · 35 · 45 | 6 | Electro galvanized | ABS |
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading(kg) F...
Type | D*W*d*b | Shaft | Frame size h*w1*w2*w3*t |
Height H |
Length L |
Wheel pitch P |
Single wheel loading (kg) |
Frame type | Roller maternal |

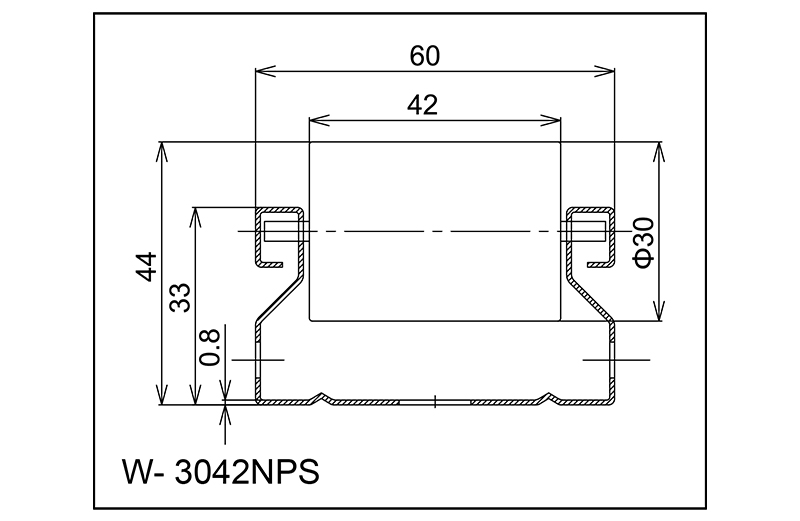

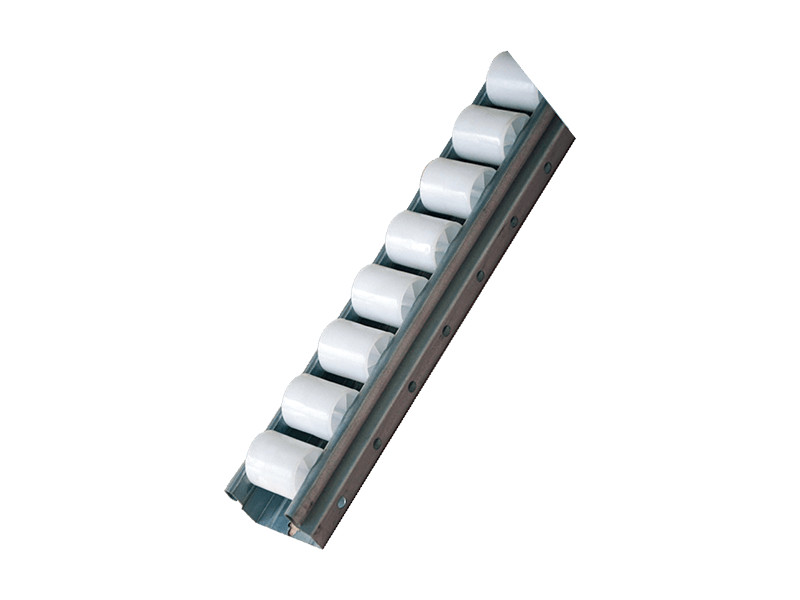

W-3042NPS | 30×42×3.5 | 3.5×55L | 33×60×0.8 | 44 | 1000 ·2000 ·3000 | 36 | 30 | Electro galvanized | PE |
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading(kg) F...
Type | D*W*d*b | Shaft | Frame size h*w1*w2*w3*t |
Height H |
Length L |
Wheel pitch P |
Single wheel loading (kg) |
Frame type | Roller maternal |

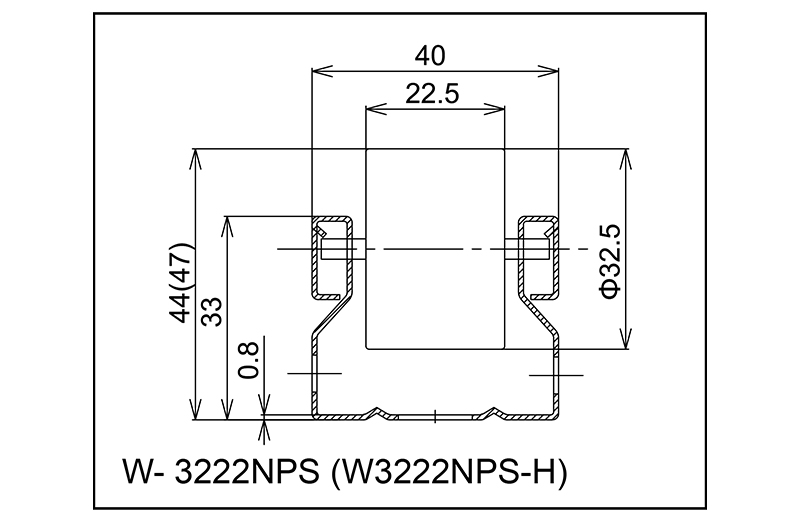

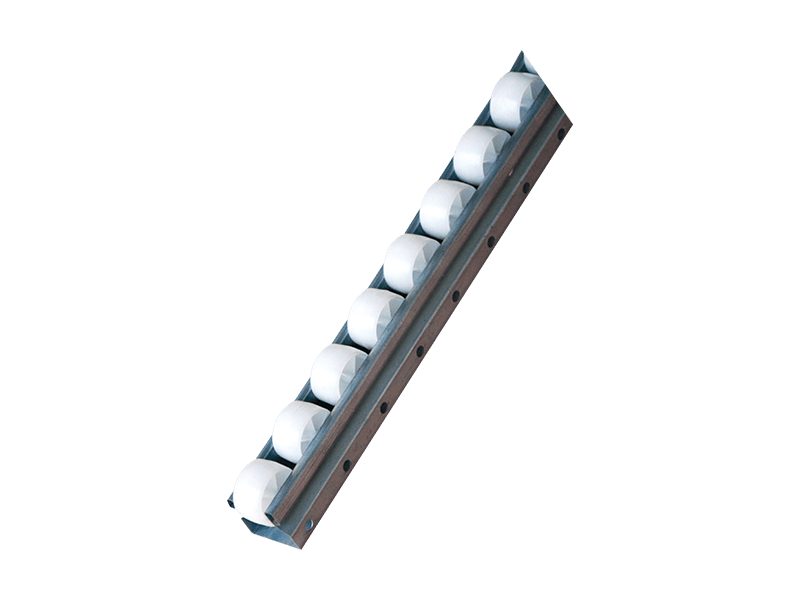

W-3222NPS | 32.5×22.5×3 | 3×38L | 33×40×0.8(1.0) | 44 | 1000 ·2000 ·3000 | 36 | 10 | Electro galvanized | PE white ABS yellow |
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading(kg) F...
Type | D*W*d*b | Shaft | Frame size h*w1*w2*w3*t |
Height H |
Length L |
Wheel pitch P |
Single wheel loading (kg) |
Frame type | Roller maternal |

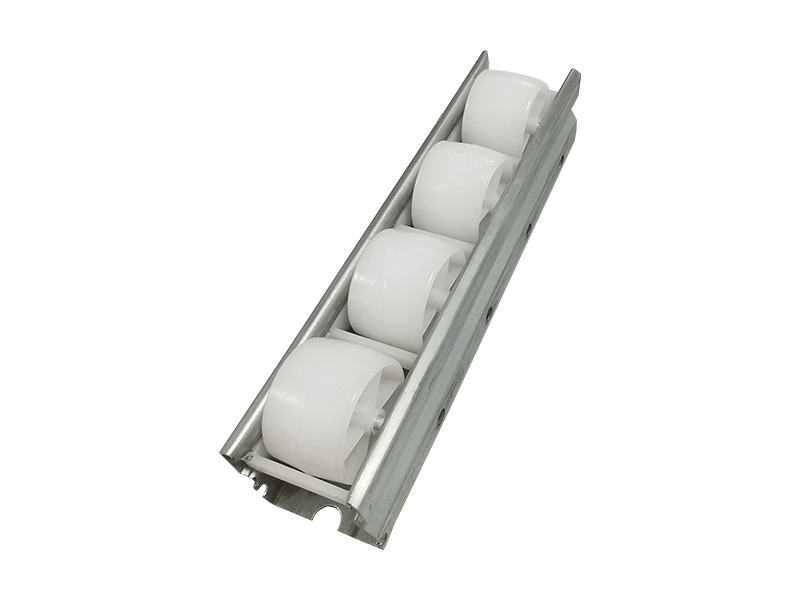

W-3324NPS | 33.5×24.5×3.4 | 3.4×38.5L | 36×40×0.8 | 45 | 1000.2000:3000 | 36 | 10 | Electro galvanized | ABS PE |
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading(kg) F...
Type | D*W*d*b | Shaft | Frame size h*w1*w2*w3*t |
Height H |
Length L |
Wheel pitch P |
Single wheel loading (kg) |
Frame type | Roller maternal |

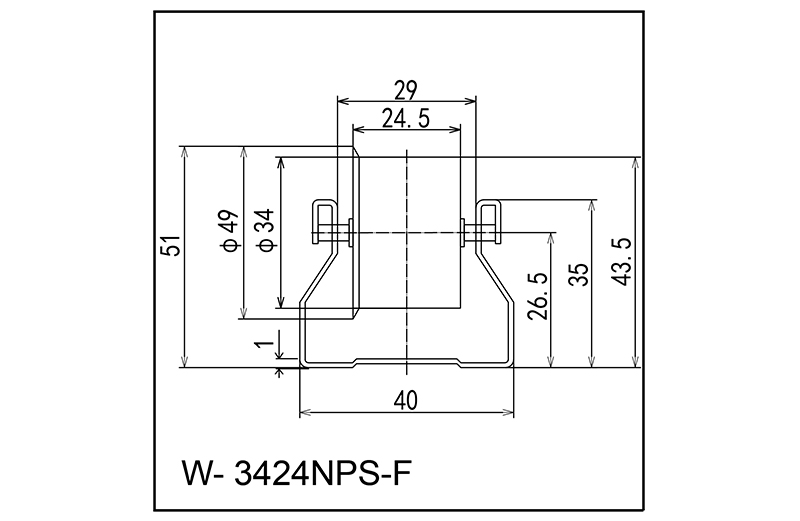

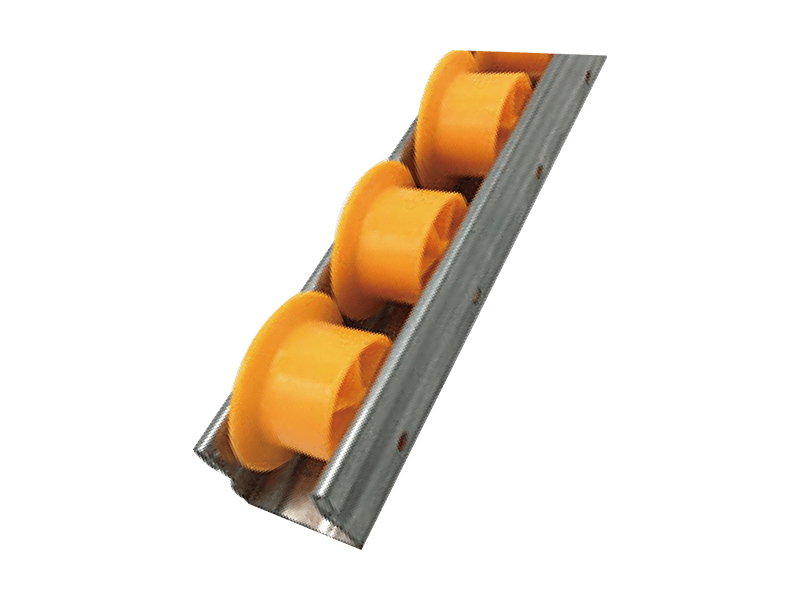

W-3424NPS-F | 34×24.5×3 | 3×37L | 35×40×0.8(1.0) | 51 | 1000 ·2000 ·3000 | 52 | 15 | Electro galvanized | ABS PE |
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading(kg) F...
Type | D*W*d*b | Shaft | Frame size h*w1*w2*w3*t |
Height H |
Length L |
Wheel pitch P |
Single wheel loading (kg) |
Frame type | Roller maternal |

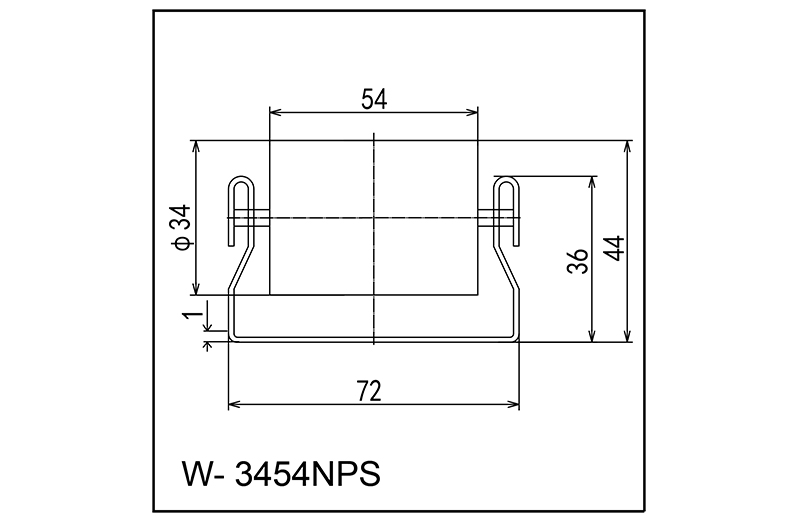

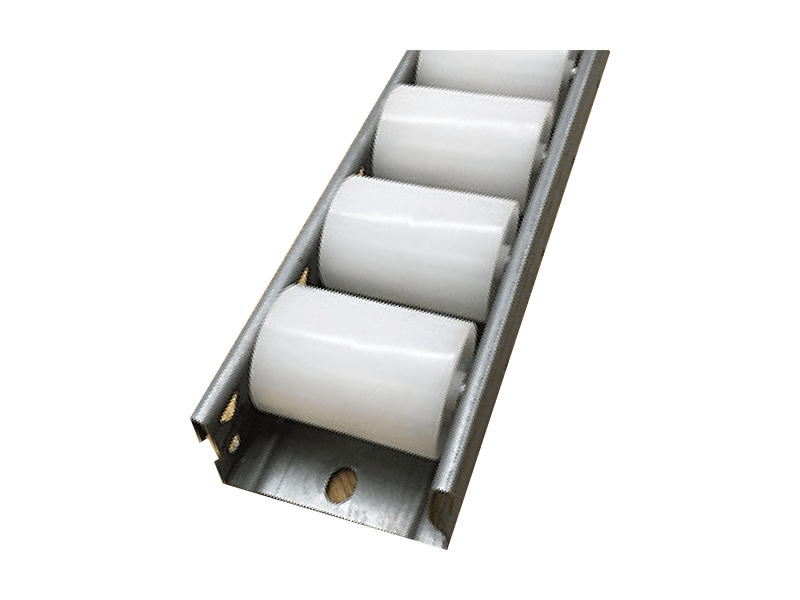

W-3454NPS | 34×54×5 | 5×68L | 36×72×1.0 | 44 | 1000 ·2000 ·3000 | 42 | 30 | Electro galvanized | ABS PE |
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading(kg) F...
Type | D*W*d*b | Shaft | Frame size h*w1*w2*w3*t |
Height H |
Length L |
Wheel pitch P |
Single wheel loading (kg) |
Frame type | Roller maternal |

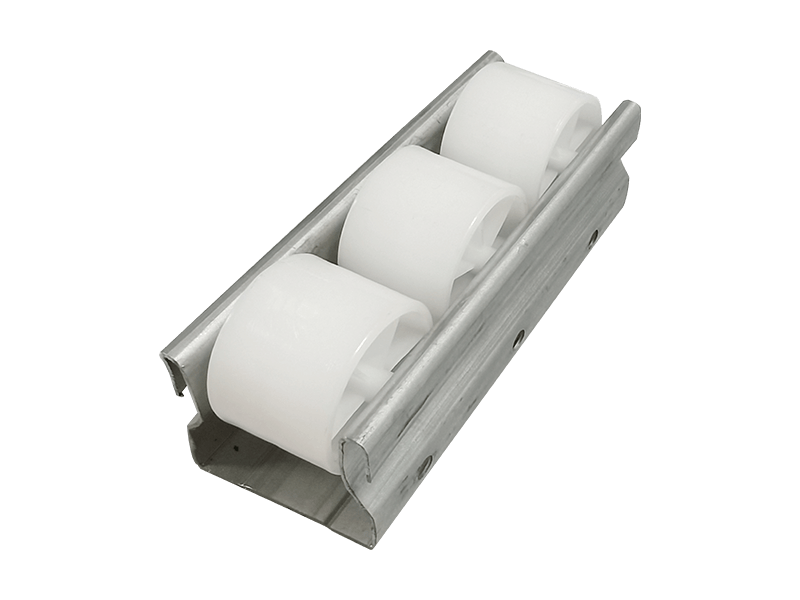

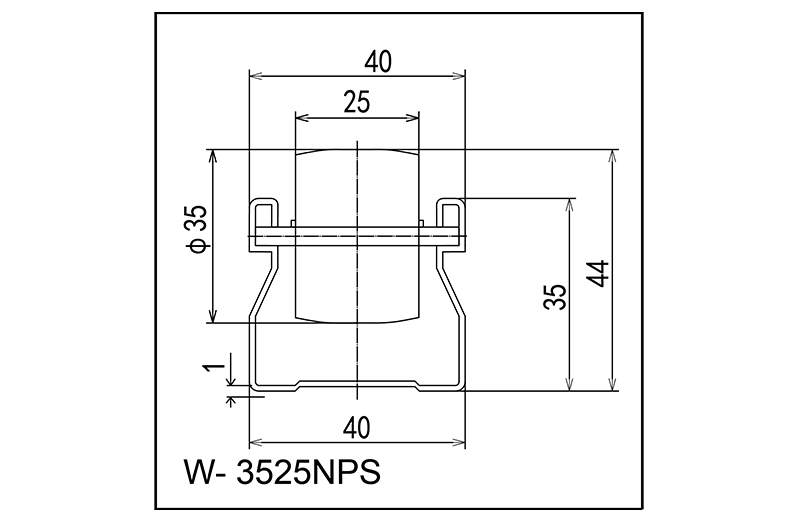

W-3525NPS | 35×25×3.4 | 3.4×35L | 35×40×1.0 | 43 | 1000 ·2000 ·3000 | 36 | 10 | Electro galvanized | ABS PE |

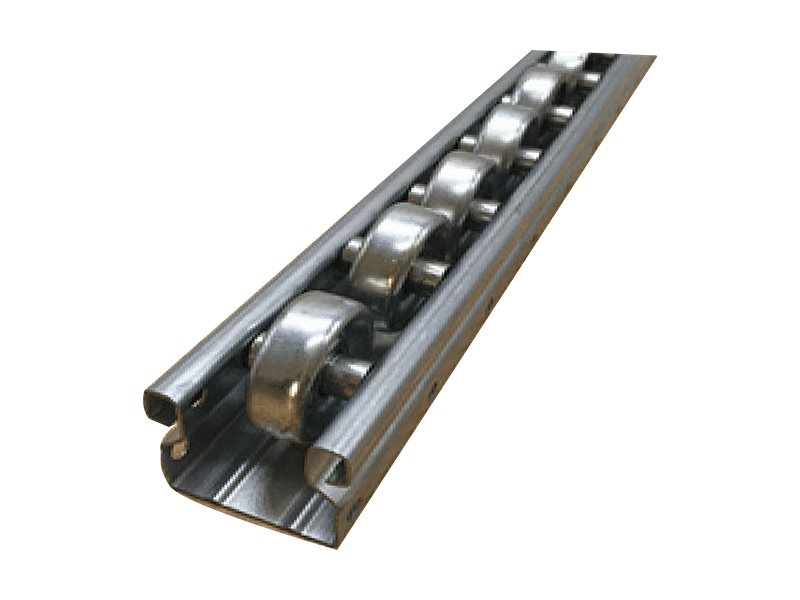

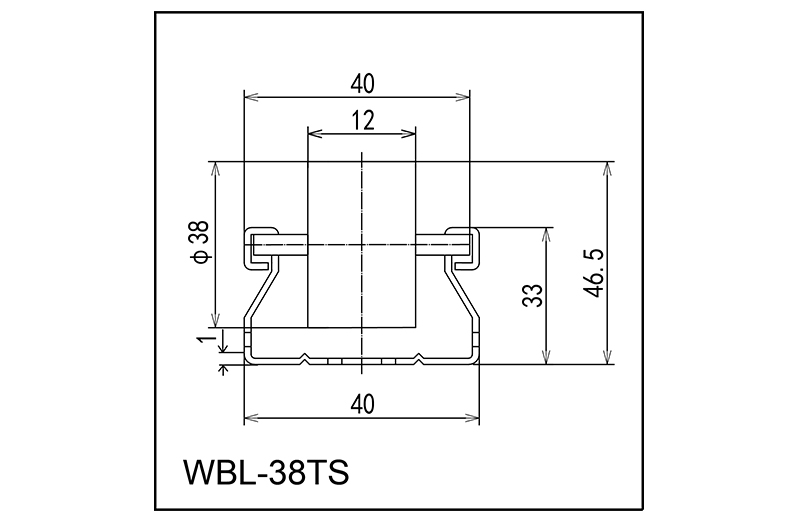

WBL-38TS | 38×12×3.4 | 3.4×38.5L | 46.5×40×0.8(1.0) | 46.5 | 1000 ·2000 ·3000 | 45 · 50 · 75 · 100 | 20 | Galvanized iron ABS | |
W-3822NPS | 38×22.5×3.4 | 3.4×38L | 33×40×0.8(1.0) | 47 | 1000 ·2000 ·3000 | 45 | 10 | ABS PE | |
W-3824NPS | 38×24.5×3 | 3×42L | 32×44×1.0 | 45 | 1000 ·2000 ·3000 | 45 | 20 | ABS | |
W-3824NPS-H | 38×24.5×3 | 3×38I | 32×44×0.8(1.0) | 47 | 1000 ·2000 ·3000 | 45 | 25 | ABS | |
W-3825NPS | 38×25×3.8 | 3.8×40L | 33×44×1.0 | 44 | 1000 ·2000 ·3000 | 45 | 20 | ABS PE | |
W-4555NPS | 45×55×5 | 5×80L | 33×85×1.2 | 50 | 1000 ·2000 ·3000 | 50 | 60 | PE | |
W-4816ABS | 48×16×6 | 6×35L | 38×47×2.5 | 55 | 1000 ·2000 ·3000 | 45 · 50 · 75 · 100 | 10 | Bearing package ABS | |
W-4838NPS | 48×38×10 | 10×60L | 42×49×2 | 55 | 1000 ·2000 ·3000 | 50 · 75 · 100 | 10 | Cold rolled plate bending | Polyoxymethylene |
MMS-3310SS | 33×9×5×21.5(25.5) | 3.5×38L | 33×40×0.8 | 44 | 1000 ·2000 ·3000 | 22.5 Staggeredtype | 6 | Electro galvanized | PE |
MMW-3310SS | 33×10×5×21.5(68) | 5×82L | 33×85×1.2 | 46 | 1000 ·2000 ·3000 | 25 Staggered type | 10 | PE |
Type D*W*d*b Shaft Frame sizeh*w1*w2*w3*t HeightH LengthL Wheel pitchP Single wheel loading(kg) F...
Type | D*W*d*b | Shaft | Frame size h*w1*w2*w3*t |
Height H |
Length L |
Wheel pitch P |
Single wheel loading (kg) |
Frame type | Roller maternal |
WBL-38TS | 38×12×3.4 | 3.4×38.5L | 46.5×40×0.8(1.0) | 46.5 | 1000 ·2000 ·3000 | 45 · 50 · 75 · 100 | 20 | Electro galvanized | Galvanized iron ABS |
