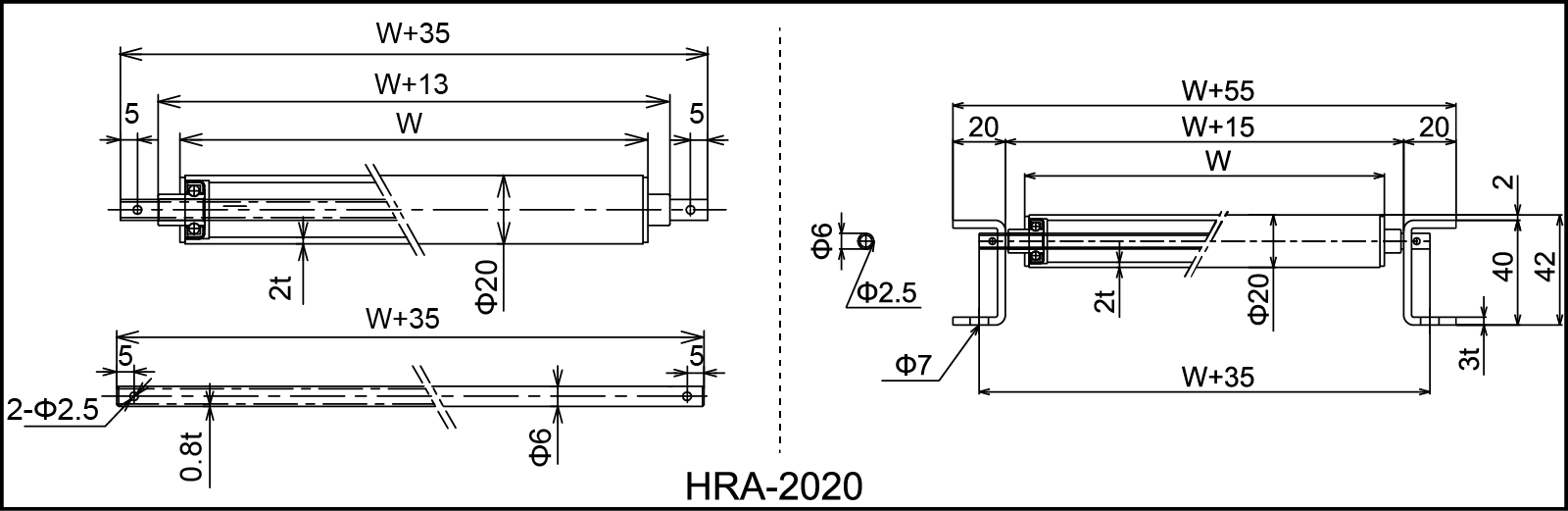

HRA-2020
Cat:Aluminium Roller Conveyor
Width of roller W(mm) 100 200 300 400 500 600 Width of conveyor W+55(mm) 155 255 355 4...
wxhq56@foxmail.com
wxhq56@foxmail.com
Advanced structure, high-quality performance, easy to use, high reliability and durability.

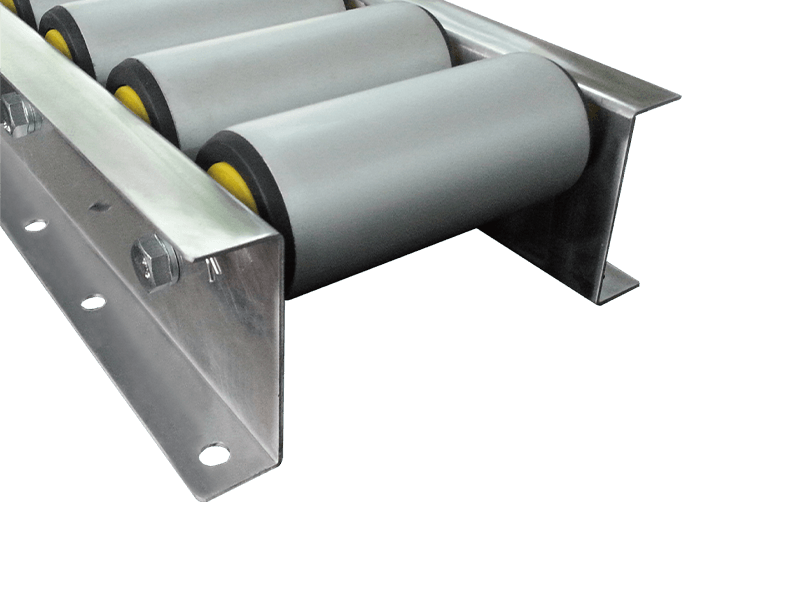

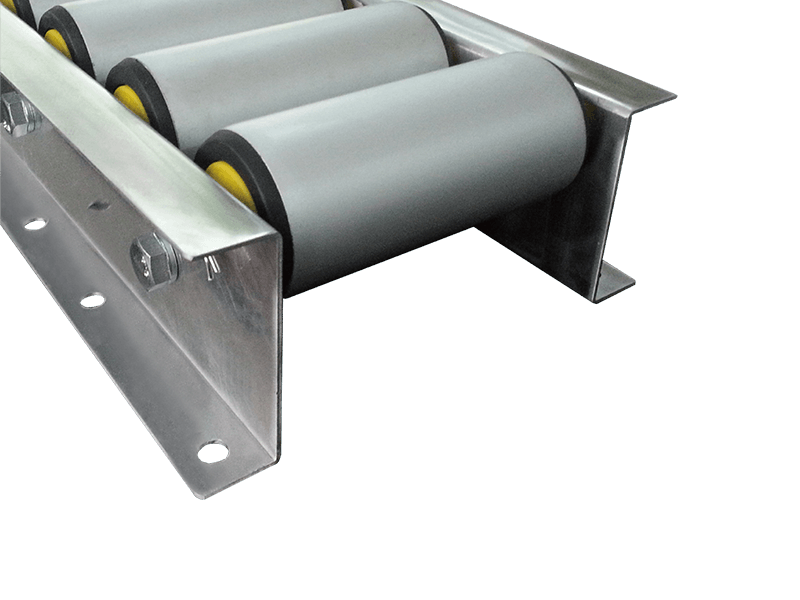

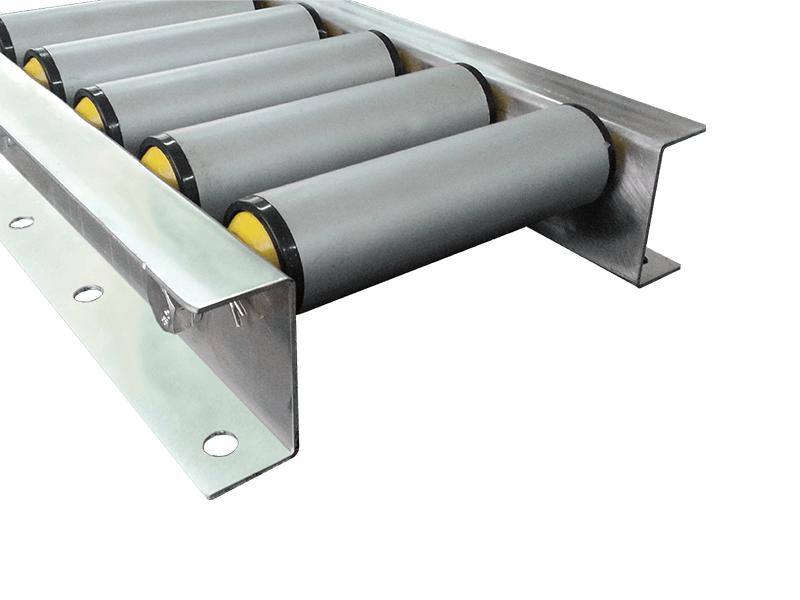

An aluminum roller conveyor is a lightweight conveyor ideal for frequent movement, such as in rescue operations, port facilities, and temporary logistics sites. The rollers are made of aluminum alloy, anodized for a smooth, rust-resistant surface. Frames and supports are typically aluminum as well but can be combined with other materials like stainless steel or powder-coated steel.

Width of roller W(mm) 100 200 300 400 500 600 Width of conveyor W+55(mm) 155 255 355 4...
| Width of roller W(mm) | 100 | 200 | 300 | 400 | 500 | 600 | |
| Width of conveyor W+55(mm) | 155 | 255 | 355 | 455 | 555 | 655 | |
| Loading of roller(kg) | 12 | 12 | 12 | 10 | 8 | 6 | |
| 2000L Weight of conveyor(kg) | 22P | 10 | 14 | 19 | 23 | 28 | 32 |
| Weight of roller(g) | 70 | 120 | 180 | 230 | 280 | 340 | |


Width of roller W(mm) 100 200 300 400 500 600 Width of conveyor W+65(mm) 165 265 365 4...
| Width of roller W(mm) | 100 | 200 | 300 | 400 | 500 | 600 | |
| Width of conveyor W+65(mm) | 165 | 265 | 365 | 465 | 565 | 665 | |
| Loading of roller(kg) | 25 | 25 | 25 | 20 | 17 | 14 | |
| 2000L Weight of conveyor(kg) | 30P | 12 | 17 | 22 | 28 | 33 | 38 |
| 50P | 9 | 12 | 16 | 19 | 22 | 25 | |
| Weight of roller(g) | 120 | 190 | 260 | 330 | 400 | 470 | |


Width of roller W(mm) 100 200 300 400 500 600 Width of conveyor W+75(mm) 175 275 375 4...
| Width of roller W(mm) | 100 | 200 | 300 | 400 | 500 | 600 | |
| Width of conveyor W+75(mm) | 175 | 275 | 375 | 475 | 575 | 675 | |
| Loading of roller (kg) | 50 | 50 | 42 | 31 | 25 | 19 | |
| 3000L Weight of conveyor(kg) | 40P | 13.5 | 18 | 22.6 | 27.1 | 31.7 | 36.2 |
| 50P | 12 | 15.7 | 19.4 | 23.2 | 26.9 | 30.6 | |
| Weight of roller(g) | 100 | 155 | 210 | 265 | 320 | 375 | |


Width of roller W(mm) 100 200 300 400 500 600 Width of conveyor W+75mm) 175 275 375 47...
| Width of roller W(mm) | 100 | 200 | 300 | 400 | 500 | 600 | |
| Width of conveyor W+75mm) | 175 | 275 | 375 | 475 | 575 | 675 | |
| Loading of roller(kg) | 50 | 50 | 42 | 31 | 25 | 21 | |
| 3000L Weight of conveyor(kg) | 50P | 12.6 | 16.9 | 21.2 | 25.6 | 29.9 | 33.6 |
| 75P | 10.4 | 13.4 | 16.4 | 19.5 | 22.5 | 24.9 | |
| Weight of roller(g) | 110 | 175 | 240 | 305 | 370 | 435 | |


Width of roller W(mm) 100 200 300 400 500 600 Width of conveyor W+75(mm) 175 275 375 4...
| Width of roller W(mm) | 100 | 200 | 300 | 400 | 500 | 600 | |
| Width of conveyor W+75(mm) | 175 | 275 | 375 | 475 | 575 | 675 | |
| Loading of roller(kg) | 80 | 64 | 52 | 45 | 38 | 30 | |
| 3000L Weight of conveyor(kg) | 50P | 14 | 18.7 | 23.5 | 28.2 | 33.0 | 37.0 |
| 75P | 11.3 | 14.6 | 17.9 | 21.2 | 24.5 | 27.2 | |
| Weight of roller(g) | 133 | 205 | 277 | 349 | 421 | 493 | |



Width of roller W(mm) 100 200 300 400 500 600 700 800 Width of conveyor W+75(mm) 175 2...
| Width of roller W(mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | |
| Width of conveyor W+75(mm) | 175 | 275 | 375 | 475 | 575 | 675 | 775 | 875 | |
| Loading of roller(kg) | 90 | 80 | 70 | 60 | 45 | 38 | 34 | 32 | |
| 3000L Weight of conveyor(kg) | 75P | 17.3 | 22.3 | 27.3 | 32.4 | 37.4 | 41.8 | 46.8 | 51.9 |
| 100P | 15.0 | 18.9 | 22.8 | 26.7 | 30.5 | 33.8 | 37.7 | 41.5 | |
| Weight of roller(g) | 250 | 365 | 480 | 595 | 710 | 825 | 940 | 1055 | |


Width of roller W(mm) 100 200 300 400 500 600 Width of conveyor W+75(mm) 175 275 375 4...
| Width of roller W(mm) | 100 | 200 | 300 | 400 | 500 | 600 | |
| Width of conveyor W+75(mm) | 175 | 275 | 375 | 475 | 575 | 675 | |
| Loading of roller(kg) | 260 | 252 | 240 | 235 | 223 | 217 | |
| 2500L Weightof conveyor(kg) | 100P | 34 | 47 | 61 | 74 | 87 | 99 |
| 150P | 28 | 37 | 46 | 55 | 63 | 70 | |
| Weight of roller(g) | 883 | 1473 | 2062 | 2652 | 3242 | 3832 | |


Width of roller W(mm) 100 200 300 400 500 600 Width of conveyor W+75(mm) 175 275 375 4...
| Width of roller W(mm) | 100 | 200 | 300 | 400 | 500 | 600 | |
| Width of conveyor W+75(mm) | 175 | 275 | 375 | 475 | 575 | 675 | |
| Loading of roller(kg) | 285 | 275 | 268 | 260 | 255 | 251 | |
| 2500L Weight of conveyor(kg) | 100P | 36 | 50 | 64 | 78 | 92 | 104 |
| 175P | 29 | 38 | 48 | 57 | 67 | 74 | |
| Weight of roller(g) | 951 | 1579 | 2208 | 2836 | 3464 | 4092 | |
