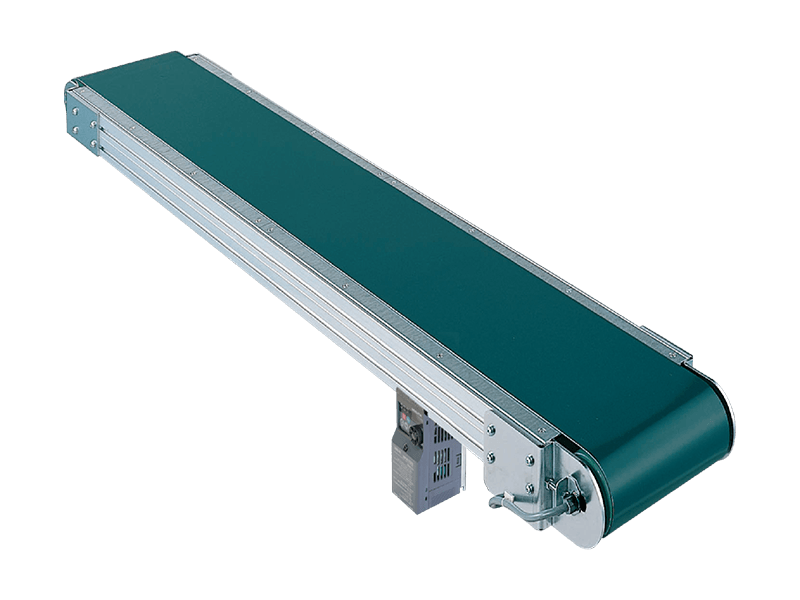

عربى34 Frame SI/GI Small Belt Conveyor
Cat:Standard type conveyor
SI Standard Type ● This is standard type of 34mm belt conveyor, driving center is moved by Timing be...
See Details
Special Cusstom-Made Belt Conveyor
Special custom-made belt conveyors are tailored by Wuxi Huiqian to meet specific client requirements for unique styles or functionalities. These conveyors may include dual-row belt conveyors, multi-row belt conveyors, conveyors with installed or welded fixtures, knife-edge belt conveyors, retractable belt conveyors (either electric or manual), height-adjustable belt conveyors (either electric or manual), and conveyors with built-in light sources, among others.
-
SI Standard Type
● This is standard type of 34mm belt conveyor, driving center is moved by Timing belt.
● The belt has good capability of silence and wearability.GI Guide Type
● This type of belt conveyor goes with oriented gibbous belt, which can assure movement more smoothly and steadily; convenient to use with other equipment, suitable for high requiring situations of time and stability.
● Moreover, clockwise and anti-clockwise running can be choosed by different conditions, and different colors by different purposes.Standard Dimension
Belt width 100 150 200 250 300 350 400 500 600 Conveyor Width 140 190 240 290 340 390 440 540 640 Conveyor Length 500 1000 1500 2000 2500 3000 3500 4000 5000 6000 7000 8000 Height 169 Power AC100V (single-phase) · AC200V (single-phase) · AC200V (three-phase) Speed Fixed/Variable speed Belt Polyurethane belt Capability Reference ability table Option Support, Guide, Others Motor power 25W、40W、60W、90W Actual dimension of belt is narrowed 5mm than above standard belt; If the length of machine exceeds 4m, with specifications of belt 500, 600 for width it will be narrowed 10mm.
lf the length exceeds 6m, there will be a support in the middle.
Belt SpeedRatio Speed No. Fixed speed
50/60(Hz)(m/min)Speed No. Variable speed
50 ·60(Hz)(m/min)1/180 T1 1.9/2.3 H1 0.13~2.5 1/2050 T2 2.3/2.7 H2 0.15~3.0 1/2020 T3 2.8/3.4 H3 0.19~3.8 1/2000 T4 3.4/4.1 H4 0.23~4.5 1/90 T5 3.8/4.5 H5 0.26~5.1 1/75 T6 4.6/5.5 H6 0.31~6.1 1/60 T7 5.7/6.8 H7 0.38~7.6 1/50 T8 6.8/8.2 H8 0.46~9.1 1/36 T9 9.5/11.4 H9 0.63~12.6 1/30 T10 11.4/13.7 H10 0.76~15.2 1/25 T11 13.7/16.4 H11 0.91~18.2 1/18 T12 19.0/22.8 H12 1.27~25.3 1/15 T13 22.8/27.3 H13 1.52~30.4 1/12.5 T14 27.3/32.8 H14 1.82~36.4 1/9 T15 37.9/45.5 H15 2.53~50.6 Speed calculation of fixed speed : rotate speed 1500/1800rpm(50/60Hz), Driving roller ∅76.3, Driving efficiency: 95%
Speed calculation of variable speed : rotate speed 2000rpm(50;60Hz), Driving roller ∅76.3, Driving efficiency: 95%
If exact speed is required, please choose variable forms.
Ability Table
This is capability data of equal dispersal loading. As moving bag-shape goods, please refer to 40% of aboving capability data.
Capability will be changed by different conditions.
Motor Machine Width Dimension BeyondFixed Speed
Power\Belt width 100 150 25W 21.5(11) - 40W 59(41) 9 60W 85 35 90W 100 50 Variable Speed
Power\Belt width 100 25W - 40W 11 90W 22 Standard Power
Standard assembly is brushless DC motor and controlling unit at variable speed model.From low speed to high speed with immovable exporting torsion.
Speed extension 100r/min~2000r/min can be adjustable.(speed proportion 1:20).
Drawing
-
34 Frame NGI Small Belt Conveyor
Cat:Standard type conveyor
Standard Dimension Belt width 50 75 Conveyor Width 90 115 Conveyor Length 500 1,000 1,50...
See DetailsStandard Dimension
Belt width 50 75 Conveyor Width 90 115 Conveyor Length 500 1,000 1,500 2,000 2,500 3,000 3,500 4,000 5,000 6,000 Height 150 Power AC100V (single-phase) · AC200V (single-phase) · AC200V (three-phase) Speed FixedNariable speed Belt Polyurethane belt Capability Reference ability table Option Support, Guide, Others Motor power 25W、40W、60W、90W Actual dimension of belt is narrowed 5mm than aboving standard belt.
Belt SpeedRatio Speed No. Fixed speed
50/60(Hz)(m/min)
Speed No. Variable speed
50/60(Hz)(m/min)
1/180 T1 16./1.9 H1 0.11~2.1 1/2050 T2 1.9/2.3 H2 0.13~2.6 1/2020 T3 2.4/2.9 H3 0.16~3.2 1/2000 T4 2.9/3.5 H4 0.20~3.9 1/90 T5 3.2/3.9 H5 0.22-4.3 1/75 T6 3.9/4.6 H6 0.26~5.2 1/60 T7 4.8/5.8 H7 0.33~6.5 1/50 T8 5.8/7.0 H8 0.39~7.7 1/36 T9 8.1/9.7 H9 0.54~10.8 1/30 T10 9.7/11.6 H10 0.65~12.9 1/25 T11 11.6/14.0 H11 0.78~15.5 1/18 T12 16.2/19.4 H12 1.08~21.5 1/15 T13 19.4/23.3 H13 1.30~25.9 1/12.5 T14 23.3/27.9 H14 1.55~31.0 1/9 T15 32.3/38.8 H15 2.16~43.1
Ability Table
This is capability data of equal dispersal loading. As moving bag-shape goods, please refer to 40% of aboving capability data.
Capability will be changed by different conditions.Motor Machine Width Dimension Beyond
Fixed Speed
Power\Belt width 50 75 25W 46.5(36) 21.5(11) 40W 84(66) 59(41) Variable Speed
Power\Belt width 50 75 25W 3.5 - 40W 36(18) 11 Drawing
-
34 Frame JI/JGI Small Belt Conveyor
Cat:Standard type conveyor
JI: Be suytable for using un the middle of equipment conveying or conveying equipment conveying, sho...
See DetailsJI: Be suytable for using un the middle of equipment conveying or conveying equipment conveying, shortest length is 300mm.
J Model, Type-J is anti deviation belt conveyor. lt is Suitable for using in difficult maintenance. lt can be set for forward and back running. lt is also can be used in hard conditions.
Standard Dimension
Belt width 50 75 100 150 200 250 300 350 400 500 Conveyor Width 90 115 140 190 240 290 340 390 440 540 Conveyor Length 300 500 1000 1500 2000 2500 3000 Height 250 Power AC100V (single-phase) · AC200V (single-phase) · AC200V (three-phase) Speed FixedNariable speed Belt Polyurethane belt Capability 15Kg/set (JI)
10kg/set (JGI)Option Support, Guide, Others Motor power 25W、40W、60W、90W Actual dimension of belt is narrowed 5mm than aboving standard belt.
Belt SpeedRatio Speed No. Fixed speed
50/60(Hz)(m/min)
Speed No. Variable speed
50/60(Hz)X(m/min)
1/180 T1 1.7/2.1 H1 0.12~2.3 1/2050 T2 2.1/2.3 H2 0.14~2.7 1/2020 T3 2.6/3.1 H3 0.18~3.5 1/2000 T4 3.1/3.7 H4 0.21~4.1 1/90 T5 3.5./4.1 H5 0.23~4.6 1/75 T6 4.2/5.0 H6 0.28~5.5 1/60 T7 5.2/6.2 H7 0.35-6.9 1/50 T8 6.2/7.5 H8 0.42~8.3 1/36 T9 8.7/10.4 H9 0.58-11.5 1/30 T10 10.4/12.5 H10 0.70~13.9 1/25 T11 12.6/15.0 H11 0.83~16.6 1/18 T12 17.4/21.0 H12 1.16~23.2 1/15 T13 21.0/25.0 H13 1.39~27.8 1/12.5 T14 25.0/30.0 H14 1.67~33.3 1/9 T15 34.6/41.7 H15 2.32-46.4
Standard PowerJI
Length/Beit width 50~200 250~500 300~3,000 25W、40W 40W、60W
JGILength/Beit width 75~250 300~350 300~3,000 40W Fixed speed 60W, variable speed 90W Motor Machine Width Dimension Beyond
Fixed Speed
Power\Belt width 50 75 100 150 25W 62.5(52) 37.5(27) 12.5(2) - 40W 100(82) 75(57) 50(32) - 60W - 101 76 26 Variable Speed
Power\Belt width 50 75 100 25W 19.5(9) - - 40W 52(34) 27(9) 2 90W - 38 13 Drawing
-
34 Frame DIIU/DIID Small Belt Conveyor
Cat:Standard type conveyor
Standard Dimension Belt width 100 150 200 250 300 350 400 500 Conveyor Width 140 190 ...
See DetailsStandard Dimension
Belt width 100 150 200 250 300 350 400 500 Conveyor Width 140 190 240 290 340 390 440 540 Conveyor Length 1,000 1,500 2,000 2,500 3,000 Height 280 Power AC100V (single-phase) · AC200V (single-phase) · AC200V (three-phase) Speed FixedNariable speed Belt Polyurethane belt Capability Reference ability table Option Support, Guide, Others Motor power 60W、90W Actual dimension of belt is narrowed 5mm than aboving standard belt.
Belt SpeedRatio Speed No. Fixed speed
50/60(Hz)(m/min)
Speed No. Variable speed
50/60(Hz)(m/min)
1/180 T1 16./1.9 H1 0.11~2.1 1/2050 T2 1.9/2.3 H2 0.13~2.6 1/2020 T3 2.4/2.9 H3 0.16~3.2 1/2000 T4 2.9/3.5 H4 0.20~3.9 1/90 T5 3.2/3.9 H5 0.22~4.3 1/75 T6 3.9/4.6 H6 0.26~5.2 1/60 T7 4.8/5.8 H7 0.33~6.5 1/50 T8 5.8/7.0 H8 0.39~7.7 1/36 T9 8.1/9.7 H9 0.54~10.8 1/30 T10 9.7/11.6 H10 0.65~12.9 1/25 T11 11.6/14.0 H11 0.78~15.5 1/18 T12 16.2/19.4 H12 1.08~21.5 1/15 T13 19.4/23.3 H13 1.30~25.9 1/12.5 T14 23.3/27.9 H14 1.55~31.0
Ability Table
This is capability data of equal dispersal loading. As moving bag-shape goods, please refer to 40% of aboving capability data.
Capability will be changed by different conditions.Motor Machine Width Dimension Beyond
Fixed Speed
Power\Belt width 100 150 60W 45 - 90W 60 10 Variable Speed
Power\Belt width 100~500 1,000~4,000 Fixed speed 60W, variable speed 90W Drawing
-
60 Frame DIIU/DIID Small Belt Conveyor
Cat:Standard type conveyor
Standard Dimension Belt width 200 250 300 400 500 600 Conveyor Width 280 330 380 480 ...
See DetailsStandard Dimension
Belt width 200 250 300 400 500 600 Conveyor Width 280 330 380 480 580 680 Conveyor Length 1,000 1,500 2,000 2,500 3,000 Height 300 Power AC100V (single-phase) · AC200V (single-phase) · AC200V (three-phase) Speed FixedNariable speed Belt Polyurethane belt Capability Reference ability table Option Support, Guide, Others Motor power 90W Actual dimension of belt is narrowed 5mm than aboving standard belt.
Belt SpeedRato Speed No Fixed speed
50/60(Hz)(m/min)
Speed No. Variable speed
50/60(Hz)(m/min)
1/180 T1 1.9/2.3 H1 0.13~2.5 1/2050 T2 2.3/2.7 H2 0.15~3.0 1/2020 T3 2.8/3.4 H3 0.19~3.8 1/2000 T4 3.4/4.1 H4 0.23~4.5 1/90 T5 3.8/4.5 H5 0.26~5.1 1/75 T6 4.6/5.5 H6 0.31~6.1 1/60 T7 5.7/6.8 H7 0.38~7.6 1/50 T8 6.8/8.2 H8 0.46~9.1 1/36 T9 9.5/11.4 H9 0.63~12.6 1/30 T10 11.4/13.7 H10 0.76~15.2 1/25 T11 13.7/16.4 H11 0.91~18.2 1/18 T12 19.0/22.8 H12 1.27~25.3 1/15 T13 22.8/27.3 H13 1.52~30.4 1/12.5 T14 27.3/32.8 H14 1.82~36.4
Ability Table
This is capability data of equal dispersal loading. As moving bag-shape goods, please refer to 40% of aboving capability data.
Capability will be changed by different conditions.Drawing
-
60 Frame SI/GI Small Belt Conveyor
Cat:Standard type conveyor
SI Standard Type ● This is standard type of 34mm belt conveyor, driving center is moved by Timing be...
See DetailsSI Standard Type
● This is standard type of 34mm belt conveyor, driving center is moved by Timing belt.
● The belt has good capability of silence and wearability.GI Guide Type
● This type of belt conveyor goes with oriented gibbous belt, which can assure movement more smoothly and steadily; convenient to use with other equipment, suitable for high requiring situations of time and stability.
● Moreover, clockwise and anti-clockwise running can be choosed by different conditions, and different colors by different purposes.Standard Dimension
Belt width 200 250 300 350 400 500 600 (700) (800) Conveyor Width 280 330 380 430 480 580 680 (780) (880) Conveyor Length 500 1000 2000 3000 4000 5000 6000 7000 8000 The models with belt widths of 700 and 800 are standard products.
Height 195 Power AC100V (single-phase) · AC200V (single-phase) · AC200V (three-phase) Speed Fixed/Variable speed Belt Polyurethane belt Capability Reference ability table Option Support, Guide, Others Motor power 60W、90W If the length exceed 6m,the middle place goes with belt support structure.
Belt SpeedRatio Speed No. Fixed speed
50/60(Hz)(m/min)Speed No. Variable speed
50/60(Hz)(m/min)1/180 T1 1.9/2.3 H1 0.13~2.5 1/2050 T2 2.3/2.7 H2 0.15~3.0 1/2020 T3 2.8/3.4 H3 0.19~3.8 1/2000 T4 3.4/4.1 H4 0.23~4.5 1/90 T5 3.8/4.5 H5 0.26~5.1 1/75 T6 4.6/5.5 H6 0.31~6.1 1/60 T7 5.7/6.8 H7 0.38~7.6 1/50 T8 6.8/8.2 H8 0.46~9.1 1/36 T9 9.5/11.4 H9 0.63~12.6 1/30 T10 11.4/13.7 H10 0.76~15.2 1/25 T11 13.7/16.4 H11 0.91~18.2 1/18 T12 19.0/22.8 H12 1.27~25.3 1/15 T13 22.8/27.3 H13 1.52~30.4 1/12.5 T14 27.3/32.8 H14 1.82~36.4 1/9 T15 37.9/45.5 H15 2.53~50.6 Speed calculation of fixed speed : rotate speed 1500/1800rpm(50/60Hz), Driving roller ∅76.3, Driving efficiency: 95%
Speed calculation of variable speed : rotate speed 2000rpm(50;60Hz), Driving roller ∅76.3, Driving efficiency: 95%
If exact speed is required, please choose variable forms.Ability Table
This is capability data of equal dispersal loading. As moving bag-shape goods, please to 40% of aboving capability data.
The specification of 500,600 width of belt is 80% of aboving capability data.
Capability will be changed by different conditions.
Standard Power
Standard assembly is brushless DC motor and controlling unit at variable speed model.
From low speed to high speed with immovable exporting torsion.
Speed extension 100r/min~2000r/min can be adjustable.(speed proportion 1:20)
Drawing
-
60 Frame VSI/VGI Small Belt Conveyor
Cat:Standard type conveyor
Standard Dimension Belt width 200 250 300 350 400 500 600 700 800 Conveyor Width 280 330 380 43...
See DetailsStandard Dimension
Belt width 200 250 300 350 400 500 600 700 800 Conveyor Width 280 330 380 430 480 580 680 780 880 Conveyor Length 500 1000 2000 3000 4000 5000 6000 7000 8000 Height 277 Power AC100V (single-phase) · AC200V (single-phase) · AC200V (three-phase) · DC24V(direct) Speed Fixed/Variable speed Belt Polyurethane belt Capability Reference ability table Option Support, Others Motor power 60W、90W、120W Actual dimension of belt is narrowed 5mm than aboving standard belt; lf the length of machine exceed 4m narrowed 10mm.
Ability Table
This is capability data of equal dispersal loading. As moving bag-shape goods, please refer to 40% of aboving capability data.
Capability will be changed by different conditions.Drawing
-
60 Frame ZDII Small Belt Conveyor
Cat:Standard type conveyor
Inclined carry inclined type Max angle of inclination can reach 45 degree Protection cover and hoppe...
See DetailsInclined carry inclined type
Max angle of inclination can reach 45 degree
Protection cover and hopper can be chooses as your request
Standard Dimension
Belt width 300 400 500 600 Effective belt width 200 300 400 500 Conveyor Width 380 480 580 680 Head of delivery 2500 Height 300H(h1) Power Fixed: AC200V (three-phase) · AC100V (single-phase)
Variable: AC200V (single-phase) · AC200V (three-phase)
Speed Fixed/Variable speed Belt Polyurethane rail type belt; Colour: green Capability Reference ability table Option Support Motor power 200W
Belt SpeedRatio Speed No Fixed speed
50/60(Hz)
(m/min)Speed No. Variable speed
50/60(Hz)
(m/min)1/75 T1 5.3/6.4 H1 2.1~6.4 1/50 T2 8.1/9.6 H2 3.2~9.6 1/30 T3 13.4/16.1 H3 5.3~16.1 1/18 T4 22.3/26.8 H4 8.9~26.8
Ability TableHead of delivery Tilt Motor power Speed No Capability 460~3800 30"
45"200W 1 30 2 25 3 20 4 12 Powder and ball shape can not be carried.
Drawing
-
80 Frame SI/GI Small Belt Conveyor
Cat:Standard type conveyor
Different specifications, the weight of the product is not a transport is also very stable, by way o...
See DetailsDifferent specifications, the weight of the product is not a transport is also very stable, by way of conveying belt.
Standard Dimension
Belt Width 200 300 400 500 600 700 800 900 1000 Conveyor Width 300 400 500 600 700 800 900 1000 1100 Conveyor Length 1000 2000 3000 4000 5000 6000 7000 8000 Height 380 Power AC100V (single-phase) · AC200V (single-phase) · AC200V (three-phase)· AC380V (three-phase) Speed Fixed/Variable speed Belt Polyurethane belt Capability Reference ability table Option Support, Others Motor power 100W、200W、400W Actual dimension of belt is narrowed 5mm than aboving standard belt; lf the length of machine exceed 4m narrowed 10mm.
Belt SpeedRatio Speed No. Fixed speed
50/60(Hz)(m/min)
Speed No. Variable speed
50/60(Hz)(m/min)
1/450 T1 1.1/1.3 H1 0.1~1.1/0.45-1.3 1/375 T2 1.4/1.6 H2 0.45~1.4/0.51~1.6 1/300 T3 1.7/2.0 H3 0.56~1.7/0.68~2.0 1/200 T4 2.6/3.1 H4 0.85~2.6/1.0~3.1 1/160 T5 3.2/3.8 H5 1.1~3.2/1.3~3.5 1/2020 T6 4.3/5.1 H6 1.4~4.3/1.7~5.1 1/2000 T7 5.1/6.1 H7 1.7~5.1/2.0~6.1 1/80 T8 6.4/7.7 H8 2.1~6.4/2.6~7.7 1/60 T9 8.5/10.2 H9 2.8~8.5/3.4~10.2 1/50 T10 10.2/12.2 H10 3.4~10.2/4.1~12.2 1/40 T11 12.8/15.3 H11 4.3~12.8/5.1~15.3 1/30 T12 17.0/20.4 H12 5.7~17.0/6.8~20.4 1/25 T13 20.4/24.5 H13 6.8~20.4/8.2~24.5 1/20 T14 20.5/30.6 H14 8.5~25.5/10.2~30.6 1/15 T15 34.0/40.8 H15 11.3~34.0/13.6~40.8 Speed calculation of fixed speed rotate speed1500/1800rpm(50/60Hz) Driving roller ∅124, Driving efficiency: 95%
If exact speed is required please choose variable forms.
The standard transmission type inverter.Ability Table
This is capability data of equal dispersal loading. As moving bag-shapegoods, please refer to 40% of aboving capability data.
Capability will be changed by different conditions.Drawing
-
80 Frame SIII Small Belt Conveyor
Cat:Standard type conveyor
Driven source choose strengthen type motorized roller, make driven part height 120mm possible we can...
See DetailsDriven source choose strengthen type motorized roller, make driven part height 120mm possible we can produce waterproof motorized roller(selectable).
Standard Dimension
Belt Width 300 400 500 600 Conveyor Width 390 490 590 690 Conveyor Length 500 1000 1500 2000 2500 3000 3500 4000 Height 120 Power AC100V (single-phase) · AC200V (single-phase) · AC200V (three-phase)· AC380V (three-phase) Speed Fixed/Variable speed Belt Polyurethane belt Capability Reference ability table Option Support, Others Motor power 100W Actual dimension of belt is narowed 10mm than aboving standard belt.
Belt SpeedSpeed No. Fixed speed
50/60(Hz)(m/min)
Speed No. Variable speed
50/60(Hz)(m/min)
Motor power T1 5.4/5.6 H1 2.1~6.4 100W T2 7.7/9.2 H2 3.1~9.2 T3 106./12.7 H3 4.2~12.7 T4 15.8/18.8 H4 6.3~18.8 T5 18.4/22.0 H5 7.3~22.0 T6 20.3/24.2 H6 8.0~24.2 T7 24.3/28.9 H7 9.6~28.9 The standard transmission type inverter.
Drawing
-

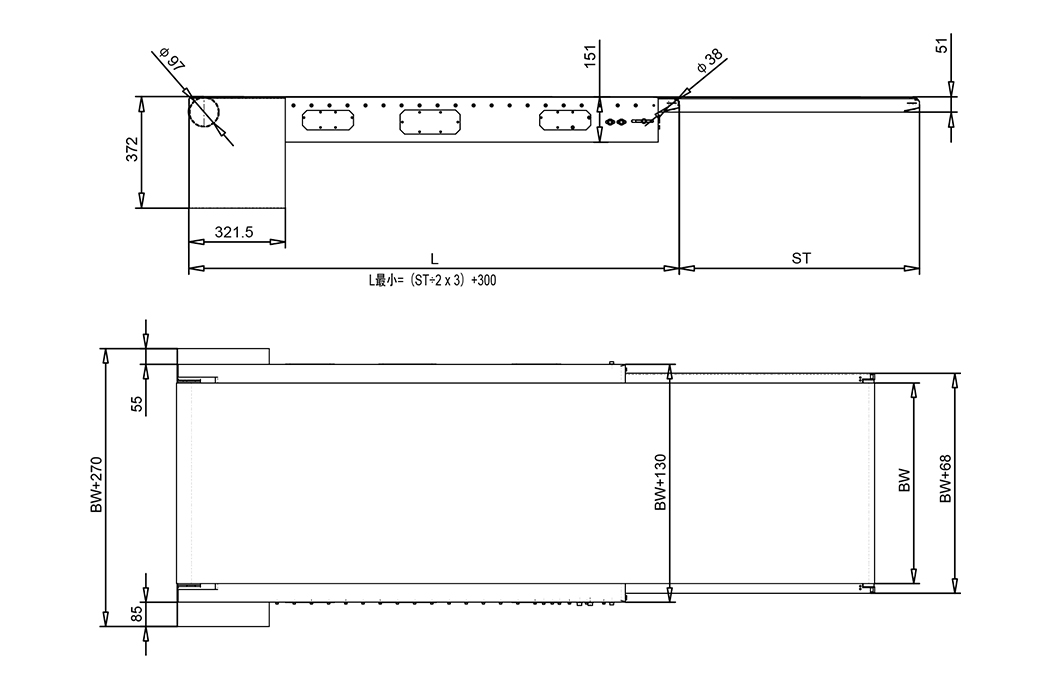

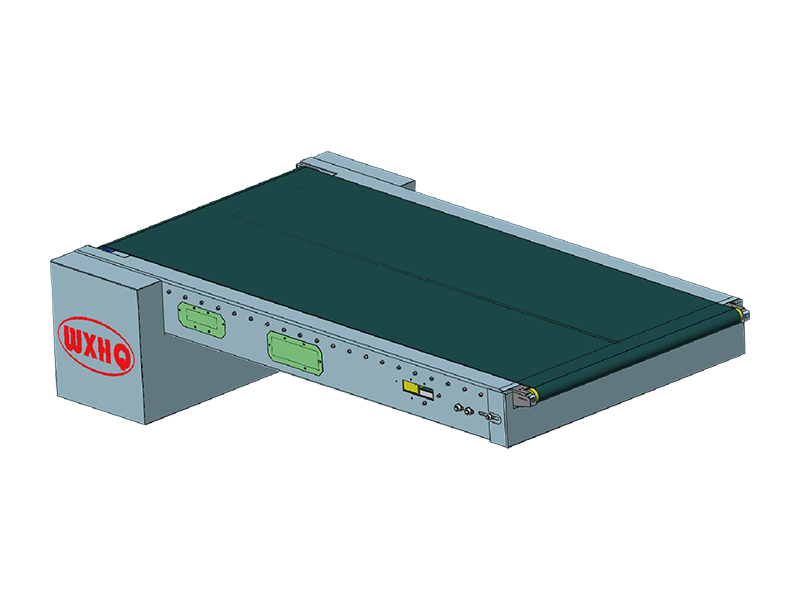

GSBC Telescopic Belt Conveyor
Cat:Standard type conveyor
Type GSBC Scalable type Belt PVC PU Belt width mm 300~1200 Telescopic stroke mm 300~1200...
See DetailsType GSBC Scalable type Belt PVC PU Belt width mm 300~1200 Telescopic stroke mm 300~1200 Drive method Running chain Telescope: timing belt Running motor Asynchronous motor(Optional servo) Telescopic motor Servo Conveyor height mm min375mm Conveyor width mm BW+130 Load capacity(kg/m) Whole machine load capacity≤20Kg Speed V1(m/min) max90 Speed V2(m/min) max60 Telescopic control mode Set any telescopic stop position within the range of step, continuous, and travel Motor power(KW) 0.4、0.75、1.5 Electric power voltage(V) 3PH380V Drawing
