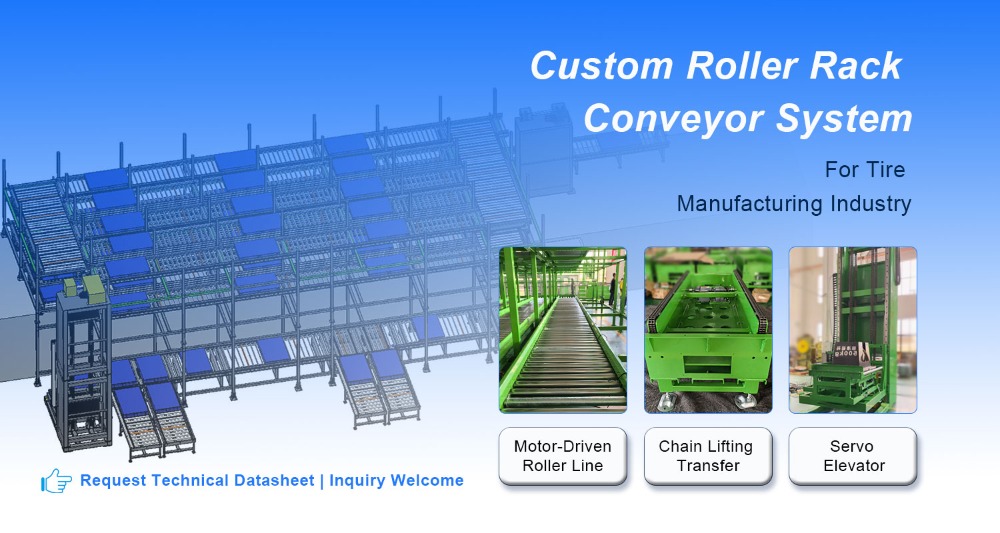

عربىWXHQ Custom-built for Japan’s tire manufacturing industry, this integrated roller rack conveyor system combines motor-driven roller lines, chain lifting transfer conveyors and multi-servo elevators to realize automatic pallet handling and storage. It supports high-cycle continuous operation for tire workshops. Designed for 800×1300 mm pallets with a total payload of 400 kg, the conveyor and elevator reach a speed of 15 m/min, perfectly matching the rhythm of tire production lines.
Powered by 24 VDC / 100 W motor-driven rollers and 08B14Z sprocket-chain transmission, the system delivers stable and low-noise operation. Key components adopt globally recognized brands: Yaskawa servo motors, SEW geared motors and SMC pneumatic cylinders. The elevator is equipped with multi-turn absolute encoders for precise pulse control. Rotary tables and lifting-transfer units are fitted with brake motors for accurate start-stop positioning, preventing pallet offset and protecting bulky tire cargo during transit. Built for 3-phase 200 V 60 Hz power supply, the unit fits Japanese factory power specifications without extra power conversion.
φ60 galvanized carbon-steel rollers resist dust and moisture in production environments. The main frame is powder-coated in RAL6018 yellow-green, while safety guards use RAL1003 signal yellow for clear visual safety identification. Adjustable guard intervals enable flexible adaptation to varied material workflows.
This fully-automated workflow covers pallet inbound, transfer, lifting and sorting. It cuts manual handling and avoids tire surface damage. Thanks to modular construction, guards and conveyor modules can be modified for future capacity expansion. Balancing heavy-load capacity, positioning accuracy and safety protection, this solution enables integrated intelligent handling & storage for tire-manufacturing facilities.
